RM3660EC _58 Vehicle Interior _080748 SEAT BELT _0391781 REAR SEAT OUTER BELT ASSEMBLY A

SEAT BELT REAR SEAT OUTER BELT ASSEMBLY INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:: Wear protective gloves. Sharp areas on the parts may injure your hands.

PROCEDURE

Hide Display 73370 1.INSTALL REAR 3 POINT TYPE SEAT OUTER BELT ASSEMBLY LH

Secure the outer belt anchor bracket sub-assembly LH in a vise between aluminum plates.

NOTICE:: Do not overtighten the vise.

Engage the 2 guides.

Temporarily install the rear 3 point type seat outer belt assembly LH to the outer belt anchor bracket sub-assembly LH with the nut.

Fully tighten the nut to install the rear 3 point type seat outer belt assembly LH.

Torque:: 42 N*m (428 kgf*cm, 31 ft.*lbf)

Hide Display 73370 2.INSTALL REAR 3 POINT TYPE SEAT OUTER BELT ASSEMBLY LH

HINT:: Use the same procedure as for the LH side.

Hide Display 73432 3.INSTALL REAR SEAT BELT RETRACTOR COVER LH

Install the rear seat belt retractor cover LH.

Hide Display 73431 4.INSTALL REAR SEAT BELT RETRACTOR COVER RH

HINT:: Use the same procedure as for the LH side.

Hide Display 5.INSTALL REAR 3 POINT TYPE SEAT OUTER BELT ASSEMBLY LH WITH BRACKET

2.656,1.667 2.823,1.844 0.167,0.177 10 true A 1.208,0.188 1.375,0.365 0.167,0.177 10 true B

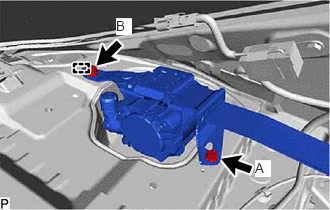

Engage the guide and temporarily install the rear 3 point type seat outer belt assembly LH with bracket with the 2 bolts.

Fully tighten the bolt (A) and then the bolt (B) to install the rear 3 point type seat outer belt assembly LH with bracket.

Torque:: Bolt (A) : 12.5 N*m (127 kgf*cm, 9 ft.*lbf); Bolt (B) : 42 N*m (428 kgf*cm, 31 ft.*lbf)

2.531,0.677 2.719,0.563 true 2.74,0.438 3.052,0.635 0.313,0.198 10 false *a 2.51,0.219 2.823,0.417 0.313,0.198 10 false *b

*a	Locking Button
*b	Lock

Engage the clamp.

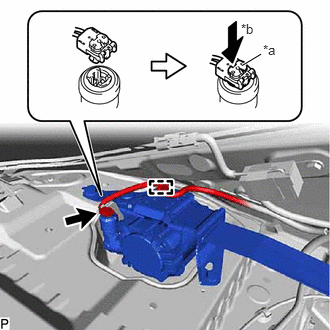

Connect the pretensioner connector and lock the locking button as shown in the illustration.

NOTICE:: Securely lock the locking button.

Check that the ELR locks.

With the rear 3 point type seat outer belt assembly LH with bracket installed to the vehicle, check that the belt locks when it is pulled out quickly.

NOTICE:: This check should be performed with the rear 3 point type seat outer belt assembly LH with bracket installed to the vehicle.

0,0 0,0 false

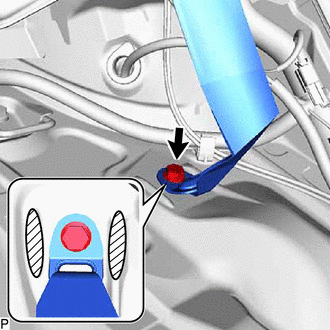

Protruding Part

Install the floor anchor of the rear 3 point type seat outer belt assembly LH with the bolt.

Torque:: 42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:: Do not allow the anchor part of the rear 3 point type seat outer belt assembly LH to overlap the protruding parts of the floor panel.

Hide Display 6.INSTALL REAR 3 POINT TYPE SEAT OUTER BELT ASSEMBLY RH WITH BRACKET

HINT:: Use the same procedure as for the LH side.

Hide Display 64330 7.INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY

Engage the 5 guides.

Install the package tray trim panel assembly with the 3 clips.

Hide Display 73373F 8.INSTALL REAR SEAT SHOULDER BELT HOLE COVER

Engage the 2 guides and 2 claws to install the rear seat shoulder belt hole cover.

Hide Display 64322A 9.INSTALL PACKAGE TRAY TRIM BRACKET LH

Engage the 4 claws and 3 clips to install the package tray trim bracket LH.

Hide Display 64321F 10.INSTALL PACKAGE TRAY TRIM BRACKET RH

HINT:: Use the same procedure as for the LH side.

Hide Display 81006 11.INSTALL CENTER STOP LIGHT SET

Click hereVehicle Exterior>LIGHTING (EXT)>HIGH MOUNTED STOP LIGHT ASSEMBLY>INSTALLATION202304,999999,_59,_080784,_0393168,RM100000002B2CJ,

Hide Display 62472A 12.INSTALL ROOF SIDE INNER GARNISH LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202304,999999,_58,_080744,_0394267,RM100000002BU6Q_02_0296,

Hide Display 62471A 13.INSTALL ROOF SIDE INNER GARNISH RH

HINT:: Use the same procedure as for the LH side.

Hide Display 62552F 14.INSTALL REAR SEAT SIDE GARNISH LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202304,999999,_58,_080744,_0394267,RM100000002BU6Q_02_0197,

Hide Display 62551F 15.INSTALL REAR SEAT SIDE GARNISH RH

HINT:: Use the same procedure as for the LH side.

Hide Display 62332A 16.INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP>INSTALLATION202107,999999,_59,_080735,_0392092,RM100000001X72T_01_0017,

Hide Display 62331A 17.INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH

HINT:: Use the same procedure as for the LH side.

Hide Display 67918A 18.INSTALL REAR DOOR SCUFF PLATE LH (for Gasoline Model)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202304,999999,_58,_080744,_0394267,RM100000002BU6Q_02_0300,

Hide Display 67917A 19.INSTALL REAR DOOR SCUFF PLATE RH (for Gasoline Model)

HINT:: Use the same procedure as for the LH side.

Hide Display 76974F 20.INSTALL REAR UNDER SIDE COVER LH (for HV Model)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202304,999999,_58,_080744,_0394267,RM100000002BU6Q_02_0297,

Hide Display 76973F 21.INSTALL REAR UNDER SIDE COVER RH (for HV Model)

HINT:: Use the same procedure as for the LH side.

Hide Display 67918A 22.INSTALL REAR DOOR SCUFF PLATE LH (for HV Model)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202304,999999,_58,_080744,_0394267,RM100000002BU6Q_02_0301,

Hide Display 67917A 23.INSTALL REAR DOOR SCUFF PLATE RH (for HV Model)

HINT:: Use the same procedure as for the LH side.

Hide Display 24.INSTALL REAR SEAT ASSEMBLY (for Fixed Seat Type)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fixed Seat Type)>INSTALLATION201906,999999,_58,_080732,_0394195,RM100000001I3KB,

Hide Display 25.INSTALL REAR SEAT ASSEMBLY (for Fold Down Seat Type)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Fold Down Seat Type)>INSTALLATION201906,999999,_58,_080732,_0394196,RM100000001I3KK,

Hide Display 26.CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

for NR Series Engine: Click hereGeneral>MAINTENANCE>NR Series BATTERY>INSTALLATION202304,999999,_V1,_080956,_0392375,RM100000002BCCN_03_0002,

for 8ZR-FXE: Click hereGeneral>MAINTENANCE>8ZR-FXE AUXILIARY BATTERY>INSTALLATION202304,999999,_V1,_080956,_0392376,RM100000002ACL8_01_0029,

for M15B-FKS: Click hereGeneral>MAINTENANCE>M15B-FKS BATTERY>INSTALLATION202304,999999,_V1,_080956,_0453685,RM100000002BCCF_03_0002,

for M15C-FKS: Click hereGeneral>MAINTENANCE>M15C-FKS BATTERY>INSTALLATION202304,999999,_V1,_080956,_0453686,RM100000002BCCG_03_0002,

for M20A-FKS: Click hereGeneral>MAINTENANCE>M20A-FKS BATTERY>INSTALLATION202304,999999,_V1,_080956,_0470107,RM100000002BCCI_03_0002,

for M20E-FKS: Click hereGeneral>MAINTENANCE>M20E-FKS BATTERY>INSTALLATION202304,999999,_V1,_080956,_0474497,RM100000002BCCK_03_0002,

for M20C-FKS: Click hereGeneral>MAINTENANCE>M20C-FKS BATTERY>INSTALLATION202304,999999,_V1,_080956,_0484846,RM100000002BCCJ_03_0002,

for M20F-FXS, M20G-FXS: Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>INSTALLATION202307,999999,_V1,_080956,_0611807,RM100000002CK9L_01_0015,

Hide Display 64490 27.INSTALL LUGGAGE COMPARTMENT SIDE TRAY ASSEMBLY (for M20F-FXS, M20G-FXS)

Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>INSTALLATION202307,999999,_V1,_080956,_0611807,RM100000002CK9L_01_0028,

Hide Display 28. PERFORM DIAGNOSTIC SYSTEM CHECK

for NR Series Engine:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for NR Series Engine)>DTC CHECK / CLEAR202307,999999,_58,_080741,_0610731,RM100000002CH03,

Hide Display 29.INSPECT SRS WARNING LIGHT

for NR Series Engine:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for NR Series Engine)>OPERATION CHECK202307,202502,_58,_080741,_0610731,RM100000002CH00,202502,999999,_58,_080741,_0610731,RM100000002QSGL,

except NR Series Engine:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (except NR Series Engine)>OPERATION CHECK202304,999999,_58,_080741,_0584471,RM1000000029GNO,

Hide Display 30. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART202304,999999,_V1,_143216,_0598315,RM100000002B3MJ,
