SEAT BELT  REAR SEAT OUTER BELT ASSEMBLY  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear 3 point type seat outer belt assembly removal/installation are shown below.

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

for HV Model:

Items for which learning is completed by driving the vehicle
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Front Camera System Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more. (Click here)

·

for Gasoline Model:

Items for which learning is completed by driving the vehicle
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Stop and Start System Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted (Click here)
Pre-collision System Perform steering sensor zero point calibration (Click here)
Lane Tracing Assist System
Front Camera System Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more. (Click here)


·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 1. PRECAUTION

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.



NOTICE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY


Hide 64490 2.REMOVE LUGGAGE COMPARTMENT SIDE TRAY ASSEMBLY (for M20F-FXS, M20G-FXS)

Hide 67917A 7.REMOVE REAR DOOR SCUFF PLATE RH (for Gasoline Model)

HINT:

Use the same procedure as for the LH side.


Hide 67917A 9.REMOVE REAR DOOR SCUFF PLATE RH (for HV Model)

HINT:

Use the same procedure as for the LH side.


Hide 76973F 11.REMOVE REAR UNDER SIDE COVER RH (for HV Model)

HINT:

Use the same procedure as for the LH side.


Hide 62332A 12.DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH

a.

Disconnect the rear door opening trim weatherstrip LH.


Hide 62331A 13.DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH

HINT:

Use the same procedure as for the LH side.


Hide 62551F 15.REMOVE REAR SEAT SIDE GARNISH RH

HINT:

Use the same procedure as for the LH side.


Hide 62471A 17.REMOVE ROOF SIDE INNER GARNISH RH

HINT:

Use the same procedure as for the LH side.


Hide 64322A 19.REMOVE PACKAGE TRAY TRIM BRACKET LH

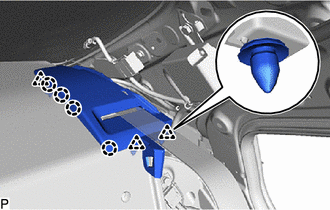

a.
B534409

Disengage the 3 clips and 4 claws to remove the package tray trim bracket LH.


Hide 64321F 20.REMOVE PACKAGE TRAY TRIM BRACKET RH

HINT:

Use the same procedure as for the LH side.


Hide 73373F 21.REMOVE REAR SEAT SHOULDER BELT HOLE COVER

a.
B534410

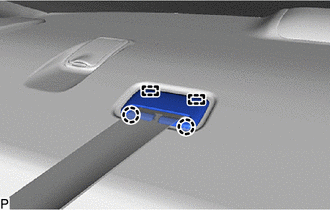

Disengage the 2 claws and 2 guides to remove the rear seat shoulder belt hole cover.


Hide 64330 22.REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY

a.
B534411

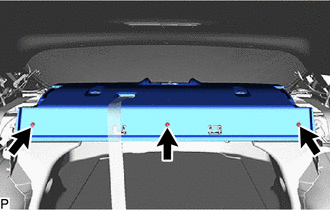

Remove the 3 clips.


b.
B534412

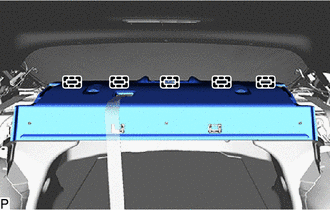

Disengage the 5 guides to remove the package tray trim panel assembly.


Hide 23.REMOVE REAR 3 POINT TYPE SEAT OUTER BELT ASSEMBLY LH WITH BRACKET

a.
B534408

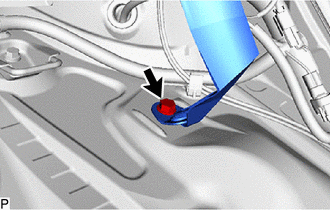

Remove the bolt to disconnect the floor anchor of the rear 3 point type seat outer belt assembly LH.


b.
B545465C01
1.063,0.677 1.281,0.604 true 1.292,1.063 1.292,0.917 true 1.302,0.49 1.531,0.688 0.229,0.198 10 false *b 1.219,1.052 1.458,1.26 0.24,0.208 10 false *a 1.01,0.354 1.323,0.573 0.313,0.219 10 false *c
*a Protective Tape
*b Locking Button
*c Release

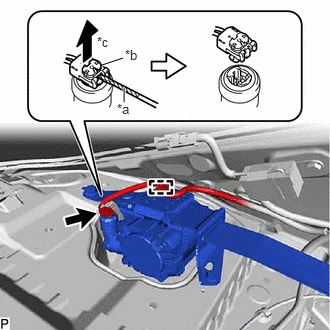

Using a screwdriver, pull out the locking button as shown in the illustration to release the lock and disconnect the pretensioner connector.

HINT:

Tape the screwdriver tip before use.



c.

Disengage the clamp.


d.
B545466

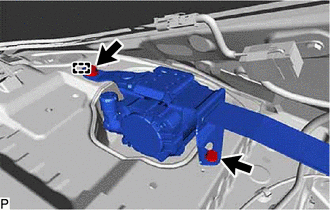

Remove the 2 bolts.


e.

Disengage the guide to remove the rear 3 point type seat outer belt assembly LH with bracket.


Hide 24.REMOVE REAR 3 POINT TYPE SEAT OUTER BELT ASSEMBLY RH WITH BRACKET

HINT:

Use the same procedure as for the LH side.


Hide 73432 25.REMOVE REAR SEAT BELT RETRACTOR COVER LH

a.
B545467

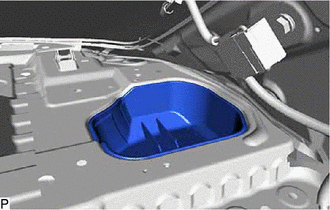

Remove the rear seat belt retractor cover LH.


Hide 73431 26.REMOVE REAR SEAT BELT RETRACTOR COVER RH

HINT:

Use the same procedure as for the LH side.


Hide 73370 27.REMOVE REAR 3 POINT TYPE SEAT OUTER BELT ASSEMBLY LH

a.

Hold the rear 3 point type seat outer belt assembly LH with bracket in a vise between aluminum plates.

NOTICE:

Do not overtighten the vise.



b.
B534415

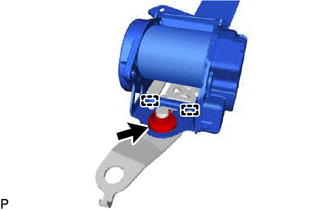

Remove the nut.


c.

Disengage the 2 guides to remove the rear 3 point type seat outer belt assembly LH from the outer belt anchor bracket sub-assembly LH.


Hide 73360 28.REMOVE REAR 3 POINT TYPE SEAT OUTER BELT ASSEMBLY RH

HINT:

Use the same procedure as for the LH side.
