RM3660EC _59 Vehicle Exterior _080784 LIGHTING (EXT) _0393168 HIGH MOUNTED STOP LIGHT ASSEMBLY A

LIGHTING (EXT)  HIGH MOUNTED STOP LIGHT ASSEMBLY  REMOVAL


PROCEDURE

Hide 81006 1.REMOVE CENTER STOP LIGHT SET

a.
E513114C01
0,0 0,0 false
V113147

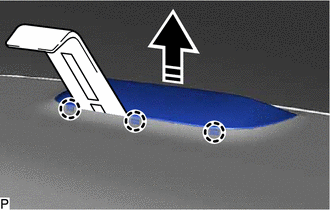

Disengage in this Direction


Using a moulding remover, disengage the 3 claws as shown in the illustration.


b.
E513115C01
0,0 0,0 false
V113147

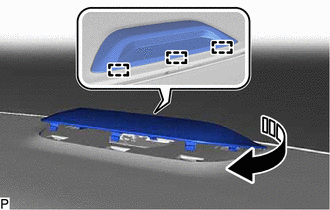

Turn in this Direction


Turn the center stop light set as shown in the illustration to disengage the 3 guides.


c.

Disconnect the connector to remove the center stop light set.
