SEAT  REAR SEAT ASSEMBLY(for Fold Down Seat Type)  REMOVAL


CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.


PROCEDURE

Hide 71940A 1.REMOVE REAR SEAT HEADREST ASSEMBLY (w/ Removable Headrest)

a.

Remove the 2 rear seat headrest assemblies.


Hide 73350C 2.DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY

a.
B517494C01
2.896,1.313 2.896,1.042 true 2.823,1.313 3,1.469 0.177,0.156 10 true *a
*a Protective Tape
V113146

Insert Screwdriver Here

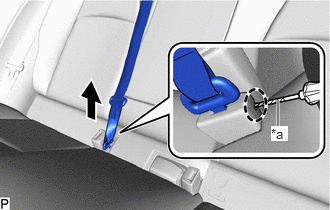

Using a screwdriver with its tip wrapped with protective tape, disconnect the rear center seat outer belt assembly as shown in the illustration.


Hide 3.REMOVE REAR SEATBACK ASSEMBLY LH

a.

Fold the rear seatback assembly LH forward.


b.
B546660C01
0,0 0,0 false
V100155

Fastener

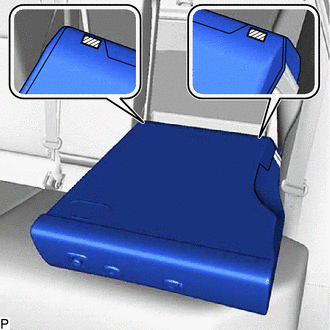

Disengage the 2 fasteners.


c.
B546661

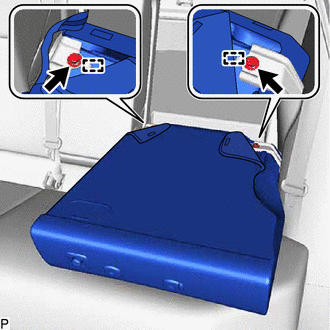

Remove the 2 bolts.


d.

Disengage the 2 guides and remove the rear seatback assembly LH.

NOTICE:

Be careful not to damage the vehicle body.



Hide 4.REMOVE REAR SEATBACK ASSEMBLY RH

a.
B534699

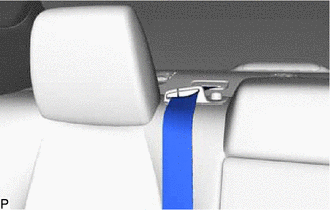

Pass the rear center seat outer belt assembly through the rear seat center shoulder belt guide.


b.

Fold the rear seatback assembly RH forward.


c.
B546662C01
0,0 0,0 false
V100155

Fastener

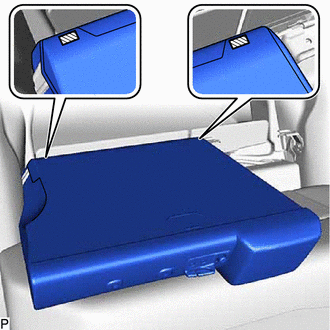

Disengage the 2 fasteners.


d.
B546663

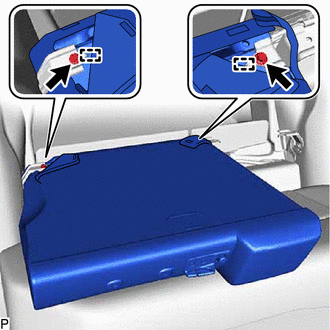

Remove the 2 bolts.


e.

Disengage the 2 guides and remove the rear seatback assembly RH.

NOTICE:

Be careful not to damage the vehicle body.



Hide 5.REMOVE REAR SEAT CUSHION ASSEMBLY (for Gasoline Model)

a.
B544092C01
1.927,0.385 2.167,0.188 true 0.49,1.177 0.781,1.073 true 2.729,1.563 2.885,1.354 true 0.771,0.979 0.958,1.167 0.188,0.188 10 true *a 2.188,0.073 2.375,0.26 0.188,0.188 10 true *b 2.938,1.198 3.125,1.385 0.188,0.188 10 true *a 0.438,2.677 0.688,2.938 0.25,0.26 10 false A 2.677,2.875 2.927,3.135 0.25,0.26 10 false A
*a Rear Seat Cushion Frame Hook (Front Side)
*b Rear Seat Cushion Frame Hook (Rear Side)
V113146

Place Hand Here
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)

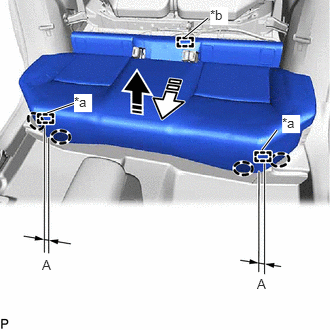

Lift the front edge of the rear seat cushion assembly as shown in the illustration and disengage the 2 rear seat cushion frame hooks on the front side of the rear seat cushion assembly from the rear seat cushion lock hooks.

NOTICE:

Be sure to hold the parts of the seat cushion assembly directly next to the rear seat cushion frame hooks when lifting it. Lifting a different part of the cushion may deform the rear seat cushion frame.


Standard Measurement:
Area Measurement
A 40 mm (1.57 in.)



b.

Disengage the rear seat cushion frame hook on the rear side of the rear seat cushion assembly as shown in the illustration and remove the rear seat cushion assembly.

NOTICE:

Be careful not to damage the vehicle body.



Hide 6.REMOVE REAR SEAT CUSHION ASSEMBLY (for HV Model)

a.
B544093C01
1.927,0.396 2.135,0.198 true 0.646,1.167 0.865,1.052 true 2.396,1.438 2.615,1.323 true 0.875,0.958 1.073,1.125 0.198,0.167 10 true *a 2.156,0.104 2.344,0.26 0.188,0.156 10 true *b 2.615,1.219 2.813,1.385 0.198,0.167 10 true *a 0.385,2.635 0.667,2.885 0.281,0.25 10 false A 2.604,3 2.885,3.25 0.281,0.25 10 false A
*a Rear Seat Cushion Frame Hook (Front Side)
*b Rear Seat Cushion Frame Hook (Rear Side)
V113146

Place Hand Here
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)


Lift the front edge of the rear seat cushion assembly as shown in the illustration and disengage the 2 rear seat cushion frame hooks on the front side of the rear seat cushion assembly from the rear seat cushion lock hooks.

NOTICE:

Be sure to hold the parts of the seat cushion assembly directly next to the rear seat cushion frame hooks when lifting it. Lifting a different part of the cushion may deform the rear seat cushion frame.


Standard Measurement:
Area Measurement
A 134 mm (5.28 in.)



b.

Disengage the rear seat cushion frame hook on the rear side of the rear seat cushion assembly as shown in the illustration and remove the rear seat cushion assembly.

NOTICE:

Be careful not to damage the vehicle body.



Hide 72693 7.REMOVE REAR SEAT CUSHION LOCK HOOK

a.
B517500C01
0,0 0,0 false
V113147

Remove in this Direction


Disengage the 2 claws to remove the rear seat cushion lock hook as shown in the illustration.

HINT:

Use the same procedure for the RH side and LH side.
