PARK ASSIST / MONITORING  PANORAMIC VIEW MONITOR SYSTEM  C162287  Rear Camera Image Signal Missing Message


DESCRIPTION

This DTC is stored if the parking assist ECU judges as a result of its self check that the signals or signal lines between the parking assist ECU and the rear television camera assembly are not normal.

DTC No. Detection Item DTC Detection Condition Trouble Area DTC Output from Priority
C162287 Rear Camera Image Signal Missing Message Open or short in the rear television camera signal circuit
·

Harness or connector

·

Rear television camera assembly

·

Parking assist ECU


Circumference Monitoring Camera Control Module A

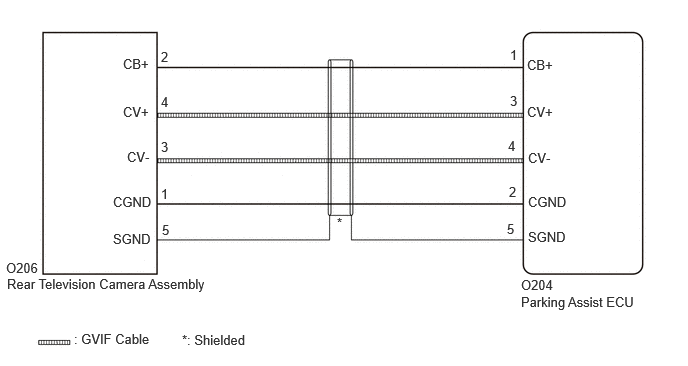

WIRING DIAGRAM

E479812E06
5.427,3.063 6.698,3.281 1.271,0.219 10 false Parking Assist ECU 5.427,2.885 5.844,3.063 0.417,0.177 10 false O204 5.49,0.594 5.844,0.792 0.354,0.198 10 false CB+ 5.49,1.083 5.854,1.281 0.365,0.198 10 false CV+ 5.5,1.563 5.875,1.76 0.375,0.198 10 false CV- 5.313,0.49 5.458,0.698 0.146,0.208 10 false 1 5.292,1.438 5.438,1.646 0.146,0.208 10 false 4 5.5,2.021 5.958,2.198 0.458,0.177 10 false CGND 5.302,1.917 5.469,2.104 0.167,0.188 10 false 2 5.281,2.302 5.458,2.479 0.177,0.177 10 false 5 5.5,2.385 5.969,2.573 0.469,0.188 10 false SGND 3.51,2.24 3.667,2.438 0.156,0.198 10 false * 1.896,3.458 2.646,3.646 0.75,0.188 10 false *: Shielded 5.313,0.969 5.458,1.167 0.146,0.198 10 false 3 0.771,3.448 1.646,3.646 0.875,0.198 10 false : GVIF Cable 0.063,2.708 0.646,2.896 0.583,0.188 10 false O206 1.677,0.51 1.833,0.708 0.156,0.198 10 false 2 1.677,0.979 1.833,1.177 0.156,0.198 10 false 4 1.677,1.448 1.833,1.646 0.156,0.198 10 false 3 1.677,1.938 1.833,2.135 0.156,0.198 10 false 1 1.688,2.313 1.844,2.51 0.156,0.198 10 false 5 0.073,2.875 2.26,3.083 2.188,0.208 10 false Rear Television Camera Assembly 1.281,0.583 1.656,0.771 0.375,0.188 10 false CB+ 1.281,1.083 1.635,1.25 0.354,0.167 10 false CV+ 1.323,1.552 1.625,1.729 0.302,0.177 10 false CV- 1.177,2.021 1.625,2.198 0.448,0.177 10 false CGND 1.177,2.406 1.625,2.573 0.448,0.167 10 false SGND

CAUTION / NOTICE / HINT

NOTICE:

Depending on the parts that are replaced or operations that are performed during vehicle inspection or maintenance, calibration of other systems as well as the panoramic view monitor system may be needed.

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>PANORAMIC VIEW MONITOR SYSTEM>CALIBRATION


PROCEDURE

1.CHECK HARNESS AND CONNECTOR (PARKING ASSIST ECU - REAR TELEVISION CAMERA ASSEMBLY)

Pre-procedure1

a.

Disconnect the O204 parking assist ECU connector.


b.

Disconnect the O206 rear television camera assembly connector.


Procedure1

c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
O204-1 (CB+) - O206-2 (CB+) Always Below 1 Ω
O204-3 (CV+) - O206-4 (CV+) Always Below 1 Ω
O204-4 (CV-) - O206-3 (CV-) Always Below 1 Ω
O204-2 (CGND) - O206-1 (CGND) Always Below 1 Ω
O204-5 (SGND) - O206-5 (SGND) Always Below 1 Ω
O204-1 (CB+) or O206-2 (CB+) - Body ground Always 10 kΩ or higher
O204-3 (CV+) or O206-4 (CV+) - Body ground Always 10 kΩ or higher
O204-4 (CV-) or O206-3 (CV-) - Body ground Always 10 kΩ or higher
O204-2 (CGND) or O206-1 (CGND) - Body ground Always 10 kΩ or higher
O204-5 (SGND) or O206-5 (SGND) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG


Post-procedure1

d.

None



OK

2.CHECK PARKING ASSIST ECU (CV+, CV-)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

2.CHECK PARKING ASSIST ECU (CV+, CV-)

Pre-procedure1

a.
E394295C72
1.438,0.156 1.938,0.438 0.5,0.281 2.01,1.052 2.5,1.521 2.5,1.521 2.698,1.531 true 0.802,1.552 1.052,1.552 1.052,1.552 1.458,1.083 true 0.073,0.063 0.385,0.26 0.313,0.198 10 false *a 2.75,1.458 3.271,1.656 0.521,0.198 10 false CV+ 0.469,1.5 0.99,1.698 0.521,0.198 10 false CV- 1.521,0.219 1.99,0.417 0.469,0.198 10 false O204
*a Component without harness connected
(Parking Assist ECU)


Disconnect the O204 parking assist ECU connector.


Procedure1

b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
O204-3 (CV+) - Body ground Always 10 kΩ or higher
O204-4 (CV-) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG


Post-procedure1

c.

None



OK

3.CHECK PARKING ASSIST ECU (CB+, CGND)

NG

REPLACE PARKING ASSIST ECU

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>PARKING ASSIST ECU>REMOVAL


3.CHECK PARKING ASSIST ECU (CB+, CGND)

Pre-procedure1

a.

Disconnect the rear television camera assembly.


Procedure1

b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
O206-1 (CGND) - Body ground Always Below 1 Ω



c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
O206-2 (CB+) - O206-1 (CGND) Ignition switch ON 7.5 to 8.5 V



Result:
Proceed to
OK
NG


Post-procedure1

d.

None



OK

REPLACE REAR TELEVISION CAMERA ASSEMBLY

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>TELEVISION CAMERA (for Rear)>REMOVAL


NG

REPLACE PARKING ASSIST ECU

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>PARKING ASSIST ECU>REMOVAL
