RM3660EC _56 Audio / Visual / Telematics _080754 PARK ASSIST / MONITORING _0611028 PARKING ASSIST ECU A

PARK ASSIST / MONITORING PARKING ASSIST ECU REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during parking assist ECU removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
Parking assist ECU	· Parking assist ECU initialization · Import/Export constant value	Panoramic View Monitor System	(202307,999999,_56,_080754,_0612151,RM100000002CL9H,)

PROCEDURE

Hide Display 1. PRECAUTION

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>PANORAMIC VIEW MONITOR SYSTEM>PRECAUTION202307,999999,_56,_080754,_0612151,RM100000002CL9C,

Hide Display 2. ECU DATA SAVE

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>PANORAMIC VIEW MONITOR SYSTEM>CALIBRATION202307,999999,_56,_080754,_0612151,RM100000002CL9H,

Hide Display 3.REMOVE FRONT SEAT ASSEMBLY LH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Power Seat)>REMOVAL202307,999999,_58,_080732,_0391518,RM100000002CW4D,

Hide Display 86796 4.REMOVE PARKING ASSIST ECU COVER

a.

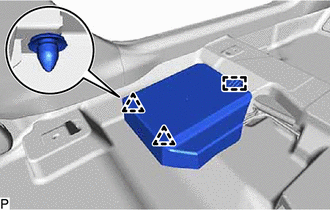

E513098

Disengage the 2 clips and guide to remove the parking assist ECU cover.

Hide Display 5.REMOVE PARKING ASSIST ECU WITH BRACKET

a.

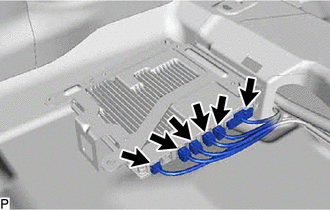

E513099

Disconnect each connector.

b.

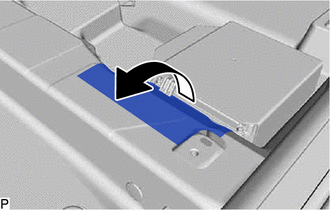

E513100

Turn back the front floor carpet assembly as shown in the illustration.

c.

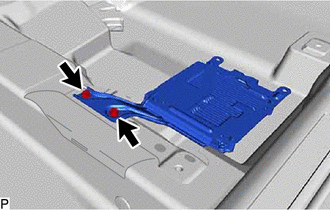

E513101

Remove the 2 bolts and parking assist ECU with bracket.

Hide Display 86791C 6.REMOVE NO. 1 PARKING ASSIST ECU BRACKET

a.

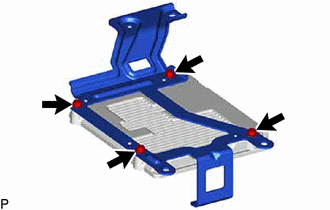

E513391

Remove the 4 bolts and No. 1 parking assist ECU bracket.

Hide Display 86792C 7.REMOVE PARKING ASSIST ECU
