NR Series ENGINE CONTROL SFI SYSTEM P035113 Ignition Coil "A" Circuit Open P035213 Ignition Coil "B" Circuit Open P035313 Ignition Coil "C" Circuit Open P035413 Ignition Coil "D" Circuit Open
DESCRIPTION
- HINT:
- ·
These DTCs indicate malfunctions relating to the primary circuit.
·If DTC P035113 is output, check the No. 1 ignition coil assembly circuit.
·If DTC P035213 is output, check the No. 2 ignition coil assembly circuit.
·If DTC P035313 is output, check the No. 3 ignition coil assembly circuit.
·If DTC P035413 is output, check the No. 4 ignition coil assembly circuit.

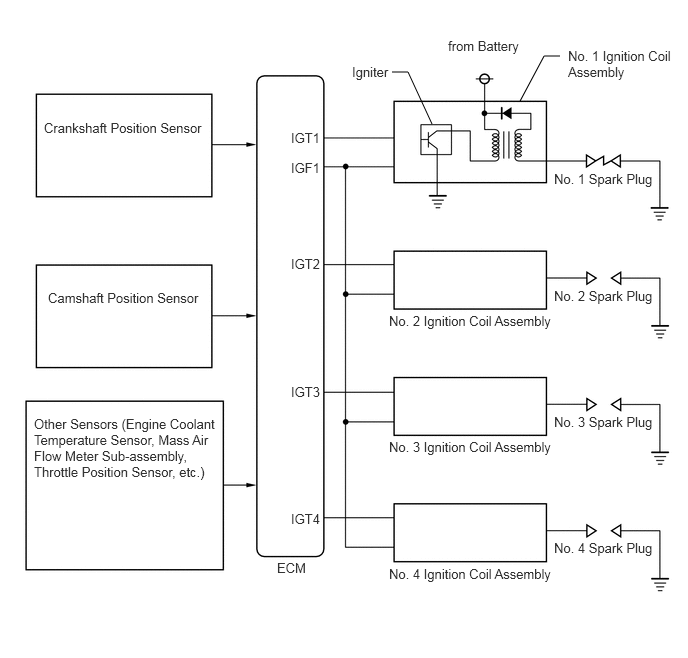

A Direct Ignition System (DIS) is used on this vehicle.
The DIS is a 1-cylinder ignition system in which each cylinder is ignited by one ignition coil assembly and one spark plug is connected to the end of each secondary wiring. A powerful voltage, generated in the secondary wiring, is applied directly to each spark plug. The spark of the spark plugs passes from the center electrode to the ground electrodes.

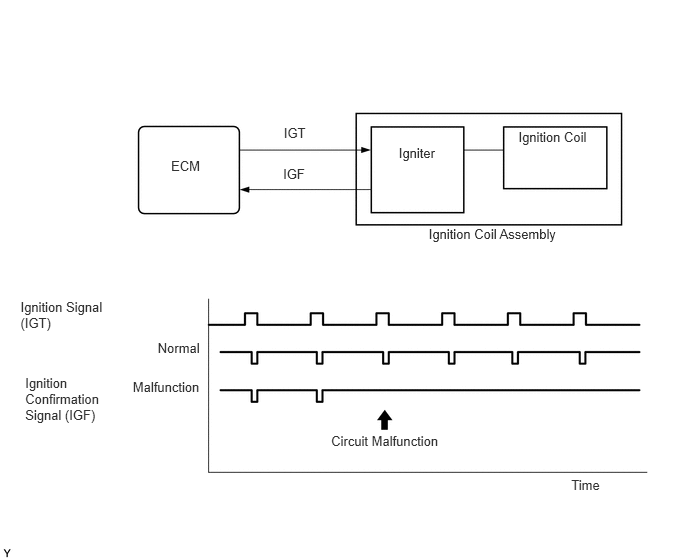

The ECM determines the ignition timing and transmits the ignition (IGT) signals to each cylinder. Using the IGT signal, the ECM turns the power transistor inside the igniter on and off. The power transistor, in turn, switches the current supplied to the primary coil on and off. When the current to the primary coil is cut off, a powerful voltage is generated in the secondary coil. This voltage is applied to the spark plugs, causing them to spark inside the cylinders. As the ECM cuts the current to the primary coil, the igniter sends back an ignition confirmation (IGF) signal to the ECM for each cylinder ignition.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | MIL | Memory | Note |
|---|---|---|---|---|---|---|
| P035113 | Ignition Coil "A" Circuit Open | No IGF signal to the ECM while the engine is running (1 trip detection logic).
* |
·
Ignition system ·
Open or short in IGF1 or IGT1 circuit between ignition coil assembly and ECM ·
No. 1 ignition coil assembly ·
ECM |
Comes on | DTC stored | SAE Code:
P0351 |
| P035213 | Ignition Coil "B" Circuit Open | No IGF signal to the ECM while the engine is running (1 trip detection logic).
* |
·
Ignition system ·
Open or short in IGF1 or IGT2 circuit between ignition coil assembly and ECM ·
No. 2 ignition coil assembly ·
ECM |
Comes on | DTC stored | SAE Code:
P0352 |
| P035313 | Ignition Coil "C" Circuit Open | No IGF signal to the ECM while the engine is running (1 trip detection logic).
* |
·
Ignition system ·
Open or short in IGF1 or IGT3 circuit between ignition coil assembly and ECM ·
No. 3 ignition coil assembly ·
ECM |
Comes on | DTC stored | SAE Code:
P0353 |
| P035413 | Ignition Coil "D" Circuit Open | No IGF signal to the ECM while the engine is running (1 trip detection logic).
* |
·
Ignition system ·
Open or short in IGF1 or IGT4 circuit between ignition coil assembly and ECM ·
No. 4 ignition coil assembly ·
ECM |
Comes on | DTC stored | SAE Code:
P0354 |
*: When the engine is being stopped or started automatically by stop and start system control, the ECM does not monitor the camshaft position sensor signal.

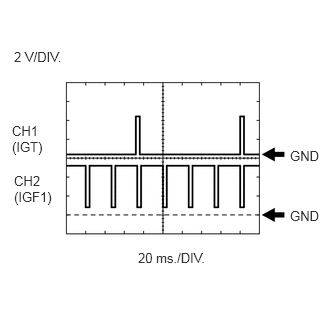

Reference: Inspection using an oscilloscope.
- HINT:
- ·
The correct waveform is as shown.
- ·
While idling the engine, check the waveform between terminals IGT (1 to 4) and E1, and IGF1 and E1 of the ECM connector.
| ECM Terminal Name | CH1: Between IGT (1 to 4) and E1
CH2: Between IGF1 and E1 |
| Tester Range | 2 V/DIV., 20 ms./DIV. |
| Condition | Idling with warm engine |
MONITOR DESCRIPTION
If the ECM does not receive any IGF signals despite transmitting the IGT signal, it interprets this as a fault in the igniter and stores a DTC.
MONITOR STRATEGY
| Required Sensors/Components (Main) | Igniter |
| Required Sensors/Components (Related) | Crankshaft position sensor |
| Frequency of Operation | Continuous |
CONFIRMATION DRIVING PATTERN
- HINT:
- ·
After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.
·When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.
Connect the GTS to the DLC3.
Turn the ignition switch to ON.
Turn the GTS on.
Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
Turn the ignition switch off and wait for at least 30 seconds.
Start the engine [A].
Turn the GTS on.
Idle the engine for 10 seconds or more [B].
Enter the following menus: Powertrain / Engine / Trouble Codes [C].
Read the pending DTCs.
- HINT:
- ·
If a pending DTC is output, the system is malfunctioning.
·If a pending DTC is not output, perform the following procedure.
Enter the following menus: Powertrain / Engine / Utility / All Readiness.
Input the DTC: P035113, P035213, P035313 or P035413.
Check the DTC judgment result.
| GTS Display | Description |
|---|---|
| NORMAL | ·
DTC judgment completed ·
System normal |
| ABNORMAL | ·
DTC judgment completed ·
System abnormal |
| INCOMPLETE | ·
DTC judgment not completed ·
Perform driving pattern after confirming DTC enabling conditions |
- HINT:
- ·
If the judgment result shows NORMAL, the system is normal.
·If the judgment result shows ABNORMAL, the system has a malfunction.
·[A] to [C]: Normal judgment procedure.
The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.
·When clearing the permanent DTCs, do not disconnect the cable from the battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.

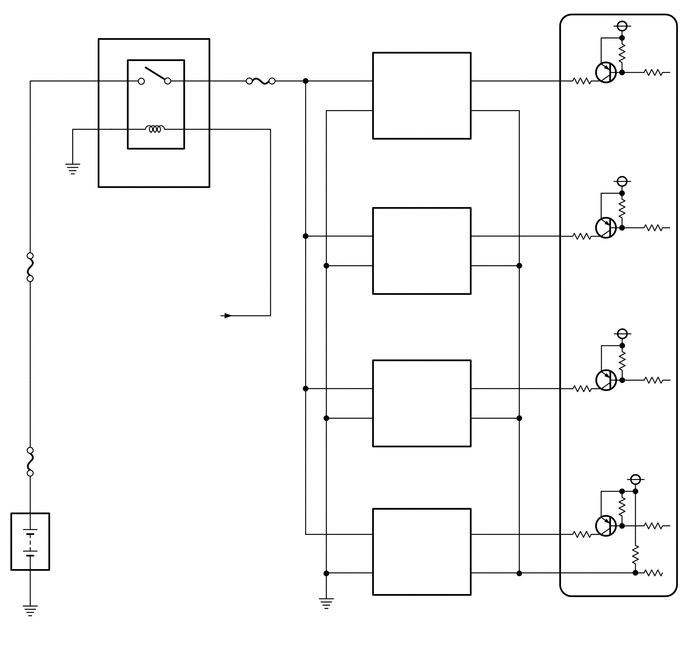

WIRING DIAGRAM
CAUTION / NOTICE / HINT
- NOTICE:
-
Inspect the fuses for circuits related to this system before performing the following procedure.
- HINT:
-
Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.
PROCEDURE
Connect the GTS to the DLC3.
Turn the ignition switch to ON.
Turn the GTS on.
Clear the DTCs.
- Powertrain > Engine > Clear DTCs
- 50002 372
Turn the ignition switch off and wait for at least 30 seconds.
- Result:
Proceed to NEXT
NEXT
Shuffle the arrangement of the ignition coil assemblies (among No. 1 to No. 4 cylinders).
- NOTICE:
-
Do not change the location of the connectors.
Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.
Enter the following menus: Powertrain / Engine / Trouble Codes.
Read the DTCs.
- Powertrain > Engine > Trouble Codes
- 50001 372
- Result:
Result Proceed to Same DTC output A Different ignition coil DTC output B
- HINT:
-
Perform "Inspection After Repair" after replacing the ignition coil assembly.
A
B

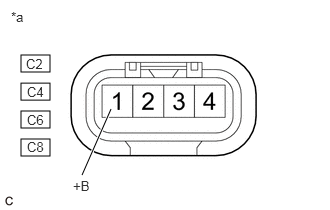

| *a | Front view of wire harness connector
(to Ignition Coil Assembly) |
Disconnect the ignition coil assembly connector.
Turn the ignition switch to ON.
Measure the voltage according to the value(s) in the table below.
- Standard Voltage:
Tester Connection Condition Specified Condition C2-1 (+B) - Body ground Ignition switch ON 11 to 14 V C4-1 (+B) - Body ground Ignition switch ON 11 to 14 V C6-1 (+B) - Body ground Ignition switch ON 11 to 14 V C8-1 (+B) - Body ground Ignition switch ON 11 to 14 V
- Result:
Proceed to OK NG
OK
NG
Disconnect the ignition coil assembly connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition C2-4 (GND) - Body ground Always Below 1 Ω C4-4 (GND) - Body ground Always Below 1 Ω C6-4 (GND) - Body ground Always Below 1 Ω C8-4 (GND) - Body ground Always Below 1 Ω
- Result:
Proceed to OK NG
OK
NG
Disconnect the ignition coil assembly connector.
Disconnect the ECM connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition C2-2 (IGF) - C78-101 (IGF1) Always Below 1 Ω C4-2 (IGF) - C78-101 (IGF1) Always Below 1 Ω C6-2 (IGF) - C78-101 (IGF1) Always Below 1 Ω C8-2 (IGF) - C78-101 (IGF1) Always Below 1 Ω C2-3 (IGT1) - C78-42 (IGT1) Always Below 1 Ω C4-3 (IGT2) - C78-41 (IGT2) Always Below 1 Ω C6-3 (IGT3) - C78-40 (IGT3) Always Below 1 Ω C8-3 (IGT4) - C78-39 (IGT4) Always Below 1 Ω C2-2 (IGF) or C78-101 (IGF1) - Body ground and other terminals Always 10 kΩ or higher C4-2 (IGF) or C78-101 (IGF1) - Body ground and other terminals Always 10 kΩ or higher C6-2 (IGF) or C78-101 (IGF1) - Body ground and other terminals Always 10 kΩ or higher C8-2 (IGF) or C78-101 (IGF1) - Body ground and other terminals Always 10 kΩ or higher C2-3 (IGT1) or C78-42 (IGT1) - Body ground and other terminals Always 10 kΩ or higher C4-3 (IGT2) or C78-41 (IGT2) - Body ground and other terminals Always 10 kΩ or higher C6-3 (IGT3) or C78-40 (IGT3) - Body ground and other terminals Always 10 kΩ or higher C8-3 (IGT4) or C78-39 (IGT4) - Body ground and other terminals Always 10 kΩ or higher
- Result:
Proceed to OK NG
OK
NG
