NR Series ENGINE CONTROL  IGNITION COIL AND SPARK PLUG  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during No. 1 ignition coil or spark plug removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
·

Replacement of No. 1 ignition coil

·

Replacement of spark plug


Inspection after repair
·

Poor idle, etc.

·

Engine start function, etc.


(Click here)

PROCEDURE

Hide 55708 1.SEPARATE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

a.

Remove the 2 clips (A).

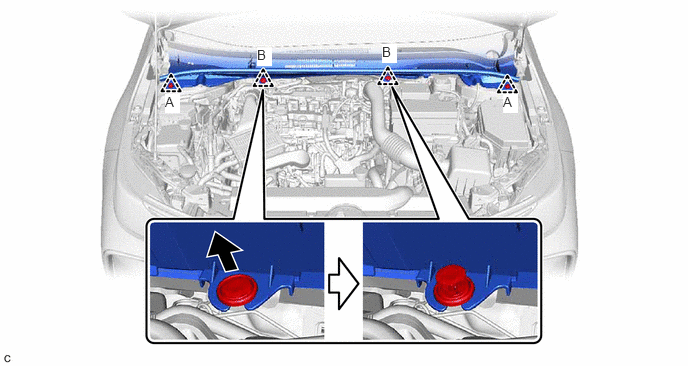

A446536N01
1.719,0.979 1.875,1.177 0.156,0.198 10 true A 5.24,0.979 5.396,1.177 0.156,0.198 10 true A 3.979,0.458 4.135,0.656 0.156,0.198 10 true B 2.677,0.49 2.833,0.688 0.156,0.198 10 true B


b.

Disconnect the 2 clips (B) to separate the cowl top ventilator louver sub-assembly.


Hide 19500D 2.REMOVE NO. 1 IGNITION COIL

a.

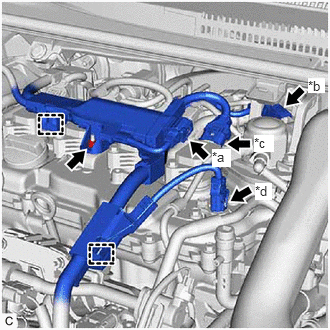

A431200C01
2.208,1.552 2.406,1.74 0.198,0.188 10 true *a 3.208,0.813 3.385,0.969 0.177,0.156 10 true *b 2.646,1.406 2.854,1.583 0.208,0.177 10 true *c 2.656,1.906 2.833,2.083 0.177,0.177 10 true *d
*a Sensor Wire Connector
*b Fuel Pump Assembly Connector
*c No. 1 Ignition Coil Connector
*d Camshaft Position Sensor Connector


Disconnect the sensor wire connector.


b.

Disconnect the fuel pump assembly connector.


c.

Disconnect the No. 1 ignition coil connector.


d.

Disconnect the camshaft position sensor connector.


e.

Disengage the 2 clamps.


f.

Remove the nut and separate the engine wire from the cylinder head cover sub-assembly.


g.

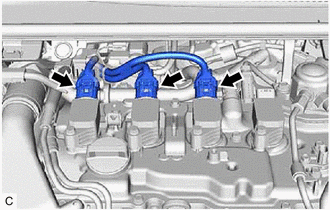

A431202

Disconnect the 3 No. 1 ignition coil connectors.


h.

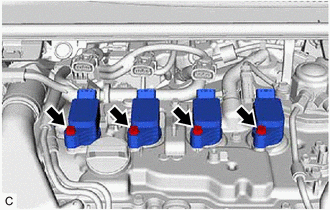

A431203

Remove the 4 bolts and 4 No. 1 ignition coils from the cylinder head cover sub-assembly.

NOTICE:

If a No. 1 ignition coil has been struck or dropped, replace it.


HINT:

Arrange the removed parts in the correct order.
