SEAT BELT  OCCUPANT DETECTION SENSOR  INSTALLATION

1.INSTALL OCCUPANT DETECTION SENSOR (SEPARATE TYPE FRONT SEAT CUSHION PAD) (for Manual Seat)

NOTICE:

Be careful not to damage the separate type front seat cushion cover.

HINT:

When installing a separate type front seat cushion cover, refer to Precaution in order to prevent wrinkles from forming.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Manual Seat)>PRECAUTION201906,999999,_58,_080732,_0391517,RM100000001HKM0,

a.

for Standard Seat Type:

i.

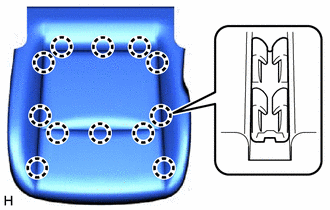

Engage the 12 claws to install the occupant detection sensor (separate type front seat cushion pad) to the separate type front seat cushion cover.(for Type A)

ii.

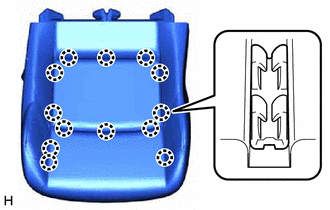

Engage the 12 claws to install the occupant detection sensor (separate type front seat cushion pad) to the separate type front seat cushion cover.(for Type B)

b.

for Sporty Seat Type:

i.

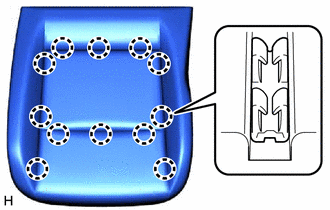

Engage the 13 claws to install the occupant detection sensor (separate type front seat cushion pad) to the separate type front seat cushion cover.(for Type A)

ii.

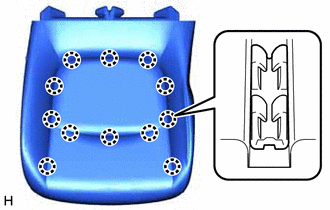

Engage the 12 claws to install the occupant detection sensor (separate type front seat cushion pad) to the separate type front seat cushion cover.(for Type B)

2.INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD (for Manual Seat)

3.INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY (for Manual Seat)

4.INSTALL FRONT SEAT INNER CUSHION SHIELD (for Manual Seat)

71811D 5.INSTALL FRONT SEAT CUSHION SHIELD (for Manual Seat)

72525A 6.INSTALL RECLINING ADJUSTER RELEASE HANDLE (for Manual Seat)

72551B 7.INSTALL RECLINING HINGE COVER (for Manual Seat)

71074S 8.CONNECT SEPARATE TYPE FRONT SEATBACK COVER (for Manual Seat)

73230 9.INSTALL FRONT SEAT INNER BELT ASSEMBLY (for Manual Seat)

10.INSTALL FRONT SEAT ASSEMBLY (for Manual Seat)

11.INSTALL OCCUPANT DETECTION SENSOR (SEPARATE TYPE FRONT SEAT CUSHION PAD) (for Power Seat)

NOTICE:

Be careful not to damage the separate type front seat cushion cover.

HINT:

When installing a separate type front seat cushion cover, refer to Precaution in order to prevent wrinkles from forming.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Manual Seat)>PRECAUTION201906,999999,_58,_080732,_0391517,RM100000001HKM0,

a.

for Standard Seat Type:

i.

Engage the 12 claws to install the occupant detection sensor (separate type front seat cushion pad) to the separate type front seat cushion cover.(for Type A)

ii.

Engage the 12 claws to install the occupant detection sensor (separate type front seat cushion pad) to the separate type front seat cushion cover.(for Type B)

b.

for Sporty Seat Type:

i.

Engage the 12 claws to install the occupant detection sensor (separate type front seat cushion pad) to the separate type front seat cushion cover.

12.INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD (for Power Seat)

13.INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY (for Power Seat)

14.INSTALL FRONT SEAT INNER CUSHION SHIELD (for Power Seat)

71811D 15.INSTALL FRONT SEAT CUSHION SHIELD (for Power Seat)

16.INSTALL FRONT SEAT FRONT CUSHION SHIELD (for Power Seat)

71074S 17.CONNECT SEPARATE TYPE FRONT SEATBACK COVER (for Power Seat)

73230 18.INSTALL FRONT SEAT INNER BELT ASSEMBLY (for Power Seat)

19.INSTALL FRONT SEAT ASSEMBLY (for Power Seat)
