SEAT  FRONT SEAT ASSEMBLY(for Manual Seat)  PRECAUTION


HINT:
·

The following procedures are used to prevent wrinkles from forming when installing the seat cover. Make sure to follow the procedures correctly.


·

The shape of the seat shown in the illustration may differ from the actual seat.



SEAT COVER SET

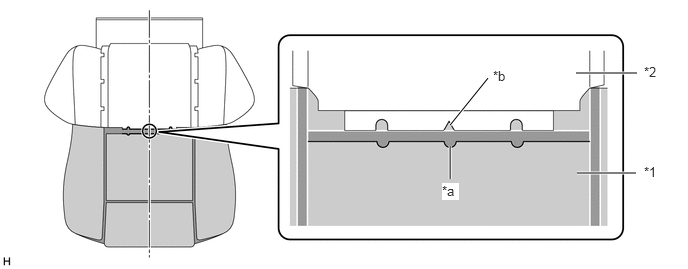

a.

Align the center cutout of the pad with the V-point of the cover.

B359745C01
4.688,1.302 5.083,0.813 true 6.01,1.802 6.625,1.802 true 6,0.76 6.635,0.76 true 4.688,1.865 4.688,1.521 true 6.708,1.708 7.021,1.865 0.313,0.156 10 false *1 6.708,0.667 7.021,0.823 0.313,0.156 10 false *2 4.604,1.906 4.781,2.083 0.177,0.177 10 true *a 5.135,0.708 5.448,0.865 0.313,0.156 10 false *b
*1 Pad *2 Cover
*a Center Cutout of Pad *b Cover V-point




CHECK COVER POSITION

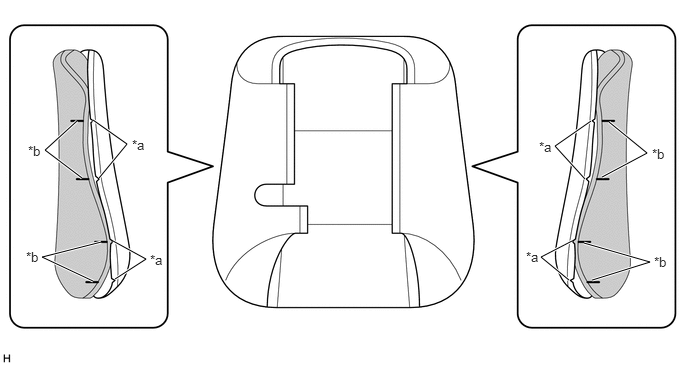

a.

Fold the cover back as shown in the illustration and check that the cover V-points and the pad mark-off lines are approximately aligned.

B359752C01
0.854,1.854 0.469,1.563 0.469,1.563 0.802,1.26 true 1.031,1.854 1.323,1.5 1.323,1.5 0.969,1.25 true 0.969,2.927 0.438,2.677 0.438,2.677 1.052,2.521 true 1.198,2.906 1.521,2.698 1.521,2.698 1.177,2.51 true 5.927,2.917 5.635,2.677 5.635,2.677 5.958,2.51 true 6.167,2.917 6.771,2.729 6.771,2.729 6.083,2.531 true 6.094,1.865 5.781,1.521 5.781,1.521 6.156,1.26 true 6.271,1.844 6.74,1.594 6.74,1.594 6.344,1.271 true 1.375,1.427 1.688,1.583 0.313,0.156 10 false *a 0.292,1.49 0.604,1.646 0.313,0.156 10 false *b 0.271,2.594 0.583,2.75 0.313,0.156 10 false *b 1.563,2.625 1.875,2.781 0.313,0.156 10 false *a 5.615,1.448 5.927,1.604 0.313,0.156 10 false *a 5.479,2.594 5.792,2.75 0.313,0.156 10 false *a 6.792,1.521 7.104,1.677 0.313,0.156 10 false *b 6.813,2.646 7.125,2.802 0.313,0.156 10 false *b
*a Cover V-point *b Pad Mark-off Line




INSTALL COVER


a.

Align the cover of the seatback with the center of the seatback pad and the cover of the seat cushion with the center of the seat cushion pad. Afterward, install the covers starting from the vehicle exterior and working toward the vehicle interior.

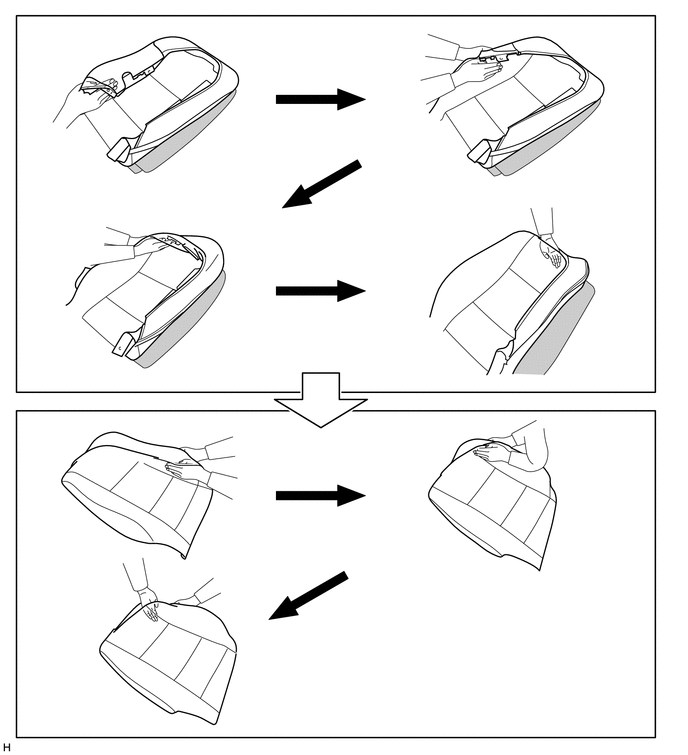

b.

While removing wrinkles by hand as shown in the illustration, install the seatback cover by starting from the bottom and working toward the shoulders, and then install the seat cushion cover by starting from the front and working toward the rear.

B359764

HINT:
·

Do not push the pad into the cover. Instead, secure the pad and install the cover to the pad.


·

for Seatback Side:

When installing the cover to the outer side, install the cover up until the installation area of the outer side headrest support.


·

Do not apply an excessive amount of force when covering the corners, as doing so may cause the cover to tear or fray.

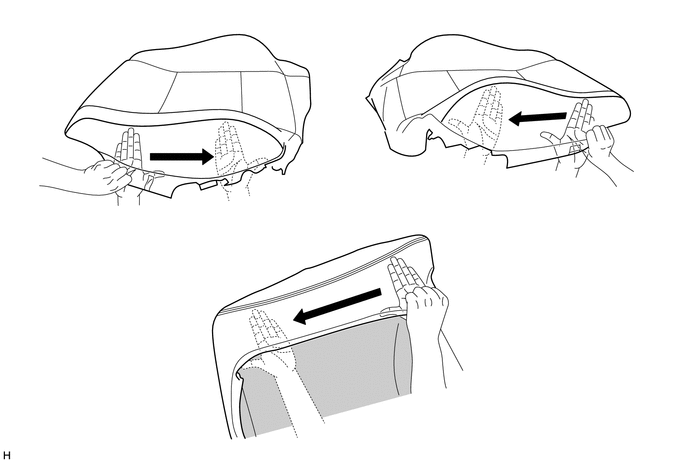

c.

Align the cover seam line with the edges of the pad.

B371020

HINT:
·

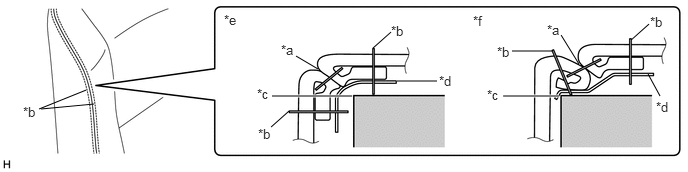

for Double-stitch Type:

B380444C01
6.031,0.667 5.844,0.365 false 6.76,0.25 6.573,0.417 false 5.75,0.531 5.333,0.531 false 5.823,1 5.24,1 true 3.667,1 2.833,1 true 3.01,1.156 2.823,1.323 false 4.073,0.333 3.885,0.5 false 3.313,0.719 3.083,0.583 false 6.75,0.771 6.875,1 false 4.552,0.844 4.135,0.844 false 0.896,0.938 0.406,1.135 false 0.979,1.083 0.427,1.135 false 2.927,0.438 3.24,0.594 0.313,0.156 10 false *a 5.073,0.906 5.385,1.063 0.313,0.156 10 false *c 6.833,1.031 7.063,1.281 0.229,0.25 10 false *d 2.333,0.125 2.646,0.281 0.313,0.156 10 false *e 4.927,0.135 5.24,0.292 0.313,0.156 10 false *f 5.698,0.229 6.01,0.385 0.313,0.156 10 false *a 5.177,0.458 5.49,0.615 0.313,0.156 10 false *b 2.677,0.896 2.99,1.052 0.313,0.156 10 false *c 6.771,0.146 7.083,0.302 0.313,0.156 10 false *b 2.688,1.313 3,1.469 0.313,0.156 10 false *b 4.073,0.24 4.385,0.396 0.313,0.156 10 false *b 4.573,0.76 4.802,1.01 0.229,0.25 10 false *d 0.24,1.083 0.552,1.24 0.313,0.156 10 false *b
*a Cover Seam Line *b Cover Seam (Stitch)
*c Pad Edge *d Felt
*e Correct *f Incorrect



·

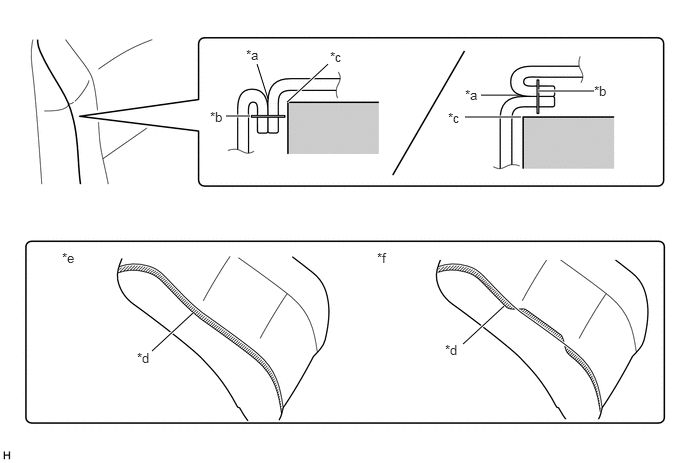

for Single-stitch Type:

Align the seam allowance in a single direction.

B380445C01
2.792,1.031 2.677,0.667 false 5.427,0.99 5.01,0.99 false 5.427,1.219 4.844,1.219 true 6.188,0.948 5.604,0.948 true 3.417,0.667 2.99,1.063 true 2.604,1.208 2.354,1.208 true 2.01,3.26 1.583,3.656 true 5.25,3.188 4.823,3.583 true 6.188,0.865 6.5,1.021 0.313,0.156 10 false *b 4.667,1.146 4.979,1.302 0.313,0.156 10 false *c 1.427,3.646 1.74,3.802 0.313,0.156 10 false *d 0.646,2.604 0.958,2.76 0.313,0.156 10 false *e 3.927,2.604 4.24,2.76 0.313,0.156 10 false *f 2.563,0.49 2.875,0.646 0.313,0.156 10 false *a 4.844,0.906 5.156,1.063 0.313,0.156 10 false *a 3.438,0.51 3.75,0.667 0.313,0.156 10 false *c 2.188,1.135 2.5,1.292 0.313,0.156 10 false *b 4.635,3.563 4.948,3.719 0.313,0.156 10 false *d
*a Cover Seam Line *b Cover Seam (Stitch)
*c Pad Edge *d Seam Allowance of Cover
*e Correct *f Incorrect

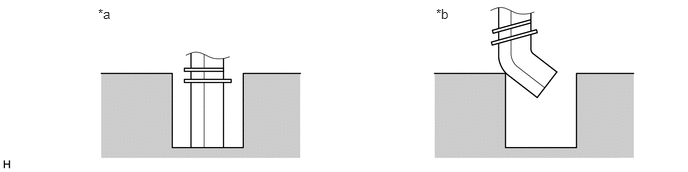

d.

Push the cover seam allowance securely into the groove in the pad.

HINT:

Make sure to completely push the seam allowance into the groove. Wrinkles will form if any of the seam allowance is outside the groove.

B380446C01
1.021,0.063 1.333,0.219 0.313,0.156 10 false *a 4.542,0.063 4.854,0.219 0.313,0.156 10 false *b
*a Correct *b Incorrect





REMOVE WRINKLES


a.

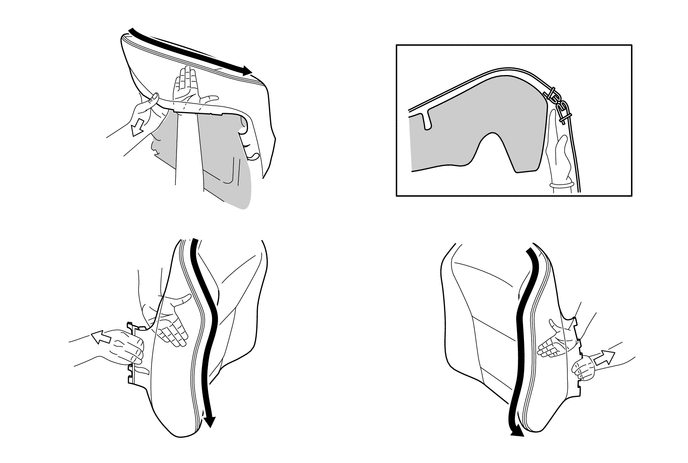

After installing the cover with pad to the seat frame, use your fingers to trace the seam line of each part and remove wrinkles.

B544465



CHECKS TO PERFORM AFTER WORK IS FINISHED

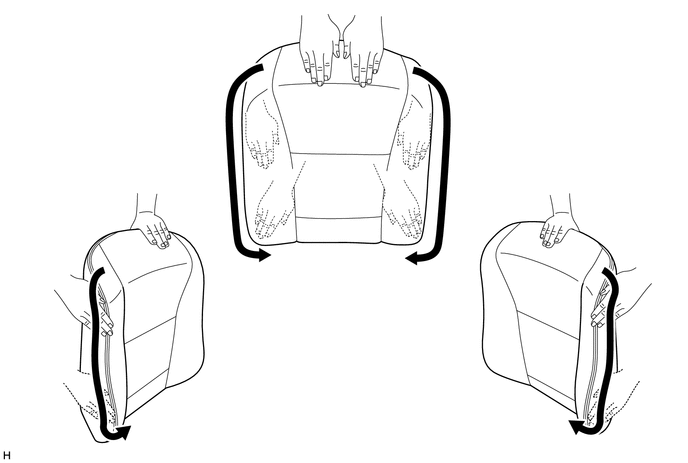

a.

Smooth the cover as shown in the illustration and make sure that there are no wrinkles.

HINT:
·

If wrinkles remain, it is very likely that the covering was not properly performed.


·

If waves form in the seam line, it is very likely that the seam allowance is not in the groove or the position of the felt is incorrect.


B359763
