NAVIGATION / MULTI INFO DISPLAY  NAVIGATION SYSTEM(for 10.25 Inch Display)  B157913  Voice Recognition Microphone1 Circuit Open


DESCRIPTION

The telephone microphone assembly LH is connected to the navigation receiver assembly via voice recognition microphone 1 signal detection line.

This DTC is stored when the navigation receiver assembly detects disconnection of telephone microphone assembly LH.

DTC No. Detection Item DTC Detection Condition Trouble Area
B157913 Voice Recognition Microphone1 Circuit Open Voice recognition microphone 1 terminal (SNS) disconnected
(2 trip detection logic)
·

Telephone microphone assembly LH

·

Navigation receiver assembly

·

Harness or connector

·

Telematics transceiver



WIRING DIAGRAM

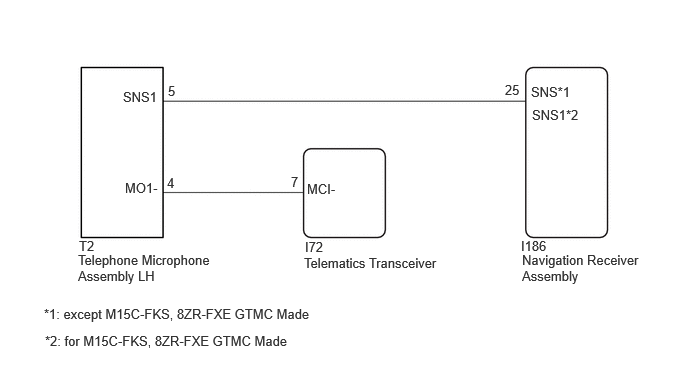

E475543E23
0.813,2.625 2.219,3.052 1.406,0.427 10 false Telephone Microphone Assembly LH 3.167,2.656 4.667,2.885 1.5,0.229 10 false Telematics Transceiver 5.438,2.625 6.646,3.01 1.208,0.385 10 false Navigation Receiver Assembly 0.823,2.479 1.031,2.646 0.208,0.167 10 false T2 3.177,2.49 3.406,2.677 0.229,0.188 10 false I72 5.427,2.479 5.74,2.677 0.313,0.198 10 false I186 5.26,0.854 5.573,1.052 0.313,0.198 10 false 25 1.75,0.865 2.063,1.063 0.313,0.198 10 false 5 1.74,1.823 2.052,2.021 0.313,0.198 10 false 4 3.031,1.813 3.344,2.01 0.313,0.198 10 false 7 3.198,1.885 3.573,2.104 0.375,0.219 10 false MCI- 1.302,1.875 1.719,2.063 0.417,0.188 10 false MO1- 1.281,0.927 1.708,1.125 0.427,0.198 10 false SNS1 5.531,0.875 6.115,1.125 0.583,0.25 10 false SNS*1 5.542,1.115 6.188,1.375 0.646,0.26 10 false SNS1*2 0.458,3.188 3.969,3.427 3.51,0.24 10 false *1: except M15C-FKS, 8ZR-FXE GTMC Made 0.469,3.469 3.979,3.708 3.51,0.24 10 false *2: for M15C-FKS, 8ZR-FXE GTMC Made

CAUTION / NOTICE / HINT

NOTICE:

Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed.

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION SYSTEM (for 10.25 Inch Display)>PRECAUTION


PROCEDURE

1.CHECK HARNESS AND CONNECTOR (TELEPHONE MICROPHONE ASSEMBLY LH - NAVIGATION RECEIVER ASSEMBLY, TELEMATICS TRANSCEIVER)
a.

Disconnect the T2 telephone microphone assembly LH connector.


b.

Disconnect the I186 navigation receiver assembly connector.


c.

Disconnect the I72 telematics transceiver connector.


d.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

*1: except M15C-FKS, 8ZR-FXE GTMC Made

*2: for M15C-FKS, 8ZR-FXE GTMC Made

T2-5 (SNS1) - I186-25 (SNS)*1 Always Below 1 Ω
T2-5 (SNS1) - I186-25 (SNS1)*2 Always Below 1 Ω
T2-4 (MO1-) - I72-7 (MCI-) Always Below 1 Ω
T2-5 (SNS1) or I186-25 (SNS) - Body ground*1 Always 10 kΩ or higher
T2-5 (SNS1) or I186-25 (SNS1) - Body ground*2 Always 10 kΩ or higher
T2-4 (MO1-) or I72-7 (MCI-) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

2.INSPECT TELEMATICS TRANSCEIVER (MCI-)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

2.INSPECT TELEMATICS TRANSCEIVER (MCI-)
a.

With the telematics transceiver connector connected, disconnect the T2 telephone microphone assembly LH connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
T2-4 (MO1-) - Body ground Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

3.INSPECT TELEPHONE MICROPHONE ASSEMBLY LH (SNS1, MO1-)

NG

REPLACE TELEMATICS TRANSCEIVER

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS TRANSCEIVER>REMOVAL


3.INSPECT TELEPHONE MICROPHONE ASSEMBLY LH (SNS1, MO1-)
a.
E364293C36
1.292,1.219 0.917,0.583 true 1.5,1.219 1.833,0.583 true 0.177,0.125 0.49,0.323 0.313,0.198 10 false *a 0.531,0.479 1.146,0.677 0.615,0.198 10 false SNS1 1.885,0.448 2.5,0.646 0.615,0.198 10 false MO1-
*a Component without harness connected
(Telephone microphone assembly LH)


Remove the telephone microphone assembly LH.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
5 (SNS1) - 4 (MO1-) Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

REPLACE NAVIGATION RECEIVER ASSEMBLY

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION RECEIVER>REMOVAL


NG

REPLACE TELEPHONE MICROPHONE ASSEMBLY LH

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>MICROPHONE>REMOVAL
