RM3660EC _56 Audio / Visual / Telematics _080751 AUDIO / VIDEO _0392323 MICROPHONE A

AUDIO / VIDEO  MICROPHONE  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during antenna cord sub-assembly removal/installation are shown below.

CAUTION:
B401522

Be sure to read Precaution thoroughly before servicing.

except NR Series Engine:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (except NR Series Engine)>PRECAUTION

for NR Series Engine:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for NR Series Engine)>PRECAUTION


NOTICE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY


HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

for HV Model:

Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Front Camera System Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more. (Click here)

·

for Gasoline Model:

Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Stop and Start System Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted (Click here)
Pre-collision System Perform steering sensor zero point calibration (Click here)
Lane Tracing Assist System
Front Camera System Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more. (Click here)



PROCEDURE

Hide 86730A 2.REMOVE TELEPHONE MICROPHONE ASSEMBLY (except 10.25 Inch Display)

a.

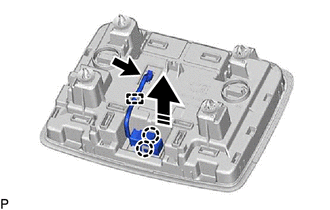

E412679C02
0,0 0,0 false
V113147

Remove in this Direction


Disconnect the connector.


b.

Disengage the clamp.


c.

Disengage the 2 claws and remove the telephone microphone assembly as shown in the illustration.


Hide 86730A 4.REMOVE TELEPHONE MICROPHONE ASSEMBLY (for 10.25 Inch Display)

a.

for LH Side:

i.

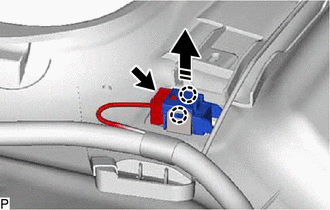

E488388C01
0,0 0,0 false
V113147

Remove in this Direction


Disconnect the connector.


ii.

Disengage the 2 claws and remove the telephone microphone assembly as shown in the illustration.



b.

for RH Side with Navigation System:

i.

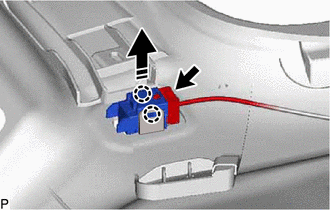

E488390C01
0,0 0,0 false
V113147

Remove in this Direction


Disconnect the connector.


ii.

Disengage the 2 claws and remove the telephone microphone assembly as shown in the illustration.
