The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during rear crankshaft oil seal removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| Replacement of ECM | Perform Vehicle Identification Number (VIN) or frame number registration | DTC is stored | ( 201906,999999,_51,_080777,_0393969,RM100000001I1RD,)
|
1.
Reset memory 2.
Deceleration sensor zero point calibration 3.
CVT oil pressure calibration |
·
Large shift shock ·
Deterioration of fuel efficiency |
( 201906,999999,_52,_080728,_0392261,RM100000001HP98,)
|
|
| Code registration (Immobiliser system) | Engine start | See Service Bulletin for the registration method | |
| Replacement of piston ring | Clear Heavy Knock History | - | ( 201906,999999,_51,_080777,_0393969,RM100000001I1RE,)
|
·
Replacement of engine assembly ·
Gas leaks from exhaust system |
Inspection After Repair | ·
Poor idle, etc. ·
Engine start function, etc. |
( 201906,999999,_51,_080777,_0393969,RM100000001I1RE,)
|
| Replacement of starter assembly | Clear the number of starter operations | Stop and Start System | ( 201906,999999,_51,_080774,_0393362,RM100000001HXHH,)
|
| Replacement of battery | Integrated current value initialization | ||
| Replacement of continuously variable transaxle assembly | Air bleed the oil pump with motor assembly | Stop and Start System | ( 201906,999999,_51,_080774,_0393362,RM100000001HXHH,)
|
1.
Reset memory 2.
Deceleration sensor zero point calibration 3.
CVT oil pressure calibration |
·
Large shift shock ·
Deterioration of fuel efficiency |
( 201906,999999,_52,_080728,_0392261,RM100000001HP98,)
|
|
| Replacement of CVT fluid | Air bleed the oil pump with motor assembly | Stop and Start System | ( 201906,999999,_51,_080774,_0393362,RM100000001HXHH,)
|
| ATF thermal degradation estimate reset | The value of the Data List item "ATF Thermal Degradation Estimate" is not estimated correctly | ( 201906,999999,_52,_080728,_0392261,RM100000001HP98,)
|
|
| Tires | Rear television camera assembly optical axis (Back camera position setting) | Parking Assist Monitor System | ( 202304,999999,_56,_080754,_0596561,RM100000002AX0C,)
|
| Suspension parts | Rear television camera assembly optical axis (Back camera position setting) | Parking Assist Monitor System | ( 202304,999999,_56,_080754,_0596561,RM100000002AX0C,)
|
| Front wheel alignment adjustment | ·
Perform "Reset Memory" ·
Perform acceleration sensor zero point calibration and store system information memorization |
·
VSC is disabled or malfunctions ·
DTCs are stored ·
Slip indicator light illuminates ·
ABS warning light illuminates |
( 202304,999999,_54,_080770,_0599814,RM100000002BA8F,)
|
| *a | An Object Exceeding Weight Limit of Engine Lifter |
The engine assembly with transaxle is very heavy. Be sure to follow the procedure described in the repair manual, or the engine lifter may suddenly drop or the engine assembly with transaxle may fall off the engine lifter.
To prevent burns, do not touch the engine, exhaust manifold or other high temperature components while the engine is hot.
When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
| Effect/Inoperative Function when Necessary Procedure not Performed | Necessary Procedure | Link |
|---|---|---|
| Stop and Start System | Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted | ( 201906,999999,_51,_080774,_0393362,RM100000001HXHC,)
|
| Pre-collision System | Perform steering sensor zero point calibration | ( 202304,999999,_95,_139716,_0601175,RM100000002BFOE,)
|
| Lane Tracing Assist System |
30400
1.REMOVE CONTINUOUSLY VARIABLE TRANSAXLE ASSEMBLY
When Using the Engine Support Bridge: Click hereDrivetrain>K313 (CVT)>CONTINUOUSLY VARIABLE TRANSAXLE ASSEMBLY (When Using the Engine Support Bridge)>REMOVAL202304,999999,_52,_080728,_0392263,RM100000002BCJH,
When not Using the Engine Support Bridge: Click hereDrivetrain>K313 (CVT)>CONTINUOUSLY VARIABLE TRANSAXLE ASSEMBLY (When Not Using the Engine Support Bridge)>REMOVAL202304,999999,_52,_080728,_0392264,RM100000002BCJG,
32101B
2.REMOVE DRIVE PLATE AND RING GEAR SUB-ASSEMBLY

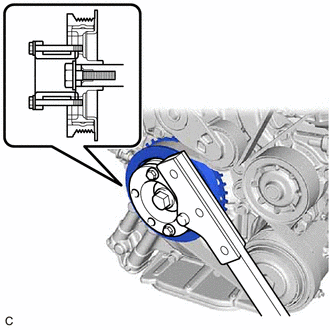

Using SST, hold the crankshaft pulley assembly.

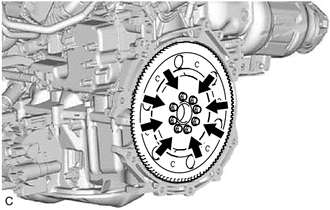

Remove the 8 bolts, the rear drive plate spacer, the drive plate and ring gear sub-assembly and the front drive plate spacer.
11401L
3.REMOVE REAR ENGINE OIL SEAL
| *a | Cut Position |
| *b | Protective Tape |

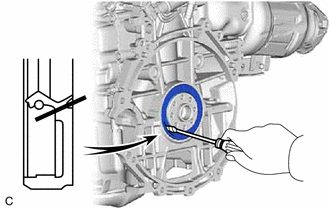

Using a knife, cut off the lip of the rear engine oil seal.
Using a screwdriver with its tip wrapped with protective tape, pry out the rear engine oil seal.
Be careful not to damage the crankshaft.
