RM3660EC _52 Drivetrain _080728 K313 CVT _0392274 TRANSMISSION CONTROL CABLE(for GTMC Made) A

K313 CVT  TRANSMISSION CONTROL CABLE(for GTMC Made)  INSTALLATION


PROCEDURE

Hide 33820B 1.INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY

NOTICE:

Before installing the transmission control cable assembly, check that the park/neutral position switch assembly and shift lever are in N.


a.

Pass the transmission control cable assembly into the vehicle and install the transmission control cable assembly to the vehicle body with the 2 nuts.

Torque:
6.0 N*m (61 kgf*cm, 53 in.*lbf)


b.

Engage the guide to connect the transmission control cable assembly to the vehicle body.


c.

Install the nut.

Torque:
6.0 N*m (61 kgf*cm, 53 in.*lbf)


d.

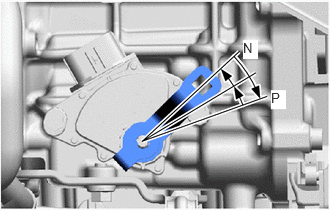

C329707N01
2.531,0.417 2.688,0.615 0.156,0.198 10 true N 2.823,0.938 2.979,1.135 0.156,0.198 10 true P

Turn the transmission control shaft lever clockwise until it stops, and then from that position turn it counterclockwise by 2 notches to set it to the N position.


e.

Connect the transmission control cable assembly to the No. 1 transmission control cable bracket with a new clip.


f.

Connect the transmission control cable assembly to the transmission control shaft lever with the nut.

Torque:
12 N*m (122 kgf*cm, 9 ft.*lbf)


g.
C400603C02
1.646,1.198 1.844,1.594 1.844,1.594 2,1.594 false 1.313,1.344 1.583,1.594 0.271,0.25 10 false *a 2.042,1.49 2.333,1.708 0.292,0.219 10 false *b
*a Slide
*b Adjuster Case Cover


Slide the adjuster case cover in the direction shown by the arrow.


h.

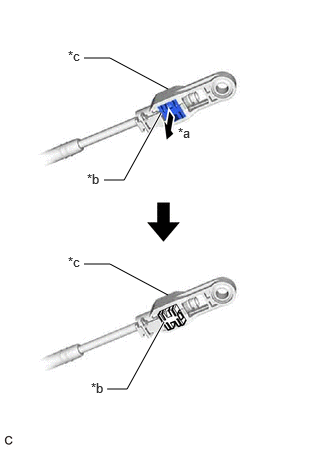

C400817C02
1.115,4.052 1.323,4.052 1.323,4.052 1.708,3.354 true 0.875,2.75 1.146,2.75 1.146,2.75 1.75,3.073 false 0.875,0.604 1.146,0.604 1.146,0.604 1.75,0.927 false 1.083,1.875 1.292,1.875 1.292,1.875 1.677,1.177 true 1.854,1.302 2.156,1.542 0.302,0.24 10 false *a 0.906,1.781 1.219,1.938 0.313,0.156 10 false *b 0.948,3.958 1.24,4.188 0.292,0.229 10 false *b 0.708,0.5 0.958,0.74 0.25,0.24 10 false *c 0.708,2.646 0.958,2.885 0.25,0.24 10 false *c
*a Pull Out
*b Lock Piece
*c Adjuster Case


Using a precision screwdriver, pull out the lock piece of the adjuster case.


i.

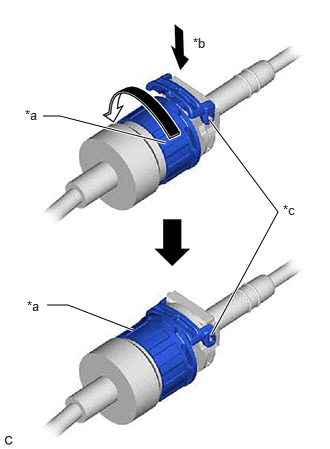

C400818C01
0.448,1.208 0.625,1.208 0.625,1.208 1.729,1.49 true 2.188,1.26 2.896,2.208 2.896,2.208 2.208,3.479 true 0.49,3.177 0.708,3.177 0.708,3.177 1.385,3.438 true 0.26,1.115 0.573,1.271 0.313,0.156 10 false *a 2.01,0.365 2.323,0.521 0.313,0.156 10 false *b 2.948,2.104 3.26,2.26 0.313,0.156 10 false *c 0.281,3.104 0.594,3.26 0.313,0.156 10 false *a
*a Lock Nut
*b Push in
*c Stopper


Turn the lock nut of the transmission control cable assembly counterclockwise. While holding the lock nut, push in the stopper.


j.

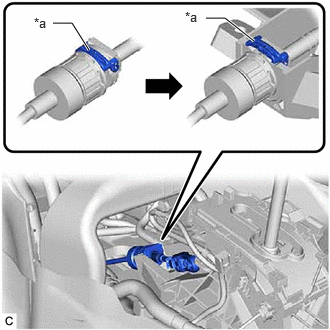

C400819C01
0.552,0.24 0.75,0.24 0.75,0.24 0.927,0.521 true 2.146,0.188 2.344,0.188 2.344,0.188 2.646,0.427 true 0.354,0.156 0.667,0.313 0.313,0.156 10 false *a 1.927,0.094 2.24,0.25 0.313,0.156 10 false *a
*a Stopper


Connect the transmission control cable assembly to the transmission floor shift assembly.

NOTICE:
·

After connection, check that the outer part of the stopper is as shown in the illustration.

·

Do not forcibly pull the transmission control cable assembly into the cabin.




k.

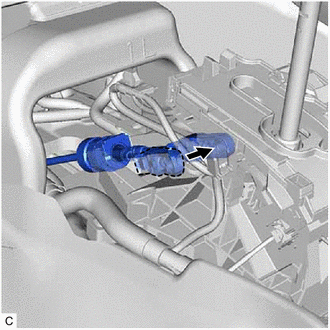

C400820

Connect the transmission control cable assembly to the transmission floor shift assembly.

NOTICE:
·

Before connecting the transmission control cable assembly, check that the shift lever is in N.


·

Securely connect the end of the transmission control cable assembly to the transmission floor shift assembly.




l.

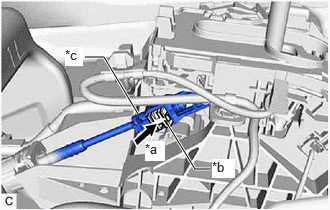

C400821C02
0.885,0.594 1.083,0.594 1.083,0.594 1.438,1.188 true 2.188,1.76 2.031,1.76 2.031,1.76 1.75,1.302 true 1.51,1.469 1.719,1.677 0.208,0.208 10 true *a 2.208,1.656 2.448,1.854 0.24,0.198 10 true *b 0.677,0.49 0.865,0.688 0.188,0.198 10 true *c
*a Push in
*b Lock Piece
*c Adjuster Case


Push in the lock piece of the adjuster case to lock it.

NOTICE:
·

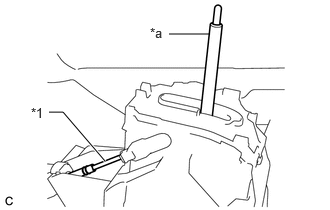

C414646C02
1.76,0.354 2.177,0.354 false 0.51,1.167 0.656,1.167 0.656,1.167 1.094,1.677 true 0.323,1.094 0.552,1.292 0.229,0.198 10 false *1 1.563,0.26 1.813,0.469 0.25,0.208 10 false *a
*1 Transmission Control Cable Assembly
*a Lever Shaft


When pushing in the lock piece of the adjuster case to lock it, remove your hand from the lever shaft.

·

When pushing in the lock piece of the adjuster case to lock it, do not move the lever shaft or transmission control cable assembly forward or backward.




m.

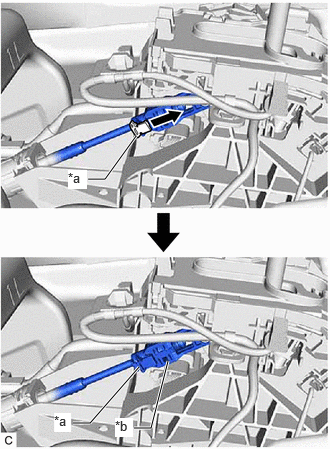

C400822C02
0.917,1.865 1.094,1.865 1.094,1.865 1.417,1.417 true 1.396,4.458 1.573,4.458 1.573,4.458 1.75,3.76 true 0.76,4.406 0.938,4.406 0.938,4.406 1.448,3.823 true 0.708,1.771 0.906,1.969 0.198,0.198 10 true *a 0.563,4.302 0.74,4.5 0.177,0.198 10 true *a 1.198,4.354 1.385,4.552 0.188,0.198 10 true *b
*a Adjuster Case Cover
*b Lock Piece


Move the adjuster case cover in the direction shown by the arrow.

NOTICE:

If the adjuster case cover is not moved far enough so that the adjuster case cover engages the lock piece, the transmission control cable assembly will not be able to lock, and reliable shift operation will not be possible.



Hide 58151 5.INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR

a.

Install the front No. 1 floor heat insulator to the vehicle body with the 3 nuts.

Torque:
5.0 N*m (51 kgf*cm, 44 in.*lbf)


Hide 22. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART
