K313 CVT TRANSMISSION CONTROL CABLE(for TFTM Made) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during transmission control cable assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replacement Part or Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Replacement of ECM	Perform Vehicle Identification Number (VIN) or frame number registration	DTC is stored	(201906,999999,_51,_080777,_0393969,RM100000001I1RD,)
	1. Reset memory 2. Deceleration sensor zero point calibration 3. CVT oil pressure calibration	· Large shift shock · Deterioration of fuel efficiency	(201906,999999,_52,_080728,_0392261,RM100000001HP98,)
	Code registration (Immobiliser system)	Engine start	See Service Bulletin for the registration method
Gas leaks from exhaust system	Inspection after repair	· Poor idle, etc. · Engine start function, etc.	(201906,999999,_51,_080777,_0393969,RM100000001I1RE,)
Replacement of battery	Integrated current value initialization	Stop and Start System	(201906,999999,_51,_080774,_0393362,RM100000001HXHH,)

CAUTION:: ·

When the engine is hot, do not touch high-temperature areas such as the engine or exhaust pipe.

·

Touching high-temperature areas such as the engine and exhaust pipe could result in burns.

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven
Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Stop and Start System	Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted	(201906,999999,_51,_080774,_0393362,RM100000001HXHC,)
Pre-collision System	Perform steering sensor zero point calibration	(202304,999999,_95,_139716,_0601175,RM100000002BFOE,)
Lane Tracing Assist System	Perform steering sensor zero point calibration	(202304,999999,_95,_139716,_0601175,RM100000002BFOE,)

PROCEDURE

Hide Display 1.SECURE VEHICLE

Fully apply the parking brake and chock a wheel.

CAUTION:: ·

Make sure to apply the parking brake and chock a wheel before performing this procedure.

·

If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.

Hide Display 2. PRECAUTION

NOTICE:: After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY202304,202502,_V1,_143216,_0598315,RM100000002B3MI,202502,999999,_V1,_143216,_0598315,RM100000002RP07,

Hide Display 3.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

Click hereGeneral>MAINTENANCE>NR Series BATTERY>REMOVAL202304,999999,_V1,_080956,_0392375,RM100000002BCCL_05_0005,

Hide Display 53289A 4.REMOVE RADIATOR SUPPORT OPENING COVER

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for TFTM Made)>REMOVAL202304,202307,_59,_080736,_0392548,RM100000002AMO3_01_0020,202307,999999,_59,_080736,_0392548,RM100000002CH8T_01_0020,

Hide Display 17751 5.REMOVE INLET NO. 1 AIR CLEANER

Click hereEngine / Hybrid System>NR Series (COOLING)>COOLING FAN MOTOR>REMOVAL201906,999999,_51,_080776,_0392641,RM100000001HRWA_02_0042,

Hide Display 17705 6.REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

Click hereEngine / Hybrid System>NR Series (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,999999,_51,_080739,_0391935,RM100000002BCMQ_01_0369,

Hide Display 17701 7.REMOVE AIR CLEANER CASE SUB-ASSEMBLY

Click hereEngine / Hybrid System>NR Series (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,999999,_51,_080739,_0391935,RM100000002BCMQ_01_0370,

Hide Display 89661 8.REMOVE ECM

Click hereEngine / Hybrid System>NR Series (ENGINE CONTROL)>ECM>REMOVAL202304,999999,_51,_080777,_0392337,RM100000002BCAH_01_0003,

Hide Display 9.REMOVE BATTERY

Click hereGeneral>MAINTENANCE>NR Series BATTERY>REMOVAL202304,999999,_V1,_080956,_0392375,RM100000002BCCL,

Hide Display 10.DISCONNECT ENGINE WIRE

Click hereDrivetrain>K313 (CVT)>PARK / NEUTRAL POSITION SWITCH>REMOVAL202304,999999,_52,_080728,_0392272,RM100000002BCJK_02_0018,

Hide Display 74404A 11.REMOVE BATTERY CLAMP SUB-ASSEMBLY

Click hereEngine / Hybrid System>NR Series (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202304,999999,_51,_080739,_0391935,RM100000002BCMQ_01_0373,

Hide Display 58166A 12.REMOVE FRONT FLOOR COVER LH

Click hereEngine / Hybrid System>NR Series (INTAKE / EXHAUST)>EXHAUST PIPE>REMOVAL201906,999999,_51,_080791,_0392520,RM100000001HREM_01_0043,

Hide Display 58165C 13.REMOVE FRONT FLOOR COVER RH

Click hereEngine / Hybrid System>NR Series (INTAKE / EXHAUST)>EXHAUST PIPE>REMOVAL201906,999999,_51,_080791,_0392520,RM100000001HREM_01_0044,

Hide Display 57533B 14.REMOVE FRONT FLOOR CENTER BRACE

Click hereEngine / Hybrid System>NR Series (INTAKE / EXHAUST)>EXHAUST PIPE>REMOVAL201906,999999,_51,_080791,_0392520,RM100000001HREM_01_0045,

Hide Display 17410 15.REMOVE FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)

Click hereEngine / Hybrid System>NR Series (EMISSION CONTROL)>MONOLITHIC CONVERTER>REMOVAL201906,999999,_51,_080792,_0392498,RM100000001HW76_01_0063,

Hide Display 58151 16.REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR

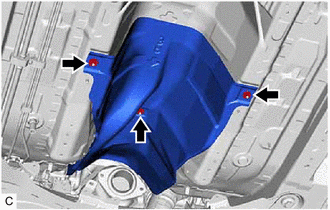

Remove the 3 nuts and front No. 1 floor heat insulator from the vehicle body.

Hide Display 58810J 17.REMOVE CONSOLE BOX ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202304,999999,_58,_080744,_0393717,RM100000002AVGF,

Hide Display 58862B 18.REMOVE NO. 2 CONSOLE BOX DUCT (w/ Rear Air Duct)

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING UNIT (for Gasoline Model)>REMOVAL202304,202307,_58,_080733,_0393729,RM100000002B1HY_02_0214,202307,999999,_58,_080733,_0393729,RM100000002D3V5_02_0214,

Hide Display 58861B 19.REMOVE NO. 1 CONSOLE BOX DUCT (w/ Rear Air Duct)

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING UNIT (for Gasoline Model)>REMOVAL202304,202307,_58,_080733,_0393729,RM100000002B1HY_02_0166,202307,999999,_58,_080733,_0393729,RM100000002D3V5_02_0166,

Hide Display 33820B 20.REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY

Move the shift lever to N.

0,0 0,0 false

Disconnect in this Direction

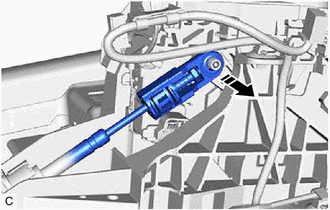

Disconnect the transmission control cable assembly from the transmission floor shift assembly.

0.667,1.354 0.854,1.354 0.854,1.354 1.083,0.865 true 0.448,1.25 0.646,1.5 0.198,0.25 10 true *a

Stopper

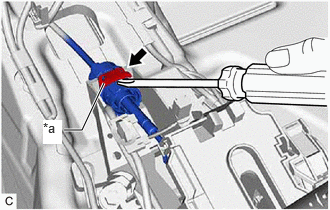

Using a screwdriver, pull out the stopper of the transmission control cable assembly.

NOTICE:: Do not remove the stopper. If it is removed, reinstall it to its original position.

1.344,0.917 1.688,1.167 1.688,1.167 2.01,0.927 true 2.292,0.292 2.375,0.177 2.375,0.177 2.5,0.177 true 0.854,0.188 1,0.188 1,0.188 1.104,0.281 true 0.688,0.104 1,0.302 0.313,0.198 10 false *a 2.552,0.104 2.865,0.302 0.313,0.198 10 false *a 1.635,1.208 1.948,1.406 0.313,0.198 10 false *b 2.625,0.958 2.938,1.156 0.313,0.198 10 false *c

*a	Stopper
*b	Nut
*c	Turn approximately 180°

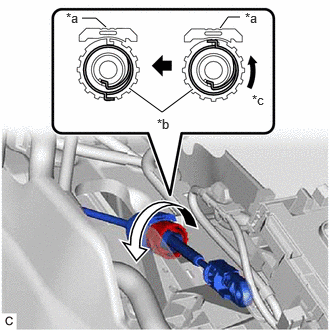

Turn the nut of the transmission control cable assembly approximately 180° counterclockwise and, while holding the nut in that position, disconnect the transmission control cable assembly from the transmission floor shift assembly.

NOTICE:: ·

Do not turn the nut excessively as the internal spring may come off and the transmission control cable assembly will not be reusable.

·

Do not forcibly pull the transmission control cable assembly into the cabin.

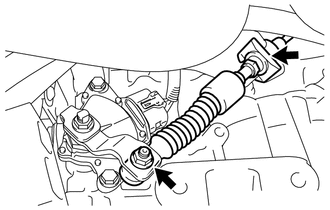

Remove the nut to disconnect the transmission control cable assembly from the transmission control shaft lever.

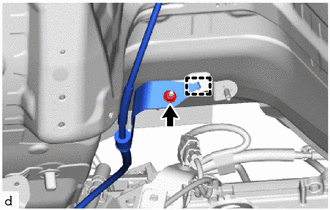

Remove the clip to separate the transmission control cable assembly from the No. 1 transmission control cable bracket.

Remove the nut.

Disengage the guide to disconnect the transmission control cable assembly from the vehicle body.

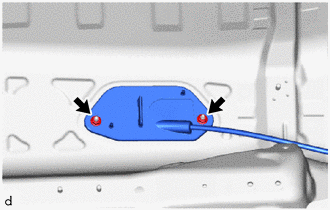

Remove the 2 nuts and transmission control cable assembly from the vehicle body.
