RM3660EC _52 Drivetrain _080728 K313 CVT _0392272 PARK / NEUTRAL POSITION SWITCH A

K313 CVT PARK / NEUTRAL POSITION SWITCH INSTALLATION

PROCEDURE

Hide Display 84540 1.INSTALL PARK/NEUTRAL POSITION SWITCH ASSEMBLY

a.

Temporarily install the park/neutral position switch assembly to the continuously variable transaxle assembly with the 2 bolts.

b.

Install the lock nut and lock plate to the park/neutral position switch assembly.

Torque:: 6.9 N*m (70 kgf*cm, 61 in.*lbf)

c.

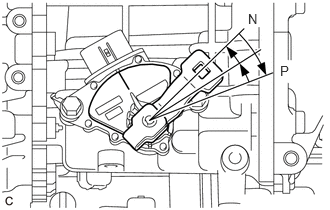

C310228N01

2.917,0.656 3.188,0.854 0.271,0.198 10 true P 2.583,0.115 2.813,0.281 0.229,0.167 10 true N

Temporarily install the transmission control shaft lever.

d.

Turn the transmission control shaft lever clockwise until it stops, and then from that position turn it counterclockwise by 2 notches to set it to the N position.

e.

Remove the transmission control shaft lever.

f.

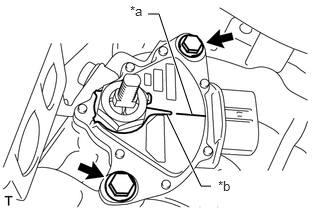

C154976C08

1.542,0.146 1.656,0.146 1.656,0.146 2,1.188 true 1.74,1.198 2.094,1.938 2.094,1.938 2.198,1.938 true 1.354,0.031 1.625,0.26 0.271,0.229 10 false *a 2.271,1.854 2.5,2.052 0.229,0.198 10 false *b

*a	Neutral Basic Line
*b	Protrusion

Align the protrusion with the neutral basic line.

g.

Hold the park/neutral position switch assembly in that position and tighten the 2 bolts.

Torque:: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

h.

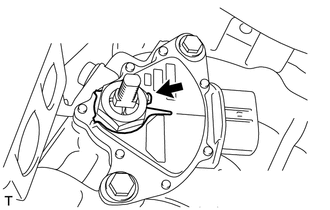

C154977

Using a screwdriver, bend down the tabs of the lock plate.

i.

Install the transmission control shaft lever to the park/neutral position switch assembly with the nut and washer.

Torque:: 12.7 N*m (130 kgf*cm, 9 ft.*lbf)

j.

Connect the park/neutral position switch assembly connector.

Hide Display 33820B 2.CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

a.

Connect the transmission control cable assembly to the No. 1 transmission control cable bracket with a new clip.

b.

Connect the transmission control cable assembly to the transmission control shaft lever with the nut.

Torque:: 12 N*m (122 kgf*cm, 9 ft.*lbf)

NOTICE:: Before connecting the transmission control cable assembly, check that the park/neutral position switch assembly and shift lever are in N.

Hide Display 74404A 3.INSTALL BATTERY CLAMP SUB-ASSEMBLY

Click hereEngine / Hybrid System>NR Series (ENGINE MECHANICAL)>ENGINE ASSEMBLY>INSTALLATION202304,999999,_51,_080739,_0391935,RM100000002BCNA_01_0405,

Hide Display 4.CONNECT ENGINE WIRE

a.

Connect the engine wire to the battery clamp sub-assembly with the bolt and nut.

Torque:: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

Hide Display 5.INSTALL BATTERY

Click hereGeneral>MAINTENANCE>NR Series BATTERY>INSTALLATION202304,999999,_V1,_080956,_0392375,RM100000002BCCN,

Hide Display 89661 6.INSTALL ECM

Click hereEngine / Hybrid System>NR Series (ENGINE CONTROL)>ECM>INSTALLATION202304,999999,_51,_080777,_0392337,RM100000002BCAQ_01_0001,

Hide Display 17701 7.INSTALL AIR CLEANER CASE SUB-ASSEMBLY

Click hereEngine / Hybrid System>NR Series (ENGINE MECHANICAL)>ENGINE ASSEMBLY>INSTALLATION202304,999999,_51,_080739,_0391935,RM100000002BCNA_01_0408,

Hide Display 17705 8.INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE

Click hereEngine / Hybrid System>NR Series (ENGINE MECHANICAL)>ENGINE ASSEMBLY>INSTALLATION202304,999999,_51,_080739,_0391935,RM100000002BCNA_01_0409,

Hide Display 17751 9.INSTALL INLET NO. 1 AIR CLEANER

Click hereEngine / Hybrid System>NR Series (COOLING)>COOLING FAN MOTOR>INSTALLATION201906,999999,_51,_080776,_0392641,RM100000001HRWB_01_0043,

Hide Display 53289A 10.INSTALL RADIATOR SUPPORT OPENING COVER (for TFTM Made)

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for TFTM Made)>INSTALLATION202304,202307,_59,_080736,_0392548,RM100000002AMO6_01_0032,202307,999999,_59,_080736,_0392548,RM100000002CH8W_01_0032,

Hide Display 53289A 11.INSTALL RADIATOR SUPPORT OPENING COVER (for GTMC Made)

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for GTMC Made)>INSTALLATION202304,202307,_59,_080736,_0392547,RM100000002AXCP_01_0032,202307,999999,_59,_080736,_0392547,RM100000002CHFB_01_0032,

Hide Display 12.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Click hereGeneral>MAINTENANCE>NR Series BATTERY>INSTALLATION202304,999999,_V1,_080956,_0392375,RM100000002BCCN_03_0002,

Hide Display 13.INSPECT SHIFT LEVER POSITION

Click hereDrivetrain>K313 (CVT)>SHIFT LEVER>ON-VEHICLE INSPECTION201906,999999,_52,_080728,_0392275,RM100000001HPBL_01_0002,

Hide Display 14.ADJUST SHIFT LEVER POSITION (for TFTM Made)

Click hereDrivetrain>K313 (CVT)>TRANSMISSION CONTROL CABLE (for TFTM Made)>ADJUSTMENT201906,999999,_52,_080728,_0392273,RM100000001HTPX,

Hide Display 15.ADJUST SHIFT LEVER POSITION (for GTMC Made)

Click hereDrivetrain>K313 (CVT)>TRANSMISSION CONTROL CABLE (for GTMC Made)>ADJUSTMENT201906,999999,_52,_080728,_0392274,RM100000001HTSN,

Hide Display 84540 16.INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY

Click hereDrivetrain>K313 (CVT)>PARK / NEUTRAL POSITION SWITCH>ON-VEHICLE INSPECTION201906,999999,_52,_080728,_0392272,RM100000001HPB6_01_0002,

Hide Display 84540 17.ADJUST PARK/NEUTRAL POSITION SWITCH ASSEMBLY

Click hereDrivetrain>K313 (CVT)>PARK / NEUTRAL POSITION SWITCH>ADJUSTMENT202304,999999,_52,_080728,_0392272,RM100000002BCJM_01_0008,

Hide Display 18. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART202304,999999,_V1,_143216,_0598315,RM100000002B3MJ,
