RM3660EC _52 Drivetrain _080728 K313 CVT _0392267 FRONT DIFFERENTIAL OIL SEAL A

K313 CVT  FRONT DIFFERENTIAL OIL SEAL  REPLACEMENT


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during front drive shaft oil seal LH and front drive shaft oil seal RH removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replacement Part or Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
Replacement of CVT fluid Air bleed the oil pump with motor assembly Stop and Start System (Click here)
ATF thermal degradation estimate reset The value of the Data List item "ATF Thermal Degradation Estimate" is not estimated correctly (Click here)
Tires Rear television camera assembly optical axis (Back camera position setting) Parking Assist Monitor System (Click here)
Suspension parts Rear television camera assembly optical axis (Back camera position setting) Parking Assist Monitor System (Click here)
Front wheel alignment adjustment
1.

Perform "Reset Memory"

2.

Perform acceleration sensor zero point calibration and store system information memorization


·

VSC is disabled or malfunctions

·

DTCs are output

·

Slip indicator light illuminates

·

ABS warning light illuminates


(Click here)

PROCEDURE

Hide 43420H 3.REMOVE FRONT DRIVE SHAFT OIL SEAL LH

a.

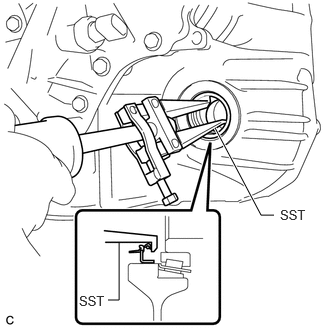

C160542N04
2.24,1.333 2.719,2.24 2.719,2.24 2.854,2.24 true 1.125,3.125 1.24,3.125 1.24,3.125 1.24,2.531 false 0.823,3.052 1.229,3.26 0.406,0.208 10 false SST 2.917,2.156 3.354,2.385 0.438,0.229 10 false SST

Using SST, remove the front drive shaft oil seal LH from the continuously variable transaxle assembly.

SST
09308-00010

NOTICE:

Do not damage the continuously variable transaxle assembly.



Hide 43410M 4.REMOVE FRONT DRIVE SHAFT OIL SEAL RH

a.

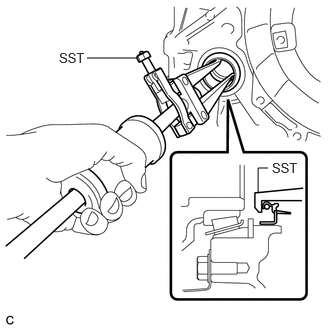

C160541N04
0.906,0.604 1.427,0.604 false 2.688,2 2.688,1.75 2.688,1.75 2.792,1.75 false 0.615,0.521 1.052,0.771 0.438,0.25 10 false SST 2.833,1.667 3.323,2 0.49,0.333 10 false SST

Using SST, remove the front drive shaft oil seal RH from the continuously variable transaxle assembly.

SST
09308-00010

NOTICE:

Do not damage the continuously variable transaxle assembly.



Hide 43410M 5.INSTALL FRONT DRIVE SHAFT OIL SEAL RH

a.

Apply MP grease to the lip of a new front drive shaft oil seal RH.


b.

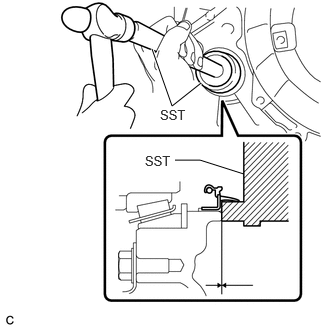

C156209N06
1.823,1.667 2.083,1.667 2.083,1.667 2.542,1.813 false 1.583,0.51 1.792,1.104 1.792,1.104 2.094,0.865 true 1.667,1.115 2.052,1.302 0.385,0.188 10 false SST 1.51,1.594 1.917,1.813 0.406,0.219 10 false SST

Using SST and a hammer, install the front drive shaft oil seal RH to the continuously variable transaxle assembly.

SST
09554-14010
09950-70010  (09951-07100)

Standard Depth:

-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)


NOTICE:
·

Be sure to install the front drive shaft oil seal RH in the correct direction.

·

Make sure to install the front drive shaft oil seal RH as specified, otherwise malfunctions such as a fluid leak will occur.

·

Do not damage the lip of the front drive shaft oil seal RH.




Hide 43420H 6.INSTALL FRONT DRIVE SHAFT OIL SEAL LH

a.

Apply MP grease to the lip of a new front drive shaft oil seal LH.


b.

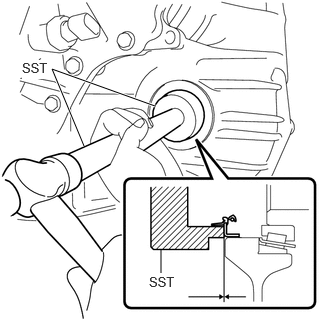

C304683N04
1.677,2.844 1.677,2.594 false 0.875,1.521 0.542,0.719 0.542,0.719 1.615,1.104 true 1.552,2.854 1.906,3.052 0.354,0.198 10 false SST 0.229,0.625 0.531,0.823 0.302,0.198 10 true SST

Using SST and a hammer, install the front drive shaft oil seal LH to the continuously variable transaxle assembly.

SST
09387-00010
09950-70010  (09951-07150)

Standard Depth:

-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)


NOTICE:
·

Be sure to install the front drive shaft oil seal LH in the correct direction.

·

Make sure to install the front drive shaft oil seal LH as specified, otherwise malfunctions such as a fluid leak will occur.

·

Do not damage the lip of the front drive shaft oil seal LH.
