RM3660EC _58 Vehicle Interior _080785 LIGHTING (INT) _0600096 LIGHTING SYSTEM(for NR Series Engine) J

LIGHTING (INT)  LIGHTING SYSTEM(for NR Series Engine)  Ambient Illumination Light Circuit


DESCRIPTION

The main body ECU (multiplex network body ECU) controls the operation of the following lights:

·

Center Tray Illumination Light (Instrument Panel Light Assembly)*1

·

Cup Holder Light (Console Box Pocket Garnish)*2

·

Footwell Light LH (No. 1 Interior Illumination Light Assembly)*3

·

Footwell Light RH (No. 1 Interior Illumination Light Assembly)*3

*1: w/ Center Tray Light

*2: w/ Cup Holder Light

*3: w/ Footwell Light



WIRING DIAGRAM

for TFTM Made
E461008E01
0.521,0.406 1.469,0.646 0.948,0.24 10 false from Battery 2.417,0.583 3.333,0.781 0.917,0.198 10 false J/B-AM 4.219,0.417 4.531,0.615 0.313,0.198 10 false 4D 4.24,2.313 4.552,2.51 0.313,0.198 10 false 4F 4.24,1.844 4.552,2.042 0.313,0.198 10 false 4F 4.219,4.354 4.531,4.552 0.313,0.198 10 false 4E 4.229,2.802 4.542,3 0.313,0.198 10 false 4E 4.26,0.219 4.417,0.417 0.156,0.198 10 false 1 4.24,2.115 4.552,2.313 0.313,0.198 10 false 26 4.24,1.656 4.552,1.854 0.313,0.198 10 false 25 4.219,4.146 4.531,4.344 0.313,0.198 10 false 37 4.229,2.615 4.542,2.813 0.313,0.198 10 false 36 5.938,2.667 6.25,2.865 0.313,0.198 10 false 26 6.219,2.667 6.833,2.865 0.615,0.198 10 false FSPT 4.885,0.583 5.5,0.781 0.615,0.198 10 false DOME 1.396,2.708 1.552,2.906 0.156,0.198 10 false B 1.406,4.25 1.563,4.448 0.156,0.198 10 false B 2.771,4.25 2.927,4.448 0.156,0.198 10 false E 2.781,2.698 2.938,2.896 0.156,0.198 10 false E 3.01,4.219 3.167,4.417 0.156,0.198 10 false 1 3.01,2.667 3.167,2.865 0.156,0.198 10 false 1 1.177,4.219 1.333,4.417 0.156,0.198 10 false 2 1.167,2.667 1.323,2.865 0.156,0.198 10 false 2 0.875,4.719 1.333,4.917 0.458,0.198 10 false I29 0.896,4.885 3.406,5.25 2.51,0.365 10 false Center Tray Illumination Light (Instrument Panel Light Assembly) 1.094,3.167 1.552,3.365 0.458,0.198 10 false I30 1.156,3.333 3.073,3.688 1.917,0.354 10 false Cup Holder Light (Console Box Pocket Garnish) 4.75,4.729 5.969,5.167 1.219,0.438 10 false Driver Side Junction Block Assembly 5.5,7.667 5.813,7.865 0.313,0.198 10 false MB 5.5,7.917 7.135,8.354 1.635,0.438 10 false Main Body ECU (Multiplex Network Body ECU) 1.177,6.469 3.104,6.833 1.927,0.365 10 false Footwell Light LH (No. 1 Interior Illumination Light Assembly) 1.188,8 3.135,8.375 1.948,0.375 10 false Footwell Light RH (No. 1 Interior Illumination Light Assembly) 4.24,1.365 4.552,1.563 0.313,0.198 10 false 4F 4.24,0.906 4.552,1.104 0.313,0.198 10 false 4F 4.24,1.167 4.552,1.365 0.313,0.198 10 false 27 4.24,0.708 4.552,0.906 0.313,0.198 10 false 24 1.406,5.792 1.563,5.99 0.156,0.198 10 false B 1.406,7.344 1.563,7.542 0.156,0.198 10 false B 2.771,5.792 2.927,5.99 0.156,0.198 10 false L 2.771,7.333 2.927,7.531 0.156,0.198 10 false L 0.979,7.833 1.333,8.021 0.354,0.188 10 false I174 1.167,7.313 1.438,7.542 0.271,0.229 10 false 2 3,7.313 3.271,7.542 0.271,0.229 10 false 1 0.979,6.25 1.333,6.438 0.354,0.188 10 false I175 3,5.75 3.271,5.979 0.271,0.229 10 false 1 1.167,5.75 1.438,5.979 0.271,0.229 10 false 2

for GTMC Made

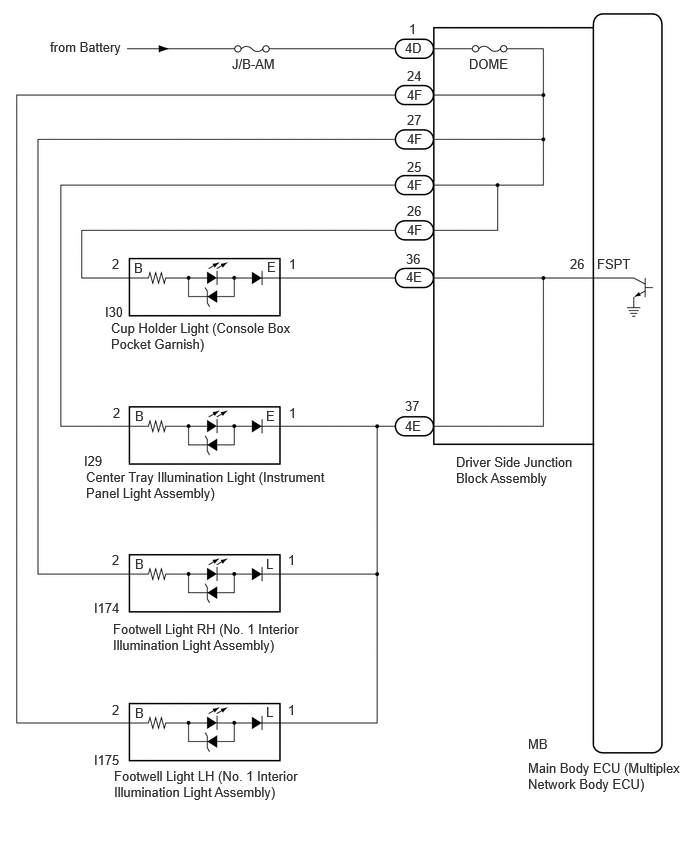

E461008E02
0.521,0.406 1.469,0.646 0.948,0.24 10 false from Battery 2.417,0.583 3.333,0.781 0.917,0.198 10 false J/B-AM 4.219,0.417 4.531,0.615 0.313,0.198 10 false 4D 4.24,2.313 4.552,2.51 0.313,0.198 10 false 4F 4.24,1.844 4.552,2.042 0.313,0.198 10 false 4F 4.219,4.354 4.531,4.552 0.313,0.198 10 false 4E 4.229,2.802 4.542,3 0.313,0.198 10 false 4E 4.26,0.219 4.417,0.417 0.156,0.198 10 false 1 4.24,2.115 4.552,2.313 0.313,0.198 10 false 26 4.24,1.656 4.552,1.854 0.313,0.198 10 false 25 4.219,4.146 4.531,4.344 0.313,0.198 10 false 37 4.229,2.615 4.542,2.813 0.313,0.198 10 false 36 5.938,2.667 6.25,2.865 0.313,0.198 10 false 26 6.219,2.667 6.833,2.865 0.615,0.198 10 false FSPT 4.885,0.583 5.5,0.781 0.615,0.198 10 false DOME 1.396,2.708 1.552,2.906 0.156,0.198 10 false B 1.406,4.25 1.563,4.448 0.156,0.198 10 false B 2.771,4.25 2.927,4.448 0.156,0.198 10 false E 2.781,2.698 2.938,2.896 0.156,0.198 10 false E 3.01,4.219 3.167,4.417 0.156,0.198 10 false 1 3.01,2.667 3.167,2.865 0.156,0.198 10 false 1 1.177,4.219 1.333,4.417 0.156,0.198 10 false 2 1.167,2.667 1.323,2.865 0.156,0.198 10 false 2 0.875,4.719 1.333,4.917 0.458,0.198 10 false I29 0.896,4.885 3.406,5.25 2.51,0.365 10 false Center Tray Illumination Light (Instrument Panel Light Assembly) 1.094,3.167 1.552,3.365 0.458,0.198 10 false I30 1.156,3.333 3.073,3.688 1.917,0.354 10 false Cup Holder Light (Console Box Pocket Garnish) 4.75,4.729 5.969,5.167 1.219,0.438 10 false Driver Side Junction Block Assembly 5.5,7.667 5.813,7.865 0.313,0.198 10 false MB 5.5,7.917 7.135,8.354 1.635,0.438 10 false Main Body ECU (Multiplex Network Body ECU) 1.177,6.469 3.104,6.833 1.927,0.365 10 false Footwell Light RH (No. 1 Interior Illumination Light Assembly) 1.188,8 3.135,8.375 1.948,0.375 10 false Footwell Light LH (No. 1 Interior Illumination Light Assembly) 4.24,1.365 4.552,1.563 0.313,0.198 10 false 4F 4.24,0.906 4.552,1.104 0.313,0.198 10 false 4F 4.24,1.167 4.552,1.365 0.313,0.198 10 false 27 4.24,0.708 4.552,0.906 0.313,0.198 10 false 24 1.406,5.792 1.563,5.99 0.156,0.198 10 false B 1.406,7.344 1.563,7.542 0.156,0.198 10 false B 2.771,5.792 2.927,5.99 0.156,0.198 10 false L 2.771,7.333 2.927,7.531 0.156,0.198 10 false L 0.979,7.833 1.333,8.021 0.354,0.188 10 false I175 1.167,7.313 1.438,7.542 0.271,0.229 10 false 2 3,7.313 3.271,7.542 0.271,0.229 10 false 1 0.979,6.25 1.333,6.438 0.354,0.188 10 false I174 3,5.75 3.271,5.979 0.271,0.229 10 false 1 1.167,5.75 1.438,5.979 0.271,0.229 10 false 2

CAUTION / NOTICE / HINT

NOTICE:
·

Inspect the fuses for circuits related to this system before performing the following procedure.

·

Before replacing the main body ECU (multiplex network body ECU), refer to Service Bulletin.



PROCEDURE

1.PERFORM ACTIVE TEST USING GTS
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Enter the following menus: Body Electrical / Main Body / Active Test.


e.

Perform the Active Test according to the display on the GTS.

Body Electrical > Main Body > Active Test
Tester Display Measurement Item Control Range Diagnostic Note
Fr Foot Light
·

Center tray illumination light (instrument panel light assembly)*1

·

Cup holder light (console box pocket garnish)*2

·

Footwell light (No. 1 interior illumination light assembly)*3


OFF or ON Preconditions for using the Active Test to check dimmer controlled illumination:
·

Ignition switch ON

·

Shift lever is in any position other than P


*1: w/ Center Tray Light

*2: w/ Cup Holder Light

*3: w/ Footwell Light

Body Electrical > Main Body > Active Test
Tester Display
Fr Foot Light
50004 123 11

Result:
Result Proceed to
OK A
NG (Center tray illumination light does not come on) B
NG (Cup holder light does not come on) C
NG (Footwell light LH does not come on) D
NG (Footwell light RH does not come on) E
NG (Center tray illumination light, cup holder light and footwell lights do not come on) F



A

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


B

2.INSPECT INSTRUMENT PANEL LIGHT ASSEMBLY

C

6.INSPECT CONSOLE BOX POCKET GARNISH

D

10.INSPECT NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY

E

14.INSPECT NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY

F

18.CHECK HARNESS AND CONNECTOR (POWER SOURCE - DRIVER SIDE JUNCTION BLOCK ASSEMBLY)
2.INSPECT INSTRUMENT PANEL LIGHT ASSEMBLY
a.

Remove the center tray illumination light (instrument panel light assembly).

Click hereVehicle Interior>LIGHTING (INT)>INTERIOR ILLUMINATION LIGHT (for Instrument Panel)>REMOVAL


b.

Inspect the center tray illumination light (instrument panel light assembly).

Click hereVehicle Interior>LIGHTING (INT)>INTERIOR ILLUMINATION LIGHT (for Instrument Panel)>INSPECTION


Result:
Proceed to
OK
NG



OK

3.CHECK HARNESS AND CONNECTOR (CENTER TRAY ILLUMINATION LIGHT (INSTRUMENT PANEL LIGHT ASSEMBLY) - DRIVER SIDE JUNCTION BLOCK ASSEMBLY)

NG

REPLACE INSTRUMENT PANEL LIGHT ASSEMBLY

Click hereVehicle Interior>LIGHTING (INT)>INTERIOR ILLUMINATION LIGHT (for Instrument Panel)>REMOVAL


3.CHECK HARNESS AND CONNECTOR (CENTER TRAY ILLUMINATION LIGHT (INSTRUMENT PANEL LIGHT ASSEMBLY) - DRIVER SIDE JUNCTION BLOCK ASSEMBLY)
a.

Disconnect the 4E and 4F driver side junction block assembly connectors.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I29-2 (B) - 4F-25 Always Below 1 Ω
I29-1 (E) - 4E-37 Always Below 1 Ω
I29-2 (B) or 4F-25 - Body ground Always 10 kΩ or higher
I29-1 (E) or 4E-37 - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

4.CHECK DRIVER SIDE JUNCTION BLOCK ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

4.CHECK DRIVER SIDE JUNCTION BLOCK ASSEMBLY

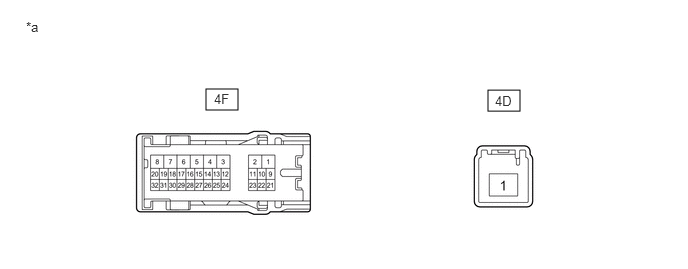

E341598C33
2.146,0.927 2.479,1.146 0.333,0.219 5.083,0.938 5.417,1.156 0.333,0.219 2.229,0.948 2.542,1.146 0.313,0.198 10 false 4F 0.271,0.198 0.583,0.396 0.313,0.198 10 false *a 5.156,0.969 5.469,1.167 0.313,0.198 10 false 4D
*a Component without harness connected
(Driver Side Junction Block Assembly) 		- -


a.

Disconnect the 4D driver side junction block assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
4D-1 - 4F-25 Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

5.INSPECT DRIVER SIDE JUNCTION BLOCK ASSEMBLY

NG

REPLACE DRIVER SIDE JUNCTION BLOCK ASSEMBLY

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL


5.INSPECT DRIVER SIDE JUNCTION BLOCK ASSEMBLY

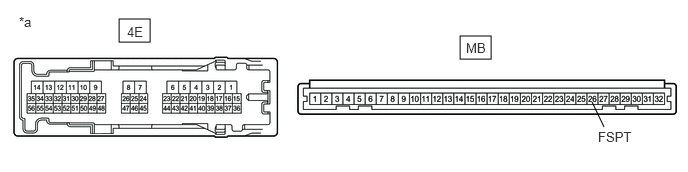

E365380C17
1.24,0.198 1.563,0.438 0.323,0.24 4.792,0.375 5.115,0.615 0.323,0.24 6.292,1.323 6.167,1.063 false 0.198,0.146 0.51,0.344 0.313,0.198 10 false *a 1.323,0.25 1.708,0.49 0.385,0.24 10 false 4E 4.854,0.417 5.25,0.646 0.396,0.229 10 false MB 6.229,1.344 6.74,1.583 0.51,0.24 10 false FSPT
*a Component without harness connected
(Driver Side Junction Block Assembly) 		- -


a.

Remove the main body ECU (multiplex network body ECU) from the driver side junction block assembly.

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
4E-37 -MB-26 (FSPT) Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL


NG

REPLACE DRIVER SIDE JUNCTION BLOCK ASSEMBLY

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL


6.INSPECT CONSOLE BOX POCKET GARNISH
a.

Remove the cup holder light (console box pocket garnish).

Click hereVehicle Interior>LIGHTING (INT)>INTERIOR ILLUMINATION LIGHT (for Console Box)>REMOVAL


b.

Inspect the cup holder light (console box pocket garnish).

Click hereVehicle Interior>LIGHTING (INT)>INTERIOR ILLUMINATION LIGHT (for Console Box)>INSPECTION


Result:
Proceed to
OK
NG



OK

7.CHECK HARNESS AND CONNECTOR (CUP HOLDER LIGHT (CONSOLE BOX POCKET GARNISH) - DRIVER SIDE JUNCTION BLOCK ASSEMBLY)

NG

REPLACE CONSOLE BOX POCKET GARNISH

Click hereVehicle Interior>LIGHTING (INT)>INTERIOR ILLUMINATION LIGHT (for Console Box)>REMOVAL


7.CHECK HARNESS AND CONNECTOR (CUP HOLDER LIGHT (CONSOLE BOX POCKET GARNISH) - DRIVER SIDE JUNCTION BLOCK ASSEMBLY)
a.

Disconnect the 4E and 4F driver side junction block assembly connectors.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I30-2 (B) - 4F-26 Always Below 1 Ω
I30-1 (E) - 4E-36 Always Below 1 Ω
I30-2 (B) or 4F-26 - Body ground Always 10 kΩ or higher
I30-1 (E) or 4E-36 - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

8.CHECK DRIVER SIDE JUNCTION BLOCK ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

8.CHECK DRIVER SIDE JUNCTION BLOCK ASSEMBLY
E341598C33
2.146,0.927 2.479,1.146 0.333,0.219 5.083,0.938 5.417,1.156 0.333,0.219 2.229,0.948 2.542,1.146 0.313,0.198 10 false 4F 0.271,0.198 0.583,0.396 0.313,0.198 10 false *a 5.156,0.969 5.469,1.167 0.313,0.198 10 false 4D
*a Component without harness connected
(Driver Side Junction Block Assembly) 		- -


a.

Disconnect the 4D driver side junction block assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
4D-1 - 4F-26 Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

9.INSPECT DRIVER SIDE JUNCTION BLOCK ASSEMBLY

NG

REPLACE DRIVER SIDE JUNCTION BLOCK ASSEMBLY

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL


9.INSPECT DRIVER SIDE JUNCTION BLOCK ASSEMBLY
E365380C17
1.24,0.198 1.563,0.438 0.323,0.24 4.792,0.375 5.115,0.615 0.323,0.24 6.292,1.323 6.167,1.063 false 0.198,0.146 0.51,0.344 0.313,0.198 10 false *a 1.323,0.25 1.708,0.49 0.385,0.24 10 false 4E 4.854,0.417 5.25,0.646 0.396,0.229 10 false MB 6.229,1.344 6.74,1.583 0.51,0.24 10 false FSPT
*a Component without harness connected
(Driver Side Junction Block Assembly) 		- -


a.

Remove the main body ECU (multiplex network body ECU) from the driver side junction block assembly.

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
4E-36 -MB-26 (FSPT) Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL


NG

REPLACE DRIVER SIDE JUNCTION BLOCK ASSEMBLY

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL


10.INSPECT NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY
a.

Remove the footwell light LH (No. 1 interior illumination light assembly).

Click hereVehicle Interior>LIGHTING (INT)>FOOTWELL LIGHT>REMOVAL


b.

Inspect the footwell light LH (No. 1 interior illumination light assembly).

Click hereVehicle Interior>LIGHTING (INT)>FOOTWELL LIGHT>INSPECTION


Result:
Proceed to
OK
NG



OK

11.CHECK HARNESS AND CONNECTOR (FOOTWELL LIGHT LH (NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY) - DRIVER SIDE JUNCTION BLOCK ASSEMBLY)

NG

REPLACE NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY

Click hereVehicle Interior>LIGHTING (INT)>FOOTWELL LIGHT>REMOVAL


11.CHECK HARNESS AND CONNECTOR (FOOTWELL LIGHT LH (NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY) - DRIVER SIDE JUNCTION BLOCK ASSEMBLY)
a.

Disconnect the 4E and 4F driver side junction block assembly connectors.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance (for TFTM Made):
Tester Connection Condition Specified Condition
I175-2 (B) - 4F-27 Always Below 1 Ω
I175-1 (L) - 4E-37 Always Below 1 Ω
I175-2 (B) or 4F-27 - Body ground Always 10 kΩ or higher
I175-1 (L) or 4E-37 - Body ground Always 10 kΩ or higher


Standard Resistance (for GTMC Made):
Tester Connection Condition Specified Condition
I175-2 (B) - 4F-24 Always Below 1 Ω
I175-1 (L) - 4E-37 Always Below 1 Ω
I175-2 (B) or 4F-24 - Body ground Always 10 kΩ or higher
I175-1 (L) or 4E-37 - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

12.CHECK DRIVER SIDE JUNCTION BLOCK ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

12.CHECK DRIVER SIDE JUNCTION BLOCK ASSEMBLY
E341598C33
2.146,0.927 2.479,1.146 0.333,0.219 5.083,0.938 5.417,1.156 0.333,0.219 2.229,0.948 2.542,1.146 0.313,0.198 10 false 4F 0.271,0.198 0.583,0.396 0.313,0.198 10 false *a 5.156,0.969 5.469,1.167 0.313,0.198 10 false 4D
*a Component without harness connected
(Driver Side Junction Block Assembly) 		- -


a.

Disconnect the 4D driver side junction block assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance (for TFTM Made):
Tester Connection Condition Specified Condition
4D-1 - 4F-27 Always Below 1 Ω


Standard Resistance (for GTMC Made):
Tester Connection Condition Specified Condition
4D-1 - 4F-24 Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

13.INSPECT DRIVER SIDE JUNCTION BLOCK ASSEMBLY

NG

REPLACE DRIVER SIDE JUNCTION BLOCK ASSEMBLY

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL


13.INSPECT DRIVER SIDE JUNCTION BLOCK ASSEMBLY
E365380C17
1.24,0.198 1.563,0.438 0.323,0.24 4.792,0.375 5.115,0.615 0.323,0.24 6.292,1.323 6.167,1.063 false 0.198,0.146 0.51,0.344 0.313,0.198 10 false *a 1.323,0.25 1.708,0.49 0.385,0.24 10 false 4E 4.854,0.417 5.25,0.646 0.396,0.229 10 false MB 6.229,1.344 6.74,1.583 0.51,0.24 10 false FSPT
*a Component without harness connected
(Driver Side Junction Block Assembly) 		- -


a.

Remove the main body ECU (multiplex network body ECU) from the driver side junction block assembly.

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
4E-37 -MB-26 (FSPT) Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL


NG

REPLACE DRIVER SIDE JUNCTION BLOCK ASSEMBLY

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL


14.INSPECT NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY
a.

Remove the footwell light RH (No. 1 interior illumination light assembly).

Click hereVehicle Interior>LIGHTING (INT)>FOOTWELL LIGHT>REMOVAL


b.

Inspect the footwell light RH (No. 1 interior illumination light assembly).

Click hereVehicle Interior>LIGHTING (INT)>FOOTWELL LIGHT>INSPECTION


Result:
Proceed to
OK
NG



OK

15.CHECK HARNESS AND CONNECTOR (FOOTWELL LIGHT RH (NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY) - DRIVER SIDE JUNCTION BLOCK ASSEMBLY)

NG

REPLACE NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY

Click hereVehicle Interior>LIGHTING (INT)>FOOTWELL LIGHT>REMOVAL


15.CHECK HARNESS AND CONNECTOR (FOOTWELL LIGHT RH (NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY) - DRIVER SIDE JUNCTION BLOCK ASSEMBLY)
a.

Disconnect the 4E and 4F driver side junction block assembly connectors.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance (for TFTM Made):
Tester Connection Condition Specified Condition
I174-2 (B) - 4F-24 Always Below 1 Ω
I174-1 (L) - 4E-37 Always Below 1 Ω
I174-2 (B) or 4F-24 - Body ground Always 10 kΩ or higher
I174-1 (L) or 4E-37 - Body ground Always 10 kΩ or higher


Standard Resistance (for GTMC Made):
Tester Connection Condition Specified Condition
I174-2 (B) - 4F-27 Always Below 1 Ω
I174-1 (L) - 4E-37 Always Below 1 Ω
I174-2 (B) or 4F-27 - Body ground Always 10 kΩ or higher
I174-1 (L) or 4E-37 - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

16.CHECK DRIVER SIDE JUNCTION BLOCK ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

16.CHECK DRIVER SIDE JUNCTION BLOCK ASSEMBLY
E341598C33
2.146,0.927 2.479,1.146 0.333,0.219 5.083,0.938 5.417,1.156 0.333,0.219 2.229,0.948 2.542,1.146 0.313,0.198 10 false 4F 0.271,0.198 0.583,0.396 0.313,0.198 10 false *a 5.156,0.969 5.469,1.167 0.313,0.198 10 false 4D
*a Component without harness connected
(Driver Side Junction Block Assembly) 		- -


a.

Disconnect the 4D driver side junction block assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance (for TFTM Made):
Tester Connection Condition Specified Condition
4D-1 - 4F-24 Always Below 1 Ω


Standard Resistance (for GTMC Made):
Tester Connection Condition Specified Condition
4D-1 - 4F-27 Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

17.INSPECT DRIVER SIDE JUNCTION BLOCK ASSEMBLY

NG

REPLACE DRIVER SIDE JUNCTION BLOCK ASSEMBLY

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL


17.INSPECT DRIVER SIDE JUNCTION BLOCK ASSEMBLY
E365380C17
1.24,0.198 1.563,0.438 0.323,0.24 4.792,0.375 5.115,0.615 0.323,0.24 6.292,1.323 6.167,1.063 false 0.198,0.146 0.51,0.344 0.313,0.198 10 false *a 1.323,0.25 1.708,0.49 0.385,0.24 10 false 4E 4.854,0.417 5.25,0.646 0.396,0.229 10 false MB 6.229,1.344 6.74,1.583 0.51,0.24 10 false FSPT
*a Component without harness connected
(Driver Side Junction Block Assembly) 		- -


a.

Remove the main body ECU (multiplex network body ECU) from the driver side junction block assembly.

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
4E-37 -MB-26 (FSPT) Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL


NG

REPLACE DRIVER SIDE JUNCTION BLOCK ASSEMBLY

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL


18.CHECK HARNESS AND CONNECTOR (POWER SOURCE - DRIVER SIDE JUNCTION BLOCK ASSEMBLY)
a.

Disconnect the 4D driver side junction block assembly connector.


b.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
4D-1 - Body ground Power switch off 11 to 14 V



Result:
Proceed to
OK
NG



OK

19.CHECK DRIVER SIDE JUNCTION BLOCK ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

19.CHECK DRIVER SIDE JUNCTION BLOCK ASSEMBLY
E341598C33
2.146,0.927 2.479,1.146 0.333,0.219 5.083,0.938 5.417,1.156 0.333,0.219 2.229,0.948 2.542,1.146 0.313,0.198 10 false 4F 0.271,0.198 0.583,0.396 0.313,0.198 10 false *a 5.156,0.969 5.469,1.167 0.313,0.198 10 false 4D
*a Component without harness connected
(Driver Side Junction Block Assembly) 		- -


a.

Disconnect the 4F driver side junction block assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
4D-1 - 4F-24 Always Below 1 Ω
4D-1 - 4F-25 Always Below 1 Ω
4D-1 - 4F-26 Always Below 1 Ω
4D-1 - 4F-27 Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

20.INSPECT DRIVER SIDE JUNCTION BLOCK ASSEMBLY

NG

REPLACE DRIVER SIDE JUNCTION BLOCK ASSEMBLY

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL


20.INSPECT DRIVER SIDE JUNCTION BLOCK ASSEMBLY
E365380C17
1.24,0.198 1.563,0.438 0.323,0.24 4.792,0.375 5.115,0.615 0.323,0.24 6.292,1.323 6.167,1.063 false 0.198,0.146 0.51,0.344 0.313,0.198 10 false *a 1.323,0.25 1.708,0.49 0.385,0.24 10 false 4E 4.854,0.417 5.25,0.646 0.396,0.229 10 false MB 6.229,1.344 6.74,1.583 0.51,0.24 10 false FSPT
*a Component without harness connected
(Driver Side Junction Block Assembly) 		- -


a.

Remove the main body ECU (multiplex network body ECU) from the driver side junction block assembly.

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
4E-36 -MB-26 (FSPT) Always Below 1 Ω
4E-37 -MB-26 (FSPT) Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL


NG

REPLACE DRIVER SIDE JUNCTION BLOCK ASSEMBLY

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL
