RM3660EC _58 Vehicle Interior _080785 LIGHTING (INT) _0470703 FOOTWELL LIGHT A

LIGHTING (INT) FOOTWELL LIGHT REMOVAL

PROCEDURE

Hide Display 55606 1.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (for Driver Side)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202104,202304,_58,_080744,_0393717,RM100000001VMKU_01_0060,202304,999999,_58,_080744,_0393717,RM100000002AVGF_01_0060,

Hide Display 81080J 2.REMOVE NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY (for Driver Side)

a.

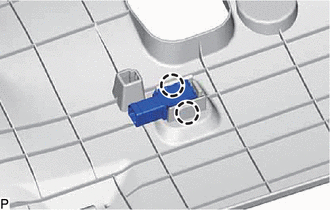

E465193

Disengage the 2 claws to remove the No. 1 interior illumination light assembly.

Hide Display 55607 3.REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (for Front Passenger Side)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202104,202205,_58,_080744,_0393716,RM100000001VMJZ_01_0172,202205,202304,_58,_080744,_0393716,RM1000000022YDK_01_0172,202304,202307,_58,_080744,_0393716,RM100000002B100_01_0172,202307,999999,_58,_080744,_0393716,RM100000002D3SY_01_0172,

Hide Display 81080M 4.REMOVE NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY (for Front Passenger Side)

a.

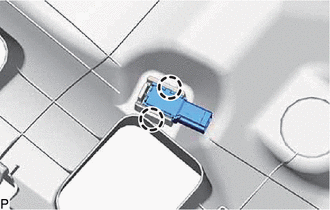

E465194

Disengage the 2 claws to remove the No. 1 interior illumination light assembly.
