RM3660EC _58 Vehicle Interior _080785 LIGHTING (INT) _0393139 INTERIOR ILLUMINATION LIGHT(for Instrument Panel) A

LIGHTING (INT) INTERIOR ILLUMINATION LIGHT(for Instrument Panel) REMOVAL

PROCEDURE

Hide Display 55606 1.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL201906,202007,_58,_080744,_0393717,RM100000001HZH1_01_0060,202007,202101,_58,_080744,_0393717,RM100000001NS0W_01_0060,202101,202104,_58,_080744,_0393717,RM100000001T6FR_01_0060,202104,202304,_58,_080744,_0393717,RM100000001VMKU_01_0060,202304,999999,_58,_080744,_0393717,RM100000002AVGF_01_0060,

Hide Display 55434F 2.REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL201906,202007,_58,_080744,_0393717,RM100000001HZH1_01_0052,202007,202101,_58,_080744,_0393717,RM100000001NS0W_01_0052,202101,202104,_58,_080744,_0393717,RM100000001T6FR_01_0052,202104,202304,_58,_080744,_0393717,RM100000001VMKU_01_0052,202304,999999,_58,_080744,_0393717,RM100000002AVGF_01_0052,

Hide Display 813A0 3.REMOVE INSTRUMENT PANEL LIGHT ASSEMBLY

a.

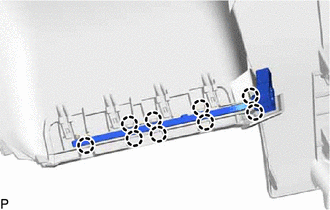

E419578

Disengage the 9 claws to remove the instrument panel light assembly.
