NETWORKING  CAN COMMUNICATION SYSTEM(for Gasoline Model (NR Series))  Front Camera Module Communication Stop Mode


DESCRIPTION

Detection Item Symptom Trouble Area
Front Camera Module Communication Stop Mode Any of the following conditions are met:
·

Communication stop for "Front Camera Module" is indicated on the "Communication Bus Check" screen of the GTS.

Click here(Click here)

·

Communication stop history for "Front Camera Module" is indicated on the "Communication Bus Check (Detail)" screen of the GTS. (The Lost Communication Time value for "Front Camera Module" is 6 or more.)

Click here(Click here)

·

Communication system DTCs (DTCs that start with U) that correspond to "Front Camera Module Communication Stop Mode" in "DTC Combination Table" are output.

Click here(Click here)


·

Forward recognition camera branch line or connector

·

Power source circuit of forward recognition camera

·

Forward recognition camera ground circuit

·

Forward recognition camera

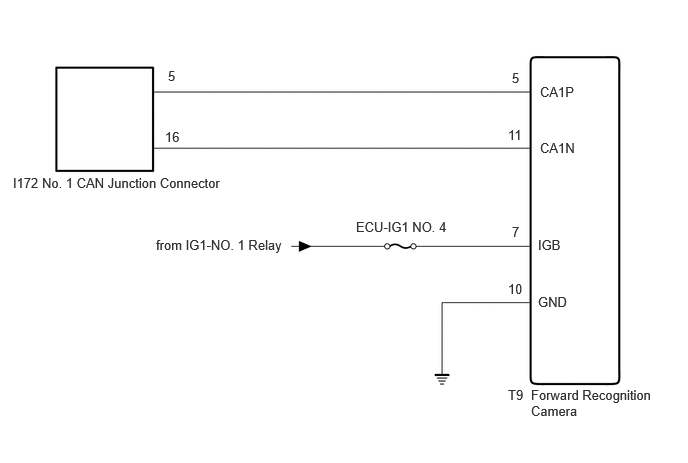

WIRING DIAGRAM

C416559E07
0.135,1.823 0.594,2.021 0.458,0.198 10 false I172 0.438,1.823 2.823,2.219 2.385,0.396 10 false No. 1 CAN Junction Connector 5.333,0.729 5.792,0.927 0.458,0.198 10 false 5 5.292,1.323 5.75,1.521 0.458,0.198 10 false 11 5.625,0.875 6.083,1.073 0.458,0.198 10 false CA1P 5.604,2.469 6.063,2.667 0.458,0.198 10 false IGB 5.625,1.458 6.083,1.656 0.458,0.198 10 false CA1N 5.333,2.333 5.792,2.531 0.458,0.198 10 false 7 5.604,3.063 6.063,3.26 0.458,0.198 10 false GND 5.292,2.927 5.75,3.125 0.458,0.198 10 false 10 3.708,2.281 4.771,2.542 1.063,0.26 10 false ECU-IG1 NO. 4 1.625,2.469 3.104,2.75 1.479,0.281 10 false from IG1-NO. 1 Relay 5.292,4.031 5.75,4.229 0.458,0.198 10 false T9 5.531,4.031 6.792,4.458 1.26,0.427 10 false Forward Recognition Camera 1.75,0.708 2.208,0.906 0.458,0.198 10 false 5 1.719,1.344 2.177,1.542 0.458,0.198 10 false 16

CAUTION / NOTICE / HINT

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


NOTICE:
·

Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for Gasoline Model (NR Series))>HOW TO PROCEED WITH TROUBLESHOOTING

·

Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) battery terminal and leave the vehicle for 10 minutes or more before measuring the resistance.

·

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·

When disconnecting and reconnecting the battery.

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART


·

Some parts must be initialized and set when replacing or removing and installing parts.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE

·

After performing repairs, perform the DTC check procedure and confirm that the DTCs are not output again.

DTC check procedure: Turn the ignition switch to ON and wait for 1 minute or more. Then operate the suspected malfunctioning system and drive the vehicle at 60 km/h (37 mph) or more for 5 minutes or more.

·

After the repair, perform the CAN bus check and check that all the ECUs and sensors connected to the CAN communication system are displayed as normal.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for Gasoline Model (NR Series))>DIAGNOSIS SYSTEM

·

Inspect the fuses for circuits related to this system before performing the following procedure.



HINT:
·

Before disconnecting related connectors for inspection, push in on each connector body to check that the connector is not loose or disconnected.

·

When a connector is disconnected, check that the terminals and connector body are not cracked, deformed or corroded.



PROCEDURE

1.CHECK FOR OPEN IN CAN BUS LINES (FORWARD RECOGNITION CAMERA BRANCH LINE)
a.

Disconnect the cable from the negative (-) battery terminal.


b.

Disconnect the T9 forward recognition camera connector.


c.

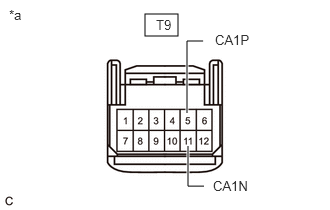

C416214C03
1.51,0.146 1.854,0.375 0.344,0.229 1.948,1.177 1.948,0.427 1.948,0.427 2.115,0.427 true 1.958,1.521 1.958,1.938 1.958,1.938 2.125,1.938 true 0.094,0.073 0.406,0.229 0.313,0.156 10 false *a 1.625,0.177 2.125,0.521 0.5,0.344 10 false T9 2.24,0.333 2.656,0.573 0.417,0.24 10 false CA1P 2.219,1.854 2.667,2.073 0.448,0.219 10 false CA1N
*a Front view of wire harness connector
(to Forward Recognition Camera)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
T9-5 (CA1P) - T9-11 (CA1N) Cable disconnected from negative (-) battery terminal 54 to 69 Ω



Result:
Result
OK
NG



OK

2.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)

NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (FORWARD RECOGNITION CAMERA)

2.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
a.
C416214C04
1.51,0.146 1.854,0.375 0.344,0.229 1.792,1.521 1.792,2 1.792,2 1.958,2 true 1.302,1.521 1.302,2 1.302,2 1.135,2 true 0.094,0.073 0.406,0.229 0.313,0.156 10 false *a 1.604,0.177 1.958,0.5 0.354,0.323 10 false T9 2.052,1.917 2.49,2.083 0.438,0.167 10 false GND 0.833,1.917 1.125,2.083 0.292,0.167 10 false IGB
*a Front view of wire harness connector
(to Forward Recognition Camera)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
T9-10 (GND) - Body ground Cable disconnected from negative (-) battery terminal Below 1 Ω



b.

Reconnect the cable to the negative (-) battery terminal.


c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
T9-7 (IGB) - Body ground Ignition switch ON 11 to 14 V



Result:
Result
OK
NG



OK

REPLACE FORWARD RECOGNITION CAMERA

Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>FRONT CAMERA (for NR Series Engine)>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
