NETWORKING  CAN COMMUNICATION SYSTEM(for Gasoline Model (NR Series))  Radio Receiver Assembly Communication Stop Mode


DESCRIPTION

Detection Item Symptom Trouble Area
Radio Receiver Assembly Communication Stop Mode Any of the following conditions are met:
·

Communication stop for "Display and Navigation (AVN)" is indicated on the "Communication Bus Check" screen of the GTS.

Click here(Click here)

·

Communication stop history for "Display and Navigation (AVN)" is indicated on the "Communication Bus Check (Detail)" screen of the GTS. (The Lost Communication Time value for "Display and Navigation (AVN)" is 6 or more.)

Click here(Click here)

·

Communication system DTCs (DTCs that start with U) that correspond to "Radio Receiver Assembly Communication Stop Mode" in "DTC Combination Table" are output.

Click here(Click here)


·

Navigation receiver assembly branch line or connector

·

Power source circuit of navigation receiver assembly

·

Navigation receiver assembly ground circuit

·

Navigation receiver assembly



WIRING DIAGRAM

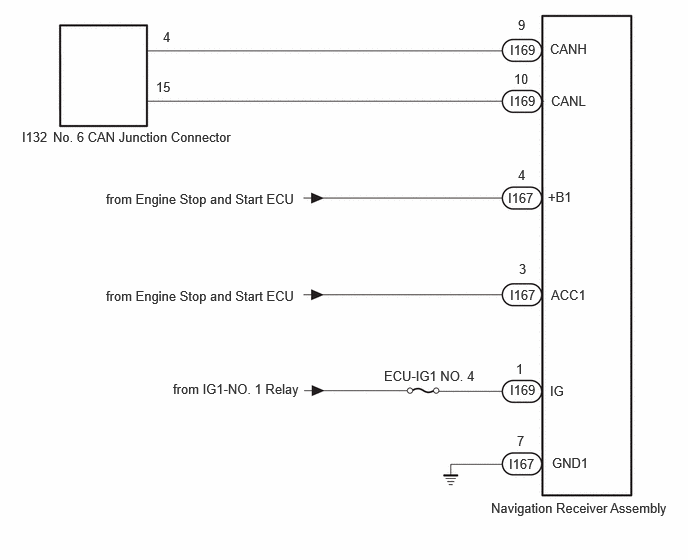

w/ RST Switch
C506210E01
0.552,1.344 2.708,1.542 2.156,0.198 10 false No. 6 CAN Junction Connector 0.229,1.344 0.667,1.604 0.438,0.26 10 false I132 5.354,0.74 5.698,0.958 0.344,0.219 10 false 10 5.396,0.177 5.74,0.396 0.344,0.219 10 false 9 1.104,1.99 3.396,2.281 2.292,0.292 10 false from Engine Stop and Start ECU 5.313,0.438 5.823,0.76 0.51,0.323 10 false I169 5.292,1.979 5.74,2.302 0.448,0.323 10 false I167 5.375,3.76 5.719,3.979 0.344,0.219 10 false 1 5.406,2.719 5.75,2.938 0.344,0.219 10 false 3 5.396,1.74 5.74,1.958 0.344,0.219 10 false 4 5.385,4.51 5.729,4.729 0.344,0.219 10 false 7 5.115,5.208 6.979,5.729 1.865,0.521 10 false Navigation Receiver Assembly 1.802,3.969 3.333,4.24 1.531,0.271 10 false from IG1-NO. 1 Relay 5.729,0.427 6.313,0.656 0.583,0.229 10 false CANH 5.74,0.969 6.323,1.198 0.583,0.229 10 false CANL 5.729,3.99 6.313,4.219 0.583,0.229 10 false IG 5.74,2.99 6.323,3.219 0.583,0.229 10 false ACC1 5.708,1.969 6.292,2.198 0.583,0.229 10 false +B1 5.75,4.74 6.333,4.969 0.583,0.229 10 false GND1 4,3.833 5.125,4.135 1.125,0.302 10 false ECU-IG1 NO. 4 5.313,0.969 5.823,1.292 0.51,0.323 10 false I169 5.313,3.979 5.823,4.302 0.51,0.323 10 false I169 5.313,2.99 5.76,3.313 0.448,0.323 10 false I167 5.302,4.75 5.75,5.073 0.448,0.323 10 false I167 1.104,3 3.396,3.292 2.292,0.292 10 false from Engine Stop and Start ECU 1.698,0.302 2.042,0.521 0.344,0.219 10 false 4 1.625,0.823 1.969,1.042 0.344,0.219 10 false 15

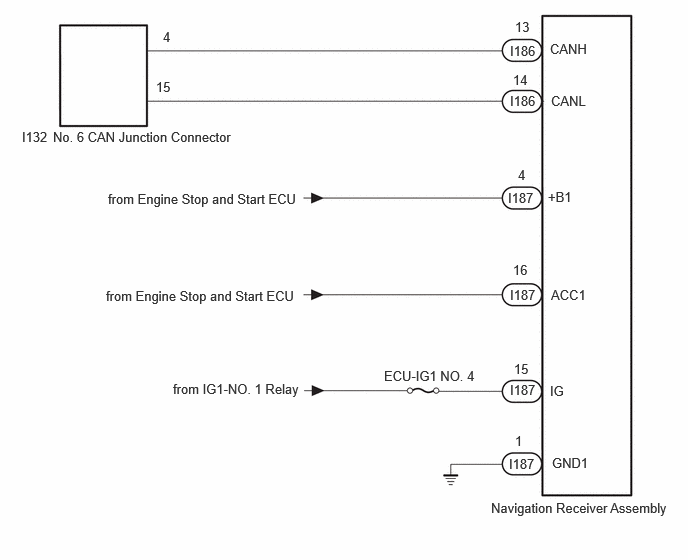

w/o RST Switch
C506210E02
0.552,1.344 2.708,1.542 2.156,0.198 10 false No. 6 CAN Junction Connector 0.229,1.344 0.667,1.604 0.438,0.26 10 false I132 5.344,0.75 5.688,0.969 0.344,0.219 10 false 14 5.365,0.198 5.708,0.417 0.344,0.219 10 false 13 1.125,1.99 3.417,2.281 2.292,0.292 10 false from Engine Stop and Start ECU 5.313,0.448 5.823,0.771 0.51,0.323 10 false I186 5.292,1.979 5.74,2.302 0.448,0.323 10 false I187 5.354,3.76 5.698,3.979 0.344,0.219 10 false 15 5.344,2.729 5.688,2.948 0.344,0.219 10 false 16 5.396,1.74 5.74,1.958 0.344,0.219 10 false 4 5.365,4.51 5.708,4.729 0.344,0.219 10 false 1 5.115,5.208 6.979,5.729 1.865,0.521 10 false Navigation Receiver Assembly 1.802,3.969 3.333,4.24 1.531,0.271 10 false from IG1-NO. 1 Relay 5.729,0.427 6.313,0.656 0.583,0.229 10 false CANH 5.74,0.969 6.323,1.198 0.583,0.229 10 false CANL 5.729,3.99 6.313,4.219 0.583,0.229 10 false IG 5.74,2.99 6.323,3.219 0.583,0.229 10 false ACC1 5.708,1.969 6.292,2.198 0.583,0.229 10 false +B1 5.75,4.74 6.333,4.969 0.583,0.229 10 false GND1 4,3.833 5.125,4.135 1.125,0.302 10 false ECU-IG1 NO. 4 5.313,0.969 5.823,1.292 0.51,0.323 10 false I186 5.313,3.979 5.823,4.302 0.51,0.323 10 false I187 5.313,2.99 5.76,3.313 0.448,0.323 10 false I187 5.302,4.75 5.75,5.073 0.448,0.323 10 false I187 1.104,3 3.396,3.292 2.292,0.292 10 false from Engine Stop and Start ECU 1.698,0.302 2.042,0.521 0.344,0.219 10 false 4 1.625,0.823 1.969,1.042 0.344,0.219 10 false 15

CAUTION / NOTICE / HINT

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


NOTICE:
·

Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for Gasoline Model (NR Series))>HOW TO PROCEED WITH TROUBLESHOOTING

·

Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) battery terminal and leave the vehicle for 10 minutes or more before measuring the resistance.

·

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·

When disconnecting and reconnecting the battery.

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART


·

Some parts must be initialized and set when replacing or removing and installing parts.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE

·

After performing repairs, perform the DTC check procedure and confirm that the DTCs are not output again.

DTC check procedure: Turn the ignition switch to ON and wait for 1 minute or more. Then operate the suspected malfunctioning system and drive the vehicle at 60 km/h (37 mph) or more for 5 minutes or more.

·

After the repair, perform the CAN bus check and check that all the ECUs and sensors connected to the CAN communication system are displayed as normal.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for Gasoline Model (NR Series))>DIAGNOSIS SYSTEM

·

Inspect the fuses for circuits related to this system before performing the following procedure.



HINT:
·

Before disconnecting related connectors for inspection, push in on each connector body to check that the connector is not loose or disconnected.

·

When a connector is disconnected, check that the terminals and connector body are not cracked, deformed or corroded.



PROCEDURE

1.CHECK VEHICLE TYPE
a.

Check vehicle type.


Result:
Result Proceed to
w/ RST Switch A
w/o RST Switch B



A

2.CHECK FOR OPEN IN CAN BUS LINES (NAVIGATION RECEIVER ASSEMBLY BRANCH LINE)

B

4.CHECK FOR OPEN IN CAN BUS LINES (NAVIGATION RECEIVER ASSEMBLY BRANCH LINE)
2.CHECK FOR OPEN IN CAN BUS LINES (NAVIGATION RECEIVER ASSEMBLY BRANCH LINE)
a.

Disconnect the cable from the negative (-) battery terminal.


b.

Disconnect the I169 navigation receiver assembly connector.


c.

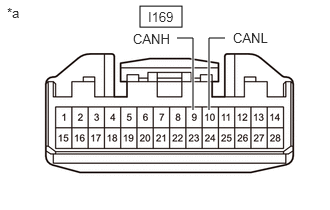

C411327C04
1.458,0.063 1.896,0.281 0.438,0.219 2.177,1.146 2.177,0.396 2.177,0.396 2.344,0.396 true 2.01,1.146 2.01,0.396 2.01,0.396 1.844,0.396 true 0.073,0.052 0.385,0.25 0.313,0.198 10 false *a 2.427,0.313 3.042,0.51 0.615,0.198 10 false CANL 1.385,0.323 2,0.521 0.615,0.198 10 false CANH 1.542,0.094 1.938,0.26 0.396,0.167 10 false I169
*a Front view of wire harness connector
(to Navigation Receiver Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I169-9 (CANH) - I169-10 (CANL) Cable disconnected from negative (-) battery terminal 54 to 69 Ω



Result:
Result
OK
NG



OK

3.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)

NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NAVIGATION RECEIVER ASSEMBLY)

3.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
a.

Disconnect the I167 navigation receiver assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

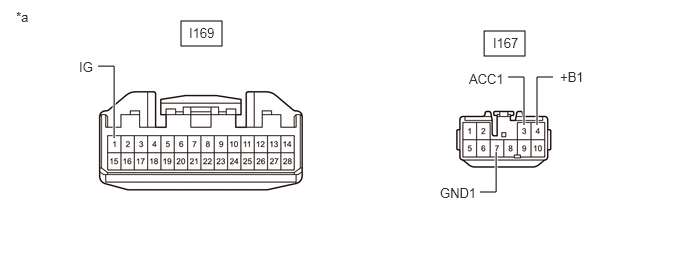

C411280C12
1.885,0.219 2.313,0.479 0.427,0.26 5.042,0.323 5.469,0.583 0.427,0.26 5.594,1.302 5.594,0.802 5.594,0.802 5.76,0.802 true 5.167,1.583 5.167,2 5.167,2 5,2 true 1.188,1.438 1.188,0.688 1.188,0.688 1.021,0.688 true 5.458,1.302 5.458,0.802 5.458,0.802 5.292,0.802 true 1.969,0.26 2.427,0.458 0.458,0.198 10 false I169 5.135,0.365 5.594,0.563 0.458,0.198 10 false I167 0.167,0.094 0.625,0.292 0.458,0.198 10 false *a 0.823,0.615 1.323,0.865 0.5,0.25 10 false IG 5.833,0.719 6.333,0.969 0.5,0.25 10 false +B1 4.583,1.927 5.083,2.177 0.5,0.25 10 false GND1 4.885,0.74 5.385,0.99 0.5,0.25 10 false ACC1
*a Front view of wire harness connector
(to Navigation Receiver Assembly) 		- -


Standard Resistance:
Tester Connection Condition Specified Condition
I167-7 (GND1) - Body ground Cable disconnected from negative (-) battery terminal Below 1 Ω



c.

Reconnect the cable to the negative (-) battery terminal.


d.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
I167-4 (+B1) - Body ground Always 11 to 14 V
I167-3 (ACC1) - Body ground Ignition switch ACC 11 to 14 V
I169-1 (IG) - Body ground Ignition switch ON 11 to 14 V



Result:
Result
OK
NG



OK

REPLACE NAVIGATION RECEIVER ASSEMBLY

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION RECEIVER>REMOVAL


NG

GO TO STOP AND START SYSTEM (FOR BACKUP BOOST CONVERTER CIRCUIT)

Click hereEngine / Hybrid System>STOP AND START>STOP AND START SYSTEM>Backup Boost Converter Circuit


4.CHECK FOR OPEN IN CAN BUS LINES (NAVIGATION RECEIVER ASSEMBLY BRANCH LINE)
a.

Disconnect the cable from the negative (-) battery terminal.


b.

Disconnect the I186 navigation receiver assembly connector.


c.

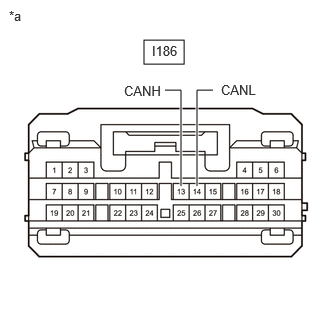

C475004C02
1.5,0.417 1.917,0.667 0.417,0.25 1.885,1.938 1.885,0.938 1.885,0.938 1.719,0.938 true 2.052,1.938 2.052,0.938 2.052,0.938 2.219,0.938 true 0.094,0.083 0.406,0.281 0.313,0.198 10 false *a 1.583,0.448 1.896,0.646 0.313,0.198 10 false I186 1.292,0.865 1.781,1.063 0.49,0.198 10 false CANH 2.302,0.854 2.792,1.052 0.49,0.198 10 false CANL
*a Front view of wire harness connector
(to Navigation Receiver Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I186-13 (CANH) - I186-14 (CANL) Cable disconnected from negative (-) battery terminal 54 to 69 Ω



Result:
Result
OK
NG



OK

5.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)

NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NAVIGATION RECEIVER ASSEMBLY)

5.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
a.

Disconnect the I187 navigation receiver assembly connector.


b.

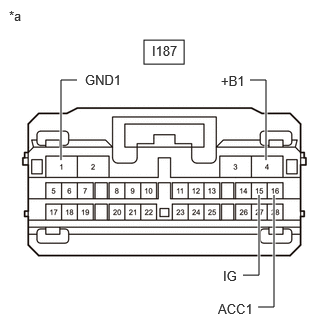

C475003C02
1.5,0.417 1.917,0.667 0.417,0.25 2.771,1.667 2.771,0.833 2.771,0.833 2.604,0.833 true 0.635,1.667 0.635,0.833 0.635,0.833 0.802,0.833 true 2.854,2.031 2.854,3.198 2.854,3.198 2.688,3.198 true 2.698,2.031 2.698,2.865 2.698,2.865 2.531,2.865 true 0.094,0.083 0.406,0.281 0.313,0.198 10 false *a 1.583,0.448 1.896,0.646 0.313,0.198 10 false I187 0.885,0.75 1.375,0.948 0.49,0.198 10 false GND1 2.302,0.76 2.604,1.031 0.302,0.271 10 false +B1 2.323,2.792 2.625,3.063 0.302,0.271 10 false IG 2.271,3.135 2.792,3.406 0.521,0.271 10 false ACC1
*a Front view of wire harness connector
(to Navigation Receiver Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I187-1 (GND1) - Body ground Cable disconnected from negative (-) battery terminal Below 1 Ω



c.

Reconnect the cable to the negative (-) battery terminal.


d.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
I187-4 (+B1) - Body ground Always 11 to 14 V
I187-15 (IG) - Body ground Ignition switch ON 11 to 14 V
I187-16 (ACC1) - Body ground Ignition switch ACC 11 to 14 V



Result:
Result
OK
NG



OK

REPLACE NAVIGATION RECEIVER ASSEMBLY

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION RECEIVER>REMOVAL


NG

GO TO STOP AND START SYSTEM (FOR BACKUP BOOST CONVERTER CIRCUIT)

Click hereEngine / Hybrid System>STOP AND START>STOP AND START SYSTEM>Backup Boost Converter Circuit
