RM3660EC _54 Brake _080740 PARKING BRAKE _0394664 ELECTRIC PARKING BRAKE SYSTEM(for Gasoline Model) C

PARKING BRAKE ELECTRIC PARKING BRAKE SYSTEM(for Gasoline Model) C061000 Right Electric Parking Brake Actuator Control C061011 Right Electric Parking Brake Actuator Control Circuit Short to Ground

DESCRIPTION

DTC No.	Detection Item	DTC Detection Condition	Trouble Area	Memory	Note
C061000	Right Electric Parking Brake Actuator Control	· Diagnosis Condition: - · Malfunction Status: When the ECU power supply is normal, a malfunction in the electric parking brake actuator RH internal circuit is detected. · Detection Time: -	· Parking brake actuator assembly RH · No. 1 parking brake wire assembly · Wire harness or connector · Skid control ECU (brake actuator assembly)	DTC stored	An electric parking brake system malfunction is displayed on the multi-information display.
C061011	Right Electric Parking Brake Actuator Control Circuit Short to Ground	· Diagnosis Condition: Electric parking brake not operating · Malfunction Status: The ECU power supply is normal but there is a malfunction in the electric parking brake actuator RH internal circuit (short to GND). · Detection Time: Approximately 0.015 to 0.195 seconds (depending on each malfunction)	· Parking brake actuator assembly RH · No. 1 parking brake wire assembly · Wire harness or connector · Skid control ECU (brake actuator assembly)	DTC stored	An electric parking brake system malfunction is displayed on the multi-information display.

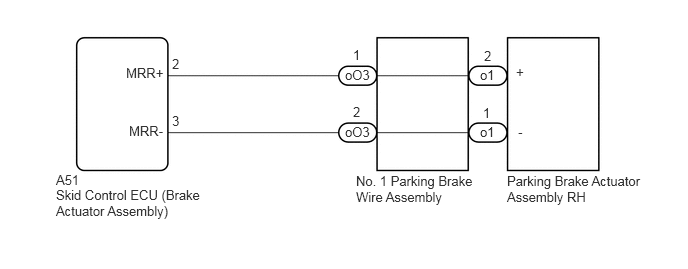

WIRING DIAGRAM

1.313,0.677 1.927,0.875 0.615,0.198 10 false MRR+ 1.344,1.281 1.958,1.479 0.615,0.198 10 false MRR- 3.594,1.292 4.052,1.49 0.458,0.198 10 false oO3 3.594,0.698 4.052,0.896 0.458,0.198 10 false oO3 5.031,1.094 5.208,1.365 0.177,0.271 10 false 1 3.677,1.083 3.854,1.354 0.177,0.271 10 false 2 3.677,0.49 3.854,0.76 0.177,0.271 10 false 1 5.042,0.5 5.219,0.771 0.177,0.271 10 false 2 5.375,0.667 5.823,0.844 0.448,0.177 10 false + 5.396,1.292 5.875,1.438 0.479,0.146 10 false - 5,1.292 5.313,1.49 0.313,0.198 10 false o1 5,0.698 5.313,0.896 0.313,0.198 10 false o1 5.281,1.802 6.75,2.198 1.469,0.396 10 false Parking Brake Actuator Assembly RH 3.708,1.802 4.979,2.354 1.271,0.552 10 false No. 1 Parking Brake Wire Assembly 0.583,1.792 1.042,1.99 0.458,0.198 10 false A51 0.583,1.948 2.135,2.396 1.552,0.448 10 false Skid Control ECU (Brake Actuator Assembly) 1.792,0.583 2.104,0.781 0.313,0.198 10 false 2 1.792,1.177 2.104,1.375 0.313,0.198 10 false 3

PROCEDURE

1.INSPECT NO. 1 PARKING BRAKE WIRE ASSEMBLY

Turn the ignition switch off.

Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:: The connector is securely connected.

Disconnect the oO3 and o1 No. 1 parking brake wire assembly connectors.

Check both the connector case and the terminals for deformation and corrosion.

OK:: No deformation or corrosion.

Measure the resistance according to the value(s) in the table below.

1.75,0.25 2.167,0.5 0.417,0.25 4.969,0.333 5.385,0.583 0.417,0.25 5.906,2.156 5.438,1.677 true 4.49,2.135 5,1.688 true 1.823,0.281 2.281,0.479 0.458,0.198 10 false oO3 5.094,0.375 5.552,0.573 0.458,0.198 10 false o1 1.917,2.26 2.375,2.458 0.458,0.198 10 false *b 0.156,0.125 0.615,0.323 0.458,0.198 10 false *a 5.146,2.229 5.604,2.427 0.458,0.198 10 false *c 4.396,2.125 4.854,2.323 0.458,0.198 10 false - 5.948,2.135 6.406,2.333 0.458,0.198 10 false +

*a	Front view of No. 1 Parking Brake Wire Assembly	*b	(to wire harness connector)
*c	(to Parking Brake Actuator Assembly RH)	-	-

Standard Resistance:

Tester Connection	Condition	Specified Condition
oO3-1 or o1-2 (+) - Body ground and other terminals	Always	10 kΩ or higher
oO3-2 or o1-1 (-) - Body ground and other terminals	Always	10 kΩ or higher

Result:

Proceed to
OK
NG

2.CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) - PARKING BRAKE ACTUATOR ASSEMBLY RH)

REPLACE NO. 1 PARKING BRAKE WIRE ASSEMBLY

2.CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) - PARKING BRAKE ACTUATOR ASSEMBLY RH)

Turn the ignition switch off.

Make sure the No. 1 parking brake wire assembly is securely installed.

Disconnect the A51 skid control ECU (brake actuator assembly) connector.

Disconnect the o1 parking brake actuator assembly RH connector.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
A51-2 (MRR+) or o1-2 (+) - Body ground	Always	10 kΩ or higher
A51-3 (MRR-) or o1-1 (-) - Body ground	Always	10 kΩ or higher

Result:

Proceed to
OK
NG

3.INSPECT PARKING BRAKE ACTUATOR ASSEMBLY RH

REPAIR OR REPLACE HARNESS OR CONNECTOR

3.INSPECT PARKING BRAKE ACTUATOR ASSEMBLY RH

Remove the parking brake actuator assembly RH.

Click hereBrake>PARKING BRAKE>ELECTRIC PARKING BRAKE ACTUATOR>REMOVAL202304,202307,_54,_080740,_0392899,RM100000002BDH3,202307,999999,_54,_080740,_0392899,RM100000002CWEK,

Inspect the parking brake actuator assembly RH.

Click hereBrake>PARKING BRAKE>ELECTRIC PARKING BRAKE ACTUATOR>INSPECTION201906,999999,_54,_080740,_0392899,RM100000001HTT5,

Result:

Proceed to
OK
NG

REPLACE SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>BRAKE ACTUATOR (for Gasoline Model)>REMOVAL202304,202307,_54,_080770,_0392396,RM100000002BDDO,202307,999999,_54,_080770,_0392396,RM100000002CWCG,

REPLACE PARKING BRAKE ACTUATOR ASSEMBLY RH

Click hereBrake>PARKING BRAKE>ELECTRIC PARKING BRAKE ACTUATOR>REMOVAL202304,202307,_54,_080740,_0392899,RM100000002BDH3,202307,999999,_54,_080740,_0392899,RM100000002CWEK,
