PARKING BRAKE  ELECTRIC PARKING BRAKE ACTUATOR  INSPECTION

0.75,0.938 0.365,0.938 true 1.146,0.927 1.563,0.927 true 1.49,2.823 1.104,2.823 true 2.323,2.813 1.938,2.813 true 0.094,0.104 0.333,0.281 0.24,0.177 10 false *a 1.583,0.844 1.802,1.021 0.219,0.177 10 true *b 0.188,0.833 0.406,1.042 0.219,0.208 10 true *c 0.969,2.76 1.583,2.958 0.615,0.198 10 false + 2.385,2.74 3,2.938 0.615,0.198 10 false -

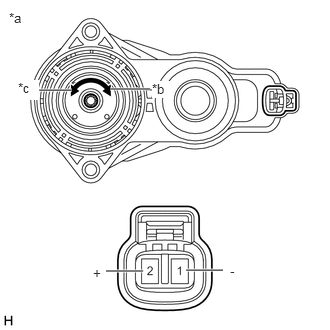

*a	Component without harness connected (Parking Brake Actuator Assembly LH)
*b	Lock
*c	Release

Apply voltage to the terminals of the parking brake actuator assembly LH and check that it operates as specified.

OK:

Connection	Parking Brake Actuator Assembly Operation
Battery positive (+) - 2 (+) Battery negative (-) - 1 (-)	Lock
Battery positive (+) - 1 (-) Battery negative (-) - 2 (+)	Release

If the result is not as specified, replace the parking brake actuator assembly LH.

0.75,0.938 0.365,0.938 true 1.146,0.927 1.563,0.927 true 1.49,2.823 1.104,2.823 true 2.323,2.813 1.938,2.813 true 0.094,0.104 0.333,0.281 0.24,0.177 10 false *a 1.583,0.844 1.802,1.021 0.219,0.177 10 true *b 0.188,0.833 0.406,1.042 0.219,0.208 10 true *c 0.969,2.76 1.583,2.958 0.615,0.198 10 false + 2.396,2.74 3.01,2.938 0.615,0.198 10 false -

*a	Component without harness connected (Parking Brake Actuator Assembly RH)
*b	Lock
*c	Release

Apply voltage to the terminals of the parking brake actuator assembly RH and check that it operates as specified.

OK:

Connection	Parking Brake Actuator Assembly Operation
Battery positive (+) - 2 (+) Battery negative (-) - 1 (-)	Lock
Battery positive (+) - 1 (-) Battery negative (-) - 2 (+)	Release

If the result is not as specified, replace the parking brake actuator assembly RH.
