PARKING BRAKE ELECTRIC PARKING BRAKE ACTUATOR REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during electric parking brake actuator removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
|
*: The vehicle height changes because of tire replacement. |
|||
| Tires | Rear television camera assembly optical axis (Back camera position setting)* | Parking Assist Monitor System | ( 202304,999999,_56,_080754,_0596561,RM100000002AX0C,)
|
| Parking assist ECU initialization | Panoramic View Monitor System | (202307,999999,_56,_080754,_0612151,RM100000002CL9H,)
|
|
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE
1. PRECAUTION
2.RELEASE PARKING BRAKE
Move the shift lever to P.
Turn the ignition switch (for Gasoline Model) or power switch (for HV Model) on (IG).
Operate the electric parking brake switch assembly to release the parking brake.
- HINT:
-
If the parking brake cannot be released:
-
for HV Model: Click hereBrake>PARKING BRAKE>FORCED RELEASE (for HV Model)>OPERATION METHOD202307,999999,_54,_080740,_0392895,RM100000002CS4T,
-
for Gasoline Model: Click hereBrake>PARKING BRAKE>FORCED RELEASE (for Gasoline Model)>OPERATION METHOD201906,999999,_54,_080740,_0392896,RM100000001HTSU,
Turn the ignition switch (for Gasoline Model) or power switch (for HV Model) off.
3.REMOVE REAR WHEEL
890C0A
4.DISCONNECT NO. 2 PARKING BRAKE WIRE ASSEMBLY

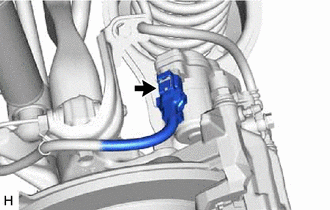

Disconnect the No. 2 parking brake wire assembly connector from the parking brake actuator assembly.
- NOTICE:
- ·
Remove any dirt or foreign matter on and around the No. 2 parking brake wire assembly connector before performing this step.
·Do not allow water, oil or dirt to enter the No. 2 parking brake wire assembly connector.
46310B
5.REMOVE PARKING BRAKE ACTUATOR ASSEMBLY

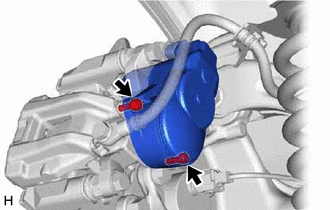

Using a 5 mm hexagon socket wrench, remove the 2 bolts and parking brake actuator assembly from the rear disc brake cylinder assembly.
- NOTICE:
- ·
Check for brake fluid leaks on the back side of the rear disc brake cylinder assembly.
·If there are any brake fluid leaks, replace the rear disc brake cylinder assembly.
Remove the O-ring from the rear disc brake cylinder assembly.
