NR Series ENGINE CONTROL  SFI SYSTEM  P007A15  Charge Air Cooler Temperature Sensor Bank 1 Circuit Short to Battery or Open


DESCRIPTION

Refer to DTC P007A11.

Click hereEngine / Hybrid System>NR Series (ENGINE CONTROL)>SFI SYSTEM>P007A11

HINT:

When DTC P007A15 is stored, the ECM enters fail-safe mode. During fail-safe mode, the intake air temperature is estimated to be 45°C (113°F) by the ECM. Fail-safe mode continues until a pass condition is detected.


DTC No. Detection Item DTC Detection Condition Trouble Area MIL Memory Note
P007A15 Charge Air Cooler Temperature Sensor Bank 1 Circuit Short to Battery or Open Diagnosis Condition:
·

Ignition switch ON


Abnormal condition:
·

The intake air temperature sensor output voltage is higher than 4.9 V.


Malfunction Time:
·

3 seconds or more


Trip logic:
·

1 trip detection logic


Detection Conditions:
·

Continuous


Sensors/components used for detection:
·

Intake air temperature sensor


·

Open or short in intake air temperature sensor circuit

·

No. 2 turbo pressure sensor (intake air temperature sensor)

·

ECM


Comes on DTC stored SAE Code: P007D

HINT:

When this DTC is output, check the intake air temperature (for intake manifold) in the Data List. Enter the following menus: Powertrain / Engine / Data List / Intake Air Temperature B1S1 (Turbo).

DTC No. Intake Air Temperature B1S1 (Turbo) Malfunction
P007A15 -40°C (-40°F)
·

Short in THIM circuit to power source circuit

·

Open in THIM circuit

·

Open in EPIM circuit



If the Data List values is normal it may be due to a temporary recovery from the malfunction condition. Check for intermittent problems.

Click hereEngine / Hybrid System>NR Series (ENGINE CONTROL)>SFI SYSTEM>CHECK FOR INTERMITTENT PROBLEMS


MONITOR DESCRIPTION

When the ignition switch is turned to ON and the output voltage of the intake air temperature sensor is higher than 4.9 V for 3 seconds or more, the ECM determines that the intake air temperature sensor circuit is malfunctioning and stores a DTC.

CAUTION / NOTICE / HINT

HINT:

Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.


PROCEDURE

1.CHECK TERMINAL VOLTAGE (INTAKE AIR TEMPERATURE SENSOR)
A376494C63
0.313,0.99 0.635,1.219 0.323,0.229 2.656,1.781 2.292,1.146 true 0.354,1.021 0.813,1.219 0.458,0.198 10 false C99 0.198,0.135 0.51,0.333 0.313,0.198 10 false *a 2.51,1.823 3.125,2.021 0.615,0.198 10 false THIM
*a Front view of wire harness connector
(to Intake Air Temperature Sensor)


a.

Disconnect the intake air temperature sensor connector.


b.

Turn the ignition switch to ON.


c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
C99-4 (THIM) - Body ground Ignition switch ON 0 to 5.5 V



Result:
Proceed to
OK
NG



OK

2.READ VALUE USING GTS (INTAKE AIR TEMPERATURE B1S1 (TURBO))

NG

4.CHECK HARNESS AND CONNECTOR (INTAKE AIR TEMPERATURE SENSOR - ECM)
2.READ VALUE USING GTS (INTAKE AIR TEMPERATURE B1S1 (TURBO))

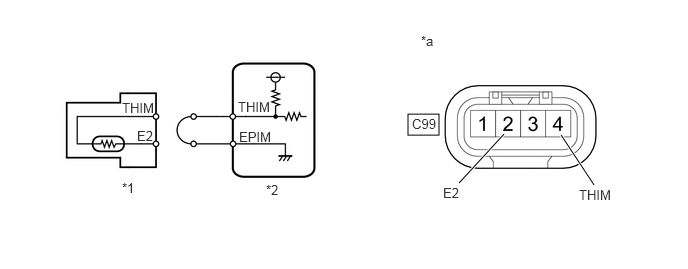

A436606C02
4.25,1.188 4.573,1.406 0.323,0.219 4.781,1.906 5.25,1.396 true 6.188,1.927 5.844,1.406 true 1.271,1.875 1.583,2.073 0.313,0.198 10 false *1 2.771,1.896 3.083,2.094 0.313,0.198 10 false *2 1.271,1.042 1.885,1.24 0.615,0.198 10 false THIM 1.427,1.333 1.74,1.531 0.313,0.198 10 false E2 2.479,1.031 3.094,1.229 0.615,0.198 10 false THIM 2.49,1.344 3.104,1.542 0.615,0.198 10 false EPIM 4.385,0.344 4.698,0.542 0.313,0.198 10 false *a 4.292,1.208 4.75,1.406 0.458,0.198 10 false C99 4.615,1.927 4.927,2.125 0.313,0.198 10 false E2 6.031,1.948 6.646,2.146 0.615,0.198 10 false THIM
*1 Intake Air Temperature Sensor *2 ECM
*a Front view of wire harness connector
(to Intake Air Temperature Sensor) 		- -


a.

Disconnect the intake air temperature sensor connector.


b.

Connect terminals 4 (THIM) and 2 (E2) of the intake air temperature sensor connector on the wire harness side.


c.

Connect the GTS to the DLC3.


d.

Turn the ignition switch to ON.


e.

Turn the GTS on.


f.

Enter the following menus: Powertrain / Engine / Data List / Intake Air Temperature B1S1 (Turbo).

Powertrain > Engine > Data List
Tester Display
Intake Air Temperature B1S1 (Turbo)
50003 372 310

g.

According to the display on the GTS, read the Data List.

OK:
GTS Display Specified Condition
Intake Air Temperature B1S1 (Turbo) 140°C (284°F)



Result:
Proceed to
OK
NG



OK

REPLACE NO. 2 TURBO PRESSURE SENSOR

Click hereEngine / Hybrid System>NR Series (ENGINE CONTROL)>MANIFOLD ABSOLUTE PRESSURE SENSOR>REMOVAL


NG

3.CHECK HARNESS AND CONNECTOR (INTAKE AIR TEMPERATURE SENSOR - ECM)
3.CHECK HARNESS AND CONNECTOR (INTAKE AIR TEMPERATURE SENSOR - ECM)
a.

Disconnect the intake air temperature sensor connector.


b.

Disconnect the ECM connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
C99-4 (THIM) - C78-107 (THIM) Always Below 1 Ω
C99-2 (E2) - C78-137 (EPIM) Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

REPLACE ECM

Click hereEngine / Hybrid System>NR Series (ENGINE CONTROL)>ECM>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

4.CHECK HARNESS AND CONNECTOR (INTAKE AIR TEMPERATURE SENSOR - ECM)
a.

Disconnect the intake air temperature sensor connector.


b.

Disconnect the ECM connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
C99-4 (THIM) or C78-107 (THIM) - Other terminals Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE ECM

Click hereEngine / Hybrid System>NR Series (ENGINE CONTROL)>ECM>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
