NR Series ENGINE CONTROL  SFI SYSTEM  P007A11  Charge Air Cooler Temperature Sensor Bank 1 Circuit Short to Ground


DESCRIPTION

A283580E01
3.354,2.271 3.74,1.99 false 2.26,0.406 2.833,0.667 0.573,0.26 10 Fig. 1: 3.292,4.271 4.167,4.5 0.875,0.229 10 Temperature 2.396,0.969 2.771,1.219 0.375,0.25 10 (kΩ) 2.281,1.146 2.521,1.365 0.24,0.219 10 30 2.281,1.583 2.521,1.802 0.24,0.219 10 10 2.354,1.875 2.594,2.094 0.24,0.219 10 5 2.354,2.094 2.594,2.313 0.24,0.219 10 3 2.354,2.26 2.51,2.479 0.156,0.219 10 2 2.344,2.531 2.594,2.75 0.25,0.219 10 1 2.24,2.833 2.479,3.052 0.24,0.219 10 0.5 2.24,3.198 2.479,3.417 0.24,0.219 10 0.2 2.24,3.469 2.479,3.688 0.24,0.219 10 0.1 2.281,1.323 2.531,1.542 0.25,0.219 10 20 2.542,3.823 2.781,4.042 0.24,0.219 10 -20 2.938,3.823 3.177,4.042 0.24,0.219 10 0 3.208,3.823 3.448,4.042 0.24,0.219 10 20 3.521,3.823 3.76,4.042 0.24,0.219 10 40 3.833,3.823 4.073,4.042 0.24,0.219 10 60 4.146,3.823 4.385,4.042 0.24,0.219 10 80 4.385,3.823 4.625,4.042 0.24,0.219 10 100 2.583,4 2.823,4.219 0.24,0.219 10 -4 2.896,4 3.135,4.219 0.24,0.219 10 32 3.208,4 3.448,4.219 0.24,0.219 10 68 3.479,4 3.729,4.25 0.25,0.25 10 104 3.792,4 4.125,4.25 0.333,0.25 10 140 4.094,4 4.417,4.25 0.323,0.25 10 176 4.385,4 4.708,4.25 0.323,0.25 10 212 4.677,3.823 5,4.073 0.323,0.25 10 (°C) 4.677,4 5,4.25 0.323,0.25 10 (°F) 3.802,1.896 4.583,2.167 0.781,0.271 10 Acceptable 2.26,0.719 3.083,0.917 0.823,0.198 10 Resistance 2.24,3.021 2.479,3.24 0.24,0.219 10 0.3

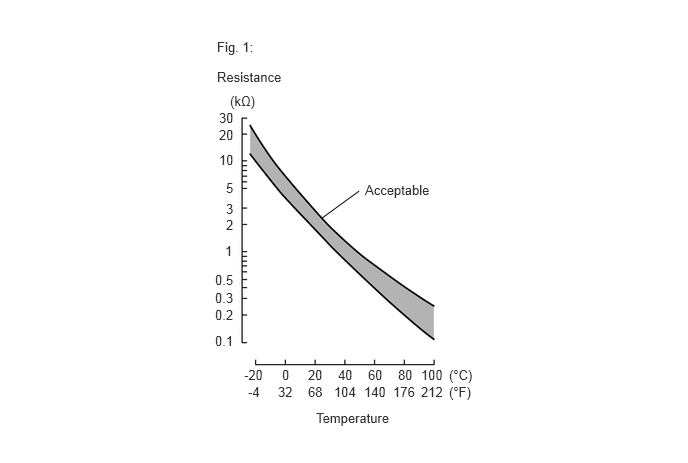

The intake air temperature sensor, built into the No. 2 turbo pressure sensor, monitors the intake air temperature for intake manifold. The intake air temperature sensor has a built-in thermistor with a resistance that varies according to the temperature of the intake air. When the intake air temperature is low, the resistance of the thermistor increases. When the temperature is high, the resistance drops. These variations in resistance are transmitted to the ECM as voltage changes (See Fig. 1).

The intake air temperature sensor is powered by a 5 V supply from terminal THIM of the ECM, via resistor R.

Resistor R and the intake air temperature sensor are connected in series. When the resistance value of the intake air temperature sensor changes, according to changes in the intake air temperature, the voltage at terminal THIM also varies. Based on this signal, the ECM increases the fuel injection volume when the engine is cold to improve driveability.

HINT:

When DTC P007A11 is stored, the ECM enters fail-safe mode. During fail-safe mode, the intake air temperature is estimated to be 45°C (113°F) by the ECM. Fail-safe mode continues until a pass condition is detected.


DTC No. Detection Item DTC Detection Condition Trouble Area MIL Memory Note
P007A11 Charge Air Cooler Temperature Sensor Bank 1 Circuit Short to Ground Diagnosis Condition:
·

Ignition switch ON


Abnormal condition:
·

The intake air temperature sensor output voltage is less than 0.1 V.


Malfunction Time:
·

3 seconds or more


Trip logic:
·

1 trip detection logic


Detection Conditions:
·

Continuous


Sensors/components used for detection:
·

Intake air temperature sensor


·

Short in intake air temperature sensor circuit

·

No. 2 turbo pressure sensor (intake air temperature sensor)

·

ECM


Comes on DTC stored SAE Code: P007C

HINT:

When this DTC is output, check the intake air temperature (for intake manifold) in the Data List. Enter the following menus: Powertrain / Engine / Data List / Intake Air Temperature B1S1 (Turbo).

DTC No. Intake Air Temperature B1S1 (Turbo) Malfunction
P007A11 140°C (284°F) Short in THIM circuit to ground

If the Data List values is normal it may be due to a temporary recovery from the malfunction condition. Check for intermittent problems.

Click hereEngine / Hybrid System>NR Series (ENGINE CONTROL)>SFI SYSTEM>CHECK FOR INTERMITTENT PROBLEMS


MONITOR DESCRIPTION

When the ignition switch is turned to ON and the output voltage of the intake air temperature sensor is less than 0.1 V for 3 seconds or more, the ECM determines that the intake air temperature sensor circuit is malfunctioning and stores a DTC.

CONFIRMATION DRIVING PATTERN

HINT:
·

After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

Click hereEngine / Hybrid System>NR Series (ENGINE CONTROL)>SFI SYSTEM>DTC CHECK / CLEAR



1.

Connect the GTS to the DLC3.

2.

Turn the ignition switch to ON.

3.

Turn the GTS on.

4.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

5.

Turn the ignition switch off and wait for at least 30 seconds.

6.

Turn the ignition switch to ON [A].

7.

Turn the GTS on.

8.

Wait 5 seconds or more [B].

9.

Enter the following menus: Powertrain / Engine / Trouble Codes [C].

10.

Read the pending DTCs.

HINT:
·

If a pending DTC is output, the system is malfunctioning.

·

If a pending DTC is not output, perform the following procedure.



11.

Enter the following menus: Powertrain / Engine / Utility / All Readiness.

12.

Proceed to the next screen and enter the DTC to be checked.

13.

Check the DTC judgment result.

GTS Display Description
NORMAL
·

DTC judgment completed

·

System normal


ABNORMAL
·

DTC judgment completed

·

System abnormal


INCOMPLETE
·

DTC judgment not completed

·

Perform driving pattern after confirming DTC enabling conditions



HINT:
·

If the judgment result shows NORMAL, the system is normal.

·

If the judgment result shows ABNORMAL, the system has a malfunction.

·

[A] to [C]: Normal judgment procedure.

The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

·

When clearing the permanent DTCs, do not disconnect the cable from the battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.

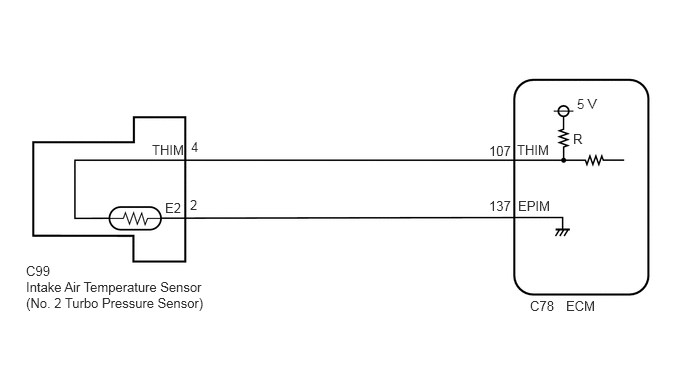

WIRING DIAGRAM

A346389E08
0.271,2.74 0.729,2.938 0.458,0.198 10 false C99 0.271,2.906 2.167,3.385 1.896,0.479 10 false Intake Air Temperature Sensor (No. 2 Turbo Pressure Sensor) 1.99,1.448 2.448,1.646 0.458,0.198 10 false 4 1.979,2.052 2.438,2.25 0.458,0.198 10 false 2 1.583,1.479 2.042,1.677 0.458,0.198 10 false THIM 1.719,2.083 2.177,2.281 0.458,0.198 10 false E2 5.521,3.104 5.979,3.302 0.458,0.198 10 false C78 5.896,3.104 6.302,3.406 0.406,0.302 10 false ECM 5.094,2.063 5.552,2.26 0.458,0.198 10 false 137 5.396,2.063 5.854,2.26 0.458,0.198 10 false EPIM 5.094,1.49 5.552,1.688 0.458,0.198 10 false 107 5.385,1.479 5.844,1.677 0.458,0.198 10 false THIM 6.01,1 6.469,1.198 0.458,0.198 10 false 5 V 5.969,1.365 6.427,1.563 0.458,0.198 10 false R

CAUTION / NOTICE / HINT

HINT:

Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.


PROCEDURE

1.READ VALUE USING GTS (INTAKE AIR TEMPERATURE B1S1 (TURBO))
A226261C31

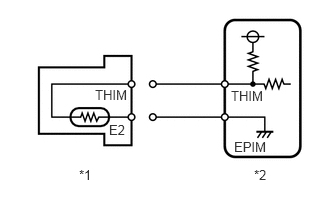

0.823,1.74 1.5,2.063 0.677,0.323 10 false *1 2.646,1.74 3.167,1.896 0.521,0.156 10 false *2 2.406,0.917 2.844,1.146 0.438,0.229 10 false THIM 2.438,1.448 2.948,1.698 0.51,0.25 10 false EPIM 0.99,0.906 1.51,1.188 0.521,0.281 10 false THIM 1.135,1.271 1.479,1.521 0.344,0.25 10 false E2
*1 Intake Air Temperature Sensor
*2 ECM


a.

Disconnect the intake air temperature sensor connector.


b.

Connect the GTS to the DLC3.


c.

Turn the ignition switch to ON.


d.

Turn the GTS on.


e.

Enter the following menus: Powertrain / Engine / Data List / Intake Air Temperature B1S1 (Turbo).

Powertrain > Engine > Data List
Tester Display
Intake Air Temperature B1S1 (Turbo)
50003 372 310

f.

According to the display on the GTS, read the Data List.

OK:
GTS Display Specified Condition
Intake Air Temperature B1S1 (Turbo) -40°C (-40°F)



Result:
Proceed to
OK
NG



OK

NG

2.CHECK HARNESS AND CONNECTOR (INTAKE AIR TEMPERATURE SENSOR - ECM)
2.CHECK HARNESS AND CONNECTOR (INTAKE AIR TEMPERATURE SENSOR - ECM)
a.

Disconnect the Intake air temperature sensor connector.


b.

Disconnect the ECM connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
C99-4 (THIM) or C78-107 (THIM) - Body ground and other terminals Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
