RM3660EC _51 Engine / Hybrid System _080777 NR Series ENGINE CONTROL _0392346 MANIFOLD ABSOLUTE PRESSURE SENSOR A

NR Series ENGINE CONTROL  MANIFOLD ABSOLUTE PRESSURE SENSOR  REMOVAL


PROCEDURE

Hide 89421K 1.REMOVE NO. 1 TURBO PRESSURE SENSOR

a.

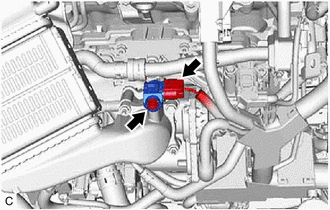

A445768

Disconnect the No. 1 turbo pressure sensor connector.


b.

Remove the bolt and No. 1 turbo pressure sensor from the intercooler assembly.

NOTICE:

If the No. 1 turbo pressure sensor has been struck or dropped, replace it.



Hide 89421L 2.REMOVE NO. 2 TURBO PRESSURE SENSOR

a.

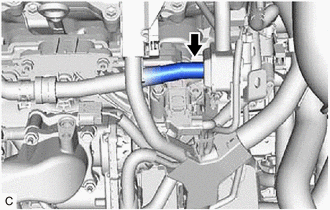

A445769

Disconnect the No. 2 fuel vapor feed hose from the purge valve (purge VSV).


b.

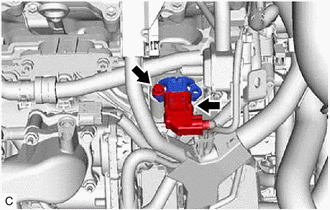

A445770

Disconnect the No. 2 turbo pressure sensor connector.


c.

Remove the bolt and No. 2 turbo pressure sensor from the intake manifold.

NOTICE:

If the No. 2 turbo pressure sensor has been struck or dropped, replace it.
