NR Series ENGINE CONTROL SFI SYSTEM P019515 Engine Oil Temperature Sensor Circuit Short to Battery or Open
DESCRIPTION
Refer to DTC P019511.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | MIL | Memory | Note |
|---|---|---|---|---|---|---|
| P019515 | Engine Oil Temperature Sensor Circuit Short to Battery or Open | Diagnosis Condition:
·
The engine oil temperature is higher than -27°C and 10 seconds or more have elapsed after the engine started. ·
The engine oil temperature is -27°C or less and 300 seconds or more have elapsed after the engine started. Abnormal condition: ·
The engine oil temperature sensor output voltage is higher than 4.94 V Malfunction Time: ·
5 seconds or more Trip logic: ·
1 trip detection logic Detection Conditions: ·
Continuous Sensors/components used for detection: ·
Engine oil temperature sensor |
·
Open or short in engine oil temperature sensor circuit ·
Engine oil temperature sensor ·
ECM |
Comes on | DTC stored | SAE Code:
P0198 |
- HINT:
-
When this DTC is output, check the engine oil temperature in the Data List. Enter the following menus: Powertrain / Engine / Data List / Engine Oil Temperature Sensor.
DTC No. Engine Oil Temperature Sensor Malfunction P019515 -40°C (-40°F) ·Short to +B in THEO circuit
·Open in THEO circuit
·Open in ETHE circuit
-
If the Data List values is normal it may be due to a temporary recovery from the malfunction condition. Check for intermittent problems.
MONITOR DESCRIPTION
10 seconds or more (engine oil temperature higher than -27°C) or 300 seconds or more (engine oil temperature -27°C or less) after the engine started, if the output voltage of the engine oil temperature sensor is higher than 4.94 V for 5 seconds or more, the ECM determines that the engine oil temperature sensor circuit is malfunctioning and stores a DTC.
MONITOR STRATEGY
| Frequency of Operation | Continuous |
CONFIRMATION DRIVING PATTERN
- HINT:
- ·
After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.
·When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.
Connect the GTS to the DLC3.
Turn the ignition switch to ON.
Turn the GTS on.
Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
Turn the ignition switch off and wait for at least 30 seconds.
Start the engine and wait for the time indicated below [A].
If the engine oil temperature sensor is higher than -27°C (-17°F): 10 seconds or more.
If the engine oil temperature sensor is -27°C (-17°F) or less: 5 minutes or more.
Turn the GTS on.
Enter the following menus: Powertrain / Engine / Trouble Codes [B].
Read the pending DTCs.
- HINT:
- ·
If a pending DTC is output, the system is malfunctioning.
·If a pending DTC is not output, perform the following procedure.
Enter the following menus: Powertrain / Engine / Utility / All Readiness.
Proceed to the next screen and enter the DTC to be checked.
Check the DTC judgment result.
| GTS Display | Description |
|---|---|
| NORMAL | ·
DTC judgment completed ·
System normal |
| ABNORMAL | ·
DTC judgment completed ·
System abnormal |
| INCOMPLETE | ·
DTC judgment not completed ·
Perform driving pattern after confirming DTC enabling conditions |
- HINT:
- ·
If the judgment result shows NORMAL, the system is normal.
·If the judgment result shows ABNORMAL, the system has a malfunction.
·[A] to [B]: Normal judgment procedure.
The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.
·When clearing the permanent DTCs, do not disconnect the cable from the battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.
WIRING DIAGRAM
CAUTION / NOTICE / HINT
- HINT:
-
Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.
PROCEDURE

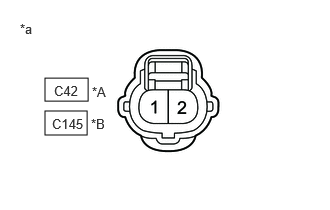

| *A | Production Date from 2020/07 to 2021/11 |
| *B | Production date from 2021/11 |
| *a | Front view of wire harness connector
(to Engine Oil Temperature Sensor) |
Disconnect the engine oil temperature sensor connector.
Turn the ignition switch to ON.
Measure the voltage according to the value(s) in the table below.
- Standard Voltage:
Production Date from 2020/07 to 2021/11 Tester Connection Condition Specified Condition C42-2 - Body ground Ignition switch ON 0 to 5.5 V
Production date from 2021/11 Tester Connection Condition Specified Condition C145-2 - Body ground Ignition switch ON 0 to 5.5 V
- Result:
Proceed to OK NG
OK
NG

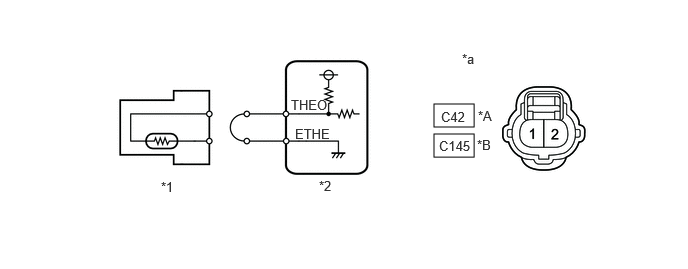

| *A | Production Date from 2020/07 to 2021/11 | *B | Production date from 2021/11 |
| *1 | Engine Oil Temperature Sensor | *2 | ECM |
| *a | Front view of wire harness connector
(to Engine Oil Temperature Sensor) |
- | - |
Disconnect the engine oil temperature sensor connector.
Connect terminals 2 and 1 of the engine oil temperature sensor connector on the wire harness side.
Connect the GTS to the DLC3.
Turn the ignition switch to ON.
Turn the GTS on.
Enter the following menus: Powertrain / Engine / Data List / Engine Oil Temperature Sensor.
- Powertrain > Engine > Data List
-
Tester Display Engine Oil Temperature Sensor - 50003 372 261
Read the value displayed on the GTS.
- OK:
GTS Display Specified Condition Engine Oil Temperature Sensor Higher than 156°C (313°F)
- Result:
Proceed to OK NG
OK
NG
Disconnect the engine oil temperature sensor connector.
Disconnect the ECM connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Production Date from 2020/07 to 2021/11 Tester Connection Condition Specified Condition C42-2 - C78-97 (THEO) Always Below 1 Ω C42-1 - C78-96 (ETHE) Always Below 1 Ω
Production date from 2021/11 Tester Connection Condition Specified Condition C145-2 - C78-97 (THEO) Always Below 1 Ω C145-1 - C78-96 (ETHE) Always Below 1 Ω
- Result:
Proceed to OK NG
OK
NG
Disconnect the engine oil temperature sensor connector.
Disconnect the ECM connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Production Date from 2020/07 to 2021/11 Tester Connection Condition Specified Condition C42-2 or C78-97 (THEO) - Other terminals Always 10 kΩ or higher
Production date from 2021/11 Tester Connection Condition Specified Condition C145-2 or C78-97 (THEO) - Other terminals Always 10 kΩ or higher
- Result:
Proceed to OK NG
OK
NG
