NR Series ENGINE CONTROL ENGINE OIL TEMPERATURE SENSOR REMOVAL
PROCEDURE
1.REMOVE FRONT WHEEL RH
51443C
2.REMOVE REAR ENGINE UNDER COVER RH
89429F
3.REMOVE ENGINE OIL TEMPERATURE SENSOR
a.

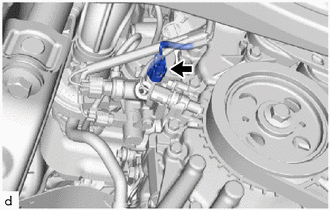

Disconnect the engine oil temperature sensor connector.
b.
1.198,0.688 1.531,0.688
true
0.885,0.604 1.281,0.802
0.396,0.198
10
true
SST
Using SST, remove the engine oil temperature sensor from the oil pump relief valve housing assembly.
- SST
- 09817-33191
- NOTICE:
-
If the engine oil temperature sensor has been struck or dropped, replace it.
c.
Remove the gasket from the engine oil temperature sensor.
