RM3660EC _51 Engine / Hybrid System _080777 NR Series ENGINE CONTROL _0393969 SFI SYSTEM C

NR Series ENGINE CONTROL  SFI SYSTEM  P045011  Evaporative Emission System Pressure Sensor/Switch Circuit Short to Ground  P045015  Evaporative Emission System Pressure Sensor/Switch Circuit Short to Battery or Open  P04502F  Evaporative Emission System Pressure Sensor/Switch Signal Erratic


DTC SUMMARY

DTC No. Detection Item DTC Detection Condition Trouble Area MIL Memory Note
P045011 Evaporative Emission System Pressure Sensor/Switch Circuit Short to Ground EVAP pressure less than 42.11 kPa(abs) (6.11 psi(abs)) for 0.5 seconds.
·

No. 2 charcoal canister sub-assembly

·

Wire harness or connector (canister pump module - ECM)

·

ECM


Comes on DTC stored SAE Code: P0452
P045015 Evaporative Emission System Pressure Sensor/Switch Circuit Short to Battery or Open EVAP pressure higher than 123.761 kPa(abs) (17.95 psi(abs)) for 0.5 seconds.
·

No. 2 charcoal canister sub-assembly

·

Wire harness or connector (canister pump module - ECM)

·

ECM


Comes on DTC stored SAE Code: P0453
P04502F Evaporative Emission System Pressure Sensor/Switch Signal Erratic Sensor output voltage fluctuates frequently in a certain time period.
·

No. 2 charcoal canister sub-assembly

·

Wire harness or connector (canister pump module - ECM)

·

EVAP system hose (pipe from air inlet port to canister pump module, canister filter, fuel tank vent hose)

·

ECM


Comes on DTC stored SAE Code: P0451

DTC No. Monitoring Item Detection Timing Detection Logic SAE
P045011 Canister pressure sensor low input
·

Ignition switch ON

·

EVAP monitoring (ignition switch off)


1 trip P0452
P045015 Canister pressure sensor high input
·

Ignition switch ON

·

EVAP monitoring (ignition switch off)


1 trip P0453
P04502F Canister pressure sensor abnormal voltage fluctuation
·

EVAP monitoring (ignition switch off)

·

Engine running


2 trip P0451

HINT:

The canister pressure sensor is built into the canister pump module.

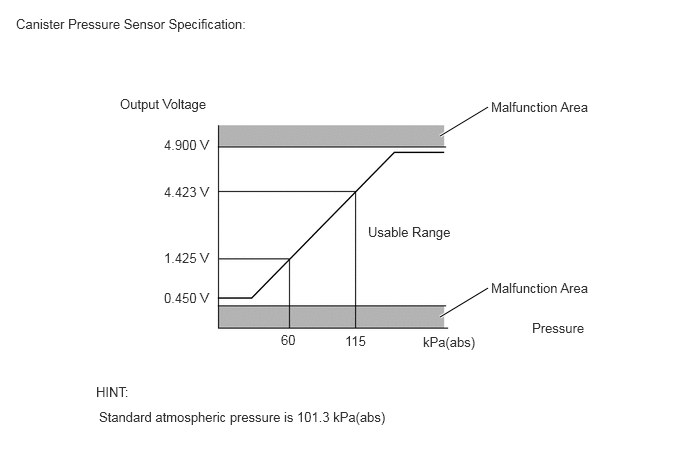

MONITOR DESCRIPTION

A304708E17
4.583,3.302 5.083,3 true 4.583,1.417 5.083,1.115 true 0.167,0.167 2.667,0.333 2.5,0.167 10 false Canister Pressure Sensor Specification: 1.25,1 2.25,1.167 1,0.167 10 false Output Voltage 1.708,1.427 2.292,1.594 0.583,0.167 10 false 4.900 V 1.708,1.917 2.292,2.083 0.583,0.167 10 false 4.423 V 1.708,2.604 2.292,2.771 0.583,0.167 10 false 1.425 V 1.708,3.021 2.292,3.188 0.583,0.167 10 false 0.450 V 2.927,3.458 3.51,3.625 0.583,0.167 10 false 60 3.594,3.469 4.396,3.677 0.802,0.208 10 false 115 4.406,3.479 5.635,3.865 1.229,0.385 10 false kPa(abs) 5.542,3.333 6.208,3.5 0.667,0.167 10 false Pressure 5.115,2.917 6.198,3.083 1.083,0.167 10 false Malfunction Area 5.115,1.031 6.198,1.198 1.083,0.167 10 false Malfunction Area 3.833,2.333 4.75,2.5 0.917,0.167 10 false Usable Range 1,4 1.417,4.167 0.417,0.167 10 false HINT: 1.031,4.26 5.24,4.521 4.208,0.26 10 false Standard atmospheric pressure is 101.3 kPa(abs)

1.

DTC P045011: Canister pressure sensor voltage low

If the canister pressure sensor voltage output (pressure) is less than 0.45 V: 42.11 kPa(abs) (6.11 psi(abs)), the ECM interprets this as an open or short circuit in the canister pressure sensor or its circuit, and stops the EVAP system monitor. The ECM then illuminates the MIL and stores the DTC (1 trip detection logic).

2.

DTC P045015: Canister pressure sensor voltage high

If the canister pressure sensor voltage output (pressure) is higher than 4.9 V: 123.761 kPa(abs) (17.95 psi(abs)), the ECM interprets this as an open or short circuit in the canister pressure sensor or its circuit, and stops the EVAP system monitor. The ECM then illuminates the MIL and stores the DTC (1 trip detection logic).

3.

DTC P04502F: Canister pressure sensor abnormal voltage fluctuation

If the canister pressure sensor voltage output fluctuates rapidly for 10 seconds, the ECM stops the EVAP system monitor. The ECM interprets this as the canister pressure sensor voltage fluctuating, and stops the EVAP system monitor. The ECM then illuminates the MIL and stores the DTC (2 trip detection logic).


MONITOR STRATEGY

Required Sensors/Components Canister pump module
Frequency of Operation Continuous: P045011, P045015
Once per driving cycle: P04502F

CONFIRMATION DRIVING PATTERN

NOTICE:
·

The Evaporative System Check (Automatic Mode) consists of 7 steps performed automatically by the GTS. It takes a maximum of approximately 24 minutes.

·

Do not perform the Evaporative System Check when the fuel tank is higher than 90% full because the cut-off valve may be closed, making the fuel tank leak check unavailable.

·

Do not run the engine during this operation.

·

When the temperature of the fuel is 35°C (95°F) or higher, a large amount of vapor forms and any check results become inaccurate. When performing the Evaporative System Check, keep the fuel temperature below 35°C (95°F).



HINT:
·

After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

Click hereEngine / Hybrid System>NR Series (ENGINE CONTROL)>SFI SYSTEM>DTC CHECK / CLEAR

·

When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

Click hereEngine / Hybrid System>NR Series (ENGINE CONTROL)>SFI SYSTEM>DTC CHECK / CLEAR



1.

Connect the GTS to the DLC3.

2.

Turn the ignition switch to ON.

3.

Turn the GTS on.

4.

Enter the following menus: Powertrain / Engine / Data List / Intake Air Temperature.

5.

Check that the intake air temperature is between 4.4 and 35°C (40 and 95°F).

6.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

7.

Turn the ignition switch off and wait for at least 30 seconds.

8.

Turn the ignition switch to ON [A].

9.

Turn the GTS on.

10.

Enter the following menus: Powertrain / Engine / Utility / Evaporative System Check / Automatic Mode [B].

11.

After the Evaporative System Check is completed, check for All Readiness by entering the following menus: Powertrain / Engine / Utility / All Readiness.

12.

Input the DTC: P045011, P045015 or P04502F.

13.

Check the DTC judgment result.

GTS Display Description
NORMAL
·

DTC judgment completed

·

System normal


ABNORMAL
·

DTC judgment completed

·

System abnormal


INCOMPLETE
·

DTC judgment not completed

·

Perform driving pattern after confirming DTC enabling conditions



HINT:
·

If the judgment result shows NORMAL, the system is normal.

·

If the judgment result shows ABNORMAL, the system has a malfunction.

·

[A] to [B]: Normal judgment procedure.

The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

·

When clearing the permanent DTCs, do not disconnect the cable from the battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.

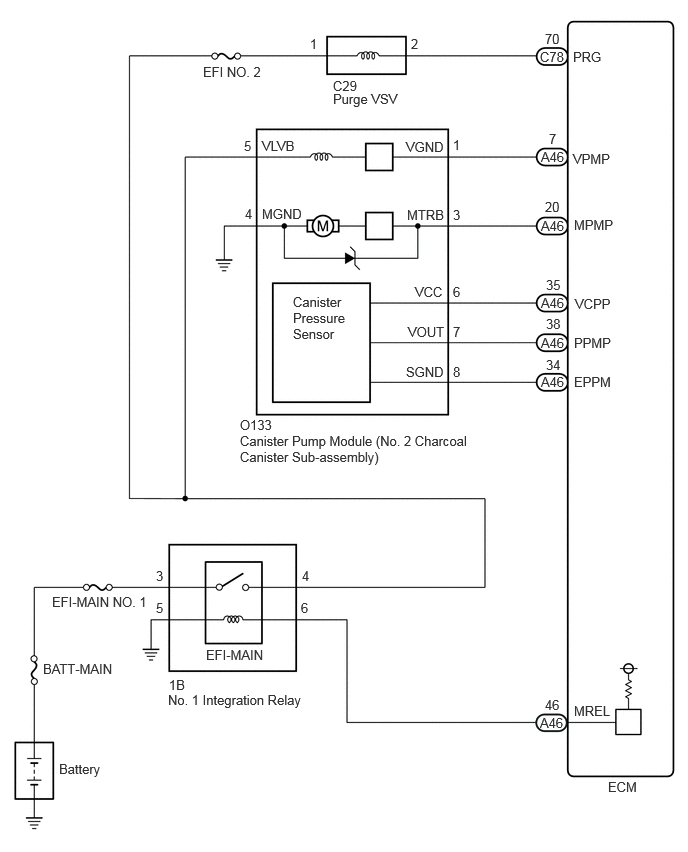

WIRING DIAGRAM

A447187E02
0.448,6.885 1.521,7.083 1.073,0.198 10 false BATT-MAIN 0.542,6.188 1.615,6.385 1.073,0.198 10 false EFI-MAIN NO. 1 2.146,6.74 3.219,6.938 1.073,0.198 10 false EFI-MAIN 1.625,5.917 2.698,6.115 1.073,0.198 10 false 3 1.625,6.25 2.698,6.448 1.073,0.198 10 false 5 3.146,5.917 4.219,6.115 1.073,0.198 10 false 4 3.135,6.25 4.208,6.448 1.073,0.198 10 false 6 2.5,4.344 3.573,4.542 1.073,0.198 10 false O133 2.5,4.51 4.906,4.958 2.406,0.448 10 false Canister Pump Module (No. 2 Charcoal Canister Sub-assembly) 3.052,3.063 3.625,3.625 0.573,0.563 10 false Canister Pressure Sensor 3.469,0.948 5.115,1.24 1.646,0.292 10 false Purge VSV 3.469,0.813 5.115,1.104 1.646,0.292 10 false C29 3.229,0.375 4.875,0.667 1.646,0.292 10 false 1 4.281,0.375 5.927,0.667 1.646,0.292 10 false 2 2.729,1.438 4.375,1.729 1.646,0.292 10 false VLVB 4.229,1.448 5.875,1.74 1.646,0.292 10 false VGND 2.729,2.146 4.375,2.438 1.646,0.292 10 false MGND 4.24,2.156 5.885,2.448 1.646,0.292 10 false MTRB 4.323,2.958 5.969,3.25 1.646,0.292 10 false VCC 4.25,3.375 5.896,3.667 1.646,0.292 10 false VOUT 4.229,3.792 5.875,4.083 1.646,0.292 10 false SGND 2.542,1.438 4.188,1.729 1.646,0.292 10 false 5 2.552,2.146 2.979,2.594 0.427,0.448 10 false 4 4.719,1.427 5.146,1.875 0.427,0.448 10 false 1 4.719,2.156 5.146,2.604 0.427,0.448 10 false 3 4.719,2.958 5.146,3.406 0.427,0.448 10 false 6 4.719,3.375 5.146,3.823 0.427,0.448 10 false 7 4.719,3.792 5.146,4.24 0.427,0.448 10 false 8 5.625,0.51 6.292,0.813 0.667,0.302 10 false C78 5.635,1.552 6.302,1.854 0.667,0.302 10 false A46 5.635,2.271 6.302,2.573 0.667,0.302 10 false A46 5.635,3.073 6.302,3.375 0.667,0.302 10 false A46 5.635,3.49 6.302,3.792 0.667,0.302 10 false A46 5.635,3.896 6.302,4.198 0.667,0.302 10 false A46 5.625,7.448 6.292,7.75 0.667,0.302 10 false A46 5.969,0.51 6.635,0.813 0.667,0.302 10 false PRG 5.969,1.573 6.635,1.875 0.667,0.302 10 false VPMP 5.979,2.26 6.646,2.563 0.667,0.302 10 false MPMP 5.99,3.083 6.656,3.385 0.667,0.302 10 false VCPP 5.979,3.49 6.646,3.792 0.667,0.302 10 false PPMP 5.979,3.896 6.646,4.198 0.667,0.302 10 false EPPM 5.677,0.323 6.344,0.625 0.667,0.302 10 false 70 5.719,1.365 6.385,1.667 0.667,0.302 10 false 7 5.677,2.073 6.344,2.375 0.667,0.302 10 false 20 5.688,2.885 6.354,3.188 0.667,0.302 10 false 35 5.688,3.292 6.354,3.594 0.667,0.302 10 false 38 5.688,3.719 6.354,4.021 0.667,0.302 10 false 34 5.979,7.323 6.646,7.625 0.667,0.302 10 false MREL 5.677,7.26 6.344,7.563 0.667,0.302 10 false 46 6.333,8.115 7,8.417 0.667,0.302 10 false ECM 0.615,7.927 1.688,8.125 1.073,0.198 10 false Battery 2.115,0.667 3.76,0.958 1.646,0.292 10 false EFI NO. 2 1.76,7.052 2.833,7.25 1.073,0.198 10 false 1B 1.75,7.208 3.188,7.438 1.438,0.229 10 false No. 1 Integration Relay

CAUTION / NOTICE / HINT

NOTICE:
·

When a vehicle is brought into the workshop, leave it as it is. Do not change the vehicle condition. For example, do not tighten the fuel cap.

·

The GTS is required to conduct the following diagnostic troubleshooting procedure.

·

Inspect the fuses for circuits related to this system before performing the following procedure.



PROCEDURE

1.CONFIRM DTC AND EVAP PRESSURE
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON (do not start the engine).


c.

Turn the GTS on.


d.

Enter the following menus: Powertrain / Engine / Trouble Codes.

Powertrain > Engine > Trouble Codes
50001 372

e.

Read the DTCs.


f.

Enter the following menus: Powertrain / Engine / Data List / Vapor Pressure Pump.

Powertrain > Engine > Data List
Tester Display
Vapor Pressure Pump
50003 372 160

g.

Read the EVAP (Evaporative Emission) pressure displayed on the GTS.

Result:
Display (DTC Output) Test Result Suspected Trouble Area Proceed to
P045011 Less than 42.11 kPa(abs) (6.11 psi(abs))
·

Wire harness or connector (ECM - canister pressure sensor)

·

Canister pressure sensor

·

Short in ECM circuit


A
P045015 Higher than 123.761 kPa(abs) (17.95 psi(abs))
·

Wire harness or connector (ECM - canister pressure sensor)

·

Canister pressure sensor

·

Open in ECM circuit


B
P04502F - Canister pressure sensor C




A

2.CHECK HARNESS AND CONNECTOR (CANISTER PUMP MODULE - ECM)

B

5.CHECK HARNESS AND CONNECTOR (CANISTER PUMP MODULE - ECM)

C

GO TO EVAP SYSTEM

Click hereEngine / Hybrid System>NR Series (ENGINE CONTROL)>SFI SYSTEM>EVAP System


2.CHECK HARNESS AND CONNECTOR (CANISTER PUMP MODULE - ECM)
a.

Disconnect the ECM connector.


b.

Measure the resistance according to the value(s) in the table below.

Result:
Tester Connection Condition Specified Condition Suspected Trouble Area Proceed to
A46-38 (PPMP) - Body ground and other terminals Always Below 10 Ω
·

Wire harness or connector (ECM - canister pressure sensor)

·

Short in canister pressure sensor circuit


A
10 kΩ or higher
·

Wire harness or connector (ECM - canister pressure sensor)

·

Short in ECM circuit


B




A

3.CHECK HARNESS AND CONNECTOR (CANISTER PUMP MODULE - ECM)

B

4.REPLACE ECM
3.CHECK HARNESS AND CONNECTOR (CANISTER PUMP MODULE - ECM)
a.

Disconnect the canister pump module connector.


b.

Disconnect the ECM connector.


c.

Measure the resistance according to the value(s) in the table below.

Result:
Tester Connection Condition Specified Condition Suspected Trouble Area Proceed to
A46-38 (PPMP) - Body ground and other terminals Always 10 kΩ or higher Short in canister pressure sensor circuit A
Below 10 Ω Short in wire harness or connector (ECM - canister pressure sensor) B




A

6.REPLACE NO. 2 CHARCOAL CANISTER SUB-ASSEMBLY

B

7.REPAIR OR REPLACE HARNESS OR CONNECTOR (CANISTER PUMP MODULE - ECM)
5.CHECK HARNESS AND CONNECTOR (CANISTER PUMP MODULE - ECM)

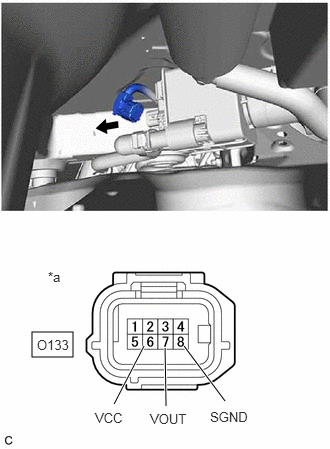

A446115C01
0.333,3.458 0.76,3.719 0.427,0.26 1.188,4.208 1.5,3.604 true 1.729,4.229 1.719,3.625 true 2.344,4.177 1.917,3.604 true 0.99,4.271 1.448,4.469 0.458,0.198 10 false VCC 0.385,3.51 0.844,3.708 0.458,0.198 10 false O133 0.5,2.802 0.958,3 0.458,0.198 10 false *a 1.563,4.281 2.021,4.479 0.458,0.198 10 false VOUT 2.188,4.26 2.646,4.458 0.458,0.198 10 false SGND
*a Front view of wire harness connector
(to Canister Pump Module)


a.

Disconnect the canister pump module connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
O133-8 (SGND) - Body ground Always 100 Ω or less



c.

Turn the ignition switch to ON.


d.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
O133-6 (VCC) - Body ground Ignition switch ON 4.5 to 5.5 V
O133-7 (VOUT) - Body ground Ignition switch ON 4.5 to 5.5 V


Result:
Test Result Suspected Trouble Area Proceed to
Voltage and resistance within standard ranges Open in canister pressure sensor circuit A
Voltage and/or resistance outside standard ranges Open in wire harness or connector (ECM - canister pressure sensor) B




A

6.REPLACE NO. 2 CHARCOAL CANISTER SUB-ASSEMBLY

B

7.REPAIR OR REPLACE HARNESS OR CONNECTOR (CANISTER PUMP MODULE - ECM)
6.REPLACE NO. 2 CHARCOAL CANISTER SUB-ASSEMBLY
a.

Replace the canister pump module (No. 2 charcoal canister sub-assembly).

Click hereEngine / Hybrid System>NR Series (EMISSION CONTROL)>CANISTER>REMOVAL

NOTICE:
·

When replacing the canister pump module, check the canister pump module interior, canister interior and related pipes for water, fuel and other liquids. If liquids are present, check for disconnections and/or cracks in the following: 1) the hose between the canister and the canister pump module; 2) the pipe between the air inlet port and the canister pump module; 3) the canister filter; and 4) the fuel tank vent hose. If liquids are present in the canister interior, replace the canister and canister pump module together.

·

Check for filter blockage in the canister. If the charcoal filter inside the canister is clogged, replace the canister and canister pump module together.

·

Check for filter blockage in the canister filter. If the canister filter has blockages, replace the canister filter.



A446114C01
3.781,2.76 4.344,1.115 4.344,1.115 4.552,1.115 true 4.927,3.615 5.073,3.427 5.073,3.427 5.219,3.427 true 3.104,1.229 2.927,0.781 2.927,0.781 2.635,0.781 true 4.656,3.188 4.969,2.698 4.969,2.698 5.188,2.698 true 4.625,1.906 4.885,1.5 4.885,1.5 5.104,1.5 true 4.896,4.51 5.01,4.75 5.01,4.75 5.146,4.75 true 4.604,4.594 4.375,5.01 4.375,5.01 4.219,5.01 true 4.771,4.719 4.51,5.198 4.51,5.198 4.354,5.198 true 4.635,1.031 4.948,1.229 0.313,0.198 10 false *1 5.271,3.354 5.583,3.552 0.313,0.198 10 false *2 5.198,4.667 5.51,4.865 0.313,0.198 10 false *3 2.479,0.708 2.792,0.906 0.313,0.198 10 false *4 5.24,2.615 5.552,2.813 0.313,0.198 10 false *5 5.156,1.417 5.469,1.615 0.313,0.198 10 false *6 4.031,4.927 4.344,5.125 0.313,0.198 10 false *7 4.177,5.115 4.49,5.313 0.313,0.198 10 false *8 3.896,4.656 4.208,4.854 0.313,0.198 10 false *a 5.823,3.708 6.135,3.906 0.313,0.198 10 false *a
*1 Fuel Tank Vent Hose *2 Vent Hose
*3 Air Inlet Port *4 Fuel Tank
*5 No. 2 Charcoal Canister Sub-assembly
·

Canister Pump Module


*6 Canister
*7 Canister Filter *8 Fuel Cap
*a Inspection Area
(check for disconnection and/or cracks) 		- -



Result:
Proceed to
NEXT



NEXT

8.CLEAR DTC
7.REPAIR OR REPLACE HARNESS OR CONNECTOR (CANISTER PUMP MODULE - ECM)
Result:
Proceed to
NEXT



NEXT

8.CLEAR DTC
8.CLEAR DTC
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Clear the DTC after recording the Freeze Frame Data and DTC.

Powertrain > Engine > Clear DTCs
50002 372

e.

Turn the ignition switch off and wait for at least 30 seconds.


Result:
Proceed to
NEXT



NEXT

9.CHECK WHETHER DTC OUTPUT RECURS (DTC P045011 OR P045015)
9.CHECK WHETHER DTC OUTPUT RECURS (DTC P045011 OR P045015)
a.

Turn the ignition switch to ON.


b.

Turn the GTS on.


c.

Perform the Evaporative System Check using the GTS, referring to the Confirmation Driving Pattern.


d.

Enter the following menus: Powertrain / Engine / Utility / All Readiness.

Powertrain > Engine > Utility
Tester Display
All Readiness
50005 372 20

e.

Input the DTC: P045011 or P045015.


f.

Check the DTC judgment result.

GTS Display Description
NORMAL
·

DTC judgment completed

·

System normal


ABNORMAL
·

DTC judgment completed

·

System abnormal


INCOMPLETE
·

DTC judgment not completed

·

Perform driving pattern after confirming DTC enabling conditions




Result:
Proceed to
NEXT



NEXT

END
