NR Series EMISSION CONTROL  CANISTER  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during canister (charcoal canister assembly) removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
Gas leak from exhaust system is repaired Inspection after repair
·

Poor idle, etc.

·

Engine start function, etc.


(Click here)

PROCEDURE

Hide 48805 4.SEPARATE REAR STABILIZER BAR SUB-ASSEMBLY

a.
A433453

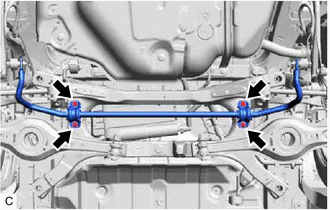

Remove the 4 bolts and separate the rear stabilizer bar sub-assembly from the rear suspension member sub-assembly.


Hide 77740 5.REMOVE CANISTER (CHARCOAL CANISTER ASSEMBLY)

a.

Disconnect the fuel tank vent hose from the canister (charcoal canister assembly).

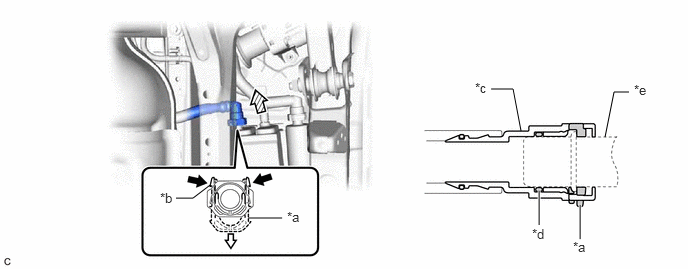

A433454C01
2.583,2.271 2.938,2.271 false 1.833,2.063 2.01,2.063 2.01,2.063 2.188,1.927 false 5.115,0.927 5.344,0.927 5.344,0.927 5.427,1.365 false 6.552,0.958 6.396,0.958 6.396,0.958 6.302,1.427 false 5.615,1.99 5.615,2.344 true 6.042,2.135 6.042,2.49 true 2.99,2.177 3.24,2.365 0.25,0.188 10 false *a 1.667,1.979 1.927,2.177 0.26,0.198 10 false *b 4.948,0.833 5.198,1.042 0.25,0.208 10 false *c 5.542,2.354 5.802,2.542 0.26,0.188 10 false *d 5.969,2.49 6.219,2.677 0.25,0.188 10 false *a 6.604,0.854 6.854,1.063 0.25,0.208 10 false *e
*a Retainer *b Tab
*c Tube Connector *d O-ring
*e Pipe (Canister (Charcoal Canister Assembly)) - -
V100135

Pinch
V100136

Pull
V100137

Pull off - -


NOTICE:
·

Remove any dirt or foreign matter on the tube connector before performing this work.

·

Do not allow any scratches or foreign matter to get on the parts when disconnecting them as the tube connector has an O-ring that seals the pipe (canister (charcoal canister assembly)).

·

Perform this work by hand. Do not use any tools.

·

Do not forcibly bend, twist or turn the fuel tank vent hose.

·

Protect the disconnected parts by covering them with plastic bags after disconnecting the fuel tank vent hose.

·

If the tube connector and pipe (canister (charcoal canister assembly)) are stuck, push and pull to release them.



HINT:

Do not remove the retainer.


i.

Pinch the tabs of the retainer to disengage the lock claws and pull it down.


ii.

Pull off the fuel tank vent hose.



b.

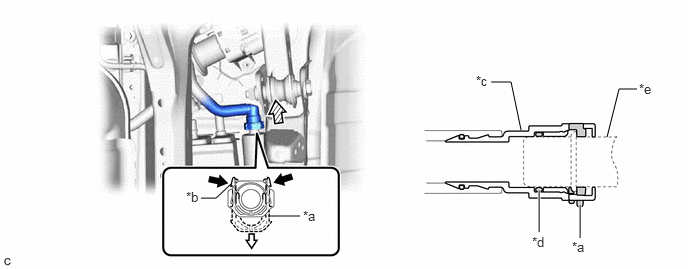

Disconnect the vent line hose from the canister (charcoal canister assembly).

A433456C01
2.094,2.063 2.25,2.063 2.25,2.063 2.406,1.917 false 2.792,2.25 3.125,2.25 false 5.115,0.854 5.323,0.854 5.323,0.854 5.427,1.354 false 6.635,0.927 6.448,0.927 6.448,0.927 6.323,1.427 false 6.042,2.135 6.042,2.479 true 5.615,1.99 5.615,2.417 true 6.656,0.844 6.896,1.031 0.24,0.188 10 false *e 3.156,2.167 3.469,2.323 0.313,0.156 10 false *a 1.938,1.969 2.198,2.177 0.26,0.208 10 false *b 4.958,0.76 5.229,0.99 0.271,0.229 10 false *c 5.542,2.438 5.771,2.667 0.229,0.229 10 false *d 5.958,2.49 6.271,2.646 0.313,0.156 10 false *a
*a Retainer *b Tab
*c Tube Connector *d O-ring
*e Pipe (Canister (Charcoal Canister Assembly)) - -
V100135

Pinch
V100136

Pull
V100137

Pull off - -


NOTICE:
·

Remove any dirt or foreign matter on the tube connector before performing this work.

·

Do not allow any scratches or foreign matter to get on the parts when disconnecting them as the tube connector has an O-ring that seals the pipe (canister (charcoal canister assembly)).

·

Perform this work by hand. Do not use any tools.

·

Do not forcibly bend, twist or turn the vent line hose.

·

Protect the disconnected parts by covering them with plastic bags after disconnecting the vent line hose.

·

If the tube connector and pipe (canister (charcoal canister assembly)) are stuck, push and pull to release them.



HINT:

Do not remove the retainer.


i.

Pinch the tabs of the retainer to disengage the lock claws and pull it down.


ii.

Pull off the vent line hose.



c.
A433458

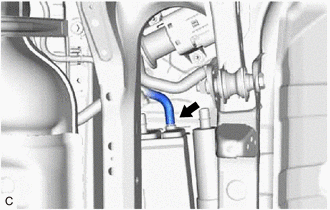

Slide the clip and disconnect the purge line hose from the canister (charcoal canister assembly).


d.
A433459C01
0,0 0,0 false
V100135

Bolt
V100136

Clip

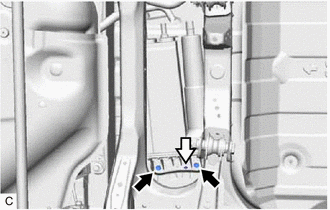

Remove the 2 bolts.


e.

Disengage the clip from the canister (charcoal canister assembly).


f.
A427814

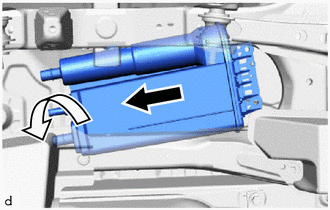

Remove the canister (charcoal canister assembly) from vehicle body as shown in the illustration.


g.

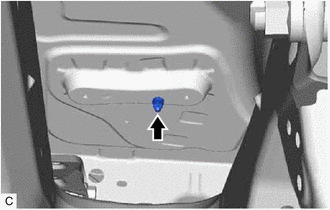

A433460

Remove the clip from the vehicle body.


Hide 77730B 6.REMOVE NO. 2 CHARCOAL CANISTER SUB-ASSEMBLY

a.
A445625C01
1.927,1.958 2.135,1.958 2.135,1.958 2.188,2.281 true 1.344,2.208 1.552,2.208 1.552,2.208 1.625,2.333 true 1.917,2.885 1.917,3.094 true 1.844,3.083 2.094,3.271 0.25,0.188 10 false *a 1.771,1.875 2.01,2.052 0.24,0.177 10 false *b 1.177,2.115 1.417,2.292 0.24,0.177 10 false *c
*a Tube Connector
*b O-ring
*c Pipe (No. 2 Charcoal Canister Sub-assembly)
V100135

Pinch
V100136

Pull off

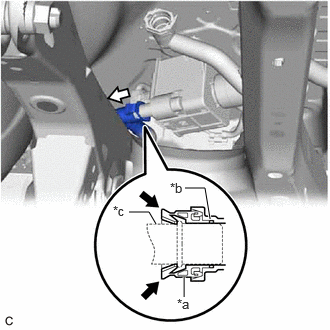

Disconnect the air line tube from the No. 2 charcoal canister sub-assembly.

NOTICE:
·

Remove any dirt or foreign matter on the tube connector before performing this work.

·

Perform this work by hand. Do not use any tools.

·

Do not forcibly bend, twist or turn the air line tube.

·

Protect the disconnected parts by covering them with plastic bags after disconnecting the air line tube.

·

If the tube connector and pipe (No. 2 charcoal canister sub-assembly) are stuck, push and pull to release them.



i.

Push the air line tube firmly toward the No. 2 charcoal canister sub-assembly.


ii.

Pinch the tube connector as shown in the illustration.


iii.

Pull off the air line tube from the pipe (No. 2 charcoal canister sub-assembly).



b.
A445626

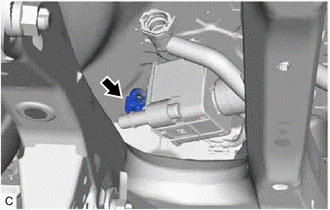

Disconnect the No. 2 charcoal canister sub-assembly connector.


c.
A445627

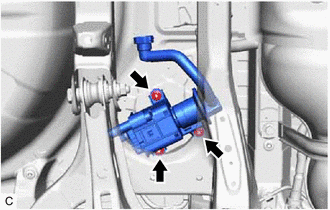

Remove the 3 nuts and No. 2 charcoal canister sub-assembly from the vehicle body.
