NR Series ENGINE CONTROL SFI SYSTEM P01102A Intake Air Temperature Sensor 1 Bank 1 Signal Stuck in Range
DESCRIPTION
Refer to DTC P011011.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | MIL | Memory | Note |
|---|---|---|---|---|---|---|
| P01102A | Intake Air Temperature Sensor 1 Bank 1 Signal Stuck in Range | Either of the following conditions is met (2 trip detection logic).
·
The intake air temperature change from the previous trip warm up to the following trip is small. ·
The change in the intake air temperature after engine start is less than the threshold value. |
Mass air flow meter sub-assembly | Comes on | DTC stored | SAE Code: P0111 |
MONITOR DESCRIPTION
The ECM performs OBD monitoring based on the values from the intake air temperature sensor (built into mass air flow meter sub-assembly). If there is no change of the sensor value within the normal range, the ECM will not be able to perform OBD monitoring or will misdiagnose that there is a malfunction in the sensor. The ECM detects when the intake air temperature sensor value is stuck by performing monitoring after the ignition switch is turned off or the engine is started.
MONITOR STRATEGY
| Frequency of Operation | Once per driving cycle |

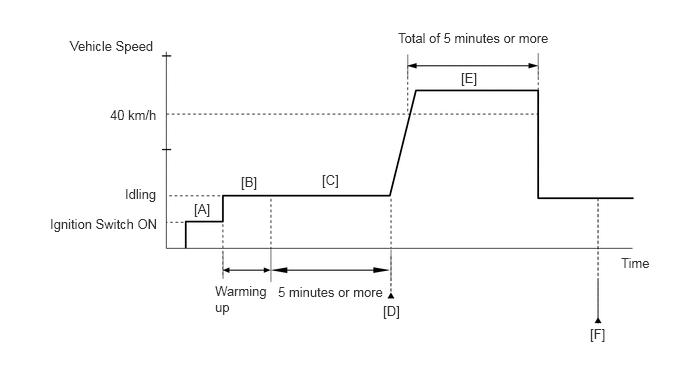

CONFIRMATION DRIVING PATTERN
- HINT:
- ·
After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.
·When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.
Connect the GTS to the DLC3.
Turn the ignition switch to ON.
Turn the GTS on.
Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
Turn the ignition switch off and wait for at least 30 seconds.
Turn the ignition switch to ON [A].
Turn the GTS on.
Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher [B].
Idle the engine for 5 minutes or more [C].
- HINT:
-
During steps [A] through [C], if the change in the intake air temperature is below 1°C (1.8°F), the intake air temperature sensor (mass air flow meter sub-assembly) is malfunctioning. It is not necessary to continue this procedure.
Enter the following menus: Powertrain / Engine / Trouble Codes [D].
Read the pending DTCs.
- HINT:
- ·
If a pending DTC is output, the system is malfunctioning.
·If a pending DTC is not output, perform the following procedure.
Enter the following menus: Powertrain / Engine / Utility / All Readiness.
Input the DTC: P01102A.
Check the DTC judgment result.
| GTS Display | Description |
|---|---|
| NORMAL | ·
DTC judgment completed ·
System normal |
| ABNORMAL | ·
DTC judgment completed ·
System abnormal |
| INCOMPLETE | ·
DTC judgment not completed ·
Perform driving pattern after confirming DTC enabling conditions |
- HINT:
- ·
If the judgment result shows NORMAL, the system is normal.
·If the judgment result shows ABNORMAL, the system has a malfunction.
·If the judgment result is INCOMPLETE, perform steps [E] through [F].
·[A] to [D]: Normal judgment procedure.
The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.
·When clearing the permanent DTCs, do not disconnect the cable from the battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.
Drive the vehicle at 40 km/h (25 mph) or more for a total of 5 minutes or more [E].
- CAUTION:
-
When performing the confirmation driving pattern, obey all speed limits and traffic laws.
Check the DTC judgment result again [F].
- HINT:
- ·
If the judgment result shows NORMAL, the system is normal.
·If the judgment result shows ABNORMAL, the system has a malfunction.
·If the judgment result is INCOMPLETE, perform steps [E] through [F] again.
·[A] to [F]: Normal judgment procedure.
The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.
·When clearing the permanent DTCs, do not disconnect the cable from the battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.
CAUTION / NOTICE / HINT
- HINT:
-
Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.
PROCEDURE
Connect the GTS to the DLC3.
Turn the ignition switch to ON.
Turn the GTS on.
Enter the following menus: Powertrain / Engine / Trouble Codes.
Read the DTCs.
- Powertrain > Engine > Trouble Codes
- 50001 372
- Result:
Result Proceed to DTC P01102A and other DTCs are output A DTC P01102A is output B
- HINT:
- ·
If any DTCs other than P01102A are output, troubleshoot those DTCs first.
·Perform "Inspection After Repair" after replacing the mass air flow meter sub-assembly.
A
B
