NR Series ENGINE CONTROL SFI SYSTEM P036511 Camshaft Position Sensor "B" Bank 1 Circuit Short to Ground
DESCRIPTION
The camshaft position sensor (for exhaust camshaft) (EV1 signal) consists of a magnet and MRE (Magneto Resistance Element).
The exhaust camshaft has a timing rotor for the camshaft position sensor. When the exhaust camshaft rotates, changes occur in the air gaps between the timing rotor and MRE, which affects the magnetic field. As a result, the resistance of the MRE material fluctuates. The camshaft position sensor converts the camshaft rotation data to pulse signals, uses the pulse signals. The ECM uses the pulse signals to determine the camshaft angle. Then the ECM uses this data to control fuel injection duration, injection timing and the Variable Valve Timing (VVT) system.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | MIL | Memory | Note |
|---|---|---|---|---|---|---|
| P036511 | Camshaft Position Sensor "B" Bank 1 Circuit Short to Ground | Diagnosis Condition:
·
2 seconds or more have elapsed after the ignition switch is turned to ON. Abnormal condition: ·
The camshaft position sensor (for exhaust camshaft) output voltage is less than 0.3 V. Malfunction Time: ·
4 seconds or more Trip logic: ·
1 trip detection logic Detection Conditions: ·
Continuous Sensors/components used for detection (Main): ·
Camshaft position sensor (for exhaust camshaft) Sensors/components used for detection (Related): ·
Crankshaft position sensor |
·
Short in camshaft position sensor (for exhaust camshaft) circuit ·
Camshaft position sensor (for exhaust camshaft) ·
ECM |
Comes on | DTC stored | SAE Code: P0367 |
Reference: Inspection using an oscilloscope.
MONITOR DESCRIPTION
2 seconds or more after the ignition switch has been turned to ON, if the output voltage of the camshaft position sensor (for exhaust camshaft) is less than 0.3 V for 4 seconds or more, the ECM determines that the camshaft position sensor (for exhaust camshaft) circuit is malfunctioning and illuminates the MIL and stores a DTC.
MONITOR STRATEGY
| Required Sensors/Components (Main) | Camshaft position sensor (for exhaust camshaft) |
| Required Sensors/Components (Related) | Crankshaft position sensor |
| Frequency of Operation | Continuous |
CONFIRMATION DRIVING PATTERN
- HINT:
- ·
After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.
·When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.
Connect the GTS to the DLC3.
Turn the ignition switch to ON.
Turn the GTS on.
Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
Turn the ignition switch off and wait for at least 30 seconds.
Turn the ignition switch to ON [A].
Turn the GTS on.
Wait 5 seconds or more [B].
Enter the following menus: Powertrain / Engine / Trouble Codes [C].
Read the pending DTCs.
- HINT:
- ·
If a pending DTC is output, the system is malfunctioning.
·If a pending DTC is not output, perform the following procedure.
Enter the following menus: Powertrain / Engine / Utility / All Readiness.
Proceed to the next screen and enter the DTC to be checked.
Check the DTC judgment result.
| GTS Display | Description |
|---|---|
| NORMAL | ·
DTC judgment completed ·
System normal |
| ABNORMAL | ·
DTC judgment completed ·
System abnormal |
| INCOMPLETE | ·
DTC judgment not completed ·
Perform driving pattern after confirming DTC enabling conditions |
- HINT:
- ·
If the judgment result is NORMAL, the system is normal.
·If the judgment result is ABNORMAL, the system is malfunctioning.
·[A] to [C]: Normal judgment procedure.
The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.
·When clearing the permanent DTCs, do not disconnect the cable from the battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.

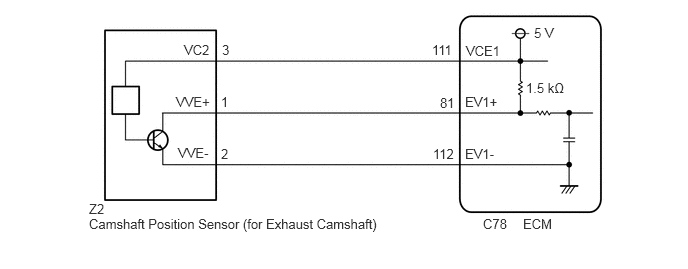

WIRING DIAGRAM
CAUTION / NOTICE / HINT
- HINT:
-
Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.
PROCEDURE
Connect the GTS to the DLC3.
Turn the ignition switch to ON.
Turn the GTS on.
Clear the DTCs.
- Powertrain > Engine > Clear DTCs
- 50002 372
Turn the ignition switch off and wait for at least 30 seconds.
- Result:
Proceed to NEXT
NEXT
- HINT:
-
Make sure that the connector is properly connected. If it is not, securely connect it and check for DTCs again.
Disconnect the camshaft position sensor (for exhaust camshaft) connector.
Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.
Enter the following menus: Powertrain / Engine / Trouble Codes.
Read the DTCs.
- Powertrain > Engine > Trouble Codes
- 50001 372
- HINT:
-
When the ECM, wire harnesses and connectors are normal, DTC P036515 will be stored when the connector of the sensor is disconnected.
- Result:
Result Proceed to DTC P036515 is output A DTC P036511 is output B
A
B
Disconnect the camshaft position sensor (for exhaust camshaft) connector.
Disconnect the ECM connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition Z2-1 (VVE+) or C78-81 (EV1+) - Body ground and other terminals Always 10 kΩ or higher Z2-2 (VVE-) or C78-112 (EV1-) - Body ground and other terminals Always 10 kΩ or higher
- Result:
Proceed to OK NG
OK
NG
