NAVIGATION / MULTI INFO DISPLAY  NAVIGATION SYSTEM(for Gasoline Model with RST Switch)  Microphone Circuit between Microphone and Navigation Receiver Assembly


DESCRIPTION

The navigation receiver assembly, map light assembly (telephone microphone assembly) are connected to each other using the microphone connection detection signal lines.

Using this circuit, the telematics transceiver sends power to the map light assembly (telephone microphone assembly), and the map light assembly (telephone microphone assembly) sends microphone signals to the navigation receiver assembly via the telematics transceiver.

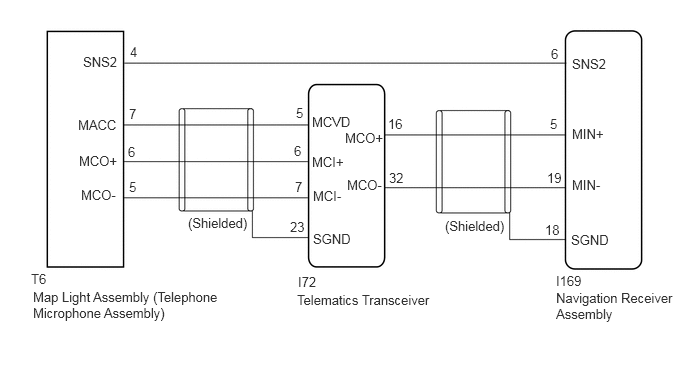

WIRING DIAGRAM

E418507E04
0.344,3.01 2.302,3.729 1.958,0.719 10 false Map Light Assembly (Telephone Microphone Assembly) 0.323,2.823 0.635,3.021 0.313,0.198 10 false T6 5.792,3.021 6.969,3.417 1.177,0.396 10 false Navigation Receiver Assembly 5.792,2.844 6.25,3.042 0.458,0.198 10 false I169 3.094,3.042 4.604,3.688 1.51,0.646 10 false Telematics Transceiver 3.104,2.854 3.563,3.052 0.458,0.198 10 false I72 1.958,2.24 2.594,2.75 0.635,0.51 10 false (Shielded) 4.635,2.271 5.271,2.781 0.635,0.51 10 false (Shielded) 5.958,0.583 6.573,0.781 0.615,0.198 10 false SNS2 0.865,0.563 1.479,0.76 0.615,0.198 10 false SNS2 5.958,1.313 6.573,1.51 0.615,0.198 10 false MIN+ 5.958,1.844 6.573,2.042 0.615,0.198 10 false MIN- 5.948,2.417 6.563,2.615 0.615,0.198 10 false SGND 0.823,1.594 1.438,1.792 0.615,0.198 10 false MCO+ 0.844,1.948 1.458,2.146 0.615,0.198 10 false MCO- 0.813,1.219 1.427,1.417 0.615,0.198 10 false MACC 3.25,1.188 3.865,1.385 0.615,0.198 10 false MCVD 3.594,1.354 4.208,1.552 0.615,0.198 10 false MCO+ 3.615,1.844 4.229,2.042 0.615,0.198 10 false MCO- 3.25,1.604 3.865,1.802 0.615,0.198 10 false MCI+ 3.26,1.958 3.875,2.156 0.615,0.198 10 false MCI- 3.26,2.406 3.875,2.604 0.615,0.198 10 false SGND 4.042,1.208 4.354,1.406 0.313,0.198 10 false 16 4.052,1.771 4.365,1.969 0.313,0.198 10 false 32 3.083,1.094 3.396,1.292 0.313,0.198 10 false 5 3.063,1.49 3.375,1.688 0.313,0.198 10 false 6 3.073,1.865 3.385,2.063 0.313,0.198 10 false 7 3.021,2.281 3.333,2.479 0.313,0.198 10 false 23 1.344,1.104 1.656,1.302 0.313,0.198 10 false 7 1.333,1.5 1.646,1.698 0.313,0.198 10 false 6 1.344,1.865 1.667,2.063 0.323,0.198 10 false 5 1.354,0.458 1.667,0.656 0.313,0.198 10 false 4 5.74,0.479 5.896,0.677 0.156,0.198 10 false 6 5.729,1.208 5.885,1.406 0.156,0.198 10 false 5 5.677,2.313 5.99,2.51 0.313,0.198 10 false 18 5.698,1.771 6.01,1.969 0.313,0.198 10 false 19

CAUTION / NOTICE / HINT

NOTICE:
·

Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed. Refer to Precaution for Navigation System.

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION SYSTEM (for Gasoline Model with RST Switch)>PRECAUTION

·

Before replacing the telematics transceiver, refer to Service Bulletin.



PROCEDURE

1.CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER ASSEMBLY - MAP LIGHT ASSEMBLY (TELEPHONE MICROPHONE ASSEMBLY))
a.

Disconnect the I169 navigation receiver assembly connector.


b.

Disconnect the T6 map light assembly (telephone microphone assembly) connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I169-6 (SNS2) - T6-4 (SNS2) Always Below 1 Ω
I169-6 (SNS2) or T6-4 (SNS2) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

2.CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER ASSEMBLY - TELEMATICS TRANSCEIVER)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

2.CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER ASSEMBLY - TELEMATICS TRANSCEIVER)
a.

Disconnect the I169 navigation receiver assembly connector.


b.

Disconnect the I72 telematics transceiver connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I169-5 (MIN+) - I72-16 (MCO+) Always Below 1 Ω
I169-19 (MIN-) - I72-32 (MCO-) Always Below 1 Ω
I169-5 (MIN+) or I72-16 (MCO+) - Body ground Always 10 kΩ or higher
I169-19 (MIN-) or I72-32 (MCO-) - Body ground Always 10 kΩ or higher
I169-18 (SGND) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

3.CHECK HARNESS AND CONNECTOR (TELEMATICS TRANSCEIVER - MAP LIGHT ASSEMBLY (TELEPHONE MICROPHONE ASSEMBLY))

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

3.CHECK HARNESS AND CONNECTOR (TELEMATICS TRANSCEIVER - MAP LIGHT ASSEMBLY (TELEPHONE MICROPHONE ASSEMBLY))
a.

Disconnect the I72 telematics transceiver connector.


b.

Disconnect the T6 map light assembly (telephone microphone assembly) connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I72-5 (MCVD) - T6-7 (MACC) Always Below 1 Ω
I72-6 (MCI+) - T6-6 (MCO+) Always Below 1 Ω
I72-7 (MCI-) - T6-5 (MCO-) Always Below 1 Ω
I72-5 (MCVD) - T6-7 (MACC) - Body ground Always 10 kΩ or higher
I72-6 (MCI+) - T6-6 (MCO+) - Body ground Always 10 kΩ or higher
I72-7 (MCI-) - T6-5 (MCO-) - Body ground Always 10 kΩ or higher
I72-23 (SGND) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

4.INSPECT NAVIGATION RECEIVER ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

4.INSPECT NAVIGATION RECEIVER ASSEMBLY
a.

Reconnect the I169 navigation receiver assembly connector.


b.

Reconnect the T6 map light assembly (telephone microphone assembly) connector.


c.

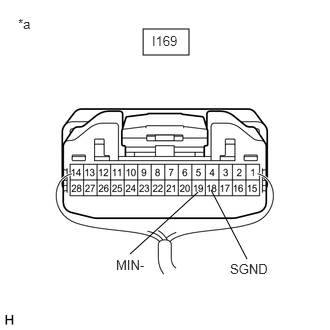

E366385C08
1.49,0.302 1.969,0.573 0.479,0.271 1.354,2.646 2.063,2 false 2.573,2.698 2.198,1.979 false 0.188,0.167 0.5,0.365 0.313,0.198 10 false *a 1.583,0.344 2.042,0.542 0.458,0.198 10 false I169 1.208,2.677 1.823,2.875 0.615,0.198 10 false MIN- 2.396,2.719 3.01,2.917 0.615,0.198 10 false SGND
*a Component with harness connected
(Navigation Receiver Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I169-18 (SGND) - Body ground Always Below 1 Ω
I169-19 (MIN-) - Body ground Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

5.INSPECT TELEMATICS TRANSCEIVER

NG

REPLACE NAVIGATION RECEIVER ASSEMBLY

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>RADIO RECEIVER>REMOVAL


5.INSPECT TELEMATICS TRANSCEIVER
a.

Reconnect the I72 telematics transceiver connector.


b.

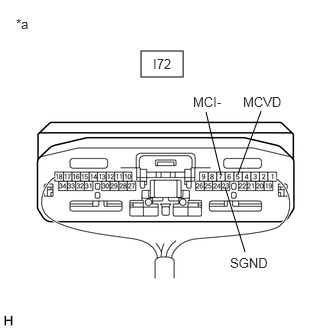

E413603C02
1.469,0.531 1.906,0.802 0.438,0.271 2.302,1.823 2.146,1.167 false 2.479,1.813 2.719,1.156 false 2.552,2.625 2.344,1.948 false 0.167,0.167 0.417,0.333 0.25,0.167 10 false *a 1.594,0.583 2.031,0.844 0.438,0.26 10 false I72 2.01,0.979 2.427,1.146 0.417,0.167 10 false MCI- 2.531,0.979 3.031,1.146 0.5,0.167 10 false MCVD 2.396,2.656 2.896,2.823 0.5,0.167 10 false SGND
*a Component with harness connected
(Telematics Transceiver)


Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
I72-5 (MCVD) - Body ground Engine switch on (ACC) 4 to 6 V



c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I72-23 (SGND) - Body ground Always Below 1 Ω
I72-7 (MCI-) - Body ground Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

6.INSPECT MAP LIGHT ASSEMBLY (TELEPHONE MICROPHONE ASSEMBLY)

NG

REPLACE TELEMATICS TRANSCEIVER

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS TRANSCEIVER>REMOVAL


6.INSPECT MAP LIGHT ASSEMBLY (TELEPHONE MICROPHONE ASSEMBLY)
a.

Remove the map light assembly (telephone microphone assembly).

Click hereVehicle Interior>LIGHTING (INT)>PERSONAL LIGHT>REMOVAL


b.
E395369C03
1.896,1.219 2.198,0.698 false 1.771,1.219 1.531,0.667 false 0.24,0.219 0.552,0.417 0.313,0.198 10 false *a 1.354,0.469 1.833,0.719 0.479,0.25 10 false MCO- 2.104,0.51 2.635,0.833 0.531,0.323 10 false SNS2
*a Component without harness connected
(Map Light Assembly (Telephone Microphone Assembly))


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
4 (SNS2) - 5 (MCO-) Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

7.INSPECT MAP LIGHT ASSEMBLY (TELEPHONE MICROPHONE ASSEMBLY)

NG

8.REPLACE TELEPHONE MICROPHONE ASSEMBLY
7.INSPECT MAP LIGHT ASSEMBLY (TELEPHONE MICROPHONE ASSEMBLY)
a.

Turn the engine switch on (ACC).


b.
E411570C03
1.479,0.781 1.938,1.073 0.458,0.292 0.792,2.781 1.625,2.094 false 1.781,2.021 2.552,1.323 false 0.167,0.156 0.479,0.313 0.313,0.156 10 false *a 0.521,2.823 1.135,3.021 0.615,0.198 10 false MCO+ 2.583,1.198 3.198,1.396 0.615,0.198 10 false MCO- 1.615,0.833 1.927,1.031 0.313,0.198 10 false T6
*a Component with harness connected
(Map Light Assembly (Telephone Microphone Assembly))


Connect an oscilloscope to terminals 5 (MCO-) and 6 (MCO+) of the T6 map light assembly (telephone microphone assembly) connector.


c.

Check the waveform of the map light assembly (telephone microphone assembly) using the oscilloscope.

Result:
Result Proceed to
A waveform synchronized with the voice input to the map light assembly (telephone microphone assembly) is output. A
A waveform synchronized with the voice input to the map light assembly (telephone microphone assembly) is not output. B




A

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION SYSTEM (for Gasoline Model with RST Switch)>PROBLEM SYMPTOMS TABLE


B

8.REPLACE TELEPHONE MICROPHONE ASSEMBLY
