RM3660EC _51 Engine / Hybrid System _080776 NR Series COOLING _0392641 COOLING FAN MOTOR A

NR Series COOLING COOLING FAN MOTOR REMOVAL

PROCEDURE

Hide Display 161B0 1.REMOVE ELECTRIC WATER PUMP ASSEMBLY

Click hereEngine / Hybrid System>NR Series (INTAKE / EXHAUST)>WATER PUMP>REMOVAL201906,999999,_51,_080791,_0392521,RM100000001HRDQ,

Hide Display 2.DRAIN ENGINE COOLANT

Click hereGeneral>MAINTENANCE>NR Series COOLANT (for Engine Coolant)>REPLACEMENT201906,999999,_V1,_080956,_0392634,RM100000001HRVM_01_0004,

Hide Display 3.REMOVE HEADLIGHT ASSEMBLY

for TFTM Made: Click hereVehicle Exterior>LIGHTING (EXT)>HEADLIGHT ASSEMBLY (for TFTM Made)>REMOVAL201906,202104,_59,_080784,_0393155,RM100000001HW4D,202104,202304,_59,_080784,_0393155,RM100000001W4RP,202304,202307,_59,_080784,_0393155,RM100000002B29H,202307,999999,_59,_080784,_0393155,RM100000002D1AI,

for GTMC Made: Click hereVehicle Exterior>LIGHTING (EXT)>HEADLIGHT ASSEMBLY (for GTMC Made)>REMOVAL201906,999999,_59,_080784,_0393156,RM100000001HW4M,

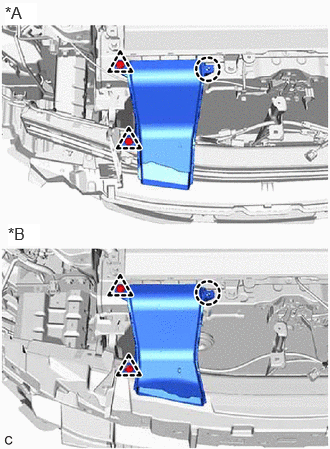

Hide Display 17753 4.REMOVE INLET NO. 3 AIR CLEANER

0.052,0.031 0.385,0.26 0.333,0.229 12 true *A 0.083,2.333 0.417,2.563 0.333,0.229 12 true *B

*A	for GTMC Made
*B	for TFTM Made

Remove the 2 clips.

Disengage the claw to remove the inlet No. 3 air cleaner.

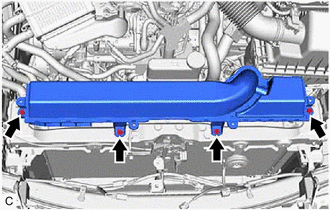

Hide Display 17751 5.REMOVE INLET NO. 1 AIR CLEANER

Remove the 4 bolts and inlet No. 1 air cleaner from the upper radiator support sub-assembly and inlet No. 2 air cleaner.

Hide Display 17752 6.REMOVE INLET NO. 2 AIR CLEANER

Remove the inlet No. 2 air cleaner from the air cleaner case sub-assembly.

Hide Display 53510 7.REMOVE HOOD LOCK ASSEMBLY

Click hereVehicle Exterior>DOOR / HATCH>HOOD LOCK CONTROL CABLE ASSEMBLY>REMOVAL201906,202101,_59,_080735,_0392166,RM100000001HOGY_01_0105,202101,202104,_59,_080735,_0392166,RM100000001TOOV_01_0105,202104,202107,_59,_080735,_0392166,RM100000001WK1X_01_0105,202107,202304,_59,_080735,_0392166,RM100000001XPSO_01_0105,202304,202307,_59,_080735,_0392166,RM100000002BFCO_01_0105,202307,999999,_59,_080735,_0392166,RM100000002CJIM_01_0105,

Hide Display 53205 8.REMOVE UPPER RADIATOR SUPPORT SUB-ASSEMBLY

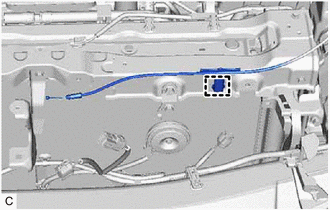

Disengage the clamp to disconnect the hood lock control cable assembly from the upper radiator support sub-assembly.

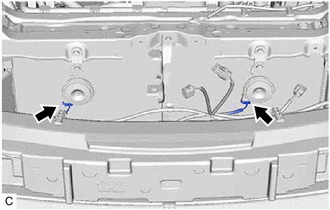

Disconnect the 2 horn connectors.

Disengage the 3 clamps to disconnect the wire harness from the upper radiator support sub-assembly.

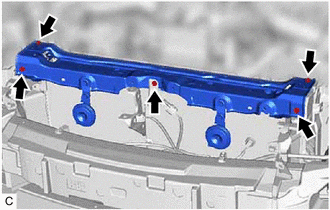

Remove the 5 bolts and upper radiator support sub-assembly.

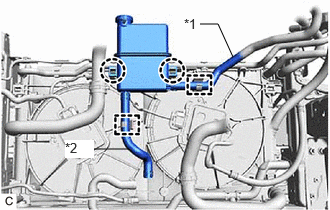

Hide Display 16640 9.DISCONNECT INTERCOOLER RESERVE TANK ASSEMBLY

2.083,0.25 2.271,0.25 2.271,0.25 2.427,0.594 false 0.833,1.552 1.344,1.552 false 1.917,0.167 2.229,0.323 0.313,0.156 10 false *1 0.677,1.458 0.979,1.646 0.302,0.188 10 true *2

*1	No. 1 Intercooler Cooling Water Hose
*2	No. 2 Intercooler Cooling Water Hose

Disengage the 2 clamps to disconnect the No. 1 intercooler cooling water hose and No. 2 intercooler cooling water hose from the fan shroud.

Disengage the 2 claws to disconnect the intercooler reserve tank assembly from the fan shroud.

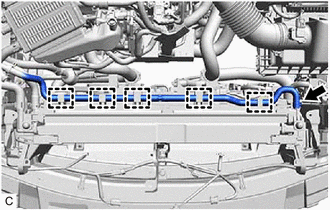

Hide Display 10.DISCONNECT WATER BY-PASS HOSE ASSEMBLY

Disengage the 5 clamps to disconnect the water by-pass hose assembly from the fan shroud.

Slide the clip and disconnect the water by-pass hose assembly from the radiator assembly.

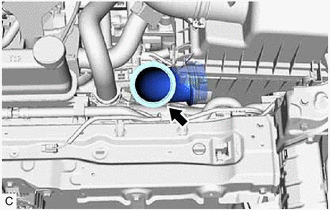

Hide Display 16571C 11.DISCONNECT NO. 1 RADIATOR HOSE

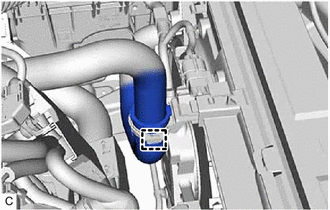

Disengage the clamp and disconnect the No. 1 radiator hose from the hose clamp.

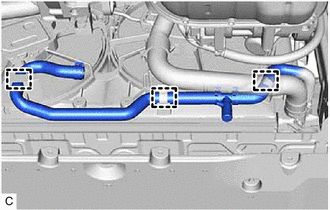

Hide Display 16572D 12.DISCONNECT NO. 2 RADIATOR HOSE

Disengage the clamp and disconnect the No. 2 radiator hose from the hose clamp.

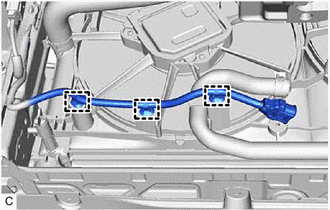

Hide Display 16555C 13.DISCONNECT NO. 5 INTERCOOLER COOLING WATER HOSE

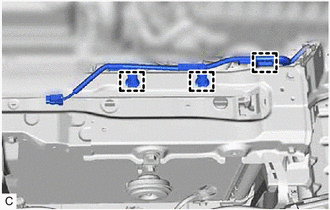

Disengage the 3 clamps to disconnect the wire harness from the fan shroud.

Disengage the 3 clamps to disconnect the No. 5 intercooler cooling water hose from the fan shroud.

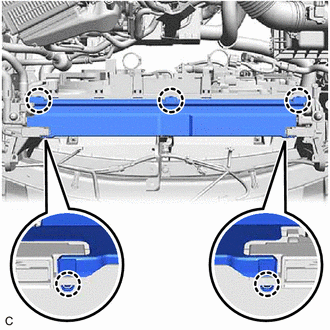

Hide Display 16594A 14.REMOVE NO. 2 RADIATOR AIR GUIDE

Disengage the 5 claws to remove the No. 2 radiator air guide.

Hide Display 15.REMOVE FAN WITH MOTOR ASSEMBLY

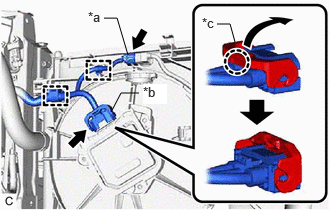

2.26,0.25 2.396,0.25 2.396,0.25 2.448,0.438 false 1.083,0.188 1.219,0.188 1.219,0.188 1.333,0.573 false 1.448,0.969 1.26,0.969 1.26,0.969 1.156,1.167 false 0.917,0.094 1.229,0.25 0.313,0.156 10 false *a 1.49,0.875 1.74,1.083 0.25,0.208 10 true *b 2.104,0.156 2.417,0.313 0.313,0.156 10 false *c

*a	Cooling Fan Wire Connector
*b	Cooling Fan Motor LH Connector
*c	Lock Lever

Disconnect the cooling fan wire connector.

Disconnect the cooling fan motor LH connector.

Disengage the claw and raise the lock lever to disconnect the cooling fan motor LH connector as shown in the illustration.

NOTICE:: After disconnecting the cooling fan motor LH connector, make sure that dirt, water or other foreign matter does not contact the connecting parts of the cooling fan motor LH connector.

Disengage the 2 clamps to disconnect the wire harness from the fan shroud.

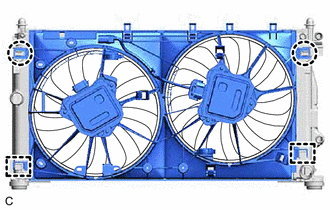

Disengage the 2 claws.

Disengage the 2 guides to remove the fan with motor assembly from the radiator assembly.

NOTICE:: Do not damage the radiator assembly when removing the fan with motor assembly.

Hide Display 16364A 16.DISCONNECT COOLING FAN WIRE

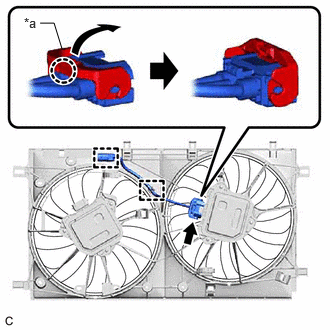

0.417,0.24 0.563,0.24 0.563,0.24 0.646,0.51 false 0.25,0.156 0.563,0.313 0.313,0.156 10 false *a

*a	Lock Lever

Disconnect the cooling fan motor RH connector.

Disengage the claw and raise the lock lever to disconnect the cooling fan motor RH connector as shown in the illustration.

NOTICE:: After disconnecting the cooling fan motor RH connector, make sure that dirt, water or other foreign matter does not contact the connecting parts of the cooling fan motor RH connector.

Disengage the 2 clamps to remove the cooling fan wire.

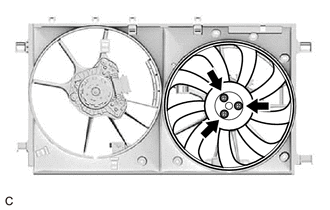

Hide Display 16361J 17.REMOVE FAN RH

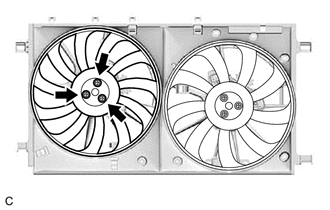

Remove the 3 screws and fan RH from the cooling fan motor RH.

Hide Display 16361K 18.REMOVE FAN LH

Remove the 3 screws and fan LH from the cooling fan motor LH.

Hide Display 16363F 19.REMOVE COOLING FAN MOTOR RH

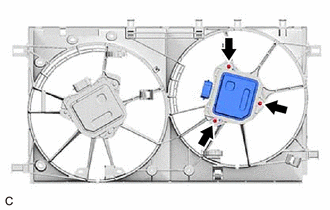

Remove the 3 screws and cooling fan motor RH from the fan shroud.

Hide Display 16363G 20.REMOVE COOLING FAN MOTOR LH

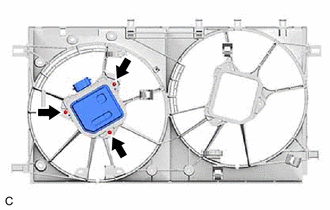

Remove the 3 screws and cooling fan motor LH from the fan shroud.
