RM3660EC _51 Engine / Hybrid System _080791 NR Series INTAKE / EXHAUST _0392521 WATER PUMP A

NR Series INTAKE / EXHAUST WATER PUMP REMOVAL

PROCEDURE

Hide Display 51410 1.REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

Click hereEngine / Hybrid System>NR Series (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL201906,202007,_51,_080739,_0391935,RM100000001HN2A_01_0388,202007,202104,_51,_080739,_0391935,RM100000001RPXX_01_0388,202104,202205,_51,_080739,_0391935,RM100000001WEPZ_01_0388,202205,202304,_51,_080739,_0391935,RM1000000022ZNY_01_0388,202304,999999,_51,_080739,_0391935,RM100000002BCMQ_01_0388,

Hide Display 2.DRAIN COOLANT (for Intercooler)

Click hereGeneral>MAINTENANCE>NR Series COOLANT (for Intercooler)>REPLACEMENT201906,999999,_V1,_080956,_0392164,RM100000001HOGB_01_0010,

Hide Display 16555C 3.DISCONNECT NO. 5 INTERCOOLER COOLING WATER HOSE

a.

A392871

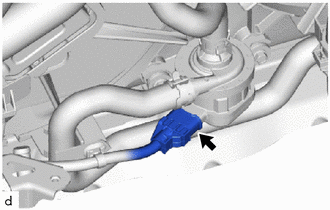

Disconnect the electric water pump assembly connector.

b.

A392872

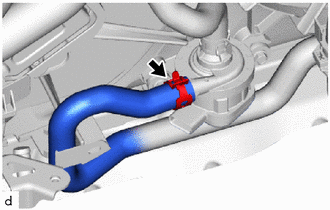

Slide the clip and disconnect the No. 5 intercooler cooling water hose from the electric water pump assembly.

Hide Display 16552C 4.DISCONNECT NO. 2 INTERCOOLER COOLING WATER HOSE

a.

A392878

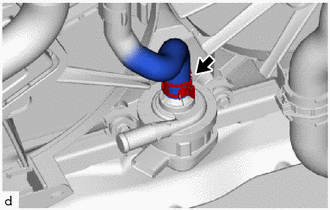

Slide the clip and disconnect the No. 2 intercooler cooling water hose from the electric water pump assembly.

Hide Display 161B0 5.REMOVE ELECTRIC WATER PUMP ASSEMBLY

a.

A393024

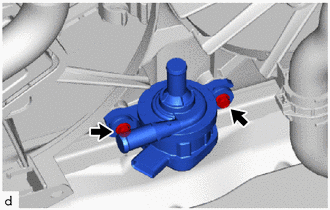

Remove the 2 bolts and electric water pump assembly from the fan shroud.
