THEFT DETERRENT / KEYLESS ENTRY  SMART ENTRY AND START SYSTEM(for Entry Function (except NR Series))  Entry Lock/Unlock Functions and Wireless Functions do not Operate After New/Additional Key ID Registration


DESCRIPTION

If all of the following conditions are met after an error message is displayed on the screen of the GTS during registration, or after performing new key ID registration or additional key ID registration, it is suspected that there is an ID code registration failure between the certification ECU (smart key ECU assembly) and main body ECU (multiplex network body ECU), or there is a certification ECU (smart key ECU assembly) or main body ECU (multiplex network body ECU) malfunction.

·

It is possible to start the hybrid control system*1 or engine*2

·

Wireless door lock/unlock operation is not possible

·

Entry lock/unlock operation is not possible


Also, if the hybrid control system*1 or engine*2 does not start, refer to the following and perform troubleshooting as the suspected cause is a malfunction of the electrical key transmitter sub-assembly, smart entry and start system (for start function), etc.

for HV Model: Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Start Function, HV Model)>HOW TO PROCEED WITH TROUBLESHOOTING

for Gasoline Model: Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Start Function, Gasoline Model (except NR Series))>HOW TO PROCEED WITH TROUBLESHOOTING

*1: for HV Model

*2: for Gasoline Model


WIRING DIAGRAM

for M20#-FKS


B715484E09
3.146,0.906 6.052,1.104 2.906,0.198 10 false ECU-DCC NO. 2 1.104,2.406 2.792,2.604 1.688,0.198 10 false to IGP Relay 1.052,1.771 2.125,1.969 1.073,0.198 10 false to ACC Relay 0.594,1.219 2.49,1.417 1.896,0.198 10 false from Auxiliary Battery 4.906,0.719 5.271,0.906 0.365,0.188 10 false I197 4.906,2.417 5.271,2.625 0.365,0.208 10 false I197 4.958,2.219 5.271,2.417 0.313,0.198 10 false 24 4.969,0.531 5.281,0.729 0.313,0.198 10 false 22 4.99,1.594 5.302,1.792 0.313,0.198 10 false 21 4.99,1.063 5.146,1.26 0.156,0.198 10 false 6 5.281,0.729 5.896,0.927 0.615,0.198 10 false CUTB 5.26,2.313 5.875,2.51 0.615,0.198 10 false IGPD 5.271,1.688 5.885,1.885 0.615,0.198 10 false ACCD 5.292,1.24 5.604,1.438 0.313,0.198 10 false +B 5.76,1.917 6.073,2.115 0.313,0.198 10 false +B 6.24,2.313 6.552,2.51 0.313,0.198 10 false IC 3.479,1.427 3.938,1.625 0.458,0.198 10 false AM2 5.292,4.854 6.813,5.542 1.521,0.688 10 false Certification ECU (Smart Key ECU Assembly) 0.646,4.802 2.313,5.302 1.667,0.5 10 false Main Body ECU (Multiplex Network Body ECU) 0.854,6.156 3.188,6.375 2.333,0.219 10 false : CAN Communication Line 5.281,2.99 5.896,3.188 0.615,0.198 10 false IGRD 5.76,2.573 6.073,2.771 0.313,0.198 10 false +B 4.896,3.063 5.427,3.417 0.531,0.354 10 false I197 4.958,2.875 5.271,3.073 0.313,0.198 10 false 11 1.125,3.063 2.813,3.26 1.688,0.198 10 false to IGR Relay 5.802,1.271 6.115,1.469 0.313,0.198 10 false +B 4.906,1.781 5.365,1.979 0.458,0.198 10 false I196 4.906,1.25 5.365,1.448 0.458,0.198 10 false I196 0.594,0.719 2.49,0.917 1.896,0.198 10 false from Auxiliary Battery

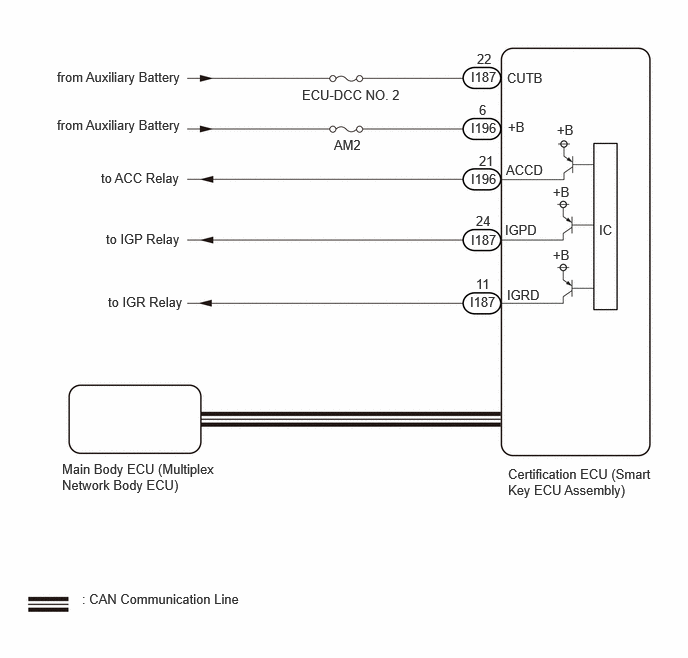

for M15#-FKS


B715484E10
3.146,0.906 6.052,1.104 2.906,0.198 10 false ECU-DCC NO. 2 1.104,2.406 2.792,2.604 1.688,0.198 10 false to IGP Relay 1.052,1.771 2.125,1.969 1.073,0.198 10 false to ACC Relay 0.594,1.219 2.49,1.417 1.896,0.198 10 false from Auxiliary Battery 4.906,0.719 5.271,0.906 0.365,0.188 10 false I187 4.906,2.417 5.271,2.625 0.365,0.208 10 false I187 4.958,2.219 5.271,2.417 0.313,0.198 10 false 24 4.969,0.531 5.281,0.729 0.313,0.198 10 false 22 4.99,1.594 5.302,1.792 0.313,0.198 10 false 21 4.99,1.063 5.146,1.26 0.156,0.198 10 false 6 5.281,0.729 5.896,0.927 0.615,0.198 10 false CUTB 5.26,2.313 5.875,2.51 0.615,0.198 10 false IGPD 5.271,1.688 5.885,1.885 0.615,0.198 10 false ACCD 5.292,1.24 5.604,1.438 0.313,0.198 10 false +B 5.76,1.917 6.073,2.115 0.313,0.198 10 false +B 6.24,2.313 6.552,2.51 0.313,0.198 10 false IC 3.479,1.427 3.938,1.625 0.458,0.198 10 false AM2 5.292,4.854 6.813,5.542 1.521,0.688 10 false Certification ECU (Smart Key ECU Assembly) 0.646,4.802 2.313,5.302 1.667,0.5 10 false Main Body ECU (Multiplex Network Body ECU) 0.854,6.156 3.188,6.375 2.333,0.219 10 false : CAN Communication Line 5.281,2.99 5.896,3.188 0.615,0.198 10 false IGRD 5.76,2.573 6.073,2.771 0.313,0.198 10 false +B 4.896,3.063 5.427,3.417 0.531,0.354 10 false I187 4.958,2.875 5.271,3.073 0.313,0.198 10 false 11 1.125,3.063 2.813,3.26 1.688,0.198 10 false to IGR Relay 5.802,1.271 6.115,1.469 0.313,0.198 10 false +B 4.906,1.781 5.365,1.979 0.458,0.198 10 false I196 4.906,1.25 5.365,1.448 0.458,0.198 10 false I196 0.594,0.719 2.49,0.917 1.896,0.198 10 false from Auxiliary Battery


CAUTION / NOTICE / HINT

NOTICE:
·

When using the GTS with the ignition switch off, connect the GTS to the DLC3 and turn a courtesy light switch on and off at intervals of 1.5 seconds or less until communication between the GTS and the vehicle begins.

Then select Model Code "KEY REGIST" under manual mode and enter the following menus: Body Electrical / Entry&Start(CAN). While using the GTS, periodically turn a courtesy light switch on and off at intervals of 1.5 seconds or less to maintain communication between the GTS and the vehicle.

·

The smart entry and start system (for Entry Function) uses the CAN communication system. Inspect the communication function by following How to Proceed with Troubleshooting. Troubleshoot the smart entry and start system (for Entry Function) after confirming that the communication systems are functioning properly.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Entry Function (except NR Series))>HOW TO PROCEED WITH TROUBLESHOOTING

·

Before replacing the certification ECU (smart key ECU assembly) or main body ECU (multiplex network body ECU), refer to Service Bulletin.

·

Check that there are no electrical key transmitter sub-assemblies in the vehicle.

·

After repair, confirm that no DTCs are output.

·

Inspect the fuses for circuits related to this system before performing the following procedure.



PROCEDURE

1.CHECK WHETHER HYBRID CONTROL SYSTEM OR ENGINE STARTS
a.

Using the electrical key transmitter sub-assembly that was used for key ID registration, check if the hybrid control system*1 or engine*2 starts.

OK:

Hybrid control system*1 or engine*2 starts normally.


*1: for HV Model

*2: for Gasoline Model



Result:
Proceed to
OK
NG



OK

2.PERFORM REGISTRATION

NG

2.PERFORM REGISTRATION
a.

Perform registration of the B code.

HINT:

Refer to Service Bulletin.



Result:
Proceed to
NEXT



NEXT

3.CHECK ENTRY OPERATION
3.CHECK ENTRY OPERATION
a.

After completing B code registration, check that the entry lock and unlock functions can be operated 2 times consecutively.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Entry Function (except NR Series))>OPERATION CHECK


Result:
Result Proceed to
Entry function does not operate normally A
Entry function operates normally B



A

4.READ VALUE USING GTS (B CODE REGISTERED)

B

END (B CODE REGISTRATION FAILED)

4.READ VALUE USING GTS (B CODE REGISTERED)
a.

Read the Data List according to the display on the GTS.

Body Electrical > Entry&Start > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
B Code Registered B code registration status No or Yes No: B code is not registered properly
Yes: B code is registered properly
-
Body Electrical > Entry&Start > Data List
Tester Display
B Code Registered
50003 440 23
NOTICE:

If "No" is displayed on the GTS screen, perform the following procedure again. (maximum of 3 times)

·

PERFORM REGISTRATION

·

CHECK ENTRY OPERATION

·

READ VALUE USING GTS (B CODE REGISTERED)


However, if the problem symptoms do not disappear, proceed to the procedure according to Range.



Result:
Result Proceed to
"Yes" is displayed on the GTS A
"No" is displayed on the GTS B



A

5.CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

B

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

5.CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
a.

Measure the voltage while checking the Data List on the GTS.

i.

Read the Data List according to the display on the GTS.

B670584C03
4.792,0.385 5.188,0.615 0.396,0.229 1.917,0.417 2.313,0.646 0.396,0.229 1.927,0.094 2.323,0.323 0.396,0.229 5.635,2.135 5.417,1.229 true 2.552,2.177 2.292,1.146 true 1.406,2.083 2.24,1.229 true 0.198,0.156 0.51,0.354 0.313,0.198 10 false *a 5.479,2.125 5.938,2.333 0.458,0.208 10 false ACCD 4.865,0.427 5.177,0.625 0.313,0.198 10 false I196 1.948,0.458 2.344,0.656 0.396,0.198 10 false O187 2.469,2.177 2.844,2.354 0.375,0.177 10 false IGRD 1.24,2.073 1.604,2.25 0.365,0.177 10 false IGPD 2,0.135 2.396,0.333 0.396,0.198 10 false I197 2.438,0.135 2.833,0.333 0.396,0.198 10 false *A 2.438,0.458 2.833,0.656 0.396,0.198 10 false *B
*A for M20#-FKS *B for M15#-FKS
*a Component with harness connected
(Certification ECU (Smart Key ECU Assembly))
- -


Body Electrical > Power Source Control > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Power Supply Condition Power supply state OFF, ACC ON, IGR ON, IGP ON or Starter ON OFF: Ignition switch off
ACC ON: Ignition switch ACC
IGR ON: Ignition switch ON
IGP ON: Ignition switch ON
Starter ON: Sending hybrid control system*1 or engine*2 start request signal
-

*1: for HV Model

*2: for Gasoline Model


Body Electrical > Power Source Control > Data List
Tester Display
Power Supply Condition
50003 454 405
Standard Voltage:
for M20#-FKS:
Tester Connection Condition Specified Condition
I197-11 (IGRD) - Body ground Ignition switch off Below 1 V
Ignition switch ACC Below 1 V
Ignition switch ON 9 V or higher
I197-24 (IGPD) - Body ground Ignition switch off Below 1 V
Ignition switch ACC Below 1 V
Ignition switch ON 9 V or higher
I196-21 (ACCD) - Body ground Ignition switch off Below 1 V
Ignition switch ACC 8.5 V or higher
Ignition switch ON 8.5 V or higher

for M15#-FKS:
Tester Connection Condition Specified Condition
O187-11 (IGRD) - Body ground Ignition switch off Below 1 V
Ignition switch ACC Below 1 V
Ignition switch ON 9 V or higher
O187-24 (IGPD) - Body ground Ignition switch off Below 1 V
Ignition switch ACC Below 1 V
Ignition switch ON 9 V or higher
I196-21 (ACCD) - Body ground Ignition switch off Below 1 V
Ignition switch ACC 8.5 V or higher
Ignition switch ON 8.5 V or higher




Result:
Proceed to
OK
NG



OK

6.READ VALUE USING GTS (IGR POWER)

NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

6.READ VALUE USING GTS (IGR POWER)
a.

Read the Data List according to the display on the GTS.

Body Electrical > Main Body > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
IGR Power Ignition switch status OFF or ON OFF: Ignition switch off
ON: Ignition switch ON
-
Body Electrical > Main Body > Data List
Tester Display
IGR Power
50003 449 122
HINT:

If the certification ECU (smart key ECU assembly) misjudges for any reason that the ignition switch is ON even though the ignition switch is off, the entry lock and unlock functions will be disabled.



Result:
Result Proceed to
The main body ECU (multiplex network body ECU) judges properly that the power source is off when the ignition switch is off A
The main body ECU (multiplex network body ECU) does not judge properly that the power source is off when the ignition switch is off B



A

7.CHECK ENTRY OPERATION

B

7.CHECK ENTRY OPERATION
a.

Disconnect and reconnect the certification ECU (smart key ECU assembly) connectors.



Result:
Result Proceed to
Entry function does not operate normally A
Entry function operates normally B



A

8.REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

B

END (CONNECTOR WAS NOT CONNECTED SECURELY)

8.REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
a.

Replace the certification ECU (smart key ECU assembly) with a new one and perform registration again.

HINT:

Refer to Service Bulletin.



Result:
Proceed to
NEXT



NEXT

9.CHECK WIRELESS DOOR LOCK CONTROL SYSTEM
9.CHECK WIRELESS DOOR LOCK CONTROL SYSTEM

Result:
Result Proceed to
Wireless door lock function operates normally A
Wireless door lock function does not operate normally B



A

END (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) WAS DEFECTIVE)

B
