NETWORKING  CAN COMMUNICATION SYSTEM(for HV Model)  Check Bus 2 Line


DESCRIPTION

Symptom Trouble Area
There are ECUs or sensors that display a communication stop on the bus diagnostic screen. Or, there are ECUs or sensors that display communication stop history on the "Detail" screen.
·

CAN main bus line, CAN branch line or connector

·

Central gateway ECU (network gateway ECU)

·

Battery ECU assembly

·

Hybrid vehicle control ECU

·

Inverter with converter assembly

·

ECM

·

No. 3 CAN junction connector

(for TFTM Made)

·

No. 17 CAN junction connector

(for GTMC Made)

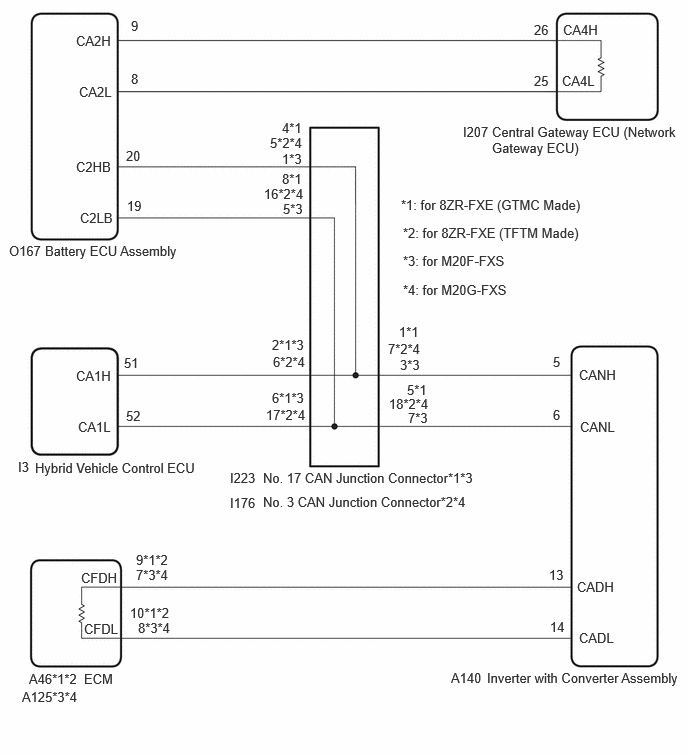

WIRING DIAGRAM

C487968E07
0.469,2.531 2.219,2.823 1.75,0.292 10 false Battery ECU Assembly 0.094,2.531 0.479,2.854 0.385,0.323 10 false O167 1.365,0.188 1.75,0.51 0.385,0.323 10 false 9 1.365,0.74 1.75,1.063 0.385,0.323 10 false 8 1.313,1.542 1.698,1.865 0.385,0.323 10 false 20 1.323,2.063 1.708,2.385 0.385,0.323 10 false 19 0.792,0.344 1.292,0.635 0.5,0.292 10 false CA2H 0.823,0.875 1.323,1.167 0.5,0.292 10 false CA2L 0.792,1.656 1.292,1.948 0.5,0.292 10 false C2HB 0.833,2.188 1.333,2.479 0.5,0.292 10 false C2LB 2.396,4.896 2.781,5.219 0.385,0.323 10 false I223 2.74,4.896 5.146,5.313 2.406,0.417 10 false No. 17 CAN Junction Connector*1*3 2.813,1.406 3.198,1.729 0.385,0.323 10 false 5*2*4 2.75,1.938 3.333,2.26 0.583,0.323 10 false 16*2*4 2.844,3.688 3.229,4.01 0.385,0.323 10 false 6*2*4 2.771,4.24 3.302,4.563 0.531,0.323 10 false 17*2*4 4.042,3.552 4.427,3.875 0.385,0.323 10 false 7*2*4 4.052,4.125 4.615,4.448 0.563,0.323 10 false 18*2*4 5.125,1.292 7.083,1.781 1.958,0.49 10 false Central Gateway ECU (Network Gateway ECU) 4.823,1.292 5.208,1.615 0.385,0.323 10 false I207 5.865,0.229 6.365,0.552 0.5,0.323 10 false CA4H 5.854,0.76 6.354,1.083 0.5,0.323 10 false CA4L 5.563,0.229 5.948,0.552 0.385,0.323 10 false 26 5.563,0.76 5.948,1.083 0.385,0.323 10 false 25 0.365,4.792 2.115,5.083 1.75,0.292 10 false Hybrid Vehicle Control ECU 0.188,4.781 0.573,5.104 0.385,0.323 10 false I3 0.792,3.833 1.292,4.125 0.5,0.292 10 false CA1H 0.813,4.365 1.313,4.656 0.5,0.292 10 false CA1L 1.292,3.698 1.677,4.021 0.385,0.323 10 false 51 1.313,4.25 1.698,4.573 0.385,0.323 10 false 52 5.073,6.979 7.156,7.375 2.083,0.396 10 false Inverter with Converter Assembly 4.698,6.979 5.271,7.323 0.573,0.344 10 false A140 5.76,3.688 6.146,4.01 0.385,0.323 10 false 5 5.76,4.24 6.146,4.563 0.385,0.323 10 false 6 5.719,5.906 6.104,6.229 0.385,0.323 10 false 13 5.729,6.448 6.115,6.771 0.385,0.323 10 false 14 6.01,6.031 6.51,6.323 0.5,0.292 10 false CADH 6.031,3.823 6.531,4.115 0.5,0.292 10 false CANH 6.042,4.365 6.542,4.656 0.5,0.292 10 false CANL 6.031,6.563 6.531,6.854 0.5,0.292 10 false CADL 0.302,6.99 0.958,7.313 0.656,0.323 10 false A46*1*2 0.875,6.99 1.26,7.313 0.385,0.323 10 false ECM 1.417,5.906 1.969,6.24 0.552,0.333 10 false 7*3*4 1.438,6.458 1.958,6.802 0.521,0.344 10 false 8*3*4 0.844,5.938 1.344,6.229 0.5,0.292 10 false CFDH 0.875,6.469 1.375,6.76 0.5,0.292 10 false CFDL 4.177,2.052 6.281,2.448 2.104,0.396 10 false *1: for 8ZR-FXE (GTMC Made) 4.198,2.344 6.302,2.74 2.104,0.396 10 false *2: for 8ZR-FXE (TFTM Made) 2.74,5.146 5.104,5.552 2.365,0.406 10 false No. 3 CAN Junction Connector*2*4 2.396,5.156 2.781,5.479 0.385,0.323 10 false I176 2.938,1.25 3.323,1.573 0.385,0.323 10 false 4*1 2.938,1.781 3.323,2.104 0.385,0.323 10 false 8*1 2.833,3.51 3.219,3.833 0.385,0.323 10 false 2*1*3 2.833,4.063 3.219,4.385 0.385,0.323 10 false 6*1*3 4.156,3.375 4.542,3.698 0.385,0.323 10 false 1*1 4.24,3.979 4.625,4.302 0.385,0.323 10 false 5*1 4.198,2.635 6.302,3.031 2.104,0.396 10 false *3: for M20F-FXS 4.198,2.938 6.302,3.333 2.104,0.396 10 false *4: for M20G-FXS 2.938,1.573 3.323,1.896 0.385,0.323 10 false 1*3 2.948,2.094 3.531,2.417 0.583,0.323 10 false 5*3 4.167,3.719 4.552,4.042 0.385,0.323 10 false 3*3 4.25,4.271 4.813,4.594 0.563,0.323 10 false 7*3 0.229,7.177 0.885,7.5 0.656,0.323 10 false A125*3*4 1.354,6.302 1.875,6.646 0.521,0.344 10 false 10*1*2 1.417,5.75 1.969,6.083 0.552,0.333 10 false 9*1*2

CAUTION / NOTICE / HINT

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


NOTICE:
·

Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for HV Model)>HOW TO PROCEED WITH TROUBLESHOOTING

·

Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) auxiliary battery terminal and leave the vehicle for 10 minutes or more before measuring the resistance.

·

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·

When disconnecting and reconnecting the auxiliary battery.

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART


·

Some parts must be initialized and set when replacing or removing and installing parts.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE

·

After performing repairs, perform the DTC check procedure and confirm that the DTCs are not output again.

DTC check procedure: Turn the ignition switch to ON and wait for 1 minute or more. Then operate the suspected malfunctioning system and drive the vehicle at 60 km/h (37 mph) or more for 5 minutes or more.

·

After the repair, perform the CAN bus check and check that all the ECUs and sensors connected to the CAN communication system are displayed as normal.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for HV Model)>DIAGNOSIS SYSTEM

·

Before replacing the hybrid vehicle control ECU, refer to Service Bulletin.



HINT:
·

Before disconnecting related connectors for inspection, push in on each connector body to check that the connector is not loose or disconnected.

·

When a connector is disconnected, check that the terminals and connector body are not cracked, deformed or corroded.



PROCEDURE

1.CHECK FOR OPEN IN CAN MAIN BUS LINES
a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.
C487978C38
1.51,0.073 1.927,0.323 0.417,0.25 2.271,1.896 2.104,1.896 2.104,1.896 2.104,0.896 true 2.156,0.167 1.99,0.167 1.99,0.167 1.99,0.833 true 0.115,0.073 0.427,0.271 0.313,0.198 10 false *a 1.594,0.115 2.052,0.313 0.458,0.198 10 false I207 2.333,1.833 2.802,2.052 0.469,0.219 10 false CA4L 2.24,0.104 2.719,0.271 0.479,0.167 10 false CA4H
*a Component with harness connected
(Central Gateway ECU (Network Gateway ECU))

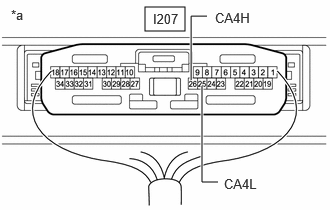

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

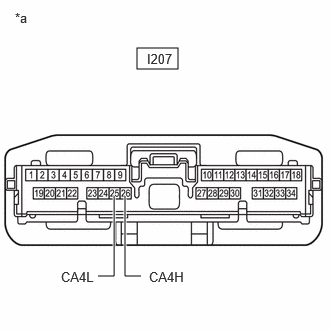

I207-26 (CA4H) - I207-25 (CA4L) Cable disconnected from negative (-) auxiliary battery terminal Below 70 Ω



Result:
Result
OK
NG



OK

2.CHECK FOR SHORT IN CAN BUS LINES

NG

68.CHECK FOR OPEN IN CAN MAIN BUS LINES (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
2.CHECK FOR SHORT IN CAN BUS LINES
a.
C487978C38
1.51,0.073 1.927,0.323 0.417,0.25 2.271,1.896 2.104,1.896 2.104,1.896 2.104,0.896 true 2.156,0.167 1.99,0.167 1.99,0.167 1.99,0.833 true 0.115,0.073 0.427,0.271 0.313,0.198 10 false *a 1.594,0.115 2.052,0.313 0.458,0.198 10 false I207 2.333,1.833 2.802,2.052 0.469,0.219 10 false CA4L 2.24,0.104 2.719,0.271 0.479,0.167 10 false CA4H
*a Component with harness connected
(Central Gateway ECU (Network Gateway ECU))


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I207-26 (CA4H) - I207-25 (CA4L) Cable disconnected from negative (-) auxiliary battery terminal 54 Ω or higher



Result:
Result
OK
NG



OK

3.CHECK FOR SHORT TO +B IN CAN BUS LINE

NG

47.CHECK FOR SHORT IN CAN BUS LINES (BATTERY ECU ASSEMBLY - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
3.CHECK FOR SHORT TO +B IN CAN BUS LINE
a.

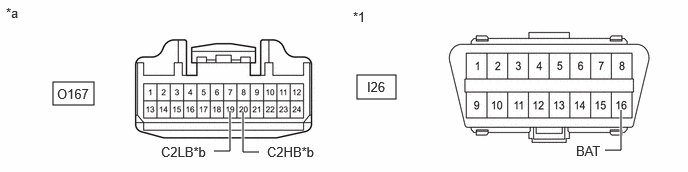

Measure the resistance according to the value(s) in the table below.

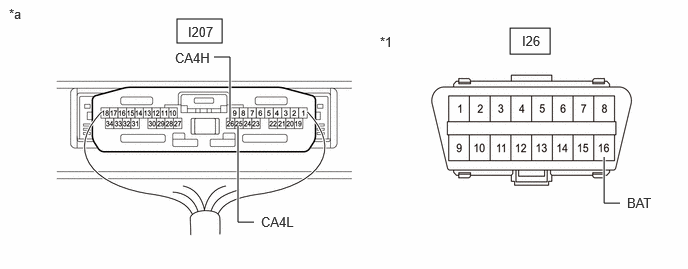

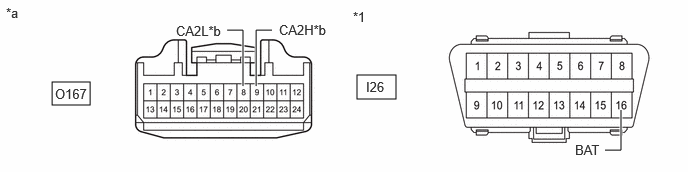

C487979C49
1.844,0.198 2.313,0.448 0.469,0.25 5.313,0.292 5.729,0.563 0.417,0.271 2.396,1.26 2.396,0.594 2.396,0.594 2.229,0.594 true 6.458,2.115 6.292,2.115 6.292,2.115 6.292,1.635 true 2.479,1.313 2.479,2.313 2.479,2.313 2.646,2.313 true 3.958,0.354 4.271,0.552 0.313,0.198 10 false *1 1.958,0.25 2.354,0.448 0.396,0.198 10 false I207 1.823,0.521 2.375,0.719 0.552,0.198 10 false CA4H 6.531,2.031 7.083,2.229 0.552,0.198 10 false BAT 2.719,2.229 3.271,2.427 0.552,0.198 10 false CA4L 5.438,0.344 5.75,0.542 0.313,0.198 10 false I26 0.094,0.063 0.406,0.26 0.313,0.198 10 false *a
*1 DLC3 - -
*a Component with harness connected
(Central Gateway ECU (Network Gateway ECU)) 		- -


Standard Resistance:
Tester Connection Condition Specified Condition
I207-26 (CA4H) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I207-25 (CA4L) - I26-16 (BAT)



Result:
Result
OK
NG



OK

4.CHECK FOR SHORT TO GND IN CAN BUS LINE

NG

26.CHECK FOR SHORT TO +B IN CAN BUS LINE (BATTERY ECU ASSEMBLY - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
4.CHECK FOR SHORT TO GND IN CAN BUS LINE
a.

Measure the resistance according to the value(s) in the table below.

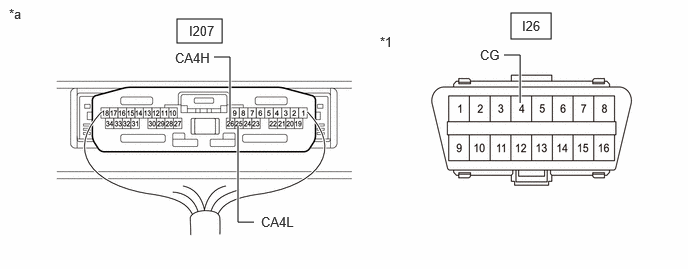

C487979C50
1.844,0.198 2.313,0.448 0.469,0.25 5.323,0.135 5.74,0.406 0.417,0.271 2.396,1.26 2.396,0.594 2.396,0.594 2.229,0.594 true 5.25,0.573 5.417,0.573 5.417,0.573 5.417,1.073 true 2.479,1.313 2.479,2.313 2.479,2.313 2.646,2.313 true 3.958,0.354 4.271,0.552 0.313,0.198 10 false *1 1.969,0.24 2.365,0.438 0.396,0.198 10 false I207 1.823,0.521 2.375,0.719 0.552,0.198 10 false CA4H 5,0.49 5.552,0.688 0.552,0.198 10 false CG 2.719,2.229 3.271,2.427 0.552,0.198 10 false CA4L 5.438,0.188 5.75,0.385 0.313,0.198 10 false I26 0.094,0.063 0.406,0.26 0.313,0.198 10 false *a
*1 DLC3 - -
*a Component with harness connected
(Central Gateway ECU (Network Gateway ECU)) 		- -


Standard Resistance:
Tester Connection Condition Specified Condition
I207-26 (CA4H) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I207-25 (CA4L) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Click herePower Source / Network>NETWORKING>NETWORK GATEWAY ECU>REMOVAL


NG

5.CHECK FOR SHORT TO GND IN CAN BUS LINE (BATTERY ECU ASSEMBLY - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
5.CHECK FOR SHORT TO GND IN CAN BUS LINE (BATTERY ECU ASSEMBLY - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the O167 battery ECU assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

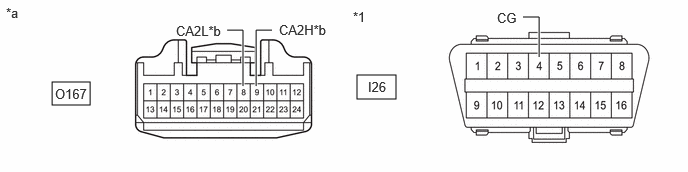

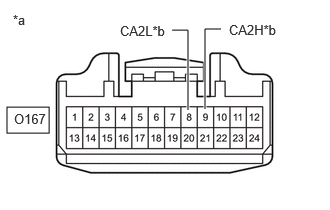

C487988C10
0.542,0.854 0.938,1.094 0.396,0.24 3.719,0.781 4.125,1.031 0.406,0.25 5.448,0.177 5.615,0.177 5.615,0.177 5.615,0.594 true 2.365,0.313 2.531,0.313 2.531,0.313 2.531,0.896 true 2.833,0.313 2.667,0.313 2.667,0.313 2.667,0.896 true 3.677,0.094 3.99,0.292 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.573,0.896 1.052,1.115 0.479,0.219 10 false O167 3.833,0.823 4.146,1.021 0.313,0.198 10 false I26 5.177,0.104 5.594,0.313 0.417,0.208 10 false CG 2.906,0.229 3.438,0.448 0.531,0.219 10 false CA2H*b 1.833,0.24 2.365,0.458 0.531,0.219 10 false CA2L*b
*1 DLC3 - -
*a Front view of wire harness connector
(to Battery ECU Assembly) 		*b to Central Gateway ECU (Network Gateway ECU)


Standard Resistance:
Tester Connection Condition Specified Condition
O167-9 (CA2H) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
O167-8 (CA2L) - I26-4 (CG)



Result:
Result
OK
NG



OK

6.CHECK FOR SHORT TO GND IN CAN BUS LINE (BATTERY ECU ASSEMBLY - NO. 3 CAN JUNCTION CONNECTOR OR NO. 17 CAN JUNCTION CONNECTOR)

NG

7.CHECK FOR SHORT TO GND IN CAN BUS LINE (BATTERY ECU ASSEMBLY - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
6.CHECK FOR SHORT TO GND IN CAN BUS LINE (BATTERY ECU ASSEMBLY - NO. 3 CAN JUNCTION CONNECTOR OR NO. 17 CAN JUNCTION CONNECTOR)
a.

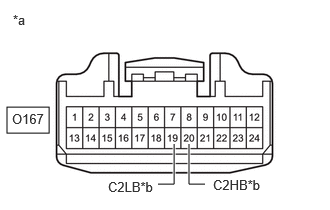

Measure the resistance according to the value(s) in the table below.

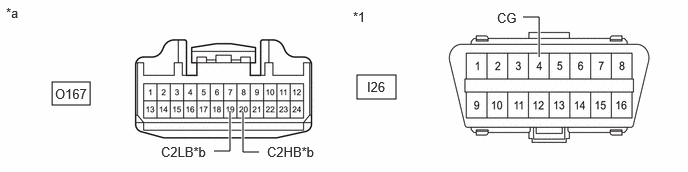

C487988C11
0.542,0.854 0.938,1.094 0.396,0.24 3.719,0.781 4.125,1.031 0.406,0.25 5.448,0.177 5.615,0.177 5.615,0.177 5.615,0.594 true 2.698,1.583 2.531,1.583 2.531,1.583 2.531,1.167 true 2.229,1.573 2.396,1.573 2.396,1.573 2.396,1.156 true 3.677,0.094 3.99,0.292 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.573,0.896 1.052,1.115 0.479,0.219 10 false O167 3.823,0.823 4.135,1.021 0.313,0.198 10 false I26 5.177,0.104 5.594,0.313 0.417,0.208 10 false CG 2.781,1.5 3.313,1.719 0.531,0.219 10 false C2HB*b 1.677,1.5 2.208,1.719 0.531,0.219 10 false C2LB*b
*1 DLC3 - -
*a Front view of wire harness connector
(to Battery ECU Assembly) 		*b to No. 3 CAN Junction Connector or No. 17 CAN Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
O167-20 (C2HB) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
O167-19 (C2LB) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE BATTERY ECU ASSEMBLY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>BATTERY ECU (for LITHIUM-ION BATTERY)>REMOVAL


NG

8.CHECK VEHICLE TYPE
7.CHECK FOR SHORT TO GND IN CAN BUS LINE (BATTERY ECU ASSEMBLY - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the I207 central gateway ECU (network gateway ECU) connector.


b.

Measure the resistance according to the value(s) in the table below.

C487988C10
0.542,0.854 0.938,1.094 0.396,0.24 3.719,0.781 4.125,1.031 0.406,0.25 5.448,0.177 5.615,0.177 5.615,0.177 5.615,0.594 true 2.365,0.313 2.531,0.313 2.531,0.313 2.531,0.896 true 2.833,0.313 2.667,0.313 2.667,0.313 2.667,0.896 true 3.677,0.094 3.99,0.292 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.573,0.896 1.052,1.115 0.479,0.219 10 false O167 3.833,0.823 4.146,1.021 0.313,0.198 10 false I26 5.177,0.104 5.594,0.313 0.417,0.208 10 false CG 2.906,0.229 3.438,0.448 0.531,0.219 10 false CA2H*b 1.833,0.24 2.365,0.458 0.531,0.219 10 false CA2L*b
*1 DLC3 - -
*a Front view of wire harness connector
(to Battery ECU Assembly) 		*b to Central Gateway ECU (Network Gateway ECU)


Standard Resistance:
Tester Connection Condition Specified Condition
O167-9 (CA2H) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
O167-8 (CA2L) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Click herePower Source / Network>NETWORKING>NETWORK GATEWAY ECU>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (BATTERY ECU ASSEMBLY - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

8.CHECK VEHICLE TYPE
a.

Check vehicle type.


Result:
Result Proceed to
for 8ZR-FXE (GTMC Made) A
for 8ZR-FXE (TFTM Made) or M20G-FXS B
for M20F-FXS C



A

9.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 17 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

B

14.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 3 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

C

19.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 17 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
9.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 17 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
a.

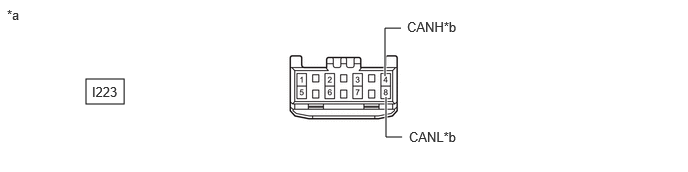

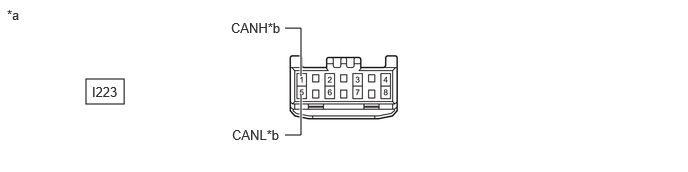

Disconnect the I223 No. 17 CAN junction connector.


b.

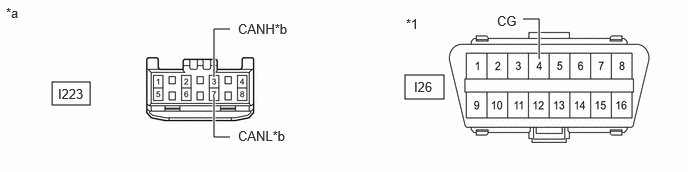

Measure the resistance according to the value(s) in the table below.

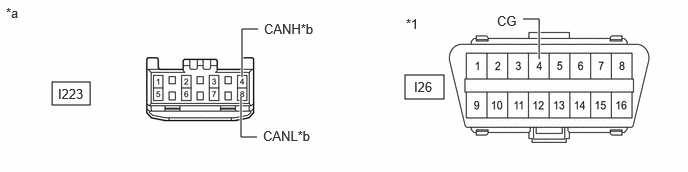

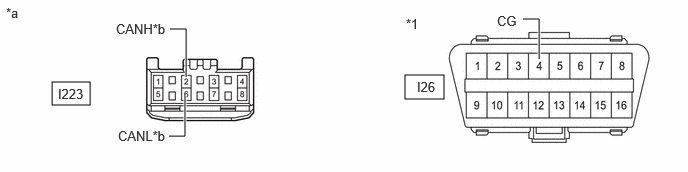

C487980C11
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.688,0.302 2.521,0.302 2.521,0.302 2.521,0.802 true 2.677,1.427 2.51,1.427 2.51,1.427 2.51,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.604,0.896 1.083,1.115 0.479,0.219 10 false I223 4.313,0.823 4.625,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 2.75,0.219 3.281,0.438 0.531,0.219 10 false CANH*b 2.74,1.333 3.271,1.552 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 17 CAN Junction Connector) 		*b to Battery ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I223-4 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I223-8 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

10.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 17 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 17 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

10.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 17 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

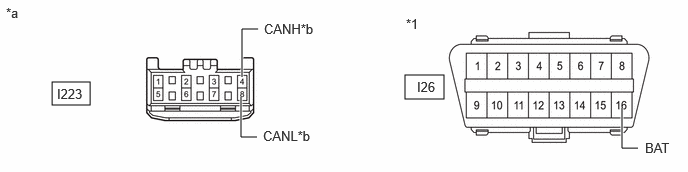

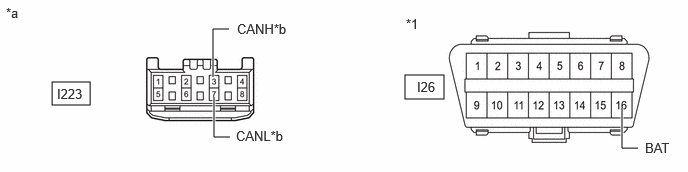

Measure the resistance according to the value(s) in the table below.

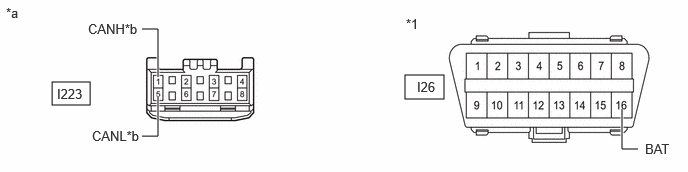

C487980C12
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.771,0.302 1.938,0.302 1.938,0.302 1.938,0.802 true 1.76,1.417 1.927,1.417 1.927,1.417 1.927,1 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.604,0.896 1.083,1.115 0.479,0.219 10 false I223 4.344,0.823 4.656,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 1.208,0.219 1.74,0.438 0.531,0.219 10 false CANH*b 1.229,1.333 1.76,1.552 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 17 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
I223-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I223-6 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

11.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 17 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

NG

12.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 17 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
11.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 17 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

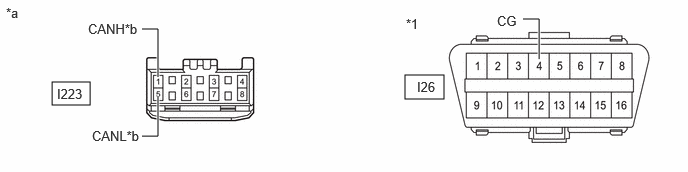

Measure the resistance according to the value(s) in the table below.

C487980C13
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.479,0.302 1.646,0.302 1.646,0.302 1.646,0.802 true 1.479,1.417 1.646,1.417 1.646,1.417 1.646,1 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.594,0.896 1.073,1.115 0.479,0.219 10 false I223 4.344,0.823 4.656,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 0.917,0.219 1.448,0.438 0.531,0.219 10 false CANH*b 0.958,1.333 1.49,1.552 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 17 CAN Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I223-1 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I223-5 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE NO. 17 CAN JUNCTION CONNECTOR

NG

13.CHECK FOR SHORT TO GND IN CAN BUS LINE (INVERTER WITH CONVERTER ASSEMBLY - NO. 17 CAN JUNCTION CONNECTOR)
12.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 17 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Disconnect the I3 hybrid vehicle control ECU connector.


b.

Measure the resistance according to the value(s) in the table below.

C487980C12
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.771,0.302 1.938,0.302 1.938,0.302 1.938,0.802 true 1.76,1.417 1.927,1.417 1.927,1.417 1.927,1 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.604,0.896 1.083,1.115 0.479,0.219 10 false I223 4.344,0.823 4.656,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 1.208,0.219 1.74,0.438 0.531,0.219 10 false CANH*b 1.229,1.333 1.76,1.552 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 17 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
I223-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I223-6 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE HYBRID VEHICLE CONTROL ECU

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID VEHICLE CONTROL ECU>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 17 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

13.CHECK FOR SHORT TO GND IN CAN BUS LINE (INVERTER WITH CONVERTER ASSEMBLY - NO. 17 CAN JUNCTION CONNECTOR)

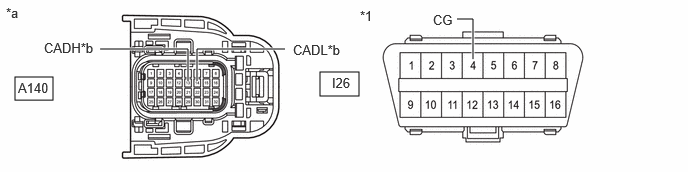

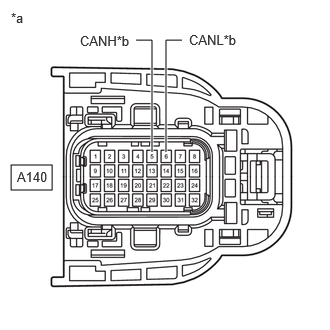

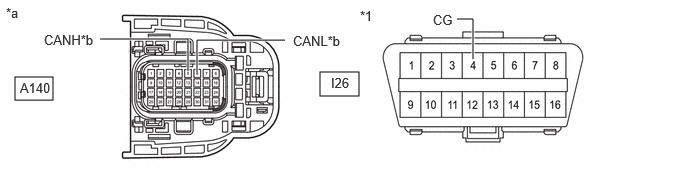

a.

Disconnect the A140 inverter with converter assembly connector.


b.

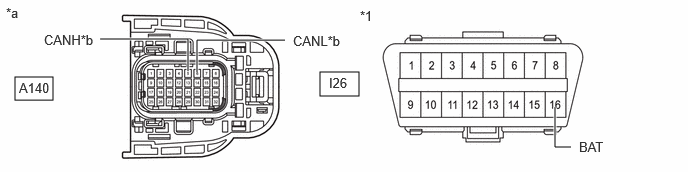

Measure the resistance according to the value(s) in the table below.

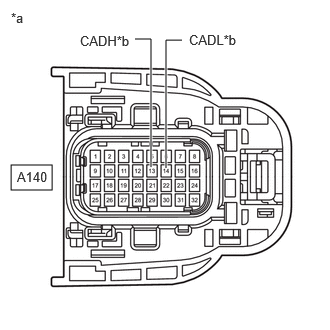

C487966C16
0.156,0.802 0.552,1.042 0.396,0.24 3.333,0.75 3.74,1 0.406,0.25 1.042,0.406 1.958,0.406 1.958,0.406 1.958,0.74 true 4.76,0.198 4.927,0.198 4.927,0.198 4.927,0.615 true 2.969,0.417 2.052,0.417 2.052,0.417 2.052,0.75 true 3.75,0.083 4.063,0.281 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.208,0.833 0.688,1.052 0.479,0.219 10 false A140 3.448,0.781 3.76,0.979 0.313,0.198 10 false I26 4.51,0.125 4.927,0.333 0.417,0.208 10 false CG 0.458,0.333 0.99,0.552 0.531,0.219 10 false CANH*b 3.052,0.344 3.583,0.563 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to Inverter with Converter Assembly) 		*b to No. 17 CAN Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
A140-5 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A140-6 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

24.CHECK FOR SHORT TO GND IN CAN BUS LINE (INVERTER WITH CONVERTER ASSEMBLY - ECM)

NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (INVERTER WITH CONVERTER ASSEMBLY - NO. 17 CAN JUNCTION CONNECTOR)

14.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 3 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
a.

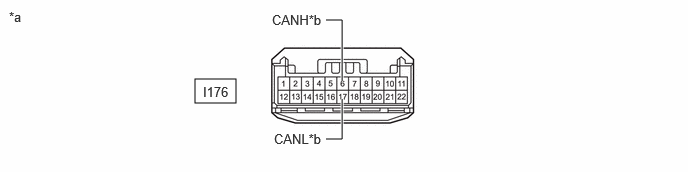

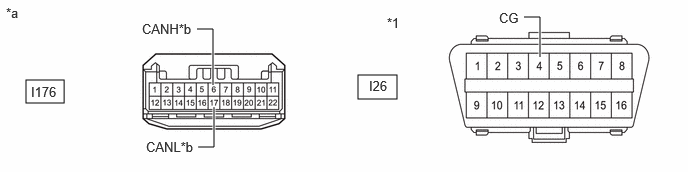

Disconnect the I176 No. 3 CAN junction connector.


b.

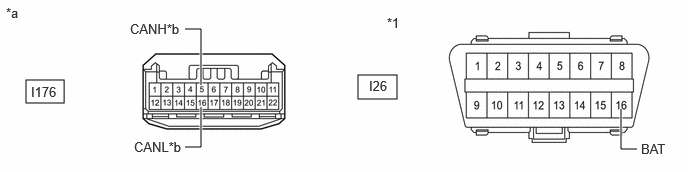

Measure the resistance according to the value(s) in the table below.

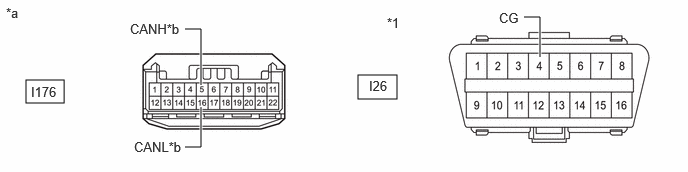

C487982C99
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 1.927,0.302 2.094,0.302 2.094,0.302 2.094,0.885 true 1.927,1.531 2.094,1.531 2.094,1.531 2.094,1.115 true 5.458,0.177 5.625,0.177 5.625,0.177 5.625,0.594 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.323,0.875 0.802,1.094 0.479,0.219 10 false I176 3.844,0.813 4.156,1.01 0.313,0.198 10 false I26 5.198,0.104 5.615,0.313 0.417,0.208 10 false CG 1.354,0.219 1.885,0.438 0.531,0.219 10 false CANH*b 1.396,1.448 1.927,1.667 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Battery ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I176-5 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I176-16 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

15.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 3 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 3 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

15.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 3 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Measure the resistance according to the value(s) in the table below.

C503911C01
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 2.052,0.302 2.219,0.302 2.219,0.302 2.219,0.885 true 2.063,1.531 2.229,1.531 2.229,1.531 2.229,1.115 true 5.458,0.177 5.625,0.177 5.625,0.177 5.625,0.594 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.323,0.875 0.802,1.094 0.479,0.219 10 false I176 3.844,0.813 4.156,1.01 0.313,0.198 10 false I26 5.198,0.104 5.615,0.313 0.417,0.208 10 false CG 1.479,0.219 2.01,0.438 0.531,0.219 10 false CANH*b 1.521,1.448 2.052,1.667 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
I176-6 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I176-17 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

16.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 3 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

NG

17.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 3 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
16.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 3 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C503911C02
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 2.177,0.302 2.344,0.302 2.344,0.302 2.344,0.885 true 2.177,1.531 2.344,1.531 2.344,1.531 2.344,1.115 true 5.458,0.177 5.625,0.177 5.625,0.177 5.625,0.594 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.323,0.875 0.802,1.094 0.479,0.219 10 false I176 3.844,0.813 4.156,1.01 0.313,0.198 10 false I26 5.198,0.104 5.615,0.313 0.417,0.208 10 false CG 1.615,0.219 2.146,0.438 0.531,0.219 10 false CANH*b 1.625,1.448 2.156,1.667 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I176-7 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I176-18 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE NO. 3 CAN JUNCTION CONNECTOR

NG

18.CHECK FOR SHORT TO GND IN CAN BUS LINE (INVERTER WITH CONVERTER ASSEMBLY - NO. 3 CAN JUNCTION CONNECTOR)
17.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 3 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Disconnect the I3 hybrid vehicle control ECU connector.


b.

Measure the resistance according to the value(s) in the table below.

C503911C01
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 2.052,0.302 2.219,0.302 2.219,0.302 2.219,0.885 true 2.063,1.531 2.229,1.531 2.229,1.531 2.229,1.115 true 5.458,0.177 5.625,0.177 5.625,0.177 5.625,0.594 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.323,0.875 0.802,1.094 0.479,0.219 10 false I176 3.844,0.813 4.156,1.01 0.313,0.198 10 false I26 5.198,0.104 5.615,0.313 0.417,0.208 10 false CG 1.479,0.219 2.01,0.438 0.531,0.219 10 false CANH*b 1.521,1.448 2.052,1.667 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
I176-6 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I176-17 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE HYBRID VEHICLE CONTROL ECU

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID VEHICLE CONTROL ECU>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 3 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

18.CHECK FOR SHORT TO GND IN CAN BUS LINE (INVERTER WITH CONVERTER ASSEMBLY - NO. 3 CAN JUNCTION CONNECTOR)
a.

Disconnect the A140 inverter with converter assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C487966C16
0.156,0.802 0.552,1.042 0.396,0.24 3.333,0.75 3.74,1 0.406,0.25 1.042,0.406 1.958,0.406 1.958,0.406 1.958,0.74 true 4.76,0.198 4.927,0.198 4.927,0.198 4.927,0.615 true 2.969,0.417 2.052,0.417 2.052,0.417 2.052,0.75 true 3.75,0.083 4.063,0.281 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.208,0.833 0.688,1.052 0.479,0.219 10 false A140 3.448,0.781 3.76,0.979 0.313,0.198 10 false I26 4.51,0.125 4.927,0.333 0.417,0.208 10 false CG 0.458,0.333 0.99,0.552 0.531,0.219 10 false CANH*b 3.052,0.344 3.583,0.563 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to Inverter with Converter Assembly) 		*b to No. 3 CAN Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
A140-5 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A140-6 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

24.CHECK FOR SHORT TO GND IN CAN BUS LINE (INVERTER WITH CONVERTER ASSEMBLY - ECM)

NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (INVERTER WITH CONVERTER ASSEMBLY - NO. 3 CAN JUNCTION CONNECTOR)

19.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 17 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
a.

Disconnect the I223 No. 17 CAN junction connector.


b.

Measure the resistance according to the value(s) in the table below.

C487980C13
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.479,0.302 1.646,0.302 1.646,0.302 1.646,0.802 true 1.479,1.417 1.646,1.417 1.646,1.417 1.646,1 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.594,0.896 1.073,1.115 0.479,0.219 10 false I223 4.344,0.823 4.656,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 0.917,0.219 1.448,0.438 0.531,0.219 10 false CANH*b 0.958,1.333 1.49,1.552 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 17 CAN Junction Connector) 		*b to Battery ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I223-1 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I223-5 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

20.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 17 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 17 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

20.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 17 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Measure the resistance according to the value(s) in the table below.

C487980C12
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.771,0.302 1.938,0.302 1.938,0.302 1.938,0.802 true 1.76,1.417 1.927,1.417 1.927,1.417 1.927,1 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.604,0.896 1.083,1.115 0.479,0.219 10 false I223 4.344,0.823 4.656,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 1.208,0.219 1.74,0.438 0.531,0.219 10 false CANH*b 1.229,1.333 1.76,1.552 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 17 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
I223-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I223-6 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

21.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 17 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

NG

22.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 17 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
21.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 17 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C503904C84
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.396,0.302 2.229,0.302 2.229,0.302 2.229,0.802 true 2.396,1.427 2.229,1.427 2.229,1.427 2.229,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.604,0.896 1.083,1.115 0.479,0.219 10 false I223 4.313,0.823 4.625,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 2.479,0.219 3.01,0.438 0.531,0.219 10 false CANH*b 2.479,1.333 3.01,1.552 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 17 CAN Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I223-3 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I223-7 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE NO. 17 CAN JUNCTION CONNECTOR

NG

23.CHECK FOR SHORT TO GND IN CAN BUS LINE (INVERTER WITH CONVERTER ASSEMBLY - NO. 17 CAN JUNCTION CONNECTOR)
22.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 17 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Disconnect the I3 hybrid vehicle control ECU connector.


b.

Measure the resistance according to the value(s) in the table below.

C487980C12
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.771,0.302 1.938,0.302 1.938,0.302 1.938,0.802 true 1.76,1.417 1.927,1.417 1.927,1.417 1.927,1 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.604,0.896 1.083,1.115 0.479,0.219 10 false I223 4.344,0.823 4.656,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 1.208,0.219 1.74,0.438 0.531,0.219 10 false CANH*b 1.229,1.333 1.76,1.552 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 17 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
I223-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I223-6 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE HYBRID VEHICLE CONTROL ECU

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID VEHICLE CONTROL ECU>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 17 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

23.CHECK FOR SHORT TO GND IN CAN BUS LINE (INVERTER WITH CONVERTER ASSEMBLY - NO. 17 CAN JUNCTION CONNECTOR)
a.

Disconnect the A140 inverter with converter assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C487966C16
0.156,0.802 0.552,1.042 0.396,0.24 3.333,0.75 3.74,1 0.406,0.25 1.042,0.406 1.958,0.406 1.958,0.406 1.958,0.74 true 4.76,0.198 4.927,0.198 4.927,0.198 4.927,0.615 true 2.969,0.417 2.052,0.417 2.052,0.417 2.052,0.75 true 3.75,0.083 4.063,0.281 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.208,0.833 0.688,1.052 0.479,0.219 10 false A140 3.448,0.781 3.76,0.979 0.313,0.198 10 false I26 4.51,0.125 4.927,0.333 0.417,0.208 10 false CG 0.458,0.333 0.99,0.552 0.531,0.219 10 false CANH*b 3.052,0.344 3.583,0.563 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to Inverter with Converter Assembly) 		*b to No. 17 CAN Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
A140-5 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A140-6 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

24.CHECK FOR SHORT TO GND IN CAN BUS LINE (INVERTER WITH CONVERTER ASSEMBLY - ECM)

NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (INVERTER WITH CONVERTER ASSEMBLY - NO. 17 CAN JUNCTION CONNECTOR)

24.CHECK FOR SHORT TO GND IN CAN BUS LINE (INVERTER WITH CONVERTER ASSEMBLY - ECM)
a.

Measure the resistance according to the value(s) in the table below.

C487966C17
0.156,0.802 0.552,1.042 0.396,0.24 3.333,0.75 3.74,1 0.406,0.25 1.042,0.51 1.958,0.51 1.958,0.51 1.958,0.844 true 4.76,0.198 4.927,0.198 4.927,0.198 4.927,0.615 true 2.969,0.51 2.052,0.51 2.052,0.51 2.052,0.844 true 3.75,0.083 4.063,0.281 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.188,0.833 0.667,1.052 0.479,0.219 10 false A140 3.458,0.781 3.771,0.979 0.313,0.198 10 false I26 4.51,0.125 4.927,0.333 0.417,0.208 10 false CG 0.458,0.417 1.135,0.656 0.677,0.24 10 false CADH*b 3.052,0.438 3.583,0.656 0.531,0.219 10 false CADL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to Inverter with Converter Assembly) 		*b to ECM


Standard Resistance:
Tester Connection Condition Specified Condition
A140-13 (CADH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A140-14 (CADL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE INVERTER WITH CONVERTER ASSEMBLY
·

for 8ZR-FXE

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>8ZR-FXE INVERTER WITH CONVERTER>REMOVAL

·

for M20F-FXS or M20G-FXS

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>M20F-FXS, M20G-FXS INVERTER WITH CONVERTER>REMOVAL



NG

25.CHECK FOR SHORT TO GND IN CAN BUS LINE (INVERTER WITH CONVERTER ASSEMBLY - ECM)
25.CHECK FOR SHORT TO GND IN CAN BUS LINE (INVERTER WITH CONVERTER ASSEMBLY - ECM)
a.

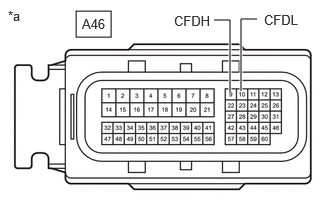

Disconnect the A46 or A125 ECM connector.


b.

Measure the resistance according to the value(s) in the table below.

C487966C17
0.156,0.802 0.552,1.042 0.396,0.24 3.333,0.75 3.74,1 0.406,0.25 1.042,0.51 1.958,0.51 1.958,0.51 1.958,0.844 true 4.76,0.198 4.927,0.198 4.927,0.198 4.927,0.615 true 2.969,0.51 2.052,0.51 2.052,0.51 2.052,0.844 true 3.75,0.083 4.063,0.281 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.188,0.833 0.667,1.052 0.479,0.219 10 false A140 3.458,0.781 3.771,0.979 0.313,0.198 10 false I26 4.51,0.125 4.927,0.333 0.417,0.208 10 false CG 0.458,0.417 1.135,0.656 0.677,0.24 10 false CADH*b 3.052,0.438 3.583,0.656 0.531,0.219 10 false CADL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to Inverter with Converter Assembly) 		*b to ECM


Standard Resistance:
Tester Connection Condition Specified Condition
A140-13 (CADH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A140-14 (CADL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE ECM
·

for 8ZR-FXE

Click hereEngine / Hybrid System>8ZR-FXE (ENGINE CONTROL)>ECM>REMOVAL

·

for M20F-FXS or M20G-FXS

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>ECM>REMOVAL



NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (INVERTER WITH CONVERTER ASSEMBLY - ECM)

26.CHECK FOR SHORT TO +B IN CAN BUS LINE (BATTERY ECU ASSEMBLY - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the O167 battery ECU assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C487988C12
0.542,0.854 0.938,1.094 0.396,0.24 3.719,0.781 4.125,1.031 0.406,0.25 6.302,1.563 6.469,1.563 6.469,1.563 6.469,1.146 true 2.365,0.313 2.531,0.313 2.531,0.313 2.531,0.896 true 2.833,0.313 2.667,0.313 2.667,0.313 2.667,0.896 true 3.677,0.094 3.99,0.292 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.573,0.896 1.052,1.115 0.479,0.219 10 false O167 3.813,0.823 4.125,1.021 0.313,0.198 10 false I26 5.99,1.479 6.406,1.688 0.417,0.208 10 false BAT 2.906,0.229 3.438,0.448 0.531,0.219 10 false CA2H*b 1.833,0.24 2.365,0.458 0.531,0.219 10 false CA2L*b
*1 DLC3 - -
*a Front view of wire harness connector
(to Battery ECU Assembly) 		*b to Central Gateway ECU (Network Gateway ECU)


Standard Resistance:
Tester Connection Condition Specified Condition
O167-9 (CA2H) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
O167-8 (CA2L) - I26-16 (BAT)



Result:
Result
OK
NG



OK

27.CHECK FOR SHORT TO +B IN CAN BUS LINE (BATTERY ECU ASSEMBLY - NO. 3 CAN JUNCTION CONNECTOR OR NO. 17 CAN JUNCTION CONNECTOR)

NG

28.CHECK FOR SHORT TO +B IN CAN BUS LINE (BATTERY ECU ASSEMBLY - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
27.CHECK FOR SHORT TO +B IN CAN BUS LINE (BATTERY ECU ASSEMBLY - NO. 3 CAN JUNCTION CONNECTOR OR NO. 17 CAN JUNCTION CONNECTOR)
a.

Measure the resistance according to the value(s) in the table below.

C487988C13
0.552,0.854 0.979,1.094 0.427,0.24 3.719,0.781 4.125,1.031 0.406,0.25 6.302,1.563 6.469,1.563 6.469,1.563 6.469,1.146 true 2.698,1.583 2.531,1.583 2.531,1.583 2.531,1.167 true 2.229,1.573 2.396,1.573 2.396,1.573 2.396,1.156 true 3.677,0.094 3.99,0.292 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.594,0.896 1.073,1.115 0.479,0.219 10 false O167 3.823,0.823 4.135,1.021 0.313,0.198 10 false I26 6,1.49 6.417,1.698 0.417,0.208 10 false BAT 2.781,1.5 3.313,1.719 0.531,0.219 10 false C2HB*b 1.677,1.5 2.208,1.719 0.531,0.219 10 false C2LB*b
*1 DLC3 - -
*a Front view of wire harness connector
(to Battery ECU Assembly) 		*b to No. 3 CAN Junction Connector or No. 17 CAN Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
O167-20 (C2HB) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
O167-19 (C2LB) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE BATTERY ECU ASSEMBLY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>BATTERY ECU (for LITHIUM-ION BATTERY)>REMOVAL


NG

29.CHECK VEHICLE TYPE
28.CHECK FOR SHORT TO +B IN CAN BUS LINE (BATTERY ECU ASSEMBLY - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the I207 central gateway ECU (network gateway ECU) connector.


b.

Measure the resistance according to the value(s) in the table below.

C487988C12
0.542,0.854 0.938,1.094 0.396,0.24 3.719,0.781 4.125,1.031 0.406,0.25 6.302,1.563 6.469,1.563 6.469,1.563 6.469,1.146 true 2.365,0.313 2.531,0.313 2.531,0.313 2.531,0.896 true 2.833,0.313 2.667,0.313 2.667,0.313 2.667,0.896 true 3.677,0.094 3.99,0.292 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.573,0.896 1.052,1.115 0.479,0.219 10 false O167 3.813,0.823 4.125,1.021 0.313,0.198 10 false I26 5.99,1.479 6.406,1.688 0.417,0.208 10 false BAT 2.906,0.229 3.438,0.448 0.531,0.219 10 false CA2H*b 1.833,0.24 2.365,0.458 0.531,0.219 10 false CA2L*b
*1 DLC3 - -
*a Front view of wire harness connector
(to Battery ECU Assembly) 		*b to Central Gateway ECU (Network Gateway ECU)


Standard Resistance:
Tester Connection Condition Specified Condition
O167-9 (CA2H) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
O167-8 (CA2L) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Click herePower Source / Network>NETWORKING>NETWORK GATEWAY ECU>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (BATTERY ECU ASSEMBLY - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

29.CHECK VEHICLE TYPE
a.

Check vehicle type.


Result:
Result Proceed to
for 8ZR-FXE (GTMC Made) A
for 8ZR-FXE (TFTM Made) or M20G-FXS B
for M20F-FXS C



A

30.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 17 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

B

35.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 3 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

C

40.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 17 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
30.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 17 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
a.

Disconnect the I223 No. 17 CAN junction connector.


b.

Measure the resistance according to the value(s) in the table below.

C487980C14
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.688,0.302 2.521,0.302 2.521,0.302 2.521,0.802 true 2.677,1.427 2.51,1.427 2.51,1.427 2.51,1.01 true 6.646,1.542 6.479,1.542 6.479,1.542 6.479,1.125 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.594,0.896 1.073,1.115 0.479,0.219 10 false I223 4.344,0.823 4.656,1.021 0.313,0.198 10 false I26 6.719,1.458 7.052,1.677 0.333,0.219 10 false BAT 2.75,0.219 3.281,0.438 0.531,0.219 10 false CANH*b 2.74,1.333 3.271,1.552 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 17 CAN Junction Connector) 		*b to Battery ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I223-4 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I223-8 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

31.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 17 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 17 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

31.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 17 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Measure the resistance according to the value(s) in the table below.

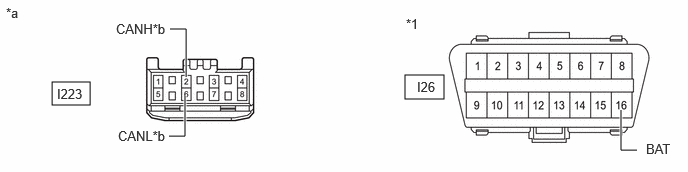

C487980C15
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.771,0.302 1.938,0.302 1.938,0.302 1.938,0.802 true 1.76,1.417 1.927,1.417 1.927,1.417 1.927,1 true 6.635,1.563 6.469,1.563 6.469,1.563 6.469,1.146 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.594,0.896 1.073,1.115 0.479,0.219 10 false I223 4.344,0.823 4.656,1.021 0.313,0.198 10 false I26 6.729,1.469 7.146,1.677 0.417,0.208 10 false BAT 1.208,0.219 1.74,0.438 0.531,0.219 10 false CANH*b 1.229,1.333 1.76,1.552 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 17 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
I223-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I223-6 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

32.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 17 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

NG

33.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 17 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
32.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 17 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C487980C16
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.479,0.302 1.646,0.302 1.646,0.302 1.646,0.802 true 1.479,1.417 1.646,1.417 1.646,1.417 1.646,1 true 6.646,1.552 6.479,1.552 6.479,1.552 6.479,1.135 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.594,0.896 1.073,1.115 0.479,0.219 10 false I223 4.344,0.823 4.656,1.021 0.313,0.198 10 false I26 6.719,1.469 7.021,1.688 0.302,0.219 10 false BAT 0.917,0.219 1.448,0.438 0.531,0.219 10 false CANH*b 0.958,1.333 1.49,1.552 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 17 CAN Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I223-1 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I223-5 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE NO. 17 CAN JUNCTION CONNECTOR

NG

34.CHECK FOR SHORT TO +B IN CAN BUS LINE (INVERTER WITH CONVERTER ASSEMBLY - NO. 17 CAN JUNCTION CONNECTOR)
33.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 17 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Disconnect the I3 hybrid vehicle control ECU connector.


b.

Measure the resistance according to the value(s) in the table below.

C487980C15
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.771,0.302 1.938,0.302 1.938,0.302 1.938,0.802 true 1.76,1.417 1.927,1.417 1.927,1.417 1.927,1 true 6.635,1.563 6.469,1.563 6.469,1.563 6.469,1.146 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.594,0.896 1.073,1.115 0.479,0.219 10 false I223 4.344,0.823 4.656,1.021 0.313,0.198 10 false I26 6.729,1.469 7.146,1.677 0.417,0.208 10 false BAT 1.208,0.219 1.74,0.438 0.531,0.219 10 false CANH*b 1.229,1.333 1.76,1.552 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 17 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
I223-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I223-6 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE HYBRID VEHICLE CONTROL ECU

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID VEHICLE CONTROL ECU>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 17 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

34.CHECK FOR SHORT TO +B IN CAN BUS LINE (INVERTER WITH CONVERTER ASSEMBLY - NO. 17 CAN JUNCTION CONNECTOR)
a.

Disconnect the A140 inverter with converter assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C487966C18
0.156,0.802 0.552,1.042 0.396,0.24 3.333,0.75 3.74,1 0.406,0.25 1.042,0.406 1.958,0.406 1.958,0.406 1.958,0.74 true 5.948,1.531 5.781,1.531 5.781,1.531 5.781,1.115 true 2.969,0.417 2.052,0.417 2.052,0.417 2.052,0.75 true 3.75,0.083 4.063,0.281 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.198,0.833 0.677,1.052 0.479,0.219 10 false A140 3.427,0.781 3.74,0.979 0.313,0.198 10 false I26 6.031,1.448 6.448,1.656 0.417,0.208 10 false BAT 0.458,0.333 0.99,0.552 0.531,0.219 10 false CANH*b 3.052,0.344 3.583,0.563 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to Inverter with Converter Assembly) 		*b to No. 17 CAN Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
A140-5 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A140-6 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

45.CHECK FOR SHORT TO +B IN CAN BUS LINE (INVERTER WITH CONVERTER ASSEMBLY - ECM)

NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (INVERTER WITH CONVERTER ASSEMBLY - NO. 17 CAN JUNCTION CONNECTOR)

35.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 3 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
a.

Disconnect the I176 No. 3 CAN junction connector.


b.

Measure the resistance according to the value(s) in the table below.

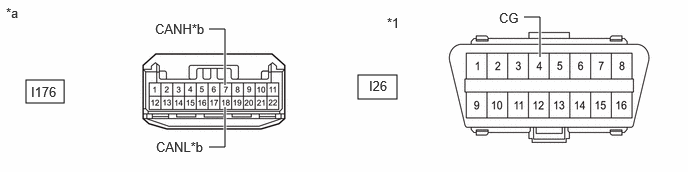

C503911C03
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 1.927,0.302 2.094,0.302 2.094,0.302 2.094,0.885 true 1.927,1.531 2.094,1.531 2.094,1.531 2.094,1.115 true 6.635,1.552 6.469,1.552 6.469,1.552 6.469,1.135 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.323,0.875 0.802,1.094 0.479,0.219 10 false I176 3.844,0.813 4.156,1.01 0.313,0.198 10 false I26 6.677,1.469 7.094,1.677 0.417,0.208 10 false BAT 1.354,0.219 1.885,0.438 0.531,0.219 10 false CANH*b 1.396,1.448 1.927,1.667 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Battery ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I176-5 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I176-16 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

36.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 3 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 3 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

36.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 3 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Measure the resistance according to the value(s) in the table below.

C503911C04
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 2.052,0.302 2.219,0.302 2.219,0.302 2.219,0.885 true 2.052,1.531 2.219,1.531 2.219,1.531 2.219,1.115 true 6.635,1.552 6.469,1.552 6.469,1.552 6.469,1.135 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.323,0.875 0.802,1.094 0.479,0.219 10 false I176 3.844,0.813 4.156,1.01 0.313,0.198 10 false I26 6.677,1.469 7.094,1.677 0.417,0.208 10 false BAT 1.479,0.219 2.01,0.438 0.531,0.219 10 false CANH*b 1.51,1.448 2.042,1.667 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
I176-6 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I176-17 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

37.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 3 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

NG

38.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 3 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
37.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 3 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

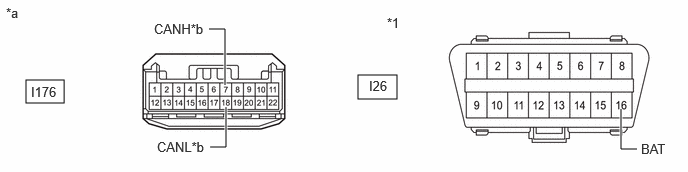

C503911C05
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 2.177,0.302 2.344,0.302 2.344,0.302 2.344,0.885 true 2.188,1.531 2.354,1.531 2.354,1.531 2.354,1.115 true 6.635,1.552 6.469,1.552 6.469,1.552 6.469,1.135 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.323,0.875 0.802,1.094 0.479,0.219 10 false I176 3.844,0.813 4.156,1.01 0.313,0.198 10 false I26 6.677,1.469 7.094,1.677 0.417,0.208 10 false BAT 1.604,0.219 2.135,0.438 0.531,0.219 10 false CANH*b 1.635,1.448 2.167,1.667 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I176-7 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I176-18 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE NO. 3 CAN JUNCTION CONNECTOR

NG

39.CHECK FOR SHORT TO +B IN CAN BUS LINE (INVERTER WITH CONVERTER ASSEMBLY - NO. 3 CAN JUNCTION CONNECTOR)
38.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 3 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Disconnect the I3 hybrid vehicle control ECU connector.


b.

Measure the resistance according to the value(s) in the table below.

C503911C04
0.271,0.833 0.667,1.073 0.396,0.24 3.729,0.781 4.135,1.031 0.406,0.25 2.052,0.302 2.219,0.302 2.219,0.302 2.219,0.885 true 2.052,1.531 2.219,1.531 2.219,1.531 2.219,1.115 true 6.635,1.552 6.469,1.552 6.469,1.552 6.469,1.135 true 4.031,0.156 4.344,0.354 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.323,0.875 0.802,1.094 0.479,0.219 10 false I176 3.844,0.813 4.156,1.01 0.313,0.198 10 false I26 6.677,1.469 7.094,1.677 0.417,0.208 10 false BAT 1.479,0.219 2.01,0.438 0.531,0.219 10 false CANH*b 1.51,1.448 2.042,1.667 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
I176-6 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I176-17 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE HYBRID VEHICLE CONTROL ECU

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID VEHICLE CONTROL ECU>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 3 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

39.CHECK FOR SHORT TO +B IN CAN BUS LINE (INVERTER WITH CONVERTER ASSEMBLY - NO. 3 CAN JUNCTION CONNECTOR)
a.

Disconnect the A140 inverter with converter assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C487966C18
0.156,0.802 0.552,1.042 0.396,0.24 3.333,0.75 3.74,1 0.406,0.25 1.042,0.406 1.958,0.406 1.958,0.406 1.958,0.74 true 5.948,1.531 5.781,1.531 5.781,1.531 5.781,1.115 true 2.969,0.417 2.052,0.417 2.052,0.417 2.052,0.75 true 3.75,0.083 4.063,0.281 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.198,0.833 0.677,1.052 0.479,0.219 10 false A140 3.427,0.781 3.74,0.979 0.313,0.198 10 false I26 6.031,1.448 6.448,1.656 0.417,0.208 10 false BAT 0.458,0.333 0.99,0.552 0.531,0.219 10 false CANH*b 3.052,0.344 3.583,0.563 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to Inverter with Converter Assembly) 		*b to No. 3 CAN Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
A140-5 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A140-6 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

45.CHECK FOR SHORT TO +B IN CAN BUS LINE (INVERTER WITH CONVERTER ASSEMBLY - ECM)

NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (INVERTER WITH CONVERTER ASSEMBLY - NO. 3 CAN JUNCTION CONNECTOR)

40.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 17 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
a.

Disconnect the I223 No. 17 CAN junction connector.


b.

Measure the resistance according to the value(s) in the table below.

C487980C16
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.479,0.302 1.646,0.302 1.646,0.302 1.646,0.802 true 1.479,1.417 1.646,1.417 1.646,1.417 1.646,1 true 6.646,1.552 6.479,1.552 6.479,1.552 6.479,1.135 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.594,0.896 1.073,1.115 0.479,0.219 10 false I223 4.344,0.823 4.656,1.021 0.313,0.198 10 false I26 6.719,1.469 7.021,1.688 0.302,0.219 10 false BAT 0.917,0.219 1.448,0.438 0.531,0.219 10 false CANH*b 0.958,1.333 1.49,1.552 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 17 CAN Junction Connector) 		*b to Battery ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I223-1 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I223-5 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

41.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 17 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 17 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

41.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 17 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Measure the resistance according to the value(s) in the table below.

C487980C15
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.771,0.302 1.938,0.302 1.938,0.302 1.938,0.802 true 1.76,1.417 1.927,1.417 1.927,1.417 1.927,1 true 6.635,1.563 6.469,1.563 6.469,1.563 6.469,1.146 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.594,0.896 1.073,1.115 0.479,0.219 10 false I223 4.344,0.823 4.656,1.021 0.313,0.198 10 false I26 6.729,1.469 7.146,1.677 0.417,0.208 10 false BAT 1.208,0.219 1.74,0.438 0.531,0.219 10 false CANH*b 1.229,1.333 1.76,1.552 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 17 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
I223-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I223-6 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

42.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 17 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

NG

43.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 17 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
42.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 17 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C503904C85
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.385,0.302 2.219,0.302 2.219,0.302 2.219,0.802 true 2.396,1.427 2.229,1.427 2.229,1.427 2.229,1.01 true 6.646,1.542 6.479,1.542 6.479,1.542 6.479,1.125 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.594,0.896 1.073,1.115 0.479,0.219 10 false I223 4.344,0.823 4.656,1.021 0.313,0.198 10 false I26 6.719,1.458 7.052,1.677 0.333,0.219 10 false BAT 2.469,0.219 3,0.438 0.531,0.219 10 false CANH*b 2.458,1.333 2.99,1.552 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 17 CAN Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I223-3 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I223-7 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE NO. 17 CAN JUNCTION CONNECTOR

NG

44.CHECK FOR SHORT TO +B IN CAN BUS LINE (INVERTER WITH CONVERTER ASSEMBLY - NO. 17 CAN JUNCTION CONNECTOR)
43.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 17 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Disconnect the I3 hybrid vehicle control ECU connector.


b.

Measure the resistance according to the value(s) in the table below.

C487980C15
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.771,0.302 1.938,0.302 1.938,0.302 1.938,0.802 true 1.76,1.417 1.927,1.417 1.927,1.417 1.927,1 true 6.635,1.563 6.469,1.563 6.469,1.563 6.469,1.146 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.594,0.896 1.073,1.115 0.479,0.219 10 false I223 4.344,0.823 4.656,1.021 0.313,0.198 10 false I26 6.729,1.469 7.146,1.677 0.417,0.208 10 false BAT 1.208,0.219 1.74,0.438 0.531,0.219 10 false CANH*b 1.229,1.333 1.76,1.552 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 17 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
I223-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I223-6 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE HYBRID VEHICLE CONTROL ECU

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID VEHICLE CONTROL ECU>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 17 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

44.CHECK FOR SHORT TO +B IN CAN BUS LINE (INVERTER WITH CONVERTER ASSEMBLY - NO. 17 CAN JUNCTION CONNECTOR)
a.

Disconnect the A140 inverter with converter assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C487966C18
0.156,0.802 0.552,1.042 0.396,0.24 3.333,0.75 3.74,1 0.406,0.25 1.042,0.406 1.958,0.406 1.958,0.406 1.958,0.74 true 5.948,1.531 5.781,1.531 5.781,1.531 5.781,1.115 true 2.969,0.417 2.052,0.417 2.052,0.417 2.052,0.75 true 3.75,0.083 4.063,0.281 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.198,0.833 0.677,1.052 0.479,0.219 10 false A140 3.427,0.781 3.74,0.979 0.313,0.198 10 false I26 6.031,1.448 6.448,1.656 0.417,0.208 10 false BAT 0.458,0.333 0.99,0.552 0.531,0.219 10 false CANH*b 3.052,0.344 3.583,0.563 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to Inverter with Converter Assembly) 		*b to No. 17 CAN Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
A140-5 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A140-6 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

45.CHECK FOR SHORT TO +B IN CAN BUS LINE (INVERTER WITH CONVERTER ASSEMBLY - ECM)

NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (INVERTER WITH CONVERTER ASSEMBLY - NO. 17 CAN JUNCTION CONNECTOR)

45.CHECK FOR SHORT TO +B IN CAN BUS LINE (INVERTER WITH CONVERTER ASSEMBLY - ECM)
a.

Measure the resistance according to the value(s) in the table below.

C487966C19
0.156,0.802 0.552,1.042 0.396,0.24 3.333,0.75 3.74,1 0.406,0.25 1.042,0.51 1.958,0.51 1.958,0.51 1.958,0.844 true 5.948,1.542 5.781,1.542 5.781,1.542 5.781,1.125 true 2.969,0.51 2.052,0.51 2.052,0.51 2.052,0.844 true 3.75,0.083 4.063,0.281 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.208,0.833 0.688,1.052 0.479,0.219 10 false A140 3.438,0.781 3.75,0.979 0.313,0.198 10 false I26 6.021,1.458 6.438,1.667 0.417,0.208 10 false BAT 0.458,0.417 1.135,0.656 0.677,0.24 10 false CADH*b 3.052,0.438 3.583,0.656 0.531,0.219 10 false CADL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to Inverter with Converter Assembly) 		*b to ECM


Standard Resistance:
Tester Connection Condition Specified Condition
A140-13 (CADH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A140-14 (CADL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE INVERTER WITH CONVERTER ASSEMBLY
·

for 8ZR-FXE

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>8ZR-FXE INVERTER WITH CONVERTER>REMOVAL

·

for M20F-FXS or M20G-FXS

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>M20F-FXS, M20G-FXS INVERTER WITH CONVERTER>REMOVAL



NG

46.CHECK FOR SHORT TO +B IN CAN BUS LINE (INVERTER WITH CONVERTER ASSEMBLY - ECM)
46.CHECK FOR SHORT TO +B IN CAN BUS LINE (INVERTER WITH CONVERTER ASSEMBLY - ECM)
a.

Disconnect the A46 or A125 ECM connector.


b.

Measure the resistance according to the value(s) in the table below.

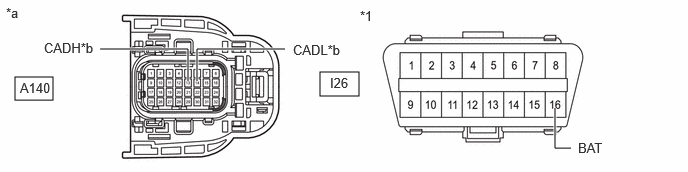

C487966C19
0.156,0.802 0.552,1.042 0.396,0.24 3.333,0.75 3.74,1 0.406,0.25 1.042,0.51 1.958,0.51 1.958,0.51 1.958,0.844 true 5.948,1.542 5.781,1.542 5.781,1.542 5.781,1.125 true 2.969,0.51 2.052,0.51 2.052,0.51 2.052,0.844 true 3.75,0.083 4.063,0.281 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.208,0.833 0.688,1.052 0.479,0.219 10 false A140 3.438,0.781 3.75,0.979 0.313,0.198 10 false I26 6.021,1.458 6.438,1.667 0.417,0.208 10 false BAT 0.458,0.417 1.135,0.656 0.677,0.24 10 false CADH*b 3.052,0.438 3.583,0.656 0.531,0.219 10 false CADL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to Inverter with Converter Assembly) 		*b to ECM


Standard Resistance:
Tester Connection Condition Specified Condition
A140-13 (CADH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A140-14 (CADL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE ECM
·

for 8ZR-FXE

Click hereEngine / Hybrid System>8ZR-FXE (ENGINE CONTROL)>ECM>REMOVAL

·

for M20F-FXS or M20G-FXS

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>ECM>REMOVAL



NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (INVERTER WITH CONVERTER ASSEMBLY - ECM)

47.CHECK FOR SHORT IN CAN BUS LINES (BATTERY ECU ASSEMBLY - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the O167 battery ECU assembly connector.


b.
C461844C25
0.073,1.115 0.51,1.385 0.438,0.271 1.792,0.313 1.958,0.313 1.958,0.313 1.958,1.146 true 2.302,0.302 2.135,0.302 2.135,0.302 2.135,1.135 true 0.135,0.125 0.448,0.323 0.313,0.198 10 false *a 0.146,1.156 0.604,1.479 0.458,0.323 10 false O167 2.385,0.229 3.167,0.563 0.781,0.333 10 false CA2H*b 1.25,0.24 2.031,0.573 0.781,0.333 10 false CA2L*b
*a Front view of wire harness connector
(to Battery ECU Assembly)
*b to Central Gateway ECU (Network Gateway ECU)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
O167-9 (CA2H) - O167-8 (CA2L) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

48.CHECK FOR SHORT IN CAN BUS LINES (BATTERY ECU ASSEMBLY - NO. 3 CAN JUNCTION CONNECTOR OR NO. 17 CAN JUNCTION CONNECTOR)

NG

49.CHECK FOR SHORT IN CAN BUS LINES (BATTERY ECU ASSEMBLY - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
48.CHECK FOR SHORT IN CAN BUS LINES (BATTERY ECU ASSEMBLY - NO. 3 CAN JUNCTION CONNECTOR OR NO. 17 CAN JUNCTION CONNECTOR)
a.
C461844C26
0.073,1.115 0.51,1.385 0.438,0.271 1.646,1.917 1.813,1.917 1.813,1.917 1.813,1.5 true 2.135,1.917 1.969,1.917 1.969,1.917 1.969,1.5 true 0.135,0.125 0.448,0.323 0.313,0.198 10 false *a 0.125,1.156 0.583,1.479 0.458,0.323 10 false O167 2.219,1.844 2.938,2.094 0.719,0.25 10 false C2HB*b 1.125,1.865 1.677,2.094 0.552,0.229 10 false C2LB*b
*a Front view of wire harness connector
(to Battery ECU Assembly)
*b to No. 3 CAN Junction Connector or No. 17 CAN Junction Connector


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
O167-20 (C2HB) - O167-19 (C2LB) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE BATTERY ECU ASSEMBLY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>BATTERY ECU (for LITHIUM-ION BATTERY)>REMOVAL


NG

50.CHECK VEHICLE TYPE
49.CHECK FOR SHORT IN CAN BUS LINES (BATTERY ECU ASSEMBLY - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the I207 central gateway ECU (network gateway ECU) connector.


b.
C461844C25
0.073,1.115 0.51,1.385 0.438,0.271 1.792,0.313 1.958,0.313 1.958,0.313 1.958,1.146 true 2.302,0.302 2.135,0.302 2.135,0.302 2.135,1.135 true 0.135,0.125 0.448,0.323 0.313,0.198 10 false *a 0.146,1.156 0.604,1.479 0.458,0.323 10 false O167 2.385,0.229 3.167,0.563 0.781,0.333 10 false CA2H*b 1.25,0.24 2.031,0.573 0.781,0.333 10 false CA2L*b
*a Front view of wire harness connector
(to Battery ECU Assembly)
*b to Central Gateway ECU (Network Gateway ECU)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
O167-9 (CA2H) - O167-8 (CA2L) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher



Result:
Result
OK
NG



OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Click herePower Source / Network>NETWORKING>NETWORK GATEWAY ECU>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (BATTERY ECU ASSEMBLY - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

50.CHECK VEHICLE TYPE
a.

Check vehicle type.


Result:
Result Proceed to
for 8ZR-FXE (GTMC Made) A
for 8ZR-FXE (TFTM Made) or M20G-FXS B
for M20F-FXS C



A

51.CHECK FOR SHORT IN CAN BUS LINES (NO. 17 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

B

56.CHECK FOR SHORT IN CAN BUS LINES (NO. 3 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

C

61.CHECK FOR SHORT IN CAN BUS LINES (NO. 17 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
51.CHECK FOR SHORT IN CAN BUS LINES (NO. 17 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
a.

Reconnect the O167 battery ECU assembly connector.


b.

Disconnect the I223 No. 17 CAN junction connector.


c.

Measure the resistance according to the value(s) in the table below.

C487958C25
0.896,0.823 1.292,1.083 0.396,0.26 4.021,1.01 4.021,1.427 4.021,1.427 4.188,1.427 true 4.01,0.792 4.01,0.292 4.01,0.292 4.177,0.292 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.958,0.875 1.333,1.063 0.375,0.188 10 false I223 4.24,0.198 4.948,0.438 0.708,0.24 10 false CANH*b 4.26,1.344 4.885,1.563 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 17 CAN Junction Connector) 		*b to Battery ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I223-4 (CANH) - I223-8 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

52.CHECK FOR SHORT IN CAN BUS LINES (NO. 17 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 17 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

52.CHECK FOR SHORT IN CAN BUS LINES (NO. 17 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Measure the resistance according to the value(s) in the table below.

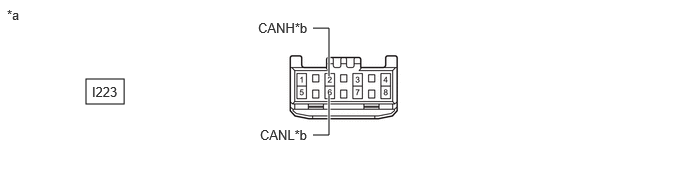

C487958C26
0.896,0.823 1.292,1.083 0.396,0.26 3.427,0.99 3.427,1.406 3.427,1.406 3.26,1.406 true 3.427,0.792 3.427,0.292 3.427,0.292 3.26,0.292 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.958,0.875 1.333,1.063 0.375,0.188 10 false I223 2.688,0.208 3.396,0.448 0.708,0.24 10 false CANH*b 2.708,1.323 3.333,1.542 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 17 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
I223-2 (CANH) - I223-6 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher



Result:
Result
OK
NG



OK

53.CHECK FOR SHORT IN CAN BUS LINES (NO. 17 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

NG

54.CHECK FOR SHORT IN CAN BUS LINES (NO. 17 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
53.CHECK FOR SHORT IN CAN BUS LINES (NO. 17 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C487958C27
0.896,0.823 1.292,1.083 0.396,0.26 3.135,0.99 3.135,1.406 3.135,1.406 2.969,1.406 true 3.135,0.792 3.135,0.292 3.135,0.292 2.969,0.292 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.958,0.875 1.333,1.063 0.375,0.188 10 false I223 2.406,0.208 3.115,0.448 0.708,0.24 10 false CANH*b 2.417,1.323 3.042,1.542 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 17 CAN Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I223-1 (CANH) - I223-5 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE NO. 17 CAN JUNCTION CONNECTOR

NG

55.CHECK FOR SHORT IN CAN BUS LINES (INVERTER WITH CONVERTER ASSEMBLY - NO. 17 CAN JUNCTION CONNECTOR)
54.CHECK FOR SHORT IN CAN BUS LINES (NO. 17 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Disconnect the I3 hybrid vehicle control ECU connector.


b.

Measure the resistance according to the value(s) in the table below.

C487958C26
0.896,0.823 1.292,1.083 0.396,0.26 3.427,0.99 3.427,1.406 3.427,1.406 3.26,1.406 true 3.427,0.792 3.427,0.292 3.427,0.292 3.26,0.292 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.958,0.875 1.333,1.063 0.375,0.188 10 false I223 2.688,0.208 3.396,0.448 0.708,0.24 10 false CANH*b 2.708,1.323 3.333,1.542 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 17 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
I223-2 (CANH) - I223-6 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher



Result:
Result
OK
NG



OK

REPLACE HYBRID VEHICLE CONTROL ECU

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID VEHICLE CONTROL ECU>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 17 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

55.CHECK FOR SHORT IN CAN BUS LINES (INVERTER WITH CONVERTER ASSEMBLY - NO. 17 CAN JUNCTION CONNECTOR)
a.

Reconnect the I223 No. 17 CAN junction connector.


b.

Disconnect the A140 inverter with converter assembly connector.


c.
C487960C15
0.115,1.719 0.542,1.979 0.427,0.26 1.417,0.417 1.583,0.417 1.583,0.417 1.583,1.583 true 1.896,0.417 1.729,0.417 1.729,0.417 1.729,1.583 true 0.115,0.104 0.427,0.302 0.313,0.198 10 false *a 0.833,0.344 1.542,0.688 0.708,0.344 10 false CANH*b 0.177,1.76 0.719,2.01 0.542,0.25 10 false A140 1.969,0.333 2.677,0.677 0.708,0.344 10 false CANL*b
*a Front view of wire harness connector
(to Inverter with Converter Assembly)
*b to No. 17 CAN Junction Connector


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
A140-5 (CANH) - A140-6 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

66.CHECK FOR SHORT IN CAN BUS LINES (INVERTER WITH CONVERTER ASSEMBLY - ECM)

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (INVERTER WITH CONVERTER ASSEMBLY - NO. 17 CAN JUNCTION CONNECTOR)

56.CHECK FOR SHORT IN CAN BUS LINES (NO. 3 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
a.

Reconnect the O167 battery ECU assembly connector.


b.

Disconnect the I176 No. 3 CAN junction connector.


c.

Measure the resistance according to the value(s) in the table below.

C503899C15
2.031,0.823 2.458,1.073 0.427,0.25 3.26,0.208 3.427,0.208 3.427,0.208 3.427,0.844 true 3.281,1.448 3.448,1.448 3.448,1.448 3.448,1.031 true 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 2.115,0.875 2.51,1.104 0.396,0.229 10 false I176 2.698,0.125 3.365,0.354 0.667,0.229 10 false CANH*b 2.75,1.365 3.385,1.573 0.635,0.208 10 false CANL*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Battery ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I176-5 (CANH) - I176-16 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

57.CHECK FOR SHORT IN CAN BUS LINES (NO. 3 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 3 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

57.CHECK FOR SHORT IN CAN BUS LINES (NO. 3 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Measure the resistance according to the value(s) in the table below.

C503899C16
2.031,0.823 2.458,1.073 0.427,0.25 3.396,0.208 3.563,0.208 3.563,0.208 3.563,0.844 true 3.396,1.448 3.563,1.448 3.563,1.448 3.563,1.031 true 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 2.115,0.875 2.51,1.104 0.396,0.229 10 false I176 2.833,0.125 3.5,0.354 0.667,0.229 10 false CANH*b 2.854,1.365 3.49,1.573 0.635,0.208 10 false CANL*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
I176-6 (CANH) - I176-17 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher



Result:
Result
OK
NG



OK

58.CHECK FOR SHORT IN CAN BUS LINES (NO. 3 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

NG

59.CHECK FOR SHORT IN CAN BUS LINES (NO. 3 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
58.CHECK FOR SHORT IN CAN BUS LINES (NO. 3 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C503899C17
2.031,0.823 2.458,1.073 0.427,0.25 3.521,0.208 3.688,0.208 3.688,0.208 3.688,0.844 true 3.521,1.448 3.688,1.448 3.688,1.448 3.688,1.031 true 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 2.115,0.875 2.51,1.104 0.396,0.229 10 false I176 2.958,0.125 3.625,0.354 0.667,0.229 10 false CANH*b 2.979,1.365 3.615,1.573 0.635,0.208 10 false CANL*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I176-7 (CANH) - I176-18 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE NO. 3 CAN JUNCTION CONNECTOR

NG

60.CHECK FOR SHORT IN CAN BUS LINES (INVERTER WITH CONVERTER ASSEMBLY - NO. 3 CAN JUNCTION CONNECTOR)
59.CHECK FOR SHORT IN CAN BUS LINES (NO. 3 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Disconnect the I3 hybrid vehicle control ECU connector.


b.

Measure the resistance according to the value(s) in the table below.

C503899C16
2.031,0.823 2.458,1.073 0.427,0.25 3.396,0.208 3.563,0.208 3.563,0.208 3.563,0.844 true 3.396,1.448 3.563,1.448 3.563,1.448 3.563,1.031 true 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 2.115,0.875 2.51,1.104 0.396,0.229 10 false I176 2.833,0.125 3.5,0.354 0.667,0.229 10 false CANH*b 2.854,1.365 3.49,1.573 0.635,0.208 10 false CANL*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
I176-6 (CANH) - I176-17 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher



Result:
Result
OK
NG



OK

REPLACE HYBRID VEHICLE CONTROL ECU

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID VEHICLE CONTROL ECU>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 3 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

60.CHECK FOR SHORT IN CAN BUS LINES (INVERTER WITH CONVERTER ASSEMBLY - NO. 3 CAN JUNCTION CONNECTOR)
a.

Reconnect the I176 No. 3 CAN junction connector.


b.

Disconnect the A140 inverter with converter assembly connector.


c.
C487960C15
0.115,1.719 0.542,1.979 0.427,0.26 1.417,0.417 1.583,0.417 1.583,0.417 1.583,1.583 true 1.896,0.417 1.729,0.417 1.729,0.417 1.729,1.583 true 0.115,0.104 0.427,0.302 0.313,0.198 10 false *a 0.833,0.344 1.542,0.688 0.708,0.344 10 false CANH*b 0.177,1.76 0.719,2.01 0.542,0.25 10 false A140 1.969,0.333 2.677,0.677 0.708,0.344 10 false CANL*b
*a Front view of wire harness connector
(to Inverter with Converter Assembly)
*b to No. 3 CAN Junction Connector


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
A140-5 (CANH) - A140-6 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

66.CHECK FOR SHORT IN CAN BUS LINES (INVERTER WITH CONVERTER ASSEMBLY - ECM)

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (INVERTER WITH CONVERTER ASSEMBLY - NO. 3 CAN JUNCTION CONNECTOR)

61.CHECK FOR SHORT IN CAN BUS LINES (NO. 17 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
a.

Reconnect the O167 battery ECU assembly connector.


b.

Disconnect the I223 No. 17 CAN junction connector.


c.

Measure the resistance according to the value(s) in the table below.

C487958C27
0.896,0.823 1.292,1.083 0.396,0.26 3.135,0.99 3.135,1.406 3.135,1.406 2.969,1.406 true 3.135,0.792 3.135,0.292 3.135,0.292 2.969,0.292 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.958,0.875 1.333,1.063 0.375,0.188 10 false I223 2.406,0.208 3.115,0.448 0.708,0.24 10 false CANH*b 2.417,1.323 3.042,1.542 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 17 CAN Junction Connector) 		*b to Battery ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I223-1 (CANH) - I223-5 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

62.CHECK FOR SHORT IN CAN BUS LINES (NO. 17 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 17 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

62.CHECK FOR SHORT IN CAN BUS LINES (NO. 17 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Measure the resistance according to the value(s) in the table below.

C487958C26
0.896,0.823 1.292,1.083 0.396,0.26 3.427,0.99 3.427,1.406 3.427,1.406 3.26,1.406 true 3.427,0.792 3.427,0.292 3.427,0.292 3.26,0.292 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.958,0.875 1.333,1.063 0.375,0.188 10 false I223 2.688,0.208 3.396,0.448 0.708,0.24 10 false CANH*b 2.708,1.323 3.333,1.542 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 17 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
I223-2 (CANH) - I223-6 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher



Result:
Result
OK
NG



OK

63.CHECK FOR SHORT IN CAN BUS LINES (NO. 17 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

NG

64.CHECK FOR SHORT IN CAN BUS LINES (NO. 17 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
63.CHECK FOR SHORT IN CAN BUS LINES (NO. 17 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C503898C43
0.896,0.823 1.292,1.083 0.396,0.26 3.719,1.01 3.719,1.427 3.719,1.427 3.885,1.427 true 3.719,0.792 3.719,0.292 3.719,0.292 3.885,0.292 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.958,0.875 1.333,1.063 0.375,0.188 10 false I223 3.938,0.198 4.646,0.438 0.708,0.24 10 false CANH*b 3.948,1.344 4.573,1.563 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 17 CAN Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I223-3 (CANH) - I223-7 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE NO. 17 CAN JUNCTION CONNECTOR

NG

65.CHECK FOR SHORT IN CAN BUS LINES (INVERTER WITH CONVERTER ASSEMBLY - NO. 17 CAN JUNCTION CONNECTOR)
64.CHECK FOR SHORT IN CAN BUS LINES (NO. 17 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Disconnect the I3 hybrid vehicle control ECU connector.


b.

Measure the resistance according to the value(s) in the table below.

C487958C26
0.896,0.823 1.292,1.083 0.396,0.26 3.427,0.99 3.427,1.406 3.427,1.406 3.26,1.406 true 3.427,0.792 3.427,0.292 3.427,0.292 3.26,0.292 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.958,0.875 1.333,1.063 0.375,0.188 10 false I223 2.688,0.208 3.396,0.448 0.708,0.24 10 false CANH*b 2.708,1.323 3.333,1.542 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 17 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
I223-2 (CANH) - I223-6 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher



Result:
Result
OK
NG



OK

REPLACE HYBRID VEHICLE CONTROL ECU

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID VEHICLE CONTROL ECU>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 17 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

65.CHECK FOR SHORT IN CAN BUS LINES (INVERTER WITH CONVERTER ASSEMBLY - NO. 17 CAN JUNCTION CONNECTOR)
a.

Reconnect the I223 No. 17 CAN junction connector.


b.

Disconnect the A140 inverter with converter assembly connector.


c.
C487960C15
0.115,1.719 0.542,1.979 0.427,0.26 1.417,0.417 1.583,0.417 1.583,0.417 1.583,1.583 true 1.896,0.417 1.729,0.417 1.729,0.417 1.729,1.583 true 0.115,0.104 0.427,0.302 0.313,0.198 10 false *a 0.833,0.344 1.542,0.688 0.708,0.344 10 false CANH*b 0.177,1.76 0.719,2.01 0.542,0.25 10 false A140 1.969,0.333 2.677,0.677 0.708,0.344 10 false CANL*b
*a Front view of wire harness connector
(to Inverter with Converter Assembly)
*b to No. 17 CAN Junction Connector


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
A140-5 (CANH) - A140-6 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

66.CHECK FOR SHORT IN CAN BUS LINES (INVERTER WITH CONVERTER ASSEMBLY - ECM)

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (INVERTER WITH CONVERTER ASSEMBLY - NO. 17 CAN JUNCTION CONNECTOR)

66.CHECK FOR SHORT IN CAN BUS LINES (INVERTER WITH CONVERTER ASSEMBLY - ECM)
a.
C487960C16
0.115,1.719 0.542,1.979 0.427,0.26 1.406,0.406 1.573,0.406 1.573,0.406 1.573,1.74 true 1.896,0.417 1.729,0.417 1.729,0.417 1.729,1.75 true 0.115,0.104 0.427,0.302 0.313,0.198 10 false *a 0.833,0.344 1.542,0.688 0.708,0.344 10 false CADH*b 0.177,1.76 0.583,2 0.406,0.24 10 false A140 1.969,0.333 2.677,0.677 0.708,0.344 10 false CADL*b
*a Front view of wire harness connector
(to Inverter with Converter Assembly)
*b to ECM


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
A140-13 (CADH) - A140-14 (CADL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE INVERTER WITH CONVERTER ASSEMBLY
·

for 8ZR-FXE

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>8ZR-FXE INVERTER WITH CONVERTER>REMOVAL

·

for M20F-FXS or M20G-FXS

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>M20F-FXS, M20G-FXS INVERTER WITH CONVERTER>REMOVAL



NG

67.CHECK FOR SHORT IN CAN BUS LINES (INVERTER WITH CONVERTER ASSEMBLY - ECM)
67.CHECK FOR SHORT IN CAN BUS LINES (INVERTER WITH CONVERTER ASSEMBLY - ECM)
a.

Disconnect the A46 or A125 ECM connector.


b.
C487960C16
0.115,1.719 0.542,1.979 0.427,0.26 1.406,0.406 1.573,0.406 1.573,0.406 1.573,1.74 true 1.896,0.417 1.729,0.417 1.729,0.417 1.729,1.75 true 0.115,0.104 0.427,0.302 0.313,0.198 10 false *a 0.833,0.344 1.542,0.688 0.708,0.344 10 false CADH*b 0.177,1.76 0.583,2 0.406,0.24 10 false A140 1.969,0.333 2.677,0.677 0.708,0.344 10 false CADL*b
*a Front view of wire harness connector
(to Inverter with Converter Assembly)
*b to ECM


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
A140-13 (CADH) - A140-14 (CADL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher



Result:
Result
OK
NG



OK

REPLACE ECM
·

for 8ZR-FXE

Click hereEngine / Hybrid System>8ZR-FXE (ENGINE CONTROL)>ECM>REMOVAL

·

for M20F-FXS or M20G-FXS

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>ECM>REMOVAL



NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (INVERTER WITH CONVERTER ASSEMBLY - ECM)

68.CHECK FOR OPEN IN CAN MAIN BUS LINES (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Disconnect the I207 central gateway ECU (network gateway ECU) connector.


b.
C506180C02
1.427,0.5 1.854,0.719 0.427,0.219 1.302,2.042 1.302,2.875 1.302,2.875 1.469,2.875 true 1.188,2.042 1.188,2.875 1.188,2.875 1.021,2.875 true 1.531,0.531 1.99,0.729 0.458,0.198 10 false I207 1.552,2.802 2.01,3.01 0.458,0.208 10 false CA4H 0.635,2.802 1.094,3.01 0.458,0.208 10 false CA4L 0.156,0.104 0.615,0.302 0.458,0.198 10 false *a
*a Front view of wire harness connector
(to Central Gateway ECU (Network Gateway ECU))


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I207-26 (CA4H) - I207-25 (CA4L) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Click herePower Source / Network>NETWORKING>NETWORK GATEWAY ECU>REMOVAL


NG

69.CHECK FOR OPEN IN CAN MAIN BUS LINES (BATTERY ECU ASSEMBLY - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
69.CHECK FOR OPEN IN CAN MAIN BUS LINES (BATTERY ECU ASSEMBLY - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
a.

Reconnect the I207 central gateway ECU (network gateway ECU) connector.


b.

Disconnect the O167 battery ECU assembly connector.


c.
C461844C25
0.073,1.115 0.51,1.385 0.438,0.271 1.792,0.313 1.958,0.313 1.958,0.313 1.958,1.146 true 2.302,0.302 2.135,0.302 2.135,0.302 2.135,1.135 true 0.135,0.125 0.448,0.323 0.313,0.198 10 false *a 0.146,1.156 0.604,1.479 0.458,0.323 10 false O167 2.385,0.229 3.167,0.563 0.781,0.333 10 false CA2H*b 1.25,0.24 2.031,0.573 0.781,0.333 10 false CA2L*b
*a Front view of wire harness connector
(to Battery ECU Assembly)
*b to Central Gateway ECU (Network Gateway ECU)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
O167-9 (CA2H) - O167-8 (CA2L) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

70.CHECK FOR OPEN IN CAN MAIN BUS LINES (BATTERY ECU ASSEMBLY - NO. 3 CAN JUNCTION CONNECTOR OR NO. 17 CAN JUNCTION CONNECTOR)

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (BATTERY ECU ASSEMBLY - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

70.CHECK FOR OPEN IN CAN MAIN BUS LINES (BATTERY ECU ASSEMBLY - NO. 3 CAN JUNCTION CONNECTOR OR NO. 17 CAN JUNCTION CONNECTOR)
a.
C461844C26
0.073,1.115 0.51,1.385 0.438,0.271 1.646,1.917 1.813,1.917 1.813,1.917 1.813,1.5 true 2.135,1.917 1.969,1.917 1.969,1.917 1.969,1.5 true 0.135,0.125 0.448,0.323 0.313,0.198 10 false *a 0.125,1.156 0.583,1.479 0.458,0.323 10 false O167 2.219,1.844 2.938,2.094 0.719,0.25 10 false C2HB*b 1.125,1.865 1.677,2.094 0.552,0.229 10 false C2LB*b
*a Front view of wire harness connector
(to Battery ECU Assembly)
*b to No. 3 CAN Junction Connector or No. 17 CAN Junction Connector


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
O167-20 (C2HB) - O167-19 (C2LB) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE BATTERY ECU ASSEMBLY

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>BATTERY ECU (for LITHIUM-ION BATTERY)>REMOVAL


NG

71.CHECK VEHICLE TYPE
71.CHECK VEHICLE TYPE
a.

Check vehicle type.


Result:
Result Proceed to
for 8ZR-FXE (GTMC Made) A
for 8ZR-FXE (TFTM Made) or M20G-FXS B
for M20F-FXS C



A

72.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 17 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

B

75.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 3 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

C

78.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 17 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
72.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 17 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
a.

Reconnect the O167 battery ECU assembly connector.


b.

Disconnect the I223 No. 17 CAN junction connector.


c.

Measure the resistance according to the value(s) in the table below.

C487958C25
0.896,0.823 1.292,1.083 0.396,0.26 4.021,1.01 4.021,1.427 4.021,1.427 4.188,1.427 true 4.01,0.792 4.01,0.292 4.01,0.292 4.177,0.292 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.958,0.875 1.333,1.063 0.375,0.188 10 false I223 4.24,0.198 4.948,0.438 0.708,0.24 10 false CANH*b 4.26,1.344 4.885,1.563 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 17 CAN Junction Connector) 		*b to Battery ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I223-4 (CANH) - I223-8 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

73.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 17 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 17 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

73.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 17 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C487958C27
0.896,0.823 1.292,1.083 0.396,0.26 3.135,0.99 3.135,1.406 3.135,1.406 2.969,1.406 true 3.135,0.792 3.135,0.292 3.135,0.292 2.969,0.292 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.958,0.875 1.333,1.063 0.375,0.188 10 false I223 2.406,0.208 3.115,0.448 0.708,0.24 10 false CANH*b 2.417,1.323 3.042,1.542 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 17 CAN Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I223-1 (CANH) - I223-5 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE NO. 17 CAN JUNCTION CONNECTOR

NG

74.CHECK FOR OPEN IN CAN MAIN BUS LINES (INVERTER WITH CONVERTER ASSEMBLY - NO. 17 CAN JUNCTION CONNECTOR)
74.CHECK FOR OPEN IN CAN MAIN BUS LINES (INVERTER WITH CONVERTER ASSEMBLY - NO. 17 CAN JUNCTION CONNECTOR)
a.

Reconnect the I223 No. 17 CAN junction connector.


b.

Disconnect the A140 inverter with converter assembly connector.


c.
C487960C15
0.115,1.719 0.542,1.979 0.427,0.26 1.417,0.417 1.583,0.417 1.583,0.417 1.583,1.583 true 1.896,0.417 1.729,0.417 1.729,0.417 1.729,1.583 true 0.115,0.104 0.427,0.302 0.313,0.198 10 false *a 0.833,0.344 1.542,0.688 0.708,0.344 10 false CANH*b 0.177,1.76 0.719,2.01 0.542,0.25 10 false A140 1.969,0.333 2.677,0.677 0.708,0.344 10 false CANL*b
*a Front view of wire harness connector
(to Inverter with Converter Assembly)
*b to No. 17 CAN Junction Connector


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
A140-5 (CANH) - A140-6 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

81.CHECK FOR OPEN IN CAN MAIN BUS LINES (INVERTER WITH CONVERTER ASSEMBLY - ECM)

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (INVERTER WITH CONVERTER ASSEMBLY - NO. 17 CAN JUNCTION CONNECTOR)

75.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 3 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
a.

Reconnect the O167 battery ECU assembly connector.


b.

Disconnect the I176 No. 3 CAN junction connector.


c.

Measure the resistance according to the value(s) in the table below.

C503899C15
2.031,0.823 2.458,1.073 0.427,0.25 3.26,0.208 3.427,0.208 3.427,0.208 3.427,0.844 true 3.281,1.448 3.448,1.448 3.448,1.448 3.448,1.031 true 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 2.115,0.875 2.51,1.104 0.396,0.229 10 false I176 2.698,0.125 3.365,0.354 0.667,0.229 10 false CANH*b 2.75,1.365 3.385,1.573 0.635,0.208 10 false CANL*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Battery ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I176-5 (CANH) - I176-16 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

76.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 3 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 3 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

76.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 3 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C503899C17
2.031,0.823 2.458,1.073 0.427,0.25 3.521,0.208 3.688,0.208 3.688,0.208 3.688,0.844 true 3.521,1.448 3.688,1.448 3.688,1.448 3.688,1.031 true 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 2.115,0.875 2.51,1.104 0.396,0.229 10 false I176 2.958,0.125 3.625,0.354 0.667,0.229 10 false CANH*b 2.979,1.365 3.615,1.573 0.635,0.208 10 false CANL*b
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I176-7 (CANH) - I176-18 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE NO. 3 CAN JUNCTION CONNECTOR

NG

77.CHECK FOR OPEN IN CAN MAIN BUS LINES (INVERTER WITH CONVERTER ASSEMBLY - NO. 3 CAN JUNCTION CONNECTOR)
77.CHECK FOR OPEN IN CAN MAIN BUS LINES (INVERTER WITH CONVERTER ASSEMBLY - NO. 3 CAN JUNCTION CONNECTOR)
a.

Reconnect the I176 No. 3 CAN junction connector.


b.

Disconnect the A140 inverter with converter assembly connector.


c.
C487960C15
0.115,1.719 0.542,1.979 0.427,0.26 1.417,0.417 1.583,0.417 1.583,0.417 1.583,1.583 true 1.896,0.417 1.729,0.417 1.729,0.417 1.729,1.583 true 0.115,0.104 0.427,0.302 0.313,0.198 10 false *a 0.833,0.344 1.542,0.688 0.708,0.344 10 false CANH*b 0.177,1.76 0.719,2.01 0.542,0.25 10 false A140 1.969,0.333 2.677,0.677 0.708,0.344 10 false CANL*b
*a Front view of wire harness connector
(to Inverter with Converter Assembly)
*b to No. 3 CAN Junction Connector


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
A140-5 (CANH) - A140-6 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

81.CHECK FOR OPEN IN CAN MAIN BUS LINES (INVERTER WITH CONVERTER ASSEMBLY - ECM)

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (INVERTER WITH CONVERTER ASSEMBLY - NO. 3 CAN JUNCTION CONNECTOR)

78.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 17 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)
a.

Reconnect the O167 battery ECU assembly connector.


b.

Disconnect the I223 No. 17 CAN junction connector.


c.

Measure the resistance according to the value(s) in the table below.

C487958C27
0.896,0.823 1.292,1.083 0.396,0.26 3.135,0.99 3.135,1.406 3.135,1.406 2.969,1.406 true 3.135,0.792 3.135,0.292 3.135,0.292 2.969,0.292 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.958,0.875 1.333,1.063 0.375,0.188 10 false I223 2.406,0.208 3.115,0.448 0.708,0.24 10 false CANH*b 2.417,1.323 3.042,1.542 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 17 CAN Junction Connector) 		*b to Battery ECU Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I223-1 (CANH) - I223-5 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

79.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 17 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 17 CAN JUNCTION CONNECTOR - BATTERY ECU ASSEMBLY)

79.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 17 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C503898C43
0.896,0.823 1.292,1.083 0.396,0.26 3.719,1.01 3.719,1.427 3.719,1.427 3.885,1.427 true 3.719,0.792 3.719,0.292 3.719,0.292 3.885,0.292 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.958,0.875 1.333,1.063 0.375,0.188 10 false I223 3.938,0.198 4.646,0.438 0.708,0.24 10 false CANH*b 3.948,1.344 4.573,1.563 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 17 CAN Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
I223-3 (CANH) - I223-7 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE NO. 17 CAN JUNCTION CONNECTOR

NG

80.CHECK FOR OPEN IN CAN MAIN BUS LINES (INVERTER WITH CONVERTER ASSEMBLY - NO. 17 CAN JUNCTION CONNECTOR)
80.CHECK FOR OPEN IN CAN MAIN BUS LINES (INVERTER WITH CONVERTER ASSEMBLY - NO. 17 CAN JUNCTION CONNECTOR)
a.

Reconnect the I223 No. 17 CAN junction connector.


b.

Disconnect the A140 inverter with converter assembly connector.


c.
C487960C15
0.115,1.719 0.542,1.979 0.427,0.26 1.417,0.417 1.583,0.417 1.583,0.417 1.583,1.583 true 1.896,0.417 1.729,0.417 1.729,0.417 1.729,1.583 true 0.115,0.104 0.427,0.302 0.313,0.198 10 false *a 0.833,0.344 1.542,0.688 0.708,0.344 10 false CANH*b 0.177,1.76 0.719,2.01 0.542,0.25 10 false A140 1.969,0.333 2.677,0.677 0.708,0.344 10 false CANL*b
*a Front view of wire harness connector
(to Inverter with Converter Assembly)
*b to No. 17 CAN Junction Connector


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
A140-5 (CANH) - A140-6 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

81.CHECK FOR OPEN IN CAN MAIN BUS LINES (INVERTER WITH CONVERTER ASSEMBLY - ECM)

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (INVERTER WITH CONVERTER ASSEMBLY - NO. 17 CAN JUNCTION CONNECTOR)

81.CHECK FOR OPEN IN CAN MAIN BUS LINES (INVERTER WITH CONVERTER ASSEMBLY - ECM)
a.
C487960C16
0.115,1.719 0.542,1.979 0.427,0.26 1.406,0.406 1.573,0.406 1.573,0.406 1.573,1.74 true 1.896,0.417 1.729,0.417 1.729,0.417 1.729,1.75 true 0.115,0.104 0.427,0.302 0.313,0.198 10 false *a 0.833,0.344 1.542,0.688 0.708,0.344 10 false CADH*b 0.177,1.76 0.583,2 0.406,0.24 10 false A140 1.969,0.333 2.677,0.677 0.708,0.344 10 false CADL*b
*a Front view of wire harness connector
(to Inverter with Converter Assembly)
*b to ECM


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
A140-13 (CADH) - A140-14 (CADL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE INVERTER WITH CONVERTER ASSEMBLY
·

for 8ZR-FXE

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>8ZR-FXE INVERTER WITH CONVERTER>REMOVAL

·

for M20F-FXS or M20G-FXS

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>M20F-FXS, M20G-FXS INVERTER WITH CONVERTER>REMOVAL



NG

82.CHECK VEHICLE TYPE
82.CHECK VEHICLE TYPE
a.

Check vehicle type.


Result:
Result Proceed to
for 8ZR-FXE A
for M20F-FXS or M20G-FXS B



A

83.CHECK FOR OPEN IN CAN MAIN BUS LINES (ECM)

B

84.CHECK FOR OPEN IN CAN MAIN BUS LINES (ECM)
83.CHECK FOR OPEN IN CAN MAIN BUS LINES (ECM)
a.

Reconnect the A140 inverter with converter assembly connector.


b.

Disconnect the A46 ECM connector.


c.
C460100C05
0.792,0.115 1.156,0.385 0.365,0.271 2.396,0.958 2.396,0.208 2.396,0.208 2.229,0.208 true 2.51,0.948 2.51,0.198 2.51,0.198 2.677,0.198 true 0.083,0.083 0.396,0.281 0.313,0.198 10 false *a 0.854,0.167 1.167,0.365 0.313,0.198 10 false A46 1.813,0.135 2.417,0.344 0.604,0.208 10 false CFDH 2.75,0.125 3.271,0.333 0.521,0.208 10 false CFDL
*a Front view of wire harness connector
(to ECM)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
A46-9 (CFDH) - A46-10 (CFDL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE ECM

Click hereEngine / Hybrid System>8ZR-FXE (ENGINE CONTROL)>ECM>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (ECM - INVERTER WITH CONVERTER ASSEMBLY)

84.CHECK FOR OPEN IN CAN MAIN BUS LINES (ECM)
a.

Reconnect the A140 inverter with converter assembly connector.


b.

Disconnect the A125 ECM connector.


c.
C469477C23
0.094,0.927 0.51,1.208 0.417,0.281 1.958,0.75 1.958,0.125 1.958,0.125 2.125,0.125 true 1.875,0.75 1.875,0.125 1.875,0.125 1.708,0.125 true 0.083,0.083 0.396,0.281 0.313,0.198 10 false *a 0.156,0.979 0.573,1.188 0.417,0.208 10 false A125 1.292,0.063 1.708,0.271 0.417,0.208 10 false CFDH 2.198,0.052 2.615,0.26 0.417,0.208 10 false CFDL
*a Front view of wire harness connector
(to ECM)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
A125-7 (CFDH) - A125-8 (CFDL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE ECM

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>ECM>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (ECM - INVERTER WITH CONVERTER ASSEMBLY)
