NETWORKING  CAN COMMUNICATION SYSTEM(for HV Model)  U111A87  Lost Communication with ECM/PCM "A" (ch2) Missing Message  U115087  Lost Communication with Hybrid Powertrain Control Module (ch2) Missing Message  U115487  Lost Communication with Drive Motor Control Module "A" (ch2) Missing Message  U115887  Lost Communication with Electronic Brake Booster Control Module "A" (ch2) Missing Message  U117008  Lost Communication with Brake System Control Module (ch2) Bus Signal / Message Failure  U117087  Lost Communication with Brake System Control Module (ch2) Missing Message


DESCRIPTION

DTC No. Detection Item DTC Detection Condition Trouble Area Note
U111A87 Lost Communication with ECM/PCM "A" (ch2) Missing Message Communication stops between the ECM and the hybrid vehicle control ECU.
·

CAN main/branch bus lines or connector

·

ECM

·

Hybrid vehicle control ECU

·

No. 18 CAN junction connector

·

No. 19 CAN junction connector


DTC Output from
·

ECM


U115087 Lost Communication with Hybrid Powertrain Control Module (ch2) Missing Message Communication stops between the ECM or skid control ECU (brake actuator assembly) and the hybrid vehicle control ECU.
·

CAN main/branch bus lines or connector

·

ECM

·

Skid control ECU (brake actuator assembly)

·

Hybrid vehicle control ECU

·

No. 18 CAN junction connector

·

No. 19 CAN junction connector


DTC Output from
·

ECM

·

Skid control ECU (brake actuator assembly)


U115487 Lost Communication with Drive Motor Control Module "A" (ch2) Missing Message Communication stops between the ECM or hybrid vehicle control ECU and the inverter with converter assembly.
·

CAN main/branch bus lines or connector

·

ECM

·

Hybrid vehicle control ECU

·

Inverter with converter assembly

·

No. 18 CAN junction connector

·

No. 19 CAN junction connector


DTC Output from
·

ECM

·

Hybrid vehicle control ECU


U115887 Lost Communication with Electronic Brake Booster Control Module "A" (ch2) Missing Message Communication stops between the electric brake booster (brake booster with master cylinder assembly) and the skid control ECU (brake actuator assembly).
·

CAN main/branch bus lines or connector

·

Electric brake booster (brake booster with master cylinder assembly)

·

Skid control ECU (brake actuator assembly)

·

No. 18 CAN junction connector

·

No. 19 CAN junction connector


DTC Output from
·

Electric brake booster (brake booster with master cylinder assembly)


U117008 Lost Communication with Brake System Control Module (ch2) Bus Signal / Message Failure Communication stops between the inverter with converter assembly and the skid control ECU (brake actuator assembly).
·

CAN main/branch bus lines or connector

·

Inverter with converter assembly

·

Skid control ECU (brake actuator assembly)

·

No. 18 CAN junction connector

·

No. 19 CAN junction connector


DTC Output from
·

Inverter with converter assembly


U117087 Lost Communication with Brake System Control Module (ch2) Missing Message Communication stops between the electric brake booster (brake booster with master cylinder assembly) and the skid control ECU (brake actuator assembly).
·

CAN main/branch bus lines or connector

·

Electric brake booster (brake booster with master cylinder assembly)

·

Skid control ECU (brake actuator assembly)

·

No. 18 CAN junction connector

·

No. 19 CAN junction connector


DTC Output from
·

Electric brake booster (brake booster with master cylinder assembly)



WIRING DIAGRAM

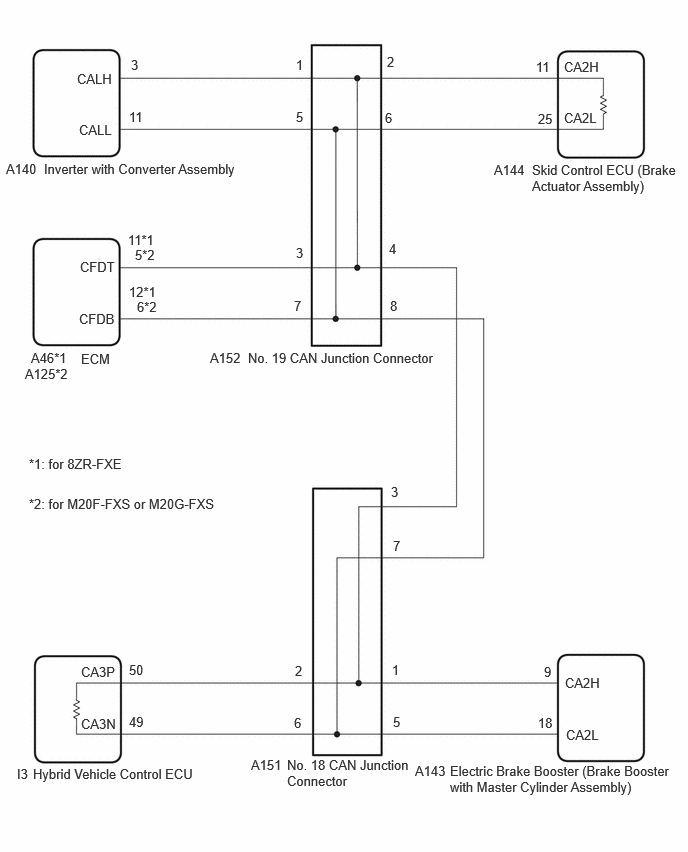

C487974E12
2.583,3.646 4.677,4.021 2.094,0.375 10 false No. 19 CAN Junction Connector 2.188,3.646 2.698,3.948 0.51,0.302 10 false A152 2.615,7.885 3.125,8.188 0.51,0.302 10 false A151 4.083,6.896 4.594,7.198 0.51,0.302 10 false 1 4.094,7.438 4.604,7.74 0.51,0.302 10 false 5 3.063,7.448 3.333,7.948 0.271,0.5 10 false 6 3.073,6.906 3.583,7.208 0.51,0.302 10 false 2 4.094,5.604 4.604,5.906 0.51,0.302 10 false 7 4.073,5.042 4.583,5.344 0.51,0.302 10 false 3 0.344,7.979 2.188,8.5 1.844,0.521 10 false Hybrid Vehicle Control ECU 0.177,7.979 0.802,8.302 0.625,0.323 10 false I3 1.344,6.896 1.698,7.24 0.354,0.344 10 false 50 1.344,7.438 1.698,7.781 0.354,0.344 10 false 49 0.844,6.917 1.354,7.219 0.51,0.302 10 false CA3P 0.844,7.458 1.354,7.76 0.51,0.302 10 false CA3N 4.688,7.948 7.042,8.521 2.354,0.573 10 false Electric Brake Booster (Brake Booster with Master Cylinder Assembly) 4.323,7.948 4.833,8.25 0.51,0.302 10 false A143 5.885,7.031 6.396,7.333 0.51,0.302 10 false CA2H 5.896,7.573 6.406,7.875 0.51,0.302 10 false CA2L 5.667,6.917 6.177,7.219 0.51,0.302 10 false 9 5.604,7.448 6.115,7.75 0.51,0.302 10 false 18 4.063,3.104 4.573,3.406 0.51,0.302 10 false 8 4.052,2.51 4.563,2.813 0.51,0.302 10 false 4 4.01,1.146 4.521,1.448 0.51,0.302 10 false 6 4.031,0.563 4.542,0.865 0.51,0.302 10 false 2 3.083,0.594 3.594,0.896 0.51,0.302 10 false 1 3.083,1.135 3.594,1.438 0.51,0.302 10 false 5 3.083,2.552 3.594,2.854 0.51,0.302 10 false 3 3.063,3.104 3.573,3.406 0.51,0.302 10 false 7 0.458,1.677 2.552,2.052 2.094,0.375 10 false Inverter with Converter Assembly 0.063,1.677 0.573,1.979 0.51,0.302 10 false A140 1.365,0.594 1.875,0.896 0.51,0.302 10 false 3 1.344,1.135 1.854,1.438 0.51,0.302 10 false 11 0.802,0.74 1.313,1.042 0.51,0.302 10 false CALH 0.823,1.271 1.333,1.573 0.51,0.302 10 false CALL 5.542,1.688 7.083,2.302 1.542,0.615 10 false Skid Control ECU (Brake Actuator Assembly) 5.146,1.688 5.656,1.99 0.51,0.302 10 false A144 5.583,0.615 6.094,0.917 0.51,0.302 10 false 11 5.604,1.156 6.115,1.458 0.51,0.302 10 false 25 5.875,0.615 6.385,0.917 0.51,0.302 10 false CA2H 5.875,1.146 6.385,1.448 0.51,0.302 10 false CA2L 0.323,3.646 0.833,3.948 0.51,0.302 10 false A46*1 0.844,3.656 2.031,4.104 1.188,0.448 10 false ECM 1.333,2.417 1.844,2.719 0.51,0.302 10 false 11*1 1.427,3.115 1.938,3.417 0.51,0.302 10 false 6*2 0.833,2.698 1.344,3 0.51,0.302 10 false CFDT 0.823,3.24 1.333,3.542 0.51,0.302 10 false CFDB 2.99,7.885 4.281,8.479 1.292,0.594 10 false No. 18 CAN Junction Connector 0.302,4.75 1.49,5.198 1.188,0.448 10 false *1: for 8ZR-FXE 0.26,3.813 0.771,4.115 0.51,0.302 10 false A125*2 1.344,2.958 1.854,3.26 0.51,0.302 10 false 12*1 1.406,2.573 1.917,2.875 0.51,0.302 10 false 5*2 0.302,5.167 2.729,5.573 2.427,0.406 10 false *2: for M20F-FXS or M20G-FXS

CAUTION / NOTICE / HINT

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


NOTICE:
·

Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for HV Model)>HOW TO PROCEED WITH TROUBLESHOOTING

·

Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) auxiliary battery terminal and leave the vehicle for 10 minutes or more before measuring the resistance.

·

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·

When disconnecting and reconnecting the auxiliary battery.

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART


·

Some parts must be initialized and set when replacing or removing and installing parts.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE

·

After performing repairs, perform the DTC check procedure and confirm that the DTCs are not output again.

DTC check procedure: Turn the ignition switch to ON and wait for 1 minute or more. Then operate the suspected malfunctioning system and drive the vehicle at 60 km/h (37 mph) or more for 5 minutes or more.

·

After the repair, perform the CAN bus check and check that all the ECUs and sensors connected to the CAN communication system are displayed as normal.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for HV Model)>DIAGNOSIS SYSTEM

·

Before replacing the hybrid vehicle control ECU, refer to Service Bulletin.



HINT:
·

Before disconnecting related connectors for inspection, push in on each connector body to check that the connector is not loose or disconnected.

·

When a connector is disconnected, check that the terminals and connector body are not cracked, deformed or corroded.



PROCEDURE

1.CHECK FOR OPEN IN CAN MAIN BUS LINES
a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.

Measure the resistance according to the value(s) in the table below.

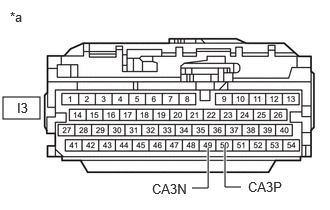

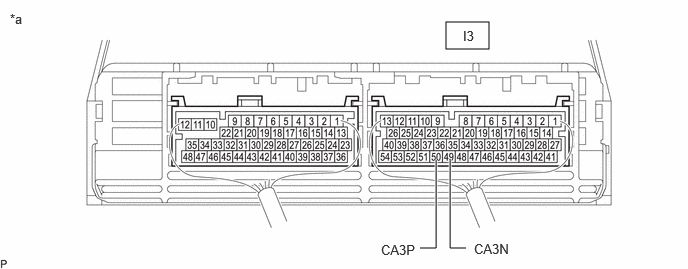

C492791C01
4.646,0.229 5.094,0.51 0.448,0.281 4.542,1.667 4.542,2.583 4.542,2.583 4.375,2.583 true 4.688,1.667 4.688,2.583 4.688,2.583 4.854,2.583 true 0.104,0.115 0.417,0.313 0.313,0.198 10 false *a 4.823,0.292 5.281,0.49 0.458,0.198 10 false I3 4.938,2.51 5.552,2.708 0.615,0.198 10 false CA3N 3.969,2.521 4.583,2.719 0.615,0.198 10 false CA3P
*a Component with harness connected
(Hybrid Vehicle Control ECU) 		- -


Standard Resistance:
Tester Connection Condition Specified Condition
I3-50 (CA3P) - I3-49 (CA3N) Cable disconnected from negative (-) auxiliary battery terminal Below 70 Ω



Result:
Result
OK
NG



OK

2.CHECK FOR SHORT IN CAN BUS LINES

NG

41.CHECK FOR OPEN IN CAN MAIN BUS LINES (HYBRID VEHICLE CONTROL ECU)
2.CHECK FOR SHORT IN CAN BUS LINES
a.

Measure the resistance according to the value(s) in the table below.

C492791C01
4.646,0.229 5.094,0.51 0.448,0.281 4.542,1.667 4.542,2.583 4.542,2.583 4.375,2.583 true 4.688,1.667 4.688,2.583 4.688,2.583 4.854,2.583 true 0.104,0.115 0.417,0.313 0.313,0.198 10 false *a 4.823,0.292 5.281,0.49 0.458,0.198 10 false I3 4.938,2.51 5.552,2.708 0.615,0.198 10 false CA3N 3.969,2.521 4.583,2.719 0.615,0.198 10 false CA3P
*a Component with harness connected
(Hybrid Vehicle Control ECU) 		- -


Standard Resistance:
Tester Connection Condition Specified Condition
I3-50 (CA3P) - I3-49 (CA3N) Cable disconnected from negative (-) auxiliary battery terminal 54 Ω or higher



Result:
Result
OK
NG



OK

3.CHECK FOR SHORT TO +B IN CAN BUS LINE

NG

29.CHECK FOR SHORT IN CAN BUS LINES (NO. 18 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
3.CHECK FOR SHORT TO +B IN CAN BUS LINE
a.

Measure the resistance according to the value(s) in the table below.

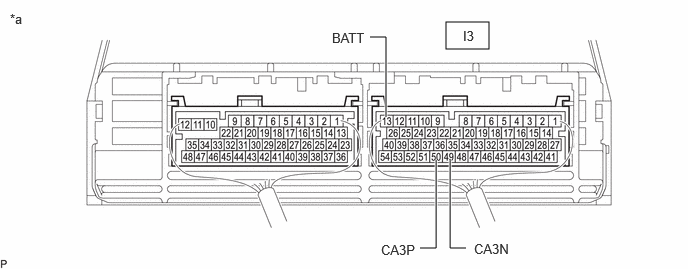

C492791C02
4.646,0.229 5.094,0.51 0.448,0.281 4.542,1.667 4.542,2.583 4.542,2.583 4.375,2.583 true 4.688,1.667 4.688,2.583 4.688,2.583 4.854,2.583 true 4.021,1.219 4.021,0.385 4.021,0.385 3.854,0.385 true 0.104,0.115 0.417,0.313 0.313,0.198 10 false *a 4.823,0.292 5.281,0.49 0.458,0.198 10 false I3 4.938,2.51 5.552,2.708 0.615,0.198 10 false CA3N 3.969,2.521 4.583,2.719 0.615,0.198 10 false CA3P 3.458,0.313 4.073,0.51 0.615,0.198 10 false BATT
*a Component with harness connected
(Hybrid Vehicle Control ECU) 		- -


Standard Resistance:
Tester Connection Condition Specified Condition
I3-50 (CA3P) - I3-13 (BATT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
I3-49 (CA3N) - I3-13 (BATT)



Result:
Result
OK
NG



OK

4.CHECK FOR SHORT TO GND IN CAN BUS LINE

NG

17.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 18 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
4.CHECK FOR SHORT TO GND IN CAN BUS LINE
a.

Measure the resistance according to the value(s) in the table below.

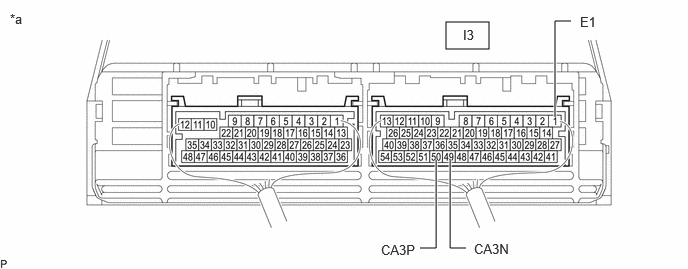

C492791C03
4.646,0.229 5.094,0.51 0.448,0.281 4.542,1.667 4.542,2.583 4.542,2.583 4.375,2.583 true 4.688,1.667 4.688,2.583 4.688,2.583 4.854,2.583 true 5.781,1.219 5.781,0.219 5.781,0.219 5.948,0.219 true 0.104,0.115 0.417,0.313 0.313,0.198 10 false *a 4.823,0.281 5.281,0.479 0.458,0.198 10 false I3 4.938,2.51 5.552,2.708 0.615,0.198 10 false CA3N 3.969,2.521 4.583,2.719 0.615,0.198 10 false CA3P 6.042,0.146 6.656,0.344 0.615,0.198 10 false E1
*a Component with harness connected
(Hybrid Vehicle Control ECU) 		- -


Standard Resistance:
Tester Connection Condition Specified Condition
I3-50 (CA3P) - I3-1 (E1) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
I3-49 (CA3N) - I3-1 (E1)



Result:
Result
OK
NG



OK

INSPECT FOR INTERMITTENT PROBLEMS

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


NG

5.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 18 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
5.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 18 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Disconnect the A151 No. 18 CAN junction connector.


b.

Measure the resistance according to the value(s) in the table below.

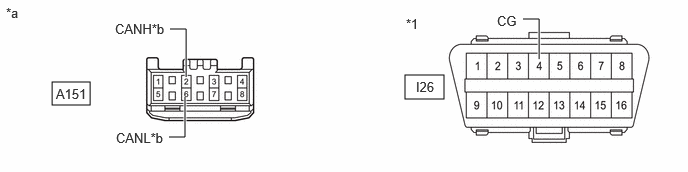

C503904C01
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.771,0.302 1.938,0.302 1.938,0.302 1.938,0.802 true 1.76,1.427 1.927,1.427 1.927,1.427 1.927,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.583,0.896 1.063,1.115 0.479,0.219 10 false A151 4.333,0.823 4.646,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 1.198,0.219 1.729,0.438 0.531,0.219 10 false CANH*b 1.208,1.354 1.74,1.573 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 18 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
A151-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A151-6 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

6.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 18 CAN JUNCTION CONNECTOR - NO. 19 CAN JUNCTION CONNECTOR)

NG

8.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 18 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
6.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 18 CAN JUNCTION CONNECTOR - NO. 19 CAN JUNCTION CONNECTOR)
a.

Measure the resistance according to the value(s) in the table below.

C503904C02
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.385,0.323 2.219,0.323 2.219,0.323 2.219,0.823 true 2.385,1.417 2.219,1.417 2.219,1.417 2.219,1 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.583,0.896 1.063,1.115 0.479,0.219 10 false A151 4.344,0.823 4.656,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 2.479,0.24 3.01,0.458 0.531,0.219 10 false CANH*b 2.458,1.323 2.99,1.542 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 18 CAN Junction Connector) 		*b to No. 19 CAN Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
A151-3 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A151-7 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

7.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 18 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))

NG

10.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - NO. 18 CAN JUNCTION CONNECTOR)
7.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 18 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
a.

Measure the resistance according to the value(s) in the table below.

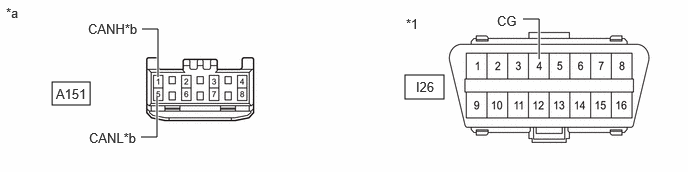

C503904C03
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.479,0.302 1.646,0.302 1.646,0.302 1.646,0.802 true 1.469,1.427 1.635,1.427 1.635,1.427 1.635,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.583,0.896 1.063,1.115 0.479,0.219 10 false A151 4.333,0.823 4.646,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 0.917,0.219 1.448,0.438 0.531,0.219 10 false CANH*b 0.927,1.354 1.458,1.573 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 18 CAN Junction Connector) 		*b to Electric Brake Booster (Brake Booster with Master Cylinder Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A151-1 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A151-5 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE NO. 18 CAN JUNCTION CONNECTOR

NG

9.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 18 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
8.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 18 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Disconnect the I3 hybrid vehicle control ECU connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C01
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.771,0.302 1.938,0.302 1.938,0.302 1.938,0.802 true 1.76,1.427 1.927,1.427 1.927,1.427 1.927,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.583,0.896 1.063,1.115 0.479,0.219 10 false A151 4.333,0.823 4.646,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 1.198,0.219 1.729,0.438 0.531,0.219 10 false CANH*b 1.208,1.354 1.74,1.573 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 18 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
A151-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A151-6 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE HYBRID VEHICLE CONTROL ECU

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID VEHICLE CONTROL ECU>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 18 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

9.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 18 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
a.

Disconnect the A143 electric brake booster (brake booster with master cylinder assembly) connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C03
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.479,0.302 1.646,0.302 1.646,0.302 1.646,0.802 true 1.469,1.427 1.635,1.427 1.635,1.427 1.635,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.583,0.896 1.063,1.115 0.479,0.219 10 false A151 4.333,0.823 4.646,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 0.917,0.219 1.448,0.438 0.531,0.219 10 false CANH*b 0.927,1.354 1.458,1.573 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 18 CAN Junction Connector) 		*b to Electric Brake Booster (Brake Booster with Master Cylinder Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A151-1 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A151-5 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY)

Click hereBrake>BRAKE SYSTEM (OTHER)>BRAKE BOOSTER (for HV Model)>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 18 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))

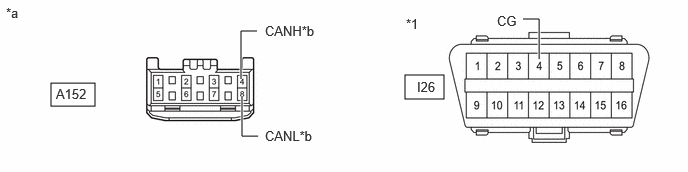

10.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - NO. 18 CAN JUNCTION CONNECTOR)
a.

Disconnect the A152 No. 19 CAN junction connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C04
0.531,0.865 0.99,1.104 0.458,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.677,0.323 2.51,0.323 2.51,0.323 2.51,0.823 true 2.688,1.417 2.521,1.417 2.521,1.417 2.521,1 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.583,0.896 1.063,1.115 0.479,0.219 10 false A152 4.344,0.823 4.656,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 2.76,0.24 3.292,0.458 0.531,0.219 10 false CANH*b 2.76,1.333 3.292,1.552 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 19 CAN Junction Connector) 		*b to No. 18 CAN Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
A152-4 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A152-8 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

11.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - ECM)

NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 19 CAN JUNCTION CONNECTOR - NO. 18 CAN JUNCTION CONNECTOR)

11.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - ECM)
a.

Measure the resistance according to the value(s) in the table below.

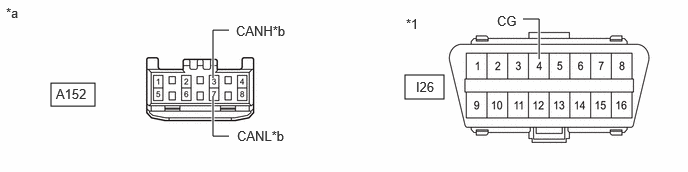

C503904C05
0.531,0.865 0.99,1.104 0.458,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.385,0.313 2.219,0.313 2.219,0.313 2.219,0.813 true 2.385,1.417 2.219,1.417 2.219,1.417 2.219,1 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.583,0.896 1.063,1.115 0.479,0.219 10 false A152 4.333,0.823 4.646,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 2.458,0.24 2.99,0.458 0.531,0.219 10 false CANH*b 2.469,1.333 3,1.552 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 19 CAN Junction Connector) 		*b to ECM


Standard Resistance:
Tester Connection Condition Specified Condition
A152-3 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A152-7 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

12.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

NG

14.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - ECM)
12.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

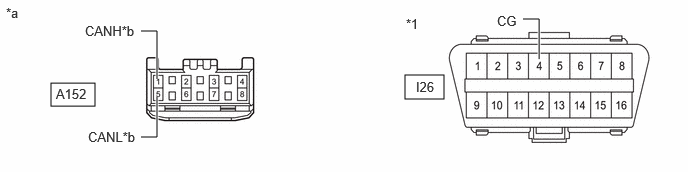

C503904C06
0.531,0.865 0.99,1.104 0.458,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.469,0.323 1.635,0.323 1.635,0.323 1.635,0.823 true 1.469,1.427 1.635,1.427 1.635,1.427 1.635,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.583,0.896 1.063,1.115 0.479,0.219 10 false A152 4.333,0.823 4.646,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 0.885,0.24 1.417,0.458 0.531,0.219 10 false CANH*b 0.917,1.344 1.448,1.563 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 19 CAN Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A152-1 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A152-5 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

13.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))

NG

15.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
13.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
a.

Measure the resistance according to the value(s) in the table below.

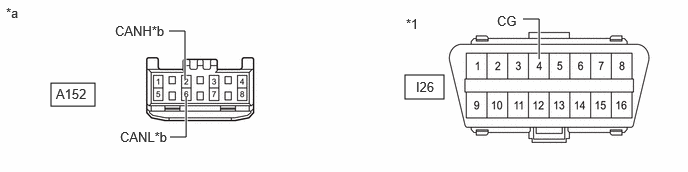

C503904C07
0.531,0.865 0.99,1.104 0.458,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.76,0.323 1.927,0.323 1.927,0.323 1.927,0.823 true 1.771,1.427 1.938,1.427 1.938,1.427 1.938,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.583,0.896 1.063,1.115 0.479,0.219 10 false A152 4.333,0.823 4.646,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 1.198,0.24 1.729,0.458 0.531,0.219 10 false CANH*b 1.25,1.344 1.781,1.563 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 19 CAN Junction Connector) 		*b to Skid Control ECU (Brake Actuator Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A152-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A152-6 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE NO. 19 CAN JUNCTION CONNECTOR

NG

16.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
14.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - ECM)
a.

Disconnect the A46 or A125 ECM connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C05
0.531,0.865 0.99,1.104 0.458,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.385,0.313 2.219,0.313 2.219,0.313 2.219,0.813 true 2.385,1.417 2.219,1.417 2.219,1.417 2.219,1 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.583,0.896 1.063,1.115 0.479,0.219 10 false A152 4.333,0.823 4.646,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 2.458,0.24 2.99,0.458 0.531,0.219 10 false CANH*b 2.469,1.333 3,1.552 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 19 CAN Junction Connector) 		*b to ECM


Standard Resistance:
Tester Connection Condition Specified Condition
A152-3 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A152-7 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE ECM
·

for 8ZR-FXE

Click hereEngine / Hybrid System>8ZR-FXE (ENGINE CONTROL)>ECM>REMOVAL

·

for M20F-FXS or M20G-FXS

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>ECM>REMOVAL



NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 19 CAN JUNCTION CONNECTOR - ECM)

15.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Disconnect the A140 inverter with converter assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C06
0.531,0.865 0.99,1.104 0.458,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.469,0.323 1.635,0.323 1.635,0.323 1.635,0.823 true 1.469,1.427 1.635,1.427 1.635,1.427 1.635,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.583,0.896 1.063,1.115 0.479,0.219 10 false A152 4.333,0.823 4.646,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 0.885,0.24 1.417,0.458 0.531,0.219 10 false CANH*b 0.917,1.344 1.448,1.563 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 19 CAN Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A152-1 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A152-5 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE INVERTER WITH CONVERTER ASSEMBLY
·

for 8ZR-FXE

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>8ZR-FXE INVERTER WITH CONVERTER>REMOVAL

·

for M20F-FXS or M20G-FXS

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>M20F-FXS, M20G-FXS INVERTER WITH CONVERTER>REMOVAL



NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 19 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

16.CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
a.

Disconnect the A144 skid control ECU (brake actuator assembly) connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C07
0.531,0.865 0.99,1.104 0.458,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.76,0.323 1.927,0.323 1.927,0.323 1.927,0.823 true 1.771,1.427 1.938,1.427 1.938,1.427 1.938,1.01 true 5.448,0.198 5.615,0.198 5.615,0.198 5.615,0.615 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.583,0.896 1.063,1.115 0.479,0.219 10 false A152 4.333,0.823 4.646,1.021 0.313,0.198 10 false I26 5.177,0.135 5.594,0.344 0.417,0.208 10 false CG 1.198,0.24 1.729,0.458 0.531,0.219 10 false CANH*b 1.25,1.344 1.781,1.563 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 19 CAN Junction Connector) 		*b to Skid Control ECU (Brake Actuator Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A152-2 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
A152-6 (CANL) - I26-4 (CG)



Result:
Result
OK
NG



OK

REPLACE SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>BRAKE ACTUATOR (for HV Model)>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 19 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))

17.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 18 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Disconnect the A151 No. 18 CAN junction connector.


b.

Measure the resistance according to the value(s) in the table below.

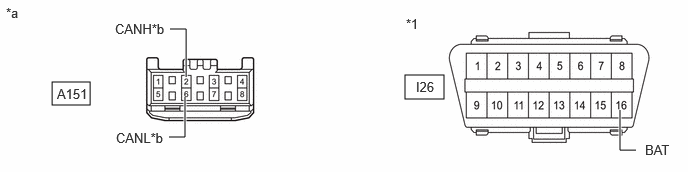

C503904C08
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.771,0.302 1.938,0.302 1.938,0.302 1.938,0.802 true 1.76,1.427 1.927,1.427 1.927,1.427 1.927,1.01 true 6.625,1.563 6.458,1.563 6.458,1.563 6.458,1.146 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.594,0.896 1.073,1.115 0.479,0.219 10 false A151 4.333,0.823 4.646,1.021 0.313,0.198 10 false I26 6.719,1.479 7.135,1.688 0.417,0.208 10 false BAT 1.198,0.219 1.729,0.438 0.531,0.219 10 false CANH*b 1.208,1.354 1.74,1.573 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 18 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
A151-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A151-6 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

18.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 18 CAN JUNCTION CONNECTOR - NO. 19 CAN JUNCTION CONNECTOR)

NG

20.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 18 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
18.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 18 CAN JUNCTION CONNECTOR - NO. 19 CAN JUNCTION CONNECTOR)
a.

Measure the resistance according to the value(s) in the table below.

C503904C09
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.385,0.323 2.219,0.323 2.219,0.323 2.219,0.823 true 2.385,1.417 2.219,1.417 2.219,1.417 2.219,1 true 6.646,1.49 6.479,1.49 6.479,1.49 6.479,1.156 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.583,0.896 1.063,1.115 0.479,0.219 10 false A151 4.333,0.823 4.646,1.021 0.313,0.198 10 false I26 6.719,1.406 7.135,1.615 0.417,0.208 10 false BAT 2.479,0.24 3.01,0.458 0.531,0.219 10 false CANH*b 2.458,1.323 2.99,1.542 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 18 CAN Junction Connector) 		*b to No. 19 CAN Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
A151-3 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A151-7 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

19.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 18 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))

NG

22.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - NO. 18 CAN JUNCTION CONNECTOR)
19.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 18 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
a.

Measure the resistance according to the value(s) in the table below.

C503904C10
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.479,0.302 1.646,0.302 1.646,0.302 1.646,0.802 true 1.469,1.427 1.635,1.427 1.635,1.427 1.635,1.01 true 6.635,1.552 6.469,1.552 6.469,1.552 6.469,1.135 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.583,0.896 1.063,1.115 0.479,0.219 10 false A151 4.323,0.823 4.635,1.021 0.313,0.198 10 false I26 6.708,1.469 7.125,1.677 0.417,0.208 10 false BAT 0.917,0.219 1.448,0.438 0.531,0.219 10 false CANH*b 0.927,1.354 1.458,1.573 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 18 CAN Junction Connector) 		*b to Electric Brake Booster (Brake Booster with Master Cylinder Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A151-1 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A151-5 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE NO. 18 CAN JUNCTION CONNECTOR

NG

21.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 18 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
20.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 18 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Disconnect the I3 hybrid vehicle control ECU connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C08
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.771,0.302 1.938,0.302 1.938,0.302 1.938,0.802 true 1.76,1.427 1.927,1.427 1.927,1.427 1.927,1.01 true 6.625,1.563 6.458,1.563 6.458,1.563 6.458,1.146 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.594,0.896 1.073,1.115 0.479,0.219 10 false A151 4.333,0.823 4.646,1.021 0.313,0.198 10 false I26 6.719,1.479 7.135,1.688 0.417,0.208 10 false BAT 1.198,0.219 1.729,0.438 0.531,0.219 10 false CANH*b 1.208,1.354 1.74,1.573 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 18 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
A151-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A151-6 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE HYBRID VEHICLE CONTROL ECU

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID VEHICLE CONTROL ECU>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 18 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

21.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 18 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
a.

Disconnect the A143 electric brake booster (brake booster with master cylinder assembly) connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C10
0.542,0.854 0.938,1.094 0.396,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.479,0.302 1.646,0.302 1.646,0.302 1.646,0.802 true 1.469,1.427 1.635,1.427 1.635,1.427 1.635,1.01 true 6.635,1.552 6.469,1.552 6.469,1.552 6.469,1.135 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.583,0.896 1.063,1.115 0.479,0.219 10 false A151 4.323,0.823 4.635,1.021 0.313,0.198 10 false I26 6.708,1.469 7.125,1.677 0.417,0.208 10 false BAT 0.917,0.219 1.448,0.438 0.531,0.219 10 false CANH*b 0.927,1.354 1.458,1.573 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 18 CAN Junction Connector) 		*b to Electric Brake Booster (Brake Booster with Master Cylinder Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A151-1 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A151-5 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY)

Click hereBrake>BRAKE SYSTEM (OTHER)>BRAKE BOOSTER (for HV Model)>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 18 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))

22.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - NO. 18 CAN JUNCTION CONNECTOR)
a.

Disconnect the A152 No. 19 CAN junction connector.


b.

Measure the resistance according to the value(s) in the table below.

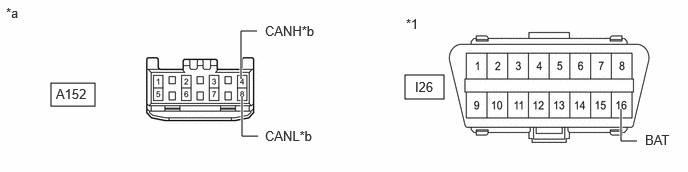

C503904C11
0.531,0.865 0.99,1.104 0.458,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.677,0.323 2.51,0.323 2.51,0.323 2.51,0.823 true 2.688,1.417 2.521,1.417 2.521,1.417 2.521,1 true 6.635,1.469 6.469,1.469 6.469,1.469 6.469,1.135 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.583,0.896 1.063,1.115 0.479,0.219 10 false A152 4.323,0.823 4.635,1.021 0.313,0.198 10 false I26 6.719,1.375 7.135,1.583 0.417,0.208 10 false BAT 2.76,0.24 3.292,0.458 0.531,0.219 10 false CANH*b 2.76,1.333 3.292,1.552 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 19 CAN Junction Connector) 		*b to No. 18 CAN Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
A152-4 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A152-8 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

23.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - ECM)

NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 19 CAN JUNCTION CONNECTOR - NO. 18 CAN JUNCTION CONNECTOR)

23.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - ECM)
a.

Measure the resistance according to the value(s) in the table below.

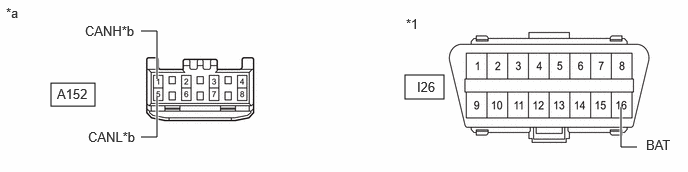

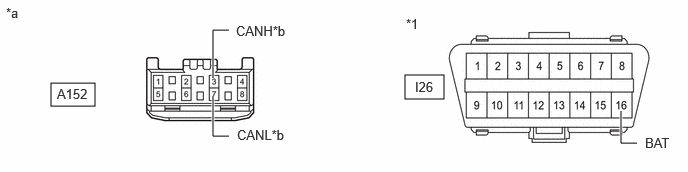

C503904C12
0.531,0.865 0.99,1.104 0.458,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.385,0.313 2.219,0.313 2.219,0.313 2.219,0.813 true 2.385,1.417 2.219,1.417 2.219,1.417 2.219,1 true 6.635,1.49 6.469,1.49 6.469,1.49 6.469,1.156 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.594,0.896 1.073,1.115 0.479,0.219 10 false A152 4.323,0.823 4.635,1.021 0.313,0.198 10 false I26 6.719,1.406 7.135,1.615 0.417,0.208 10 false BAT 2.458,0.24 2.99,0.458 0.531,0.219 10 false CANH*b 2.469,1.323 3,1.542 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 19 CAN Junction Connector) 		*b to ECM


Standard Resistance:
Tester Connection Condition Specified Condition
A152-3 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A152-7 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

24.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

NG

26.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - ECM)
24.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C503904C13
0.531,0.865 0.99,1.104 0.458,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.469,0.323 1.635,0.323 1.635,0.323 1.635,0.823 true 1.469,1.427 1.635,1.427 1.635,1.427 1.635,1.01 true 6.635,1.531 6.469,1.531 6.469,1.531 6.469,1.115 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.594,0.896 1.073,1.115 0.479,0.219 10 false A152 4.344,0.823 4.656,1.021 0.313,0.198 10 false I26 6.729,1.427 7.146,1.635 0.417,0.208 10 false BAT 0.885,0.24 1.417,0.458 0.531,0.219 10 false CANH*b 0.917,1.344 1.448,1.563 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 19 CAN Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A152-1 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A152-5 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

25.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))

NG

27.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
25.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
a.

Measure the resistance according to the value(s) in the table below.

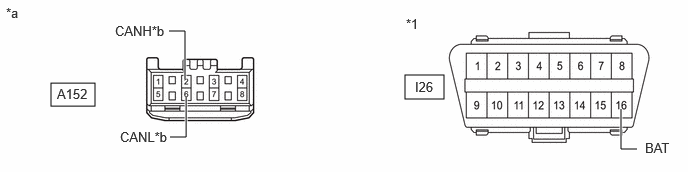

C503904C14
0.531,0.865 0.99,1.104 0.458,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.76,0.323 1.927,0.323 1.927,0.323 1.927,0.823 true 1.771,1.427 1.938,1.427 1.938,1.427 1.938,1.01 true 6.635,1.552 6.469,1.552 6.469,1.552 6.469,1.135 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.594,0.896 1.073,1.115 0.479,0.219 10 false A152 4.323,0.823 4.635,1.021 0.313,0.198 10 false I26 6.719,1.458 7.135,1.667 0.417,0.208 10 false BAT 1.198,0.24 1.729,0.458 0.531,0.219 10 false CANH*b 1.25,1.344 1.781,1.563 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 19 CAN Junction Connector) 		*b to Skid Control ECU (Brake Actuator Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A152-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A152-6 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE NO. 19 CAN JUNCTION CONNECTOR

NG

28.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
26.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - ECM)
a.

Disconnect the A46 or A125 ECM connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C12
0.531,0.865 0.99,1.104 0.458,0.24 4.219,0.781 4.625,1.031 0.406,0.25 2.385,0.313 2.219,0.313 2.219,0.313 2.219,0.813 true 2.385,1.417 2.219,1.417 2.219,1.417 2.219,1 true 6.635,1.49 6.469,1.49 6.469,1.49 6.469,1.156 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.594,0.896 1.073,1.115 0.479,0.219 10 false A152 4.323,0.823 4.635,1.021 0.313,0.198 10 false I26 6.719,1.406 7.135,1.615 0.417,0.208 10 false BAT 2.458,0.24 2.99,0.458 0.531,0.219 10 false CANH*b 2.469,1.323 3,1.542 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 19 CAN Junction Connector) 		*b to ECM


Standard Resistance:
Tester Connection Condition Specified Condition
A152-3 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A152-7 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE ECM
·

for 8ZR-FXE

Click hereEngine / Hybrid System>8ZR-FXE (ENGINE CONTROL)>ECM>REMOVAL

·

for M20F-FXS or M20G-FXS

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>ECM>REMOVAL



NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 19 CAN JUNCTION CONNECTOR - ECM)

27.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Disconnect the A140 inverter with converter assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C13
0.531,0.865 0.99,1.104 0.458,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.469,0.323 1.635,0.323 1.635,0.323 1.635,0.823 true 1.469,1.427 1.635,1.427 1.635,1.427 1.635,1.01 true 6.635,1.531 6.469,1.531 6.469,1.531 6.469,1.115 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.594,0.896 1.073,1.115 0.479,0.219 10 false A152 4.344,0.823 4.656,1.021 0.313,0.198 10 false I26 6.729,1.427 7.146,1.635 0.417,0.208 10 false BAT 0.885,0.24 1.417,0.458 0.531,0.219 10 false CANH*b 0.917,1.344 1.448,1.563 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 19 CAN Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A152-1 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A152-5 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE INVERTER WITH CONVERTER ASSEMBLY
·

for 8ZR-FXE

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>8ZR-FXE INVERTER WITH CONVERTER>REMOVAL

·

for M20F-FXS or M20G-FXS

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>M20F-FXS, M20G-FXS INVERTER WITH CONVERTER>REMOVAL



NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 19 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

28.CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 19 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
a.

Disconnect the A144 skid control ECU (brake actuator assembly) connector.


b.

Measure the resistance according to the value(s) in the table below.

C503904C14
0.531,0.865 0.99,1.104 0.458,0.24 4.219,0.781 4.625,1.031 0.406,0.25 1.76,0.323 1.927,0.323 1.927,0.323 1.927,0.823 true 1.771,1.427 1.938,1.427 1.938,1.427 1.938,1.01 true 6.635,1.552 6.469,1.552 6.469,1.552 6.469,1.135 true 4.229,0.167 4.542,0.365 0.313,0.198 10 false *1 0.063,0.052 0.375,0.25 0.313,0.198 10 false *a 0.594,0.896 1.073,1.115 0.479,0.219 10 false A152 4.323,0.823 4.635,1.021 0.313,0.198 10 false I26 6.719,1.458 7.135,1.667 0.417,0.208 10 false BAT 1.198,0.24 1.729,0.458 0.531,0.219 10 false CANH*b 1.25,1.344 1.781,1.563 0.531,0.219 10 false CANL*b
*1 DLC3 - -
*a Front view of wire harness connector
(to No. 19 CAN Junction Connector) 		*b to Skid Control ECU (Brake Actuator Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A152-2 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
A152-6 (CANL) - I26-16 (BAT)



Result:
Result
OK
NG



OK

REPLACE SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>BRAKE ACTUATOR (for HV Model)>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 19 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))

29.CHECK FOR SHORT IN CAN BUS LINES (NO. 18 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Disconnect the A151 No. 18 CAN junction connector.


b.

Measure the resistance according to the value(s) in the table below.

C503898C07
0.896,0.823 1.292,1.083 0.396,0.26 3.427,0.99 3.427,1.406 3.427,1.406 3.26,1.406 true 3.427,0.781 3.427,0.281 3.427,0.281 3.26,0.281 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.938,0.885 1.313,1.073 0.375,0.188 10 false A151 2.698,0.198 3.406,0.438 0.708,0.24 10 false CANH*b 2.708,1.323 3.333,1.542 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 18 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
A151-2 (CANH) - A151-6 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

30.CHECK FOR SHORT IN CAN BUS LINES (NO. 18 CAN JUNCTION CONNECTOR - NO. 19 CAN JUNCTION CONNECTOR)

NG

32.CHECK FOR SHORT IN CAN BUS LINES (NO. 18 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
30.CHECK FOR SHORT IN CAN BUS LINES (NO. 18 CAN JUNCTION CONNECTOR - NO. 19 CAN JUNCTION CONNECTOR)
a.

Measure the resistance according to the value(s) in the table below.

C503898C08
0.896,0.823 1.292,1.083 0.396,0.26 3.719,1.01 3.719,1.427 3.719,1.427 3.885,1.427 true 3.719,0.792 3.719,0.292 3.719,0.292 3.885,0.292 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.948,0.885 1.323,1.073 0.375,0.188 10 false A151 3.979,0.208 4.688,0.448 0.708,0.24 10 false CANH*b 3.958,1.344 4.583,1.563 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 18 CAN Junction Connector) 		*b to No. 19 CAN Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
A151-3 (CANH) - A151-7 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

31.CHECK FOR SHORT IN CAN BUS LINES (NO. 18 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))

NG

34.CHECK FOR SHORT IN CAN BUS LINES (NO. 19 CAN JUNCTION CONNECTOR - NO. 18 CAN JUNCTION CONNECTOR)
31.CHECK FOR SHORT IN CAN BUS LINES (NO. 18 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
a.

Measure the resistance according to the value(s) in the table below.

C503898C09
0.896,0.823 1.292,1.083 0.396,0.26 3.135,0.99 3.135,1.406 3.135,1.406 2.969,1.406 true 3.146,0.802 3.146,0.302 3.146,0.302 2.979,0.302 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.938,0.885 1.313,1.073 0.375,0.188 10 false A151 2.396,0.208 3.104,0.448 0.708,0.24 10 false CANH*b 2.396,1.323 3.021,1.542 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 18 CAN Junction Connector) 		*b to Electric Brake Booster (Brake Booster with Master Cylinder Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A151-1 (CANH) - A151-5 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher



Result:
Result
OK
NG



OK

REPLACE NO. 18 CAN JUNCTION CONNECTOR

NG

33.CHECK FOR SHORT IN CAN BUS LINES (NO. 18 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
32.CHECK FOR SHORT IN CAN BUS LINES (NO. 18 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Disconnect the I3 hybrid vehicle control ECU connector.


b.

Measure the resistance according to the value(s) in the table below.

C503898C07
0.896,0.823 1.292,1.083 0.396,0.26 3.427,0.99 3.427,1.406 3.427,1.406 3.26,1.406 true 3.427,0.781 3.427,0.281 3.427,0.281 3.26,0.281 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.938,0.885 1.313,1.073 0.375,0.188 10 false A151 2.698,0.198 3.406,0.438 0.708,0.24 10 false CANH*b 2.708,1.323 3.333,1.542 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 18 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
A151-2 (CANH) - A151-6 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher



Result:
Result
OK
NG



OK

REPLACE HYBRID VEHICLE CONTROL ECU

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID VEHICLE CONTROL ECU>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 18 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

33.CHECK FOR SHORT IN CAN BUS LINES (NO. 18 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
a.

Disconnect the A143 electric brake booster (brake booster with master cylinder assembly) connector.


b.

Measure the resistance according to the value(s) in the table below.

C503898C09
0.896,0.823 1.292,1.083 0.396,0.26 3.135,0.99 3.135,1.406 3.135,1.406 2.969,1.406 true 3.146,0.802 3.146,0.302 3.146,0.302 2.979,0.302 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.938,0.885 1.313,1.073 0.375,0.188 10 false A151 2.396,0.208 3.104,0.448 0.708,0.24 10 false CANH*b 2.396,1.323 3.021,1.542 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 18 CAN Junction Connector) 		*b to Electric Brake Booster (Brake Booster with Master Cylinder Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A151-1 (CANH) - A151-5 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher



Result:
Result
OK
NG



OK

REPLACE ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY)

Click hereBrake>BRAKE SYSTEM (OTHER)>BRAKE BOOSTER (for HV Model)>REMOVAL


NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 18 CAN JUNCTION CONNECTOR - ELECTRIC BRAKE BOOSTER (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))

34.CHECK FOR SHORT IN CAN BUS LINES (NO. 19 CAN JUNCTION CONNECTOR - NO. 18 CAN JUNCTION CONNECTOR)
a.

Reconnect the A151 No. 18 CAN junction connector.


b.

Disconnect the A152 No. 19 CAN junction connector.


c.

Measure the resistance according to the value(s) in the table below.

C503898C10
0.896,0.823 1.292,1.083 0.396,0.26 4.021,1.01 4.021,1.427 4.021,1.427 4.188,1.427 true 4.01,0.792 4.01,0.292 4.01,0.292 4.177,0.292 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.938,0.885 1.313,1.073 0.375,0.188 10 false A152 4.24,0.208 4.948,0.448 0.708,0.24 10 false CANH*b 4.26,1.344 4.885,1.563 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 19 CAN Junction Connector) 		*b to No. 18 CAN Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
A152-4 (CANH) - A152-8 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

35.CHECK FOR SHORT IN CAN BUS LINES (NO. 19 CAN JUNCTION CONNECTOR - ECM)

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 19 CAN JUNCTION CONNECTOR - NO. 18 CAN JUNCTION CONNECTOR)

35.CHECK FOR SHORT IN CAN BUS LINES (NO. 19 CAN JUNCTION CONNECTOR - ECM)
a.

Measure the resistance according to the value(s) in the table below.

C503898C11
0.896,0.823 1.292,1.083 0.396,0.26 3.729,1.01 3.729,1.427 3.729,1.427 3.896,1.427 true 3.729,0.792 3.729,0.292 3.729,0.292 3.896,0.292 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.938,0.875 1.313,1.063 0.375,0.188 10 false A152 3.958,0.208 4.667,0.448 0.708,0.24 10 false CANH*b 3.969,1.344 4.594,1.563 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 19 CAN Junction Connector) 		*b to ECM


Standard Resistance:
Tester Connection Condition Specified Condition
A152-3 (CANH) - A152-7 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher



Result:
Result
OK
NG



OK

36.CHECK FOR SHORT IN CAN BUS LINES (NO. 19 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

NG

38.CHECK FOR SHORT IN CAN BUS LINES (NO. 19 CAN JUNCTION CONNECTOR - ECM)
36.CHECK FOR SHORT IN CAN BUS LINES (NO. 19 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Measure the resistance according to the value(s) in the table below.

C503898C12
0.896,0.823 1.292,1.083 0.396,0.26 3.135,0.99 3.135,1.406 3.135,1.406 2.969,1.406 true 3.146,0.781 3.146,0.281 3.146,0.281 2.979,0.281 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.938,0.885 1.313,1.073 0.375,0.188 10 false A152 2.427,0.198 3.135,0.438 0.708,0.24 10 false CANH*b 2.448,1.323 3.073,1.542 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 19 CAN Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A152-1 (CANH) - A152-5 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher



Result:
Result
OK
NG



OK

37.CHECK FOR SHORT IN CAN BUS LINES (NO. 19 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))

NG

39.CHECK FOR SHORT IN CAN BUS LINES (NO. 19 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
37.CHECK FOR SHORT IN CAN BUS LINES (NO. 19 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
a.

Measure the resistance according to the value(s) in the table below.

C503898C13
0.896,0.823 1.292,1.083 0.396,0.26 3.427,0.99 3.427,1.406 3.427,1.406 3.26,1.406 true 3.427,0.781 3.427,0.281 3.427,0.281 3.26,0.281 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.938,0.885 1.406,1.073 0.469,0.188 10 false A152 2.698,0.198 3.406,0.438 0.708,0.24 10 false CANH*b 2.708,1.323 3.333,1.542 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 19 CAN Junction Connector) 		*b to Skid Control ECU (Brake Actuator Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A152-2 (CANH) - A152-6 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE NO. 19 CAN JUNCTION CONNECTOR

NG

40.CHECK FOR SHORT IN CAN BUS LINES (NO. 19 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
38.CHECK FOR SHORT IN CAN BUS LINES (NO. 19 CAN JUNCTION CONNECTOR - ECM)
a.

Disconnect the A46 or A125 ECM connector.


b.

Measure the resistance according to the value(s) in the table below.

C503898C11
0.896,0.823 1.292,1.083 0.396,0.26 3.729,1.01 3.729,1.427 3.729,1.427 3.896,1.427 true 3.729,0.792 3.729,0.292 3.729,0.292 3.896,0.292 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.938,0.875 1.313,1.063 0.375,0.188 10 false A152 3.958,0.208 4.667,0.448 0.708,0.24 10 false CANH*b 3.969,1.344 4.594,1.563 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 19 CAN Junction Connector) 		*b to ECM


Standard Resistance:
Tester Connection Condition Specified Condition
A152-3 (CANH) - A152-7 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher



Result:
Result
OK
NG



OK

REPLACE ECM
·

for 8ZR-FXE

Click hereEngine / Hybrid System>8ZR-FXE (ENGINE CONTROL)>ECM>REMOVAL

·

for M20F-FXS or M20G-FXS

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>ECM>REMOVAL



NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 19 CAN JUNCTION CONNECTOR - ECM)

39.CHECK FOR SHORT IN CAN BUS LINES (NO. 19 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)
a.

Disconnect the A140 inverter with converter assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

C503898C12
0.896,0.823 1.292,1.083 0.396,0.26 3.135,0.99 3.135,1.406 3.135,1.406 2.969,1.406 true 3.146,0.781 3.146,0.281 3.146,0.281 2.979,0.281 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.938,0.885 1.313,1.073 0.375,0.188 10 false A152 2.427,0.198 3.135,0.438 0.708,0.24 10 false CANH*b 2.448,1.323 3.073,1.542 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 19 CAN Junction Connector) 		*b to Inverter with Converter Assembly


Standard Resistance:
Tester Connection Condition Specified Condition
A152-1 (CANH) - A152-5 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher



Result:
Result
OK
NG



OK

REPLACE INVERTER WITH CONVERTER ASSEMBLY
·

for 8ZR-FXE

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>8ZR-FXE INVERTER WITH CONVERTER>REMOVAL

·

for M20F-FXS or M20G-FXS

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>M20F-FXS, M20G-FXS INVERTER WITH CONVERTER>REMOVAL



NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 19 CAN JUNCTION CONNECTOR - INVERTER WITH CONVERTER ASSEMBLY)

40.CHECK FOR SHORT IN CAN BUS LINES (NO. 19 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
a.

Disconnect the A144 skid control ECU (brake actuator assembly) connector.


b.

Measure the resistance according to the value(s) in the table below.

C503898C13
0.896,0.823 1.292,1.083 0.396,0.26 3.427,0.99 3.427,1.406 3.427,1.406 3.26,1.406 true 3.427,0.781 3.427,0.281 3.427,0.281 3.26,0.281 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.938,0.885 1.406,1.073 0.469,0.188 10 false A152 2.698,0.198 3.406,0.438 0.708,0.24 10 false CANH*b 2.708,1.323 3.333,1.542 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 19 CAN Junction Connector) 		*b to Skid Control ECU (Brake Actuator Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A152-2 (CANH) - A152-6 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher



Result:
Result
OK
NG



OK

REPLACE SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>BRAKE ACTUATOR (for HV Model)>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 19 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))

41.CHECK FOR OPEN IN CAN MAIN BUS LINES (HYBRID VEHICLE CONTROL ECU)
a.

Disconnect the I3 hybrid vehicle control ECU connector.


b.
C434852C21
0.031,1.01 0.417,1.24 0.385,0.229 2.167,1.542 2.167,1.958 2.167,1.958 2,1.958 true 2.344,1.531 2.344,1.948 2.344,1.948 2.51,1.948 true 0.104,0.094 0.417,0.292 0.313,0.198 10 false *a 0.177,1.042 0.49,1.24 0.313,0.198 10 false I3 1.583,1.885 1.99,2.073 0.406,0.188 10 false CA3N 2.583,1.865 3.198,2.115 0.615,0.25 10 false CA3P
*a Front view of wire harness connector
(to Hybrid Vehicle Control ECU)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I3-50 (CA3P) - I3-49 (CA3N) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE HYBRID VEHICLE CONTROL ECU

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID VEHICLE CONTROL ECU>REMOVAL


NG

42.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 18 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
42.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 18 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)
a.

Reconnect the I3 hybrid vehicle control ECU connector.


b.

Disconnect the A151 No. 18 CAN junction connector.


c.

Measure the resistance according to the value(s) in the table below.

C503898C07
0.896,0.823 1.292,1.083 0.396,0.26 3.427,0.99 3.427,1.406 3.427,1.406 3.26,1.406 true 3.427,0.781 3.427,0.281 3.427,0.281 3.26,0.281 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.938,0.885 1.313,1.073 0.375,0.188 10 false A151 2.698,0.198 3.406,0.438 0.708,0.24 10 false CANH*b 2.708,1.323 3.333,1.542 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 18 CAN Junction Connector) 		*b to Hybrid Vehicle Control ECU


Standard Resistance:
Tester Connection Condition Specified Condition
A151-2 (CANH) - A151-6 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

43.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 18 CAN JUNCTION CONNECTOR - NO. 19 CAN JUNCTION CONNECTOR)

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 18 CAN JUNCTION CONNECTOR - HYBRID VEHICLE CONTROL ECU)

43.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 18 CAN JUNCTION CONNECTOR - NO. 19 CAN JUNCTION CONNECTOR)
a.

Measure the resistance according to the value(s) in the table below.

C503898C08
0.896,0.823 1.292,1.083 0.396,0.26 3.719,1.01 3.719,1.427 3.719,1.427 3.885,1.427 true 3.719,0.792 3.719,0.292 3.719,0.292 3.885,0.292 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.948,0.885 1.323,1.073 0.375,0.188 10 false A151 3.979,0.208 4.688,0.448 0.708,0.24 10 false CANH*b 3.958,1.344 4.583,1.563 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 18 CAN Junction Connector) 		*b to No. 19 CAN Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
A151-3 (CANH) - A151-7 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE NO. 18 CAN JUNCTION CONNECTOR

NG

44.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 19 CAN JUNCTION CONNECTOR - NO. 18 CAN JUNCTION CONNECTOR)
44.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 19 CAN JUNCTION CONNECTOR - NO. 18 CAN JUNCTION CONNECTOR)
a.

Reconnect the A151 No. 18 CAN junction connector.


b.

Disconnect the A152 No. 19 CAN junction connector.


c.

Measure the resistance according to the value(s) in the table below.

C503898C10
0.896,0.823 1.292,1.083 0.396,0.26 4.021,1.01 4.021,1.427 4.021,1.427 4.188,1.427 true 4.01,0.792 4.01,0.292 4.01,0.292 4.177,0.292 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.938,0.885 1.313,1.073 0.375,0.188 10 false A152 4.24,0.208 4.948,0.448 0.708,0.24 10 false CANH*b 4.26,1.344 4.885,1.563 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 19 CAN Junction Connector) 		*b to No. 18 CAN Junction Connector


Standard Resistance:
Tester Connection Condition Specified Condition
A152-4 (CANH) - A152-8 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

45.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 19 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))

NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 19 CAN JUNCTION CONNECTOR - NO. 18 CAN JUNCTION CONNECTOR)

45.CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 19 CAN JUNCTION CONNECTOR - SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
a.

Measure the resistance according to the value(s) in the table below.

C503898C13
0.896,0.823 1.292,1.083 0.396,0.26 3.427,0.99 3.427,1.406 3.427,1.406 3.26,1.406 true 3.427,0.781 3.427,0.281 3.427,0.281 3.26,0.281 true 0.073,0.073 0.385,0.271 0.313,0.198 10 false *a 0.938,0.885 1.406,1.073 0.469,0.188 10 false A152 2.698,0.198 3.406,0.438 0.708,0.24 10 false CANH*b 2.708,1.323 3.333,1.542 0.625,0.219 10 false CANL*b
*a Front view of wire harness connector
(to No. 19 CAN Junction Connector) 		*b to Skid Control ECU (Brake Actuator Assembly)


Standard Resistance:
Tester Connection Condition Specified Condition
A152-2 (CANH) - A152-6 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE NO. 19 CAN JUNCTION CONNECTOR

NG

46.CHECK FOR OPEN IN CAN MAIN BUS LINES (SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
46.CHECK FOR OPEN IN CAN MAIN BUS LINES (SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
a.

Reconnect the A152 No. 19 CAN junction connector.


b.

Disconnect the A144 skid control ECU (brake actuator assembly) connector.


c.
C440175C31

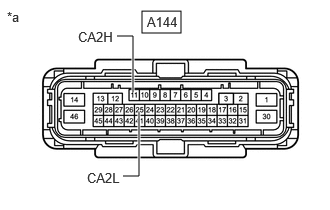

1.479,0.115 1.885,0.344 0.406,0.229 1.385,0.958 1.385,0.375 1.385,0.375 1.219,0.375 true 1.448,1.167 1.448,1.833 1.448,1.833 1.281,1.833 true 0.073,0.094 0.385,0.292 0.313,0.198 10 false *a 1.531,0.146 1.958,0.354 0.427,0.208 10 false A144 0.813,0.302 1.427,0.5 0.615,0.198 10 false CA2H 0.906,1.771 1.521,1.969 0.615,0.198 10 false CA2L
*a Front view of wire harness connector
(to Skid Control ECU (Brake Actuator Assembly))


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
A144-11 (CA2H) - A144-25 (CA2L) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω



Result:
Result
OK
NG



OK

REPLACE SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>BRAKE ACTUATOR (for HV Model)>REMOVAL


NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) - NO. 19 CAN JUNCTION CONNECTOR)
