BRAKE SYSTEM (OTHER)  BRAKE BOOSTER(for HV Model)  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during brake booster with master cylinder assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
Tires Rear television camera assembly optical axis (Back camera position setting) Parking Assist Monitor System (Click here)
Parking assist ECU initialization Panoramic View Monitor System (Click here)
Replacement of brake booster with master cylinder assembly Update ECU security key Vehicle Control History (RoB) are stored (Click here)
1.

Bleed air

2.

Perform "Reset Memory"

3.

Perform "Calibration"


·

DTCs are stored

·

ABS warning light illuminates

·

Brake system warning light (yellow indicator) illuminates

·

Slip indicator light illuminates

·

Electronically controlled brake system disabled or malfunctions



HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedures Link
Front Camera System Drive the vehicle straight ahead at 15 km/h (9 mph) or more for 1 second or more. (Click here)


NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY


PROCEDURE

Hide 4.REMOVE NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL (w/ No. 1 Heater Air Duct Splash Shield Seal)

Hide 55225C 7.REMOVE DASH PANEL HEAT INSULATOR (for M20F-FXS, M20G-FXS)

a.
C502826

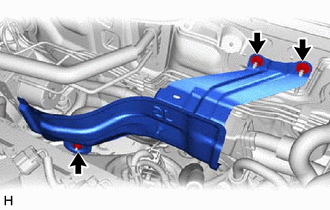

Remove the 3 nuts and dash panel heat insulator.


Hide 8.DRAIN BRAKE FLUID

NOTICE:

If brake fluid leaks onto any painted surface, immediately wash it off.


Hide 82111 9.SEPARATE ENGINE ROOM MAIN WIRE

a.
C491137C01
0.542,0.333 0.698,0.531 0.156,0.198 10 true A 0.479,1.542 0.635,1.74 0.156,0.198 10 true B
V113147

Push in this direction
V113148

Disconnect the connector in this direction


Disconnect the connector (A) from the brake booster.


b.

Disengage the clamp from the brake master cylinder reservoir assembly.


c.

Disconnect the connector (B) from the brake master cylinder reservoir assembly as shown in the illustration.


d.
C491136C01
0,0 0,0 false
V113147

Pressing the lock
V113148

Lift the lock lever
V113149

Disconnect the connector

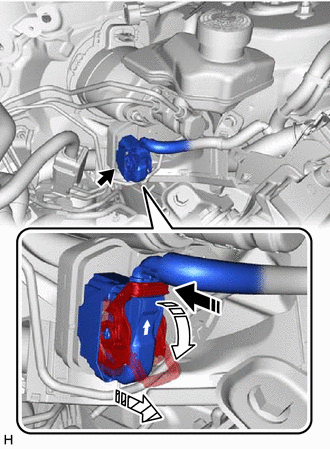

As shown in the illustration, lift the lock lever while pressing the lock and disconnect the connector from the brake booster.

NOTICE:

Be careful not to allow any brake fluid to enter the connector.



Hide 47315 10.SEPARATE FRONT NO. 5 BRAKE TUBE

a.
C491530

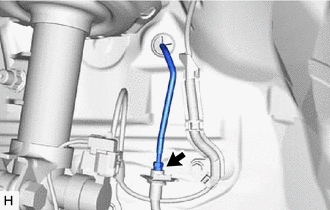

Using a union nut wrench, disconnect the front No. 5 brake tube from the front flexible hose LH.

NOTICE:
·

Do not kink or damage the brake lines.

·

Do not allow any foreign matter such as dirt or dust to enter the brake lines from the connecting parts.




b.
C493104C01
0,0 0,0 false
V113147

Disconnect in this Direction

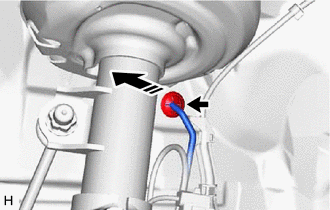

Disconnect the front brake tube grommet from the vehicle body as shown in the illustration.


c.
C491536

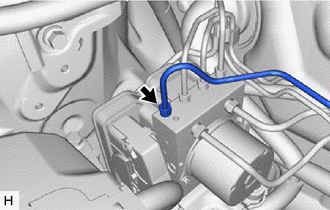

Using a union nut wrench, disconnect the front No. 5 brake tube from the brake actuator assembly.

NOTICE:
·

Do not kink or damage the brake lines.

·

Do not allow any foreign matter such as dirt or dust to enter the brake lines from the connecting parts.




d.
C491532

Disengage the 5 clamps and remove the No. 3 brake tube clamp from the brake lines.

NOTICE:
·

Do not kink or damage the brake lines.

·

Do not allow any foreign matter such as dirt or dust to enter the brake lines from the connecting parts.




e.
C491533

Disengage the 6 clamps and remove the No. 4 brake tube clamp from the brake lines.

NOTICE:
·

Do not kink or damage the brake lines.

·

Do not allow any foreign matter such as dirt or dust to enter the brake lines from the connecting parts.




f.
C491534

Disengage the 5 clamps and remove the No. 3 brake tube clamp from the brake lines.

NOTICE:
·

Do not kink or damage the brake lines.

·

Do not allow any foreign matter such as dirt or dust to enter the brake lines from the connecting parts.




g.
C491535

Disengage the 5 clamps and remove the No. 3 brake tube clamp from the brake lines.

NOTICE:
·

Do not kink or damage the brake lines.

·

Do not allow any foreign matter such as dirt or dust to enter the brake lines from the connecting parts.




Hide 11.SEPARATE BRAKE LINE

a.
C491129

Using a union nut wrench, disconnect the 2 brake lines from the brake master cylinder sub-assembly.

NOTICE:
·

Do not kink or damage the brake lines.

·

Do not allow any foreign matter such as dirt or dust to enter the brake lines from the connecting parts.




Hide 47210L 15.REMOVE BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY

a.
C491138C01
0.354,3.219 0.688,3.219 false 1.208,4.01 1.24,4.365 1.24,4.365 1.948,3.156 true 2.865,3.01 2.698,3.01 2.698,3.01 2.698,3.344 false 2.469,4.083 2.469,3.583 false 0.188,3.135 0.583,3.417 0.396,0.281 10 false *d 1.156,4.385 1.458,4.583 0.302,0.198 10 false *a 2.906,2.927 3.302,3.26 0.396,0.333 10 false *c 2.406,4.104 2.802,4.438 0.396,0.333 10 false *b

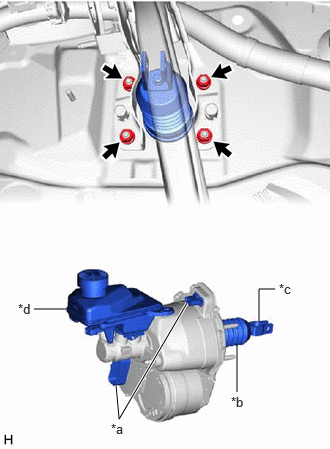

*a Connectors
*b Boot
*c Brake Master Cylinder Push Rod Clevis
*d Brake Master Cylinder Reservoir Assembly


Remove the 4 nuts and brake booster with master cylinder assembly.

NOTICE:
·

Do not kink or damage the brake lines.

·

Do not carry the brake booster with master cylinder assembly by the parts shown in the illustration.

·

Be careful not to allow any brake fluid to enter the connector.




Hide 44785 16.REMOVE BRAKE BOOSTER GASKET

a.

Remove the brake booster gasket from the brake booster with master cylinder assembly.
