NETWORKING  CAN COMMUNICATION SYSTEM  Clearance Warning ECU Communication Stop Mode


DESCRIPTION

Detection Item Symptom Trouble Area
Clearance Warning ECU Communication Stop Mode Communication stop for "Clearance Warning (Clearance Sonar)" is indicated on the "Communication Bus Check" screen of the GTS.
(Click here)
·

Clearance warning ECU assembly branch wire or connector

·

Power source circuit of clearance warning ECU assembly

·

Clearance warning ECU assembly ground circuit

·

Clearance warning ECU assembly



WIRING DIAGRAM

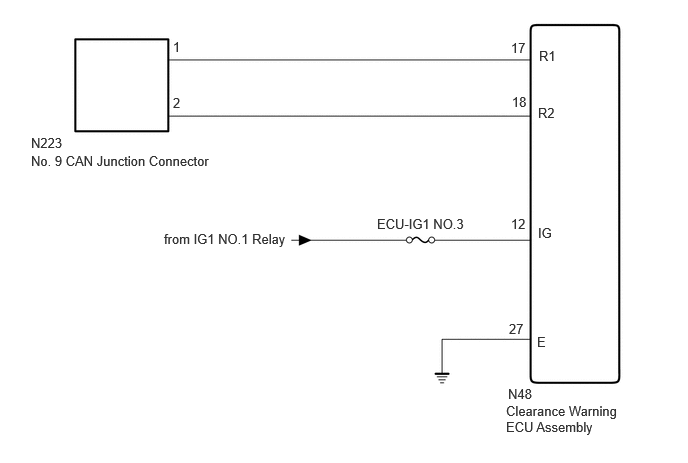

for Wagon, for RHD (except Wagon)
C416491E16
5.271,4.198 6.5,4.531 1.229,0.333 10 false Clearance Warning ECU Assembly 5.292,4.021 6.365,4.219 1.073,0.198 10 false N48 5.594,3.479 5.969,3.656 0.375,0.177 10 false E 5.604,2.344 5.979,2.521 0.375,0.177 10 false IG 5.615,0.5 6.073,0.698 0.458,0.198 10 false R1 5.604,1.094 6.063,1.292 0.458,0.198 10 false R2 5.323,0.417 5.604,0.635 0.281,0.219 10 false 17 5.333,0.979 5.573,1.156 0.24,0.177 10 false 18 5.302,3.344 5.615,3.625 0.313,0.281 10 false 27 5.323,2.25 5.656,2.49 0.333,0.24 10 false 12 3.927,2.25 5.156,2.448 1.229,0.198 10 false ECU-IG1 NO.3 1.708,2.406 3.281,2.656 1.573,0.25 10 false from IG1 NO.1 Relay 0.323,1.594 2.375,1.854 2.052,0.26 10 false No. 9 CAN Junction Connector 0.323,1.406 1.51,1.625 1.188,0.219 10 false N223 1.802,0.406 1.99,0.583 0.188,0.177 10 false 1 1.802,0.99 2.104,1.25 0.302,0.26 10 false 2

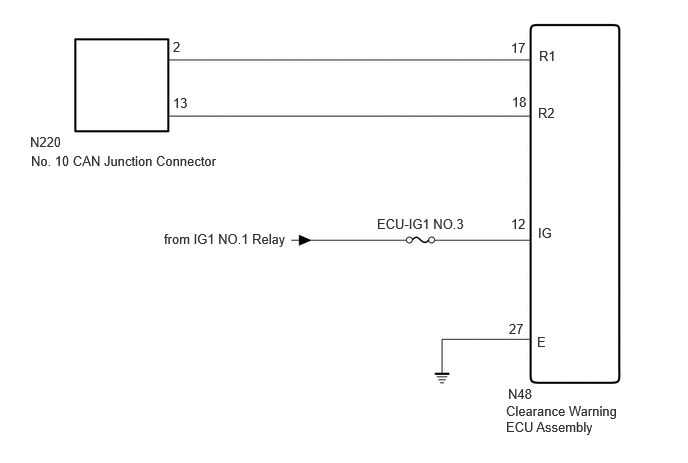

for Wagon, for LHD (for Wagon)
C416491E17
5.271,4.198 6.5,4.531 1.229,0.333 10 false Clearance Warning ECU Assembly 5.292,4.021 6.365,4.219 1.073,0.198 10 false N48 5.594,3.479 5.969,3.656 0.375,0.177 10 false E 5.604,2.344 5.979,2.521 0.375,0.177 10 false IG 5.615,0.5 6.073,0.698 0.458,0.198 10 false R1 5.604,1.094 6.063,1.292 0.458,0.198 10 false R2 5.323,0.417 5.604,0.635 0.281,0.219 10 false 17 5.333,0.979 5.573,1.156 0.24,0.177 10 false 18 5.302,3.344 5.615,3.625 0.313,0.281 10 false 27 5.323,2.25 5.656,2.49 0.333,0.24 10 false 12 3.927,2.25 5.156,2.448 1.229,0.198 10 false ECU-IG1 NO.3 1.708,2.406 3.281,2.656 1.573,0.25 10 false from IG1 NO.1 Relay 0.323,1.594 2.375,1.854 2.052,0.26 10 false No. 10 CAN Junction Connector 0.313,1.396 1.5,1.615 1.188,0.219 10 false N220 1.802,0.406 1.99,0.583 0.188,0.177 10 false 2 1.802,0.99 2.104,1.25 0.302,0.26 10 false 13

CAUTION / NOTICE / HINT

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


NOTICE:
·

Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM>HOW TO PROCEED WITH TROUBLESHOOTING

·

Inspect the fuses for circuits related to this system before performing the following procedure.

·

Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) battery terminal and leave the vehicle for 10 minutes or more before measuring the resistance.

·

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·

When disconnecting and reconnecting the battery.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART


·

Some parts must be initialized and set when replacing or removing and installing parts.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE

·

After performing repairs, perform the DTC check procedure and confirm that the DTCs are not output again.

DTC check procedure: Turn the ignition switch to ON and wait for 1 minute or more. Then operate the suspected malfunctioning system and drive the vehicle at 60 km/h (37 mph) or more for 5 minutes or more.

·

After the repair, perform the CAN bus check and check that all the ECUs and sensors connected to the CAN communication system are displayed as normal.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM>DIAGNOSIS SYSTEM



HINT:
·

Before disconnecting related connectors for inspection, push in on each connector body to check that the connector is not loose or disconnected.

·

When a connector is disconnected, check that the terminals and connector body are not cracked, deformed or corroded.



PROCEDURE

1.CHECK FOR OPEN IN CAN BUS WIRE (CLEARANCE WARNING ECU ASSEMBLY BRANCH WIRE)
a.

Disconnect the cable from the negative (-) battery terminal.


b.

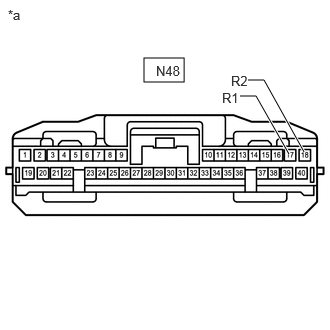

C369149C55
1.5,0.604 1.917,0.854 0.417,0.25 2.5,1 2.667,1 2.667,1 3.01,1.604 true 2.583,0.833 2.75,0.833 2.75,0.833 3.167,1.583 true 0.083,0.073 0.396,0.271 0.313,0.198 10 false *a 2.313,0.938 2.625,1.135 0.313,0.198 10 false R1 2.406,0.76 2.719,0.958 0.313,0.198 10 false R2 1.625,0.656 1.938,0.854 0.313,0.198 10 false N48
*a Front view of wire harness connector
(to Clearance Warning ECU Assembly)


Disconnect the N48 clearance warning ECU assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N48-17 (R1) - N48-18 (R2) Cable disconnected from negative (-) battery terminal 54 to 69 Ω



Result:
Proceed to
OK
NG



OK

2.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)

NG

REPAIR OR REPLACE CAN BRANCH WIRE OR CONNECTOR

2.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
a.

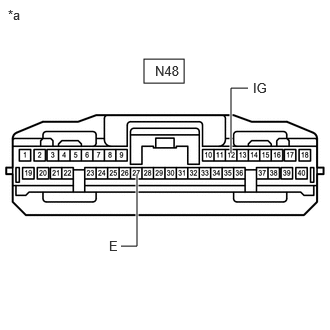

C369149C58
1.5,0.615 1.917,0.865 0.417,0.25 1.26,2.563 1.427,2.563 1.427,2.563 1.427,1.813 true 2.583,0.917 2.406,0.917 2.406,0.917 2.406,1.594 true 0.083,0.073 0.396,0.271 0.313,0.198 10 false *a 1.135,2.479 1.448,2.677 0.313,0.198 10 false E 1.615,0.656 1.927,0.854 0.313,0.198 10 false N48 2.635,0.833 2.948,1.031 0.313,0.198 10 false IG
*a Front view of wire harness connector
(to Clearance Warning ECU Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N48-27 (E) - Body ground Cable disconnected from negative (-) battery terminal Below 1 Ω



b.

Reconnect the cable to the negative (-) battery terminal.


c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
N48-12 (IG) - Body ground Ignition switch ON 11 to 14 V
Ignition switch off Below 1 V



Result:
Proceed to
OK
NG



OK

REPLACE CLEARANCE WARNING ECU ASSEMBLY

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>CLEARANCE WARNING ECU>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
