RM35X0E _57 Power Source / Network _078518 NETWORKING _0381088 CAN COMMUNICATION SYSTEM J

NETWORKING  CAN COMMUNICATION SYSTEM  Certification ECU Communication Stop Mode


DESCRIPTION

Detection Item Symptom Trouble Area
Certification ECU Communication Stop Mode Communication stop for "Certification (Smart)" or "Power Management" is indicated on the "Communication Bus Check" screen of the GTS.
(Click here)
·

Certification ECU (smart key ECU assembly) branch wire or connector

·

Power source circuit of certification ECU (smart key ECU assembly)

·

Certification ECU (smart key ECU assembly) ground circuit

·

Certification ECU (smart key ECU assembly)

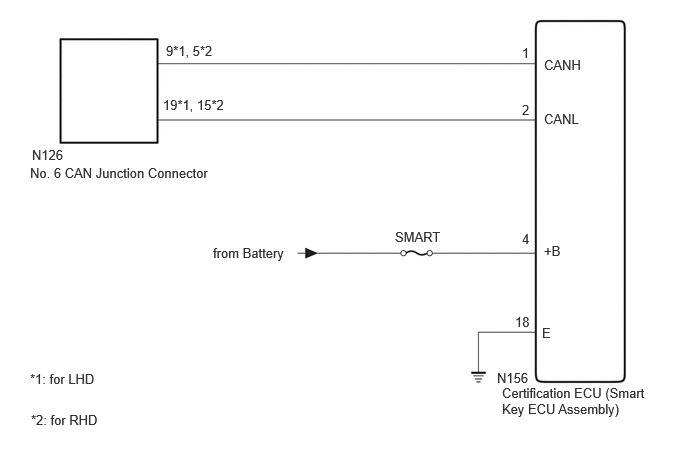

WIRING DIAGRAM

C491454E01
5.177,3.854 6.604,4.167 1.427,0.313 10 false N156 5.229,4.01 6.76,4.396 1.531,0.385 10 false Certification ECU (Smart Key ECU Assembly) 5.646,3.385 7.073,3.698 1.427,0.313 10 false E 5.667,2.531 7.094,2.844 1.427,0.313 10 false +B 5.667,1.156 7.094,1.469 1.427,0.313 10 false CANL 5.667,0.594 7.094,0.906 1.427,0.313 10 false CANH 5.438,1.063 6.865,1.375 1.427,0.313 10 false 2 5.438,0.469 6.865,0.781 1.427,0.313 10 false 1 5.438,2.406 6.865,2.719 1.427,0.313 10 false 4 5.365,3.271 6.792,3.583 1.427,0.313 10 false 18 4.115,2.385 5.542,2.698 1.427,0.313 10 false SMART 2.219,2.552 3.792,2.865 1.573,0.313 10 false from Battery 1.698,1.01 2.885,1.229 1.188,0.219 10 false 19*1, 15*2 1.729,0.448 3.156,0.76 1.427,0.313 10 false 9*1, 5*2 0.333,1.531 0.865,1.75 0.531,0.219 10 false N126 0.313,1.719 2.688,1.927 2.375,0.208 10 false No. 6 CAN Junction Connector 0.313,3.865 1.74,4.177 1.427,0.313 10 false *1: for LHD 0.323,4.292 1.75,4.604 1.427,0.313 10 false *2: for RHD

CAUTION / NOTICE / HINT

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


NOTICE:
·

Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM>HOW TO PROCEED WITH TROUBLESHOOTING

·

Inspect the fuses for circuits related to this system before performing the following procedure.

·

Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) battery terminal and leave the vehicle for 10 minutes or more before measuring the resistance.

·

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·

When disconnecting and reconnecting the battery.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART


·

Some parts must be initialized and set when replacing or removing and installing parts.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE

·

After performing repairs, perform the DTC check procedure and confirm that the DTCs are not output again.

DTC check procedure: Turn the ignition switch to ON and wait for 1 minute or more. Then operate the suspected malfunctioning system and drive the vehicle at 60 km/h (37 mph) or more for 5 minutes or more.

·

After the repair, perform the CAN bus check and check that all the ECUs and sensors connected to the CAN communication system are displayed as normal.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM>DIAGNOSIS SYSTEM

·

Before replacing the certification ECU (smart key ECU assembly), refer to Service Bulletin.



HINT:
·

Before disconnecting related connectors for inspection, push in on each connector body to check that the connector is not loose or disconnected.

·

When a connector is disconnected, check that the terminals and connector body are not cracked, deformed or corroded.



PROCEDURE

1.CHECK FOR OPEN IN CAN BUS WIRE (CERTIFICATION ECU [SMART KEY ECU ASSEMBLY] BRANCH WIRE)
a.

Disconnect the cable from the negative (-) battery terminal.


b.
C369116C16
1.5,0.167 1.917,0.417 0.417,0.25 1.094,1.438 1.25,0.833 1.25,0.833 1.417,0.833 true 0.938,1.427 1.115,0.667 1.115,0.667 1.281,0.667 true 0.083,0.094 0.396,0.292 0.313,0.198 10 false *a 1.542,0.198 2.052,0.448 0.51,0.25 10 false N156 1.333,0.604 1.792,0.802 0.458,0.198 10 false CANH 1.469,0.781 1.927,0.979 0.458,0.198 10 false CANL
*a Front view of wire harness connector
(to Certification ECU [Smart Key ECU Assembly])


Disconnect the N156 certification ECU (smart key ECU assembly) connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N156-1 (CANH) - N156-2 (CANL) Cable disconnected from negative (-) battery terminal 54 to 69 Ω



Result:
Proceed to
OK
NG



OK

2.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)

NG

REPAIR OR REPLACE CAN BRANCH WIRE OR CONNECTOR

2.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
a.
C369116C17
1.5,0.167 1.917,0.417 0.417,0.25 2.5,1.427 2.25,0.667 2.25,0.667 2,0.667 true 0.917,1.958 0.958,2.802 0.958,2.802 1.125,2.802 true 0.083,0.094 0.396,0.292 0.313,0.198 10 false *a 1.552,0.219 2.01,0.417 0.458,0.198 10 false N156 1.188,2.719 1.646,2.917 0.458,0.198 10 false E 1.802,0.615 2.26,0.813 0.458,0.198 10 false +B
*a Front view of wire harness connector
(to Certification ECU [Smart Key ECU Assembly])


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N156-18 (E) - Body ground Cable disconnected from negative (-) battery terminal Below 1 Ω



b.

Reconnect the cable to the negative (-) battery terminal.


c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
N156-4 (+B) - Body ground Always 11 to 14 V



Result:
Proceed to
OK
NG



OK

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
