PARK ASSIST / MONITORING BLIND SPOT MONITOR SENSOR REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the blind spot monitor sensor removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replacement part or procedure	Necessary procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
Blind spot monitor sensor	Blind spot monitor beam axis adjustment	Blind spot monitor system	(202208,999999,_56,_079315,_0385745,RM1000000024I1U,)

PROCEDURE

Hide Display 1.REMOVE REAR BUMPER ASSEMBLY

except Wagon:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>REAR BUMPER (except Wagon)>REMOVAL202208,999999,_59,_079322,_0397095,RM1000000024I5K,

for Wagon:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>REAR BUMPER (for Wagon)>REMOVAL201906,999999,_59,_079322,_0397094,RM100000001IMTP,

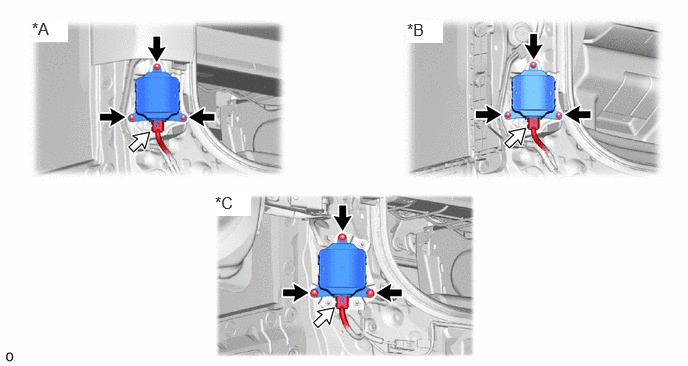

Hide Display 88172 2.REMOVE BLIND SPOT MONITOR SENSOR LH

Remove the 3 nuts and blind spot monitor sensor LH.

0.333,0.198 0.708,0.438 0.375,0.24 12 true *A 4.24,0.208 4.615,0.448 0.375,0.24 12 true *B 2.24,2.01 2.615,2.25 0.375,0.24 12 true *C

*A	except Wagon	*B	for Wagon
*C	for Double Swing Out Type	-	-
	Nut		Connector

Disconnect the connector.

NOTICE:: Do not drop the blind spot monitor sensor LH. If it is dropped, replace it with a new one.

Hide Display 88162 3.REMOVE BLIND SPOT MONITOR SENSOR RH

HINT:: Use the same procedure described for the LH side.

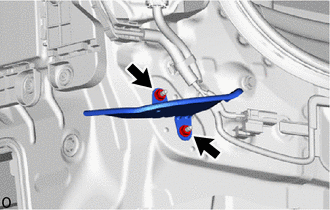

Hide Display 88173 4.REMOVE BLIND SPOT MONITOR COVER LH (w/ Blind Spot Monitor Cover)

Remove the 2 nuts and blind spot monitor cover LH.

Hide Display 88163 5.REMOVE BLIND SPOT MONITOR COVER RH (w/ Blind Spot Monitor Cover)

HINT:: Use the same procedure described for the LH side.

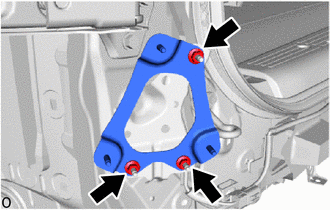

Hide Display 88171 6.REMOVE BLIND SPOT MONITOR BRACKET LH (for Double Swing Out Type)

HINT:: Perform this procedure only when replacement of the blind spot monitor bracket LH is necessary.

Remove the 3 nuts and blind spot monitor bracket LH.

Hide Display 88161 7.REMOVE BLIND SPOT MONITOR BRACKET RH (for Double Swing Out Type)

HINT:: ·

Perform this procedure only when replacement of the blind spot monitor bracket RH is necessary.

·

Use the same procedure described for the LH side.
