RM35X0E _59 Vehicle Exterior _079322 EXTERIOR PANELS / TRIM _0397094 REAR BUMPER(for Wagon) A

EXTERIOR PANELS / TRIM  REAR BUMPER(for Wagon)  REMOVAL


CAUTION / NOTICE / HINT

HINT:

If the bumper is damaged, there is a possibility that the installation area of the blind spot monitor sensor may be deformed and the blind spot monitor system may not operate correctly, so visually inspect the blind spot monitor sensor installation area (frame, stud bolt) to make sure it is not dented or bent.

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>BLIND SPOT MONITOR SENSOR>ADJUSTMENT

If the visual inspection finds a problem, check the installation condition of the blind spot monitor sensor, and adjust the installation position of the blind spot monitor sensor as necessary.


PROCEDURE

Hide 52162B 1.REMOVE REAR BUMPER NO. 1 PLATE

HINT:
·

Use the same procedure for the RH and LH sides.

·

Use the same procedure described for the LH side.



a.
B551674C01
0,0 0,0 false
V100155

Protective Tape


Apply protective tape around the rear bumper No. 1 plate.


b.

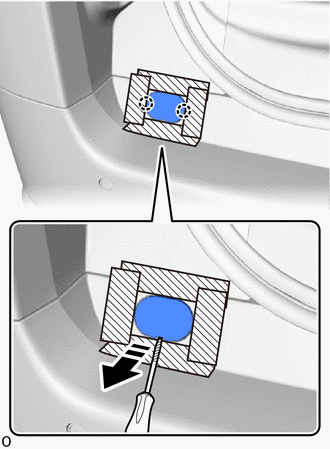

B551675C01
0,0 0,0 false
V113147

Remove in this Direction
V100155

Protective Tape


Using a screwdriver, detach the claw and remove the rear bumper No. 1 plate as shown in the illustration.

HINT:

Tape the screwdriver tip before use.



Hide 2.REMOVE REAR BUMPER ASSEMBLY

a.

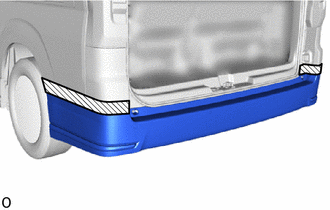

B551677C01
0,0 0,0 false
V100155

Protective Tape


Apply protective tape around the rear bumper assembly.


b.
B551678

Remove the 2 screws.


c.
B551679

Using a clip remover, remove the 5 clips.


d.
B551680

Remove the clip.

HINT:

Use the same procedure for the RH and LH sides.



e.
B551681C01
0.458,0.906 0.667,1.094 0.208,0.188 10 true (1) 0.667,1 0.875,1.188 0.208,0.188 10 true (2) 0.896,1.073 1.104,1.25 0.208,0.177 10 true (3) 1.104,1.167 1.313,1.344 0.208,0.177 10 true (4) 1.333,1.271 1.542,1.448 0.208,0.177 10 true (5) 1.594,1.313 1.802,1.49 0.208,0.177 10 true (6)
V113146

Place Hand Here
V113147

Remove in this Direction


Place your hand at the position shown in the illustration and detach the claw in the order shown in the illustration.

HINT:

Use the same procedure for the RH and LH sides.



f.

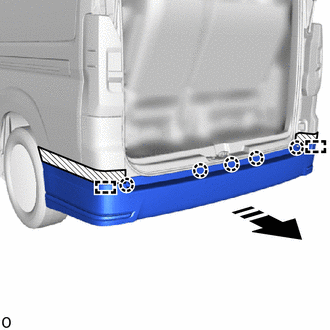

B551683C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw and guide and remove the rear bumper assembly as shown in the illustration.


g.

w/ TOYOTA Parking Assist-sensor System:

i.
B551685

Disconnect the connector.



Hide 52162G 3.REMOVE REAR BUMPER NO. 1 PLATE

HINT:
·

Use the same procedure for the RH and LH sides.

·

Use the same procedure described for the LH side.



a.

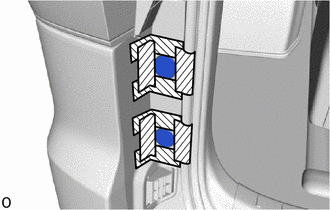

B551686C01
0,0 0,0 false
V100155

Protective Tape


Apply protective tape around the rear bumper No. 1 plate.


b.

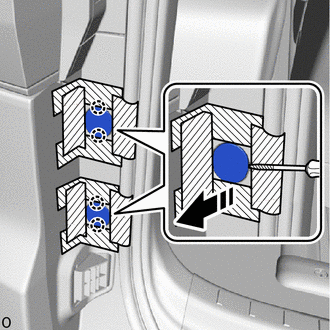

B551687C01
0,0 0,0 false
V113147

Remove in this Direction


Using a screwdriver, detach the claw and remove the 2 rear bumper No. 1 plates as shown in the illustration.

HINT:

Tape the screwdriver tip before use.



Hide 52166A 4.REMOVE REAR BUMPER UPPER COVER LH

a.

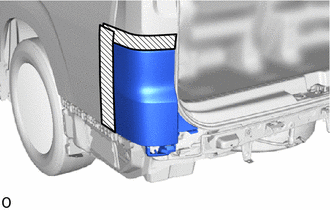

B551689C01
0,0 0,0 false
V100155

Protective Tape


Apply protective tape around the rear bumper upper cover LH.


b.
B551690

Remove the 2 screws.


c.

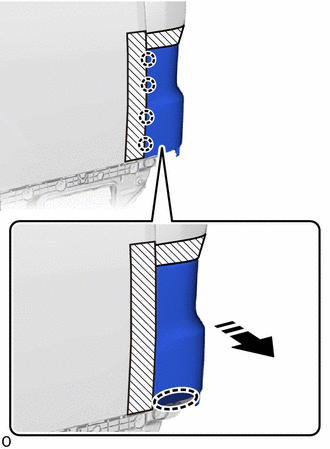

B551691C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction


Place your hand at the positions shown in the illustration and detach the claw.


d.

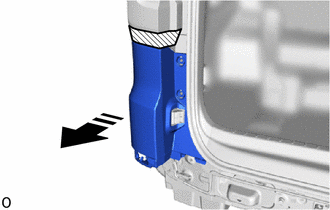

B551693C01
0,0 0,0 false
V113147

Remove in this Direction


Pull toward the rear of the vehicle and remove the rear bumper upper cover LH.


Hide 52165A 5.REMOVE REAR BUMPER UPPER COVER RH

HINT:

Use the same procedure for the RH and LH sides.
