NAVIGATION / MULTI INFO DISPLAY  NAVIGATION SYSTEM  B15DB  Telematics Transceiver Disconnected


DESCRIPTION

If the radio and display receiver assembly cannot detect the telematics transceiver for a certain period of time (90 seconds) after the ignition switch is turned to ON and the radio and display receiver assembly confirms that the information is missing by checking past telematics transceiver recognition information (registered information), this DTC will be stored.

HINT:

The telematics system uses USB communication between devices. If an open, short, short to +B or short to ground occurs in the USB circuit, communication is interrupted and the telematics system will not operate normally.


DTC No. Detection Item DTC Detection Condition Trouble Area
B15DB Telematics Transceiver Disconnected Telematics transceiver disconnected
·

Harness or connector

·

Telematics transceiver

·

Radio and display receiver assembly

·

Navigation ECU



HINT:

This DTC may be stored due to environmental reasons such as electrical noise or interference.


WIRING DIAGRAM

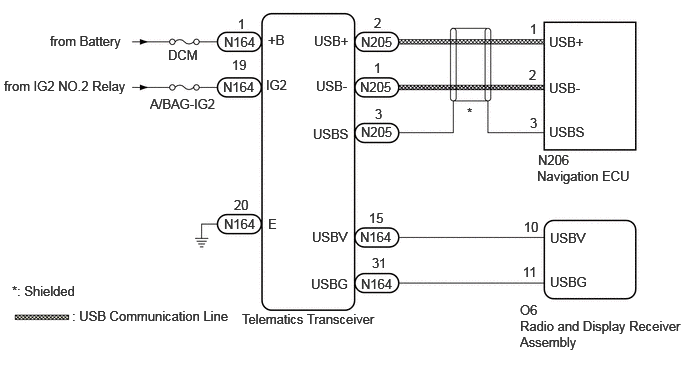

E423965E26
0.521,0.344 1.917,0.792 1.396,0.448 10 false from Battery 1.75,0.49 2.115,0.677 0.365,0.188 10 false DCM 1.563,1 2.385,1.167 0.823,0.167 10 false A/BAG-IG2 0.042,0.813 1.406,1.104 1.365,0.292 10 false from IG2 NO.2 Relay 2.333,0.354 2.708,0.531 0.375,0.177 10 false N164 2.792,0.333 3.052,0.51 0.26,0.177 10 false +B 2.479,0.167 2.677,0.344 0.198,0.177 10 false 1 2.771,0.802 3.146,0.979 0.375,0.177 10 false IG2 2.417,0.594 2.646,0.771 0.229,0.177 10 false 19 2.792,2.25 2.938,2.427 0.146,0.177 10 false E 2.438,2.052 2.698,2.292 0.26,0.24 10 false 20 0.75,3.208 2.458,3.427 1.708,0.219 10 false : USB Communication Line 2.521,3.24 4.292,3.771 1.771,0.531 10 false Telematics Transceiver 3.271,0.344 3.688,0.521 0.417,0.177 10 false USB+ 3.292,0.813 3.708,0.99 0.417,0.177 10 false USB- 3.26,1.313 3.677,1.49 0.417,0.177 10 false USBS 3.896,0.156 4.042,0.354 0.146,0.198 10 false 2 3.896,0.625 4.042,0.823 0.146,0.198 10 false 1 3.906,1.104 4.104,1.281 0.198,0.177 10 false 3 5.604,1.583 5.99,1.802 0.385,0.219 10 false N206 5.594,1.75 6.719,2.052 1.125,0.302 10 false Navigation ECU 5.719,0.354 6.135,0.531 0.417,0.177 10 false USB+ 5.719,0.833 6.135,1.01 0.417,0.177 10 false USB- 5.719,1.292 6.135,1.469 0.417,0.177 10 false USBS 5.521,0.219 5.667,0.417 0.146,0.198 10 false 1 5.51,0.698 5.656,0.896 0.146,0.198 10 false 2 5.521,1.198 5.667,1.396 0.146,0.198 10 false 3 3.25,2.385 3.667,2.563 0.417,0.177 10 false USBV 3.24,2.875 3.656,3.052 0.417,0.177 10 false USBG 3.844,2.188 4.115,2.417 0.271,0.229 10 false 15 3.875,2.656 4.094,2.865 0.219,0.208 10 false 31 5.417,3.313 7.104,3.74 1.688,0.427 10 false Radio and Display Receiver Assembly 5.417,3.146 5.823,3.313 0.406,0.167 10 false O6 5.729,2.396 6.146,2.573 0.417,0.177 10 false USBV 5.729,2.854 6.146,3.031 0.417,0.177 10 false USBG 5.458,2.281 5.656,2.458 0.198,0.177 10 false 10 5.448,2.75 5.646,2.927 0.198,0.177 10 false 11 3.75,2.385 4.125,2.563 0.375,0.177 10 false N164 3.76,2.875 4.135,3.052 0.375,0.177 10 false N164 2.333,2.25 2.708,2.427 0.375,0.177 10 false N164 3.76,0.354 4.135,0.531 0.375,0.177 10 false N205 2.323,0.823 2.698,1 0.375,0.177 10 false N164 3.75,0.823 4.125,1 0.375,0.177 10 false N205 3.76,1.292 4.135,1.469 0.375,0.177 10 false N205 4.865,1.094 5.24,1.271 0.375,0.177 10 false * 0.125,2.948 1.021,3.146 0.896,0.198 10 false *: Shielded

CAUTION / NOTICE / HINT

NOTICE:
·

When replacing the telematics transceiver, make sure to replace it with a new one.

·

Inspect the fuses for circuits related to this system before performing the following procedure.

·

When replacing the radio and display receiver assembly or navigation ECU, always replace it with a new one.

If a radio and display receiver assembly or navigation ECU which was installed to another vehicle is used, the following may occur:

-

A communication malfunction DTC may be stored.

-

The radio and display receiver assembly or navigation ECU may not operate normally.




HINT:

Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed. Refer to Precaution for Navigation System.

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION SYSTEM>PRECAUTION


PROCEDURE

1.CHECK DTC
a.

Clear the DTCs.

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION SYSTEM>DTC CHECK / CLEAR

Body Electrical > Navigation System > Clear DTCs
50002 212

b.

Turn the ignition switch off.


c.

Turn the ignition switch to ON and wait for 90 seconds.


d.

Recheck for DTCs and check that no DTCs are output.

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION SYSTEM>DTC CHECK / CLEAR

Body Electrical > Navigation System > Trouble Codes
50001 212
OK:

No DTCs are output.



Result:
Proceed to
OK
NG



OK

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


NG

2.CHECK HARNESS AND CONNECTOR (TELEMATICS TRANSCEIVER - BATTERY AND BODY GROUND)
2.CHECK HARNESS AND CONNECTOR (TELEMATICS TRANSCEIVER - BATTERY AND BODY GROUND)
a.
E427294C19

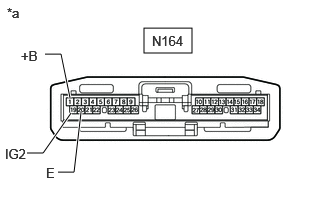

1.5,0.292 2,0.552 0.5,0.26 0.604,1.792 0.771,1.792 0.771,1.792 0.844,1.167 true 0.469,0.563 0.635,0.563 0.635,0.563 0.729,1.021 true 0.281,1.594 0.448,1.594 0.448,1.594 0.74,1.177 true 0.073,0.052 0.385,0.25 0.313,0.198 10 false *a 1.583,0.344 1.979,0.531 0.396,0.188 10 false N164 0.479,1.719 0.875,1.906 0.396,0.188 10 false E 0.052,1.521 0.448,1.708 0.396,0.188 10 false IG2 0.219,0.5 0.615,0.688 0.396,0.188 10 false +B
*a Front view of wire harness connector
(to Telematics Transceiver)


Disconnect the N164 telematics transceiver connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N164-20 (E) - Body ground Always Below 1 Ω



c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
N164-1 (+B) - Body ground Always 11 to 14 V
N164-19 (IG2) - Body ground Ignition switch ON 11 to 14 V



Result:
Proceed to
OK
NG



OK

3.CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - TELEMATICS TRANSCEIVER)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

3.CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - TELEMATICS TRANSCEIVER)
a.

Disconnect the O6 radio and display receiver assembly connector.


b.

Disconnect the N164 telematics transceiver connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
O6-10 (USBV) - N164-15 (USBV) Always Below 1 Ω
O6-11 (USBG) - N164-31 (USBG) Always Below 1 Ω
O6-10 (USBV) - Body ground Always 10 kΩ or higher
O6-11 (USBG) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

4.CHECK RADIO AND DISPLAY RECEIVER ASSEMBLY (USBV, USBG)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

4.CHECK RADIO AND DISPLAY RECEIVER ASSEMBLY (USBV, USBG)
a.
E438189C13

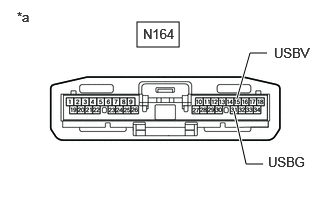

1.427,0.229 1.865,0.49 0.438,0.26 2.469,1.021 2.604,0.552 2.604,0.552 2.781,0.552 true 2.438,1.156 2.563,1.708 2.563,1.708 2.74,1.708 true 1.49,0.271 1.927,0.5 0.438,0.229 10 false N164 2.854,0.469 3.344,0.667 0.49,0.198 10 false USBV 2.792,1.604 3.281,1.802 0.49,0.198 10 false USBG 0.177,0.094 0.49,0.292 0.313,0.198 10 false *a
*a Front view of wire harness connector
(to Telematics Transceiver)


Disconnect the N164 telematics transceiver connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N164-31 (USBG) - Body ground Always Below 1 Ω



c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
N164-15 (USBV) - N164-31 (USBG) Ignition switch ON 4.75 to 5.25 V



Result:
Proceed to
OK
NG



OK

5.CHECK HARNESS AND CONNECTOR (TELEMATICS TRANSCEIVER - NAVIGATION ECU)

NG

REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>RADIO RECEIVER>REMOVAL


5.CHECK HARNESS AND CONNECTOR (TELEMATICS TRANSCEIVER - NAVIGATION ECU)
a.
E427222C12

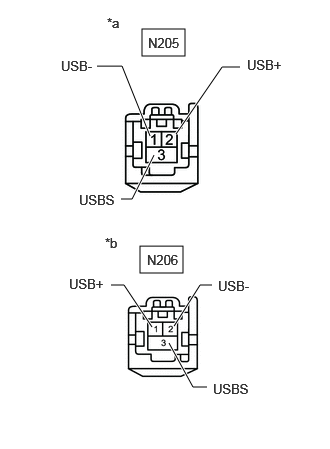

1.479,0.302 1.927,0.583 0.448,0.281 1.458,2.563 1.906,2.844 0.448,0.281 2.5,0.698 2.313,0.698 2.313,0.698 1.833,1.396 true 1.583,3.406 1.292,2.969 1.292,2.969 1.156,2.969 true 2.208,2.969 2.083,2.969 2.083,2.969 1.813,3.396 true 2.156,4.031 2.01,4.031 2.01,4.031 1.76,3.573 true 1.563,1.417 1.271,0.688 1.271,0.688 1.01,0.688 true 1.26,2.073 1.375,2.073 1.375,2.073 1.604,1.615 true 1.115,0.156 1.427,0.354 0.313,0.198 10 false *a 1.094,2.448 1.406,2.646 0.313,0.198 10 false *b 1.542,0.365 2,0.563 0.458,0.198 10 false N205 1.531,2.625 1.99,2.823 0.458,0.198 10 false N206 0.635,0.604 1.25,0.802 0.615,0.198 10 false USB- 0.719,2.875 1.333,3.073 0.615,0.198 10 false USB+ 2.573,0.594 3.188,0.792 0.615,0.198 10 false USB+ 2.271,2.896 2.885,3.094 0.615,0.198 10 false USB- 2.219,3.969 2.833,4.167 0.615,0.198 10 false USBS 0.823,2 1.438,2.198 0.615,0.198 10 false USBS
*a Front view of wire harness connector
(to Telematics Transceiver)
*b Front view of wire harness connector
(to Navigation ECU)


Disconnect the N205 telematics transceiver connector.


b.

Disconnect the N206 navigation ECU connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N205-2 (USB+) - N206-1 (USB+) Always Below 1 Ω
N205-1 (USB-) - N206-2 (USB-) Always Below 1 Ω
N205-3 (USBS) - N206-3 (USBS) Always Below 1 Ω
N205-2 (USB+) - Body ground Always 10 kΩ or higher
N205-1 (USB-) - Body ground Always 10 kΩ or higher
N205-3 (USBS) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

6.CHECK TELEMATICS TRANSCEIVER

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

6.CHECK TELEMATICS TRANSCEIVER
a.

Replace the telematics transceiver with a new one.

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS TRANSCEIVER (for RHD)>REMOVAL


b.

Clear the DTCs.

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION SYSTEM>DTC CHECK / CLEAR

Body Electrical > Navigation System > Clear DTCs
50002 212

c.

Turn the ignition switch off.


d.

Turn the ignition switch to ON and wait for 90 seconds.


e.

Recheck for DTCs and check that no DTCs are output.

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION SYSTEM>DTC CHECK / CLEAR

Body Electrical > Navigation System > Trouble Codes
50001 212
OK:

No DTCs are output.



Result:
Proceed to
OK
NG



OK

END (TELEMATICS TRANSCEIVER IS DEFECTIVE)

NG

7.CHECK NAVIGATION ECU
7.CHECK NAVIGATION ECU
a.

Replace the navigation ECU with a new one.

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION ECU>REMOVAL


b.

Clear the DTCs.

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION SYSTEM>DTC CHECK / CLEAR

Body Electrical > Navigation System > Clear DTCs
50002 212

c.

Turn the ignition switch off.


d.

Turn the ignition switch to ON and wait for 90 seconds.


e.

Recheck for DTCs and check that no DTCs are output.

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION SYSTEM>DTC CHECK / CLEAR

Body Electrical > Navigation System > Trouble Codes
50001 212
OK:

No DTCs are output.



Result:
Proceed to
OK
NG



OK

END (NAVIGATION ECU IS DEFECTIVE)

NG

REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>RADIO RECEIVER>REMOVAL
