RM35X0E _54 Brake _078671 PARKING BRAKE _0381557 PARKING BRAKE CABLE(for Front Side) A

PARKING BRAKE PARKING BRAKE CABLE(for Front Side) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the No. 1 parking brake cable assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replacement Part or Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
Disconnect cable from negative (-) battery terminal	Memorize steering angle neutral point	Parking assist monitor system	(201902,999999,_56,_079315,_0385736,RM100000001GNRA,)
Disconnect cable from negative (-) battery terminal	Memorize steering angle neutral point	Panoramic view monitor system	(201906,999999,_56,_079315,_0396274,RM100000001IGR3,)

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*: w/ Stop and start system
Stop and start system*	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(201902,999999,_51,_078825,_0382334,RM100000001GBQ1,)
Lane control system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)
Pre-collision system		(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power slide door system	Fully close the slide door by hand. HINT: Initialization is not necessary if the above procedures are performed while the slide door is closed.	(201902,999999,_59,_078503,_0381017,RM100000001FWXM,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

Use the same procedure for RHD and LHD vehicles.

The procedure listed below is for LHD vehicles.

PROCEDURE

Hide Display 1. PRECAUTION

CAUTION:: Be sure to read Precaution thoroughly before servicing.; ·

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>PRECAUTION201906,999999,_58,_079257,_0387732,RM100000001IMN3,

·

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>PRECAUTION201902,999999,_58,_079257,_0385034,RM100000001GJPR,

·

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>PRECAUTION201906,999999,_58,_079257,_0396679,RM100000001IJ80,

NOTICE:: After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY201902,999999,_V1,_081196,_0393338,RM100000001HX6Q,

Hide Display 46201E 2.REMOVE PARKING BRAKE LEVER SUB-ASSEMBLY

Click hereBrake>PARKING BRAKE>PARKING BRAKE LEVER>REMOVAL201906,999999,_54,_078671,_0381556,RM100000001JEHF,

Hide Display 17420 3.REMOVE CENTER EXHAUST PIPE ASSEMBLY (for 7GR-FKS)

Click hereEngine / Hybrid System>7GR-FKS (INTAKE / EXHAUST)>EXHAUST PIPE>REMOVAL201902,999999,_51,_079308,_0385728,RM100000001GNNZ,

Hide Display 17420 4.REMOVE CENTER EXHAUST PIPE ASSEMBLY (for 1GD-FTV)

Click hereEngine / Hybrid System>1GD-FTV (INTAKE / EXHAUST)>EXHAUST PIPE>REMOVAL201906,999999,_51,_079307,_0385723,RM100000001M38X,

Hide Display 5.REMOVE UPPER MAIN MUFFLER HEAT INSULATOR

Remove the 5 bolts and upper main muffler heat insulator.

Hide Display 6.REMOVE NO. 3 FLOOR HEAT INSULATOR

Remove the 3 bolts, nut and No. 3 floor heat insulator.

Hide Display 46410 7.SEPARATE NO. 1 PARKING BRAKE CABLE ASSEMBLY

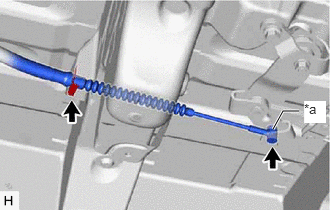

2.844,1.344 2.948,1.156 2.948,1.156 3.115,1.156 true 3.167,1.052 3.396,1.281 0.229,0.229 10 true *a

*a	End of No. 1 Parking Brake Cable Assembly

Remove the clip and disconnect the end of the No. 1 parking brake cable assembly.

Separate the No. 1 parking brake cable assembly from the parking brake intermediate lever assembly.

Hide Display 46410 8.REMOVE NO. 1 PARKING BRAKE CABLE ASSEMBLY

Remove the bolt and No. 1 parking brake cable assembly from the vehicle body.

Hide Display 46420A 9.REMOVE NO. 1 PARKING BRAKE CABLE CLAMP

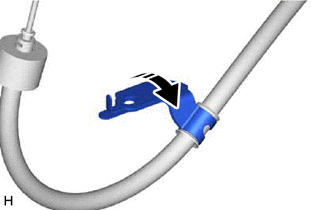

Remove the No. 1 parking brake cable clamp in the direction indicated by the arrow shown in the illustration.
