NAVIGATION / MULTI INFO DISPLAY NAVIGATION ANTENNA INSTALLATION
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for RHD and LHD vehicles.
·The procedure listed below is for LHD vehicles.
PROCEDURE
86862
1.INSTALL NAVIGATION ANTENNA BRACKET
86860
2.INSTALL NAVIGATION ANTENNA ASSEMBLY
|
Install in this Direction |

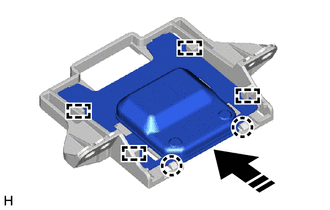

Attach the guide and claw to install the navigation antenna assembly as shown in the illustration.
3.INSTALL NAVIGATION ANTENNA ASSEMBLY WITH BRACKET

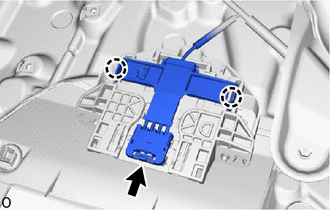

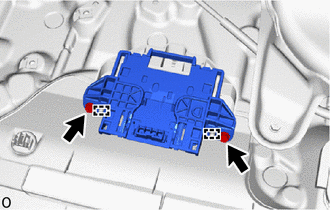

Attach the guide to set the navigation antenna assembly with bracket.
Install the 2 screws.
Attach the claw.
Connect the connector.
55990C
4.INSTALL CENTER DEFROSTER NOZZLE ASSEMBLY
5.INSTALL INSTRUMENT PANEL SAFETY PAD
6.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (w/ Airbag System)
7. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL (w/ Airbag System)
- HINT:
-
When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.
8. PERFORM DIAGNOSTIC SYSTEM CHECK (w/ Airbag System)
9.CHECK SRS WARNING LIGHT (w/ Airbag System)
