RM35X0E _58 Vehicle Interior _078602 SEAT BELT _0389611 OCCUPANT DETECTION SENSOR(for Separate Seat Type) A

SEAT BELT OCCUPANT DETECTION SENSOR(for Separate Seat Type) REMOVAL

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the front seat cushion pad (occupant detection sensor) removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replacement Part or Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures not Performed	Link
Disconnect cable from negative (-) battery terminal	Memorize steering angle neutral point	Parking assist monitor system	(201902,999999,_56,_079315,_0385736,RM100000001GNRA,)
Disconnect cable from negative (-) battery terminal	Memorize steering angle neutral point	Panoramic view monitor system	(201906,999999,_56,_079315,_0396274,RM100000001IGR3,)

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the systems is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures not Performed	Necessary Procedures	Link
Stop and start system	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(201902,999999,_51,_078825,_0382334,RM100000001GBQ1,)
Lane control system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)
Pre-collision system		(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures not Performed	Necessary Procedures	Link
Power slide door system	Fully close the slide door by hand. HINT: Initialization is not necessary if the above procedures are performed while the slide door is closed.	(201902,999999,_59,_078503,_0381017,RM100000001FWXM,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

Use the same procedure for RHD and LHD vehicles.

The procedure listed below is for LHD vehicles.

PROCEDURE

Hide Display 1. PRECAUTION (w/ Front Seat Side Airbag)

CAUTION:: Be sure to read Precaution thoroughly before servicing.; ·

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>PRECAUTION201906,999999,_58,_079257,_0387732,RM100000001IMN3,

·

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>PRECAUTION201902,999999,_58,_079257,_0385034,RM100000001GJPR,

·

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>PRECAUTION201906,999999,_58,_079257,_0396679,RM100000001IJ80,

NOTICE:: After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY201902,999999,_V1,_081196,_0393338,RM100000001HX6Q,

Hide Display 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (w/ Front Seat Side Airbag)

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>REMOVAL201906,999999,_V1,_078672,_0387105,RM100000001IWL9,

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>REMOVAL201906,999999,_V1,_078672,_0387106,RM100000001IWLA,

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

Hide Display 3.REMOVE FRONT SEAT ASSEMBLY RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>REMOVAL201906,999999,_58,_078601,_0381328,RM100000001J8ZD,

Hide Display 71139M 4.REMOVE FRONT SEAT OUTER LEG COVER RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>DISASSEMBLY201906,202208,_58,_078601,_0381328,RM100000001IW08_02_0002,202208,999999,_58,_078601,_0381328,RM1000000024I2J_02_0002,

Hide Display 71139N 5.REMOVE FRONT SEAT INNER LEG COVER RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>DISASSEMBLY201906,202208,_58,_078601,_0381328,RM100000001IW08_02_0037,202208,999999,_58,_078601,_0381328,RM1000000024I2J_02_0037,

Hide Display 71130B 6.REMOVE FRONT SEAT LEG ASSEMBLY RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>DISASSEMBLY201906,202208,_58,_078601,_0381328,RM100000001IW08_02_0005,202208,999999,_58,_078601,_0381328,RM1000000024I2J_02_0005,

Hide Display 72551K 7.REMOVE RECLINING HINGE COVER RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>DISASSEMBLY201906,202208,_58,_078601,_0381328,RM100000001IW08_02_0007,202208,999999,_58,_078601,_0381328,RM1000000024I2J_02_0007,

Hide Display 72525M 8.REMOVE RECLINING ADJUSTER RELEASE HANDLE RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>DISASSEMBLY201906,202208,_58,_078601,_0381328,RM100000001IW08_02_0008,202208,999999,_58,_078601,_0381328,RM1000000024I2J_02_0008,

Hide Display 71861K 9.REMOVE FRONT SEAT INNER CUSHION SHIELD RH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>DISASSEMBLY201906,202208,_58,_078601,_0381328,RM100000001IW08_02_0011,202208,999999,_58,_078601,_0381328,RM1000000024I2J_02_0011,

Hide Display 71811T 10.REMOVE FRONT SEAT CUSHION SHIELD RH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>DISASSEMBLY201906,202208,_58,_078601,_0381328,RM100000001IW08_02_0033,202208,999999,_58,_078601,_0381328,RM1000000024I2J_02_0033,

Hide Display 11.REMOVE FRONT SEATBACK ASSEMBLY

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>DISASSEMBLY201906,202208,_58,_078601,_0381328,RM100000001IW08_02_0013,202208,999999,_58,_078601,_0381328,RM1000000024I2J_02_0013,

Hide Display 12.REMOVE FRONT SEAT CUSHION COVER WITH PAD

0,0 0,0 false

Protective Tape

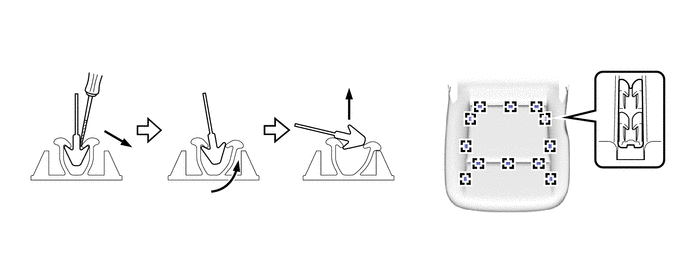

Using a thin-bladed screwdriver, detach the claw.

HINT:: Tape the thin-bladed screwdriver tip before use.

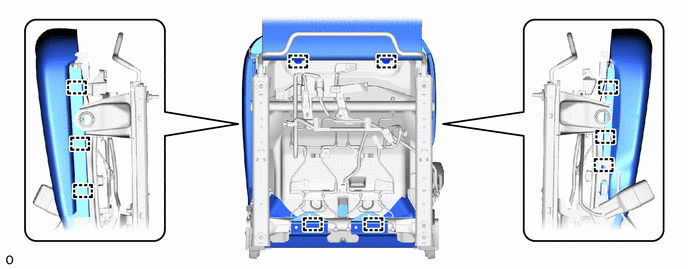

Detach the hook.

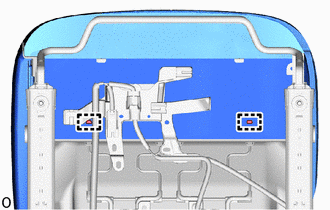

Detach the hook and remove the front seat cushion cover with pad.

Hide Display 71511A 13.REMOVE FRONT SEAT CUSHION PAD RH (OCCUPANT DETECTION SENSOR)

0.76,1.74 1.656,1.563 true 0.552,1.635 0.698,1.813 0.146,0.177 10 false *a

*a	Band
	Remove in this Direction

Detach the band as shown in the illustration.

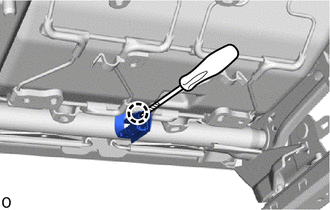

Using a thin-bladed screwdriver, detach the hook and remove the front seat cushion cover sub-assembly RH from the front seat cushion pad RH (occupant detection sensor) as shown in the illustration.

0,0 0,0 false

Protective Tape

NOTICE:: Be careful not to damage the front seat cushion cover sub-assembly RH.

HINT:: Tape the thin-bladed screwdriver tip before use.
