RM35X0E _51 Engine / Hybrid System _078603 7GR-FKS ENGINE MECHANICAL _0381342 REAR CRANKSHAFT OIL SEAL A

7GR-FKS ENGINE MECHANICAL  REAR CRANKSHAFT OIL SEAL  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the rear crankshaft oil seal removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
Battery terminal is disconnected/reconnected Memorize steering angle neutral point Parking assist monitor system (Click here)
Panoramic view monitor system (Click here)
Replacement of ECM Perform Vehicle Identification Number (VIN) or frame number registration DTC P063051 is stored (Click here)
ECU communication ID registration Engine start function See Service Bulletin for the registration method.
for RC60J:

Performing iMT installation information reset


·

iMT system

·

DTCs are output


(Click here)
·

Air leaks from intake system

·

Gas leaks from exhaust system


Inspection after repair
·

Poor idle, etc.

·

Engine start function, etc.


(Click here)
for AC60E:

Replacement of automatic transmission assembly


Reset memory
·

Large shift shock

·

Engine overruns


(Click here)
for AC60E:

Replacement of automatic transmission fluid


ATF thermal degradation estimate reset The value of the Data List item "ATF Thermal Degradation Estimate" is not estimated correctly
Front wheel alignment adjustment
·

Perform reset memory

·

Perform acceleration sensor zero point calibration and store system information memorization.


·

VSC is disabled or malfunctions

·

DTCs are output

·

Slip indicator light illuminates

·

ABS warning light illuminates


(Click here)
Suspension, tires, etc. Television camera assembly optical axis (Back camera position setting) Parking assist monitor system (Click here)

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative when not Performed Necessary Procedures Link
Lane control system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)
Pre-collision system

·

Learning completes when vehicle is operated normally

Effect/Inoperative when not Performed Necessary Procedures Link
Power slide door system Fully close the slide door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the slide door is closed.


(Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -



CAUTION:
·
A346363C01
2.219,0.813 2.646,0.813 false 2.698,0.729 3.01,0.927 0.313,0.198 10 false *a
*a An Object Exceeding Weight Limit of Engine Lifter


The engine assembly with transmission is very heavy. Be sure to follow the procedure described in the repair manual, or the engine lifter may suddenly drop or the engine assembly may fall off the engine lifter.

·
A344783

To prevent burns, do not touch the engine, exhaust manifold or other high temperature components while the engine is hot.



PROCEDURE

Hide 31210 3.REMOVE CLUTCH COVER ASSEMBLY (for Manual Transmission)

Hide 31250 4.REMOVE CLUTCH DISC ASSEMBLY (for Manual Transmission)

Hide 13405 5.REMOVE FLYWHEEL SUB-ASSEMBLY (for Manual Transmission)

a.

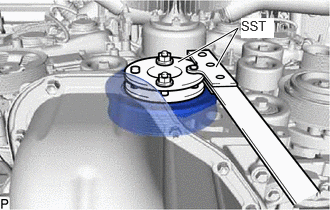

A436691N01
1.854,0.646 2.479,0.292 2.479,0.292 2.25,0.698 true 2.51,0.188 2.854,0.396 0.344,0.208 10 true SST

Using SST, hold the crankshaft.

SST
09213-54015  (91651-60855)
09330-00021


b.

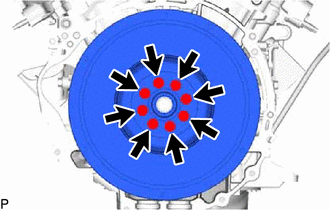

A436692

Remove the 8 bolts and flywheel sub-assembly.

NOTICE:

Do not reuse the bolts.



c.

Remove the No. 1 crankshaft position sensor plate.


Hide 32101 6.REMOVE DRIVE PLATE AND RING GEAR SUB-ASSEMBLY (for Automatic Transmission)

a.
A436691N01
1.854,0.646 2.479,0.292 2.479,0.292 2.25,0.698 true 2.51,0.188 2.854,0.396 0.344,0.208 10 true SST

Using SST, hold the crankshaft.

SST
09213-54015  (91651-60855)
09330-00021


b.

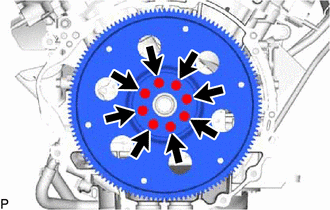

A436693

Remove the 8 bolts, rear drive plate spacer, drive plate and ring gear sub-assembly and No. 1 crankshaft position sensor plate.


Hide 11381A 7.REMOVE REAR CRANKSHAFT OIL SEAL

a.
A436694C01
0.76,1.177 0.594,0.469 0.594,0.469 0.479,0.469 true 0.281,0.365 0.469,0.594 0.188,0.229 10 true *a
*a Cut Position


Using a knife, cut off the lip of the rear crankshaft oil seal.


b.

Using a screwdriver, pry out the rear crankshaft oil seal.

NOTICE:

Do not damage the surface of the rear crankshaft oil seal press fit hole or crankshaft.


HINT:

Tape the screwdriver tip before use.
